Customized Photonics BK7 Windows

This kind of BK7 Windows is made from SCHOTT N-BK7 Glass, which has transparent range from 330-2100nm.

High Precision Optical Brewster Windows

Great for Use in Laser Cavities Circular Profile When Oriented at 55.57° Uncoated UV Fused Silica Brewster Windows

MgF2 Coated, Penta Prism Beamsplitter

Beamsplitter Penta Prism by adding a wedge and with partial reflective coating on one of its leaning surfaces, Penta Prism can be used as Beamsplitter. Transmission/reflection (T/R) ratio of 50/50, or others for Beamsplitter Penta Prism is available upon request.

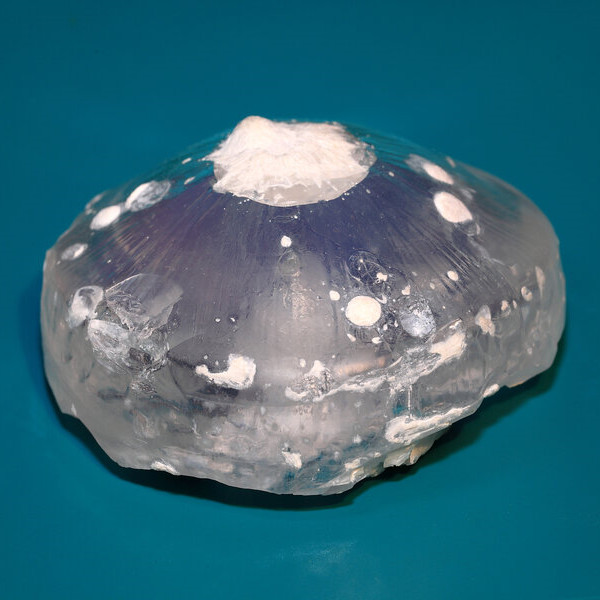

BBO Nonlinear crystal Beta-Barium Borate Crystal

HGO grows BBO Nonlinear crystals using flux technology. BBO crystal transparency ranges from 188 nm to 5,2 µm, which includes reasonable transparency from 3-5,2 µm for few tens µm thick crystals, while their phase-matchable range spans almost over the entire transparency range. Combined with other magnificent properties of BBO, it is favorable for numerous nonlinear parametric applications. It is worth to mention that BBO crystals have the highest nonlinearity in the UV range out of all common nonlinear crystals.

Optical Glass Plano-Convex Lenses

Plano-Convex Lenses is best used where one conjugate point (object distance S or image distance S' ) is more than five times the other. This lens shape is near best-form for either focusing collimated light or for collimating a point source.

Customized Photonics Fused Silica Windows

Fused Silica Window is made from the material of fused silica. Fused Silica is a superior optical material possesses excellent optical, chemical and physical properties which is formed by chemical combination of silicon and oxygen.

N-BK7 and Fused Silica Wedge Prisms

Wedge prism is an optical element with plane-inclined surfaces, usually the faces are inclined toward one another at a very small angles. It diverts light toward its thicker portion. Wedge prisms can be used as isolating components. Wedges may also be used to produce a small deviation which doesnt allow return to source.

KTP Nonlinear crystal Potassium Titanyl Phosphate

Potassium Titanyl Phosphate (KTiOPO4 or KTP) is widely used in both commercial and military lasers including laboratory and medical systems, range-finders, lidar, optical communication and industrial systems.

Custom-made material CaF2 Windows

This kind of windows is made from Custom-made material CaF2.

High Presion Double Convex Lenses and Bi-convex Lenses

Double Convex Lenses, Bi-convex Lenses have two outward curved surfaces, a positive focal length and are useful for 1:1 imaging and in multi-element systems.These lenses are designed to have a focal length of f= (R1*R2)/((n-1)*(R2-R1)) 1. Supported by the Zemax Optical Design Package 2. Posistive Focal Length 3. Material upon requirement

BK7 And Fused Silica Glass Dove Prisms

Invented by H.W. Dove, Dove Prisms are also known Reversion prisms. When the prism is rotated about its length axis, the image viewed through the prism rotates at twice the prism rotation rate. This is an unusual and sometimes useful property for special applications. Entry and exit faces are anti-reflection coated.

LiNbO3 crystal Lithium niobate

LiNbO3 is widely used as electro-optic modulators and Q-switches for Nd:YAG, Nd:YLF and Ti:Sapphire lasers as well as modulators for fiber optics.

alpha-BBO & Calcite material Glan Taylor Polarizer

Glan Taylor Polarizer is made of two same birefringence material prisms which are separated by an air space. The polarizer with on side escape window is suitable for low to medium power application. Glan Taylor Polarizer will divide an entering unpolarized beam into beam rays, one is the extraordinary that is transmitted through the other side, and another is the ordinary ray that is totally internally reflected absorbed.

Optical Glass Plano-Concave Lenses

Plano-Concave Lenses have a negative focal length and is typically used to cause a collimated beam to diverge as in a Galilean type beam expander or Telescope. 1. Beam expansion 2. Light projection 3. Expanding an optical system’s focal length

30° - 60° - 90° Littrow Dispersion Prisms

Dispersion Prisms are used in applications that require separating the incident light into its component wavelengths. For example, when white light enters a Dispersion Prism, it is separated into its three components: red, green, and blue. Dispersion Prisms are ideal for spectroscopy or laser tuning.

KDP & DKDP Crystal Potassium Dihydrogen Phosphate and Potassium Dideuterium Phosphate

KDP Potassium Dihydrogen Phosphate and KD*P or DKDP Potassium Dideuterium Phosphate are among the most widely-used commercial NLO materials, characterized by good UV transmission, high damage threshold, and high birefringence, though their NLO coefficients are relatively low. They are usually used for doubling, tripling and quadrupling of a Nd:YAG laser under the room temperature. In addition, they are also excellent electro-optic crystals with high electro-optic coefficients, widely used as electro-optical modulators, such as Q-switches, Pockels Cells, etc.

For high power laser Glan Laser Polarizer

Glan Laser Polarizer is designed specifically for high energy laser. It is made of two same birefringence material prisms that are assembled with an air space. The polarizer with two escape windows allows the rejected beam to escape out of the polarizer which makes it suitable for high power laser.

High Presion Double Concave Lenses and Bi-concave Lenses

Double Concave Lenses, Bi-Concave Lenses is like the Plano-Concave lenses in that they are used to produce divergent light. The Bi-Concave is best used when the input beam is converging. 1. Supported by the Zemax Optical Design Package 2. Negative Focal Length 3. Material upon requirement

High performance anamorphic prism

The Anamorphic prisms are used in pairs to magnify input beam size along one axis while leaving the other axis unchanged. The elliptical laser diode beams can be transferred into nearly circular.

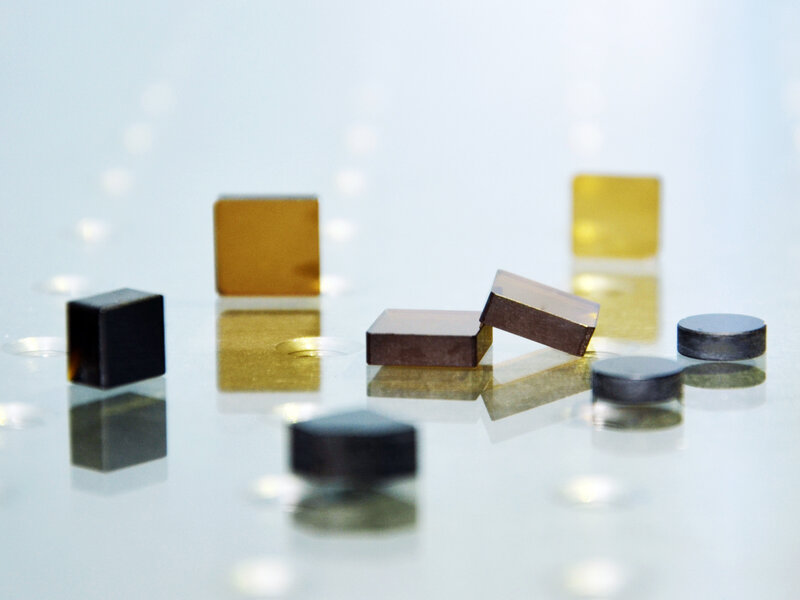

Cr4+:YAG crystals Chromium Doped Yttrium AIuminum Garnet

Cr4+:YAG (Y3Al5O12) crystal is ideal for passive Q-switch operation of Nd:YAG and other Nd3+ or Yb3+ doped laser crystals in the wavelength range of 900 nm to 1200 nm. Passive Q-switches or saturable absorbers provide high power laser pulses without electro-optic Q-switches, thereby reducing the package size and eliminating a high voltage power supply. A remarkable feature of Cr4+:YAG is the high damage threshold of >10 J/cm2@1064 nm, 10 ns. Its absorption band extends from 900 nm to 1200 nm and peaks around 1060 nm with a very large absorption cross-section.

alpha-BBO & Calcite Glan Thompson Polarizer

Glan Thompson Polarizer is made of two α-BBO or calcite prisms cemented together. It has a wavelength from 200nm to 2300nm. α-BBO polarizer can be used from about 200nm to 1100nm, and calcite polarizer can be used from 350nm to 2300nm. This type polarizer has higher extinction ratio than air spaced polarizer. And it has the widest field angle of any design. For example, α-BBO Glan Thompson Polarizer has an angular field lager than 15 degree.

Positive meniscus lenses and Negative meniscus lenses

Positive meniscus lenses is convex-concave lens thicker at the center than at the edges, which frequently used for beam focusing applications. Negative meniscus lenses is convex-concave lens thinner at the center than edges, which frequently used for beam expanding applications.

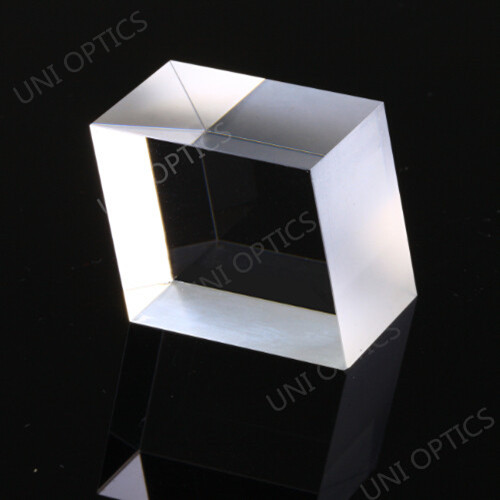

High Precision Rhomboid Prism

The Rhomboid prism application for rhomboid-prism is controlling and redirecting the optical path without affecting the image direction. They can be used to displace an optical center line for light beam folding and stereoscopic systems of different sizes.

Co2+:MgAl2O4 Cobalt-doped magnesium aluminate spinel

Co2+:MgAl2O4 Cospinel is a relatively new material for passive Q-switching in lasers emitting from 1.2 to 1.6 μm, in particular, for eye-safe 1.54 μm Er:glass laser, but also works at 1.44 μm and 1.34 μm wavelengths. Spinel is a hard, stable crystal that polishes well. Cobalt substitutes readily for magnesium in the Spinel host without the need for additional charge compensation ions. High absorption cross section (3.5×10-19 cm2) permits Q-switching of Er:glass laser without intracavity focusing both with flash-lamp and diode-laser pumping. Negligible excited-state absorption results in high contrast of Q-switch, i.e. the ratio of initial (small signal) to saturated absorption is higher than 10.

High Performance Optical Wollaston Polarizer

Wollaston Polarizer is made of birefringence material prisms that are cemented together. The ordinary ray in the first half of the prism becomes the extraordinary ray in the second half. The Wollaston Polarizing beam splitter has approximately twice the deviation for the Rochon Polarizer.

Precision optical glass achromatic Lenses (Doublets)

Achromatic Lenses (Doublets) VIS 0° and VIS-NIR coated achromats are also available Correct for on-axis spherical and chromatic aberrations Custom Achromatic Lenses Available

AR coated Colour glass window

Color glass change the spectral properties of optical radiation. They therefore allow scientific experiments and industrial applications where that change is necessary. You can combine color glass filters together to change the band pass or to increase the attenuation.

YVO4 crystal Yttrium Orthovanadate

The Yttrium Orthovanadate (YVO4) is a positive uniaxial crystal grown with Czochralski method. It has good temperature stability and physical and mechanical properties. It is ideal for optical polarizing components because of its wide transparency range and large birefringence. It is an excellent synthetic substitute for Calcite (CaCO3) and Rutile (TiO2) crystals in many applications including fiber optic isolators and circulators, interleavers, beam displacers and other polarizing optics.

Optical alpha-BBO & YVO4 Rochon Polarizer

Rochon Polarizer is the earliest polarizer, which is made of two birefringence material prisms that are cemented together. This type polarizer separates incident beam into ordinary ray and extra-ordinary ray like Wollaston Polarizer, but the extra-ordinary ray is straight transmitted through, while ordinary is transmitted with a deviation angle.

Triplet Achromatic Lenses

Hastings triplets achromatic lenses are designed to provide an infinite conjugate ratio and are useful for focusing collimated beams and for magnification. Steinheil triplets achromatic lenses are designed to provide a finite conjugate ratio and 1:1 imaging.

AR Coated Sapphire Windows

Sapphire window retains its high strength at high temperatures, has good thermal properties and excellent transparency. It is chemically resistant to common acids and alkali at temperatures up to 1000 °C as well as to HF below 300 °C . These properties encourage its wide use in hostile environments where optical transmission in the range from the vacuum ultraviolet to the near infrared is required.

a-BBO Crystal alpha -Barium Borate

α-BBO (α-BaB2O4) is a negative uniaxial crystal which has large birefringence over a broad transparent range of 190nm to 3500nm. α-BBO is an excellent crystal especially in UV and high power applications. The physical, chemical, thermal, and optical properties of alpha-BBO crystal are similar to those of Beta-BBO. However, there is no second order nonlinear effect in alpha-BBO crystal due to the centrosymmetry in its crystal structure and thus it has no use for second order nonlinear optical processes. Instead, alpha-BBO is widely used for fabrication of polarizers, polarizing beam displacers, phase retarders, birefringent plates, and time delay compensators especially those for UV and high power lasers.

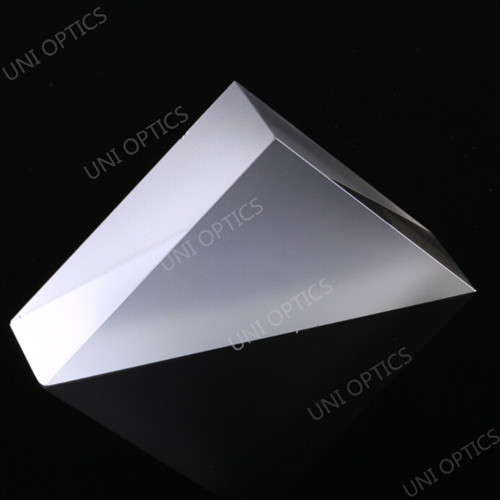

Right Angle Prism as a mirror and a retroreflector

Right Angle Prism is used as a mirror to deviate light through 90 degree, and also as a retroreflector to deflect light through 180 degree by total internal reflection.

Optical glass plano-convex cylinrical Lenses

Plaon-convex cylindrical lenses are used to provide focusing power in one section only, For illumination or detection of light from line sources.Also used for anamorphic compression of beams and images. 1. Used to Focus Light in One Dimension 2. Provide Anamorphic Shaping of a Beam 3. Rectangular and Circular Form Factors Available

AR Coated BK7 Windows

BK7 window is the most common type of window. It has good performance over visible and near infrared wavelength region. At the same time,BK7 window is ideal for applications require minimal transmitted beam deviation. It is suitable for AR coating .

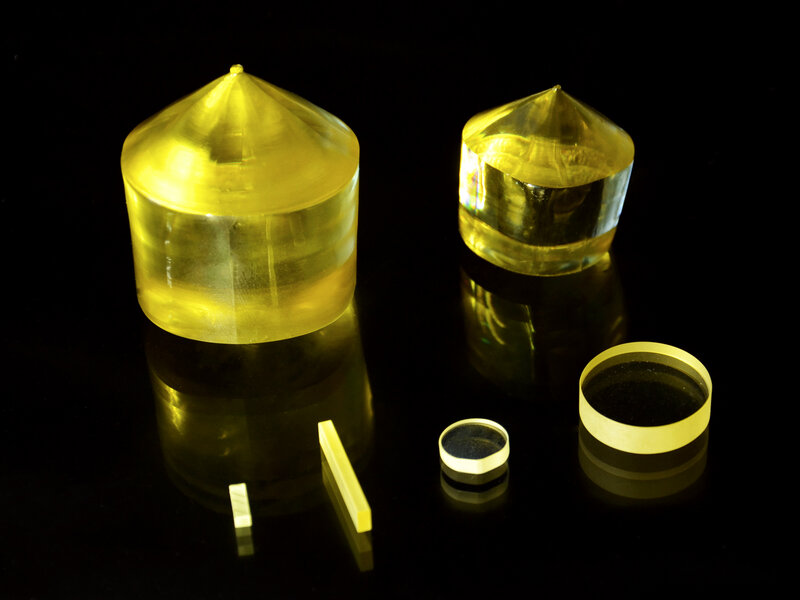

TGG crystal Terbium Gallium Garnet

TGG is an excellent magneto-optical crystal used in various Faraday devices(Polarizer and Isolator) in the range of 400nm-1100nm, excluding 475-500nm.

Aluminum Coated Penta Prisms

Penta Prism is a five-sided prism containing two reflecting surfaces at 45° to each other, and two refracting faces perpendicular to the entering and emerging beams. The standard Penta Prism reflecting surfaces are coated with aluminum or enhanced aluminum.

Optical Glass Plano-Concave Cylinrical Lenses

Plaon-concave cylindrical lenses are used to provide focusing power in one section only, For illumination or detection of light from line sources.Also used for anamorphic compression of beams and images. 1. Ideal for Applications Requiring Magnification in One Dimension 2. Used to Transform a Collimated Beam into a Line 3. Rectangular and Circular Form Factors Available

UV Fused Silica High-Precision window

Fused silica window, with low thermal expansion, providing stability and resistance to thermal shock over large temperature excursions, wide thermal operating range and high laser damage threshold, is a better choice for transmission from UV to IR.

MgF2 crystal Magnesium Fluoride

MgF2 or Magnesium Fluoride is positive uni-axial crystal with a very high optical transmittance from the vacuum UV to IR. It is regularly used for optical elements where extreme ruggedness and durability is required. It also has a large resistance to mechanical and thermal shock, to optical radiation, and is chemically stable, making it a very useful materials for UV and IR optics.
