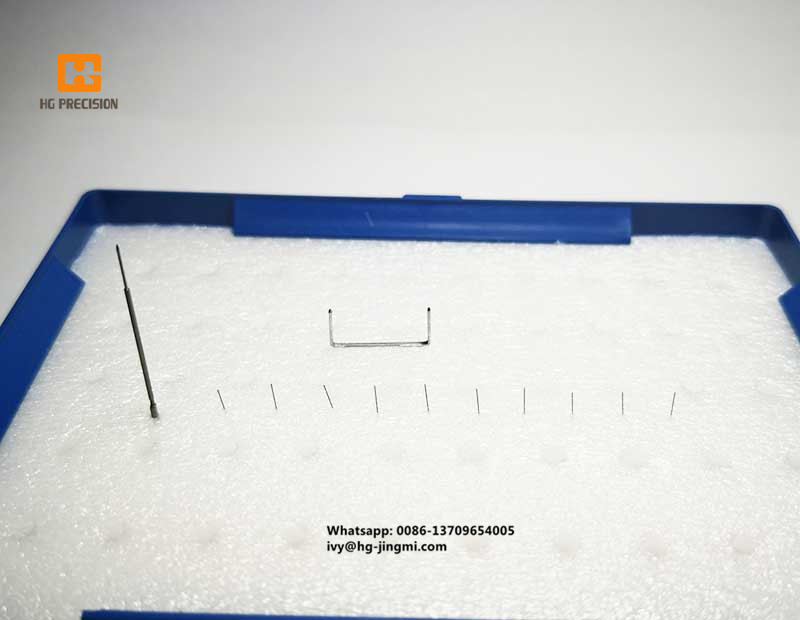

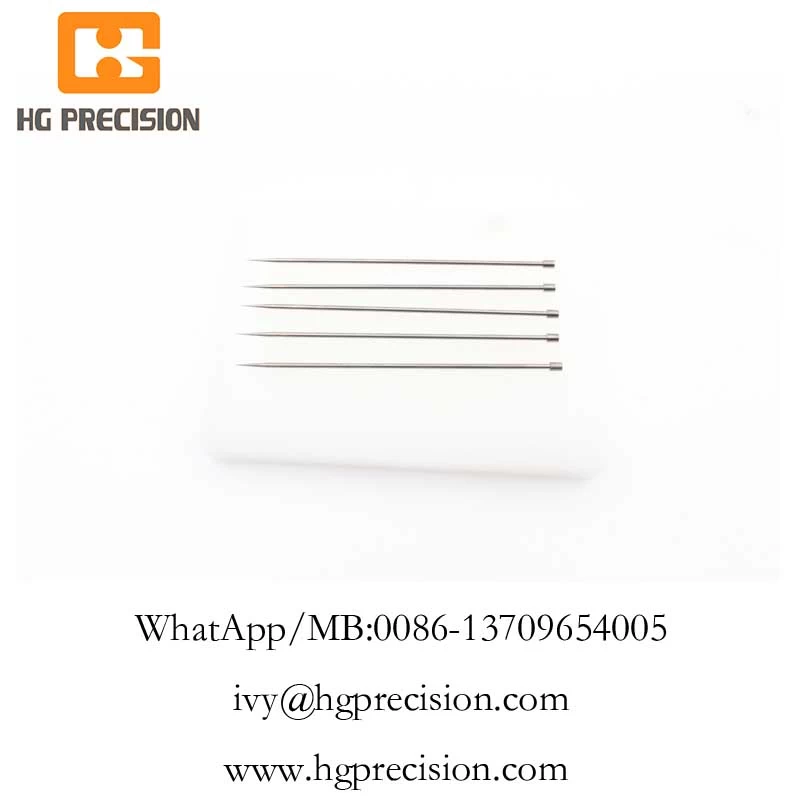

0.01 Micro Carbide Pilot Pin
Advantage:
We have special machine for pilot pin
manufacture, the capacity is over 100,000pcs per month for carbide material, and
tolerance is 0.003mm.
As the micro diameter, the quality control is by the non-contact testing machines, which is imported from Japan.
The product apply for: precision electronics(such as IC, mobile phone precision component ), fiber plug field, office equipment(such as printing)
Product Detail ：
Kinds of pin: pilot pin, forming punch,
ejector pin, guide pin, lock pin, mis-feed pin, special pin, location pin, pin
gauge, cavity pin, punch.
Material: carbide, mold steel, tool steel,
powder steel, and so on.
Process: grinding, polishing, surface
grinding, CNC cylindrical grinding, EMD, Wire cutting, drilling, milling,
machining, turning, and so on.
Customer: Germany, Spain, Turkey, and
Japan, USA, and so on
Product apply for: press tooling, medical
component
Tolerance: roundness 0.003mm
Package: safety package special for pin and
punch
We have beed a leading pioneer in supplying
high precision custom-made pins and punches to industries
Type: standard(MITSUMI, PUNCH, FIBRO, DIN,
JIS) or non-standard is possible
Lead time: express 2-4days around asian coutry;
3-6days for European coutry, 3-5days for Norther American Coutry.
Product lead time: sample 3-5days is
possible. Mass production: 6-12days is normal lead time.
Carbide punches will increase productivity
by reducing replacement tooling cost and downtime. Piercing, shaving, forming,
extrusion punches, pin and burnishers per print. Specials and standard from
0.01mm minimum.
HG Precision punches manufactured in
caribde can improve the quality of your product and extend the life of your
tooling. Working with you, to supply you with carbide components for your
punch, and pin, die, and whole set assembly.
