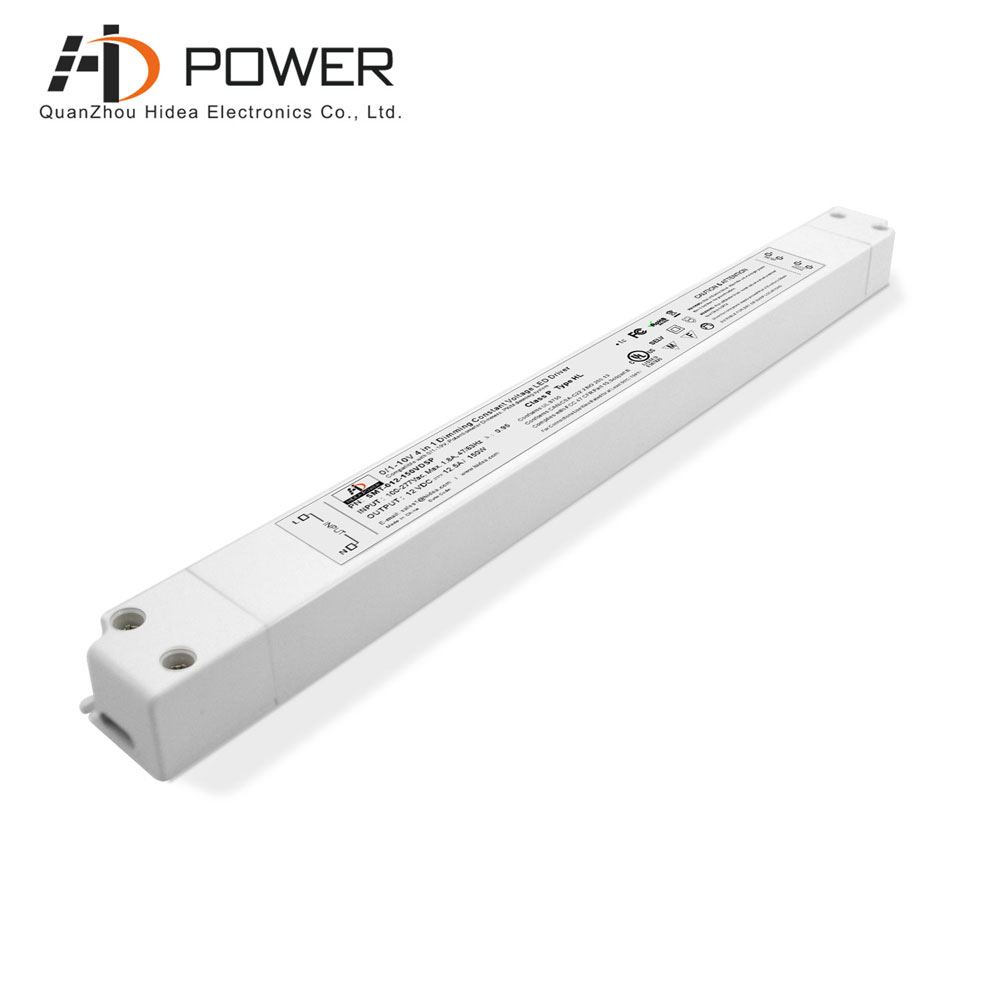

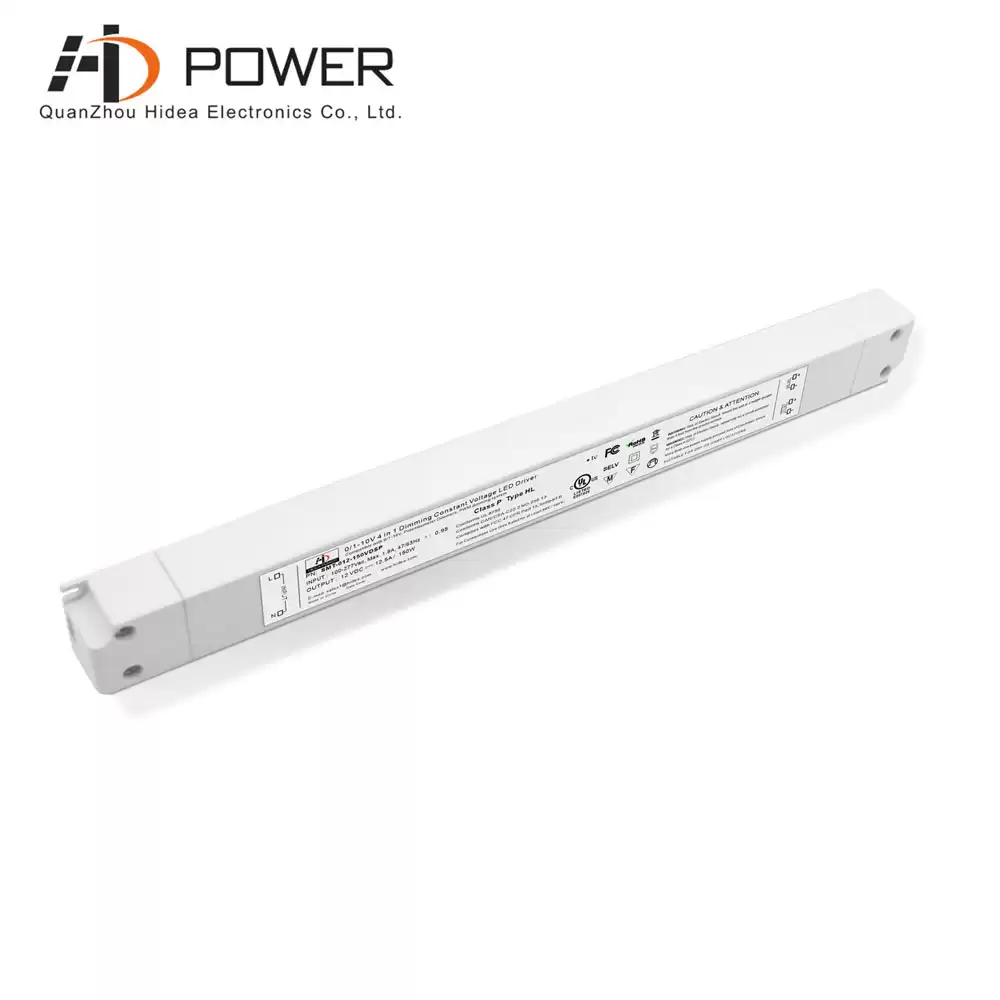

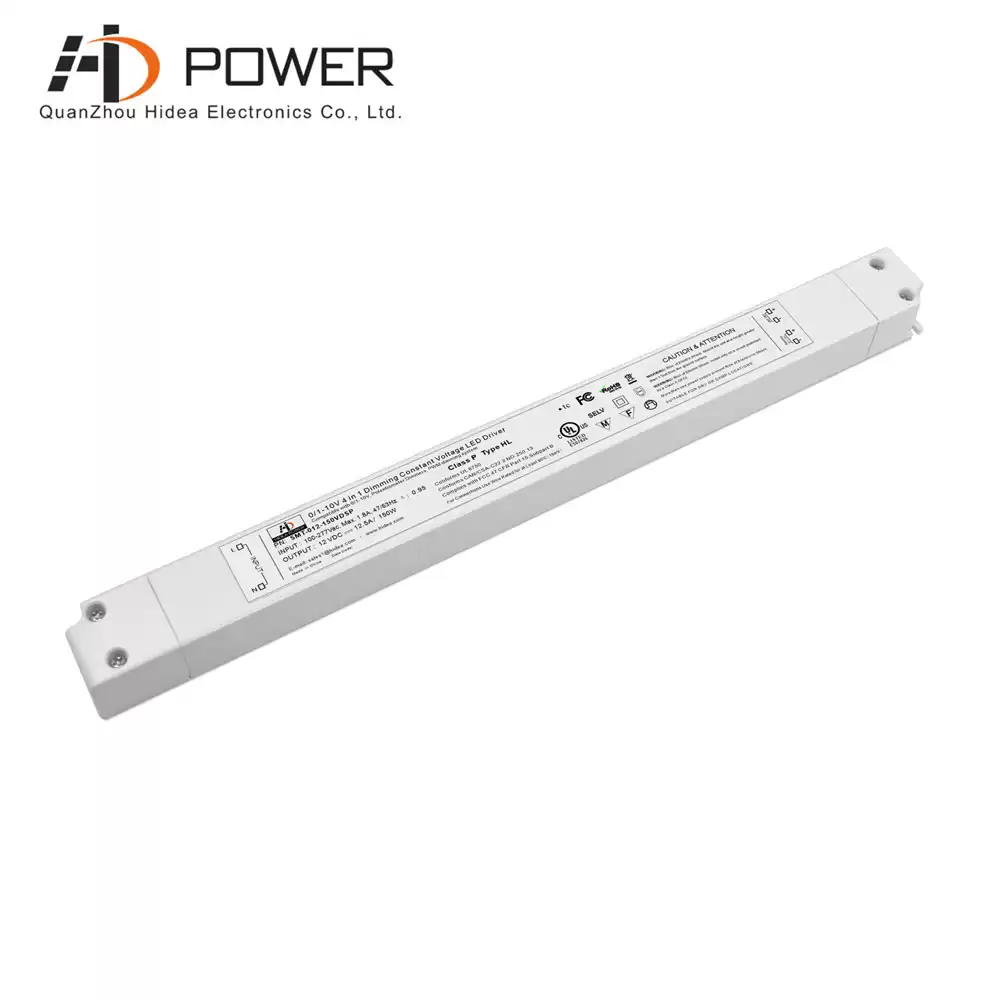

This 0-10v dimmable 150w led drivers got fully digital circuit design, excellent performance and long working life. HIDEA provide 7 years warranty and it can match good well with LTECH dimmer.

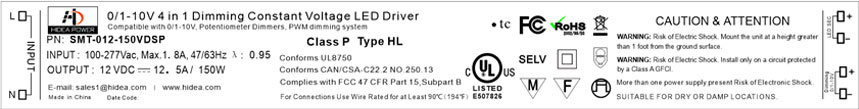

Label
Specification
|
model
|
SMT-012-150VDSP
|
SMT-024-150VDSP
SMT-048-150VDSP
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
48VDC
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
Rated current
|
12.5Amp
|
6.25Amp
3.125Amp
|
|
Rated power
|
150W
|
150W
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
Input
|
Voltage Range
|
100-277 VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
PF≧0.99/110V ; PF≧0.96/277V
|
|
FullLoadEfficiency(Typ.)
|
85%@120VAC 87%@277VAC
|
85%@120VAC 88%@277VAC
|
|
AC Current(Typ.)
|
1.10A/100VAC / 0.43A/277VAC
|
|
Inrush Current(Typ.)
|
11A,50%,1.04ms@120V ; 27A,50%,960us@277V
|
|
THD(Typ. ) @ full load
|
<10%@120VAC <15%@277VAC
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750 +UL1310,CAN/CSA-C22.2 No.250.13
|
|
Withstand voltage
|
I/P-O/P:1.88KVac
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC 47 CFR Part 15 ,Subpart B
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,,11,Alight industry level
|
|
Others
|
Weight
|
0.5Kg
|
|
Size
|
330*32*23mm (L*W*H)
|
|
packing
|
50PCS/CTN Carton size:350*330*145mm
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,Rated load and 25℃of ambient temperature.
|
|
2. Tolerance:includes set us tolerance,line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Compatible Light Type
150w slim led driver are available in both 12v and 24vdc, IP20 plastic cover with terminal screw connection, super slim design, work with YLIGHTING LED Chandeliers.
Related Products
|

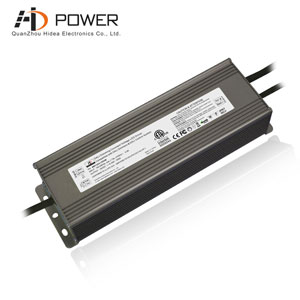

 Dali waterproof IP67 dimmable 12v 150w led driver for indoor or outdoor use
