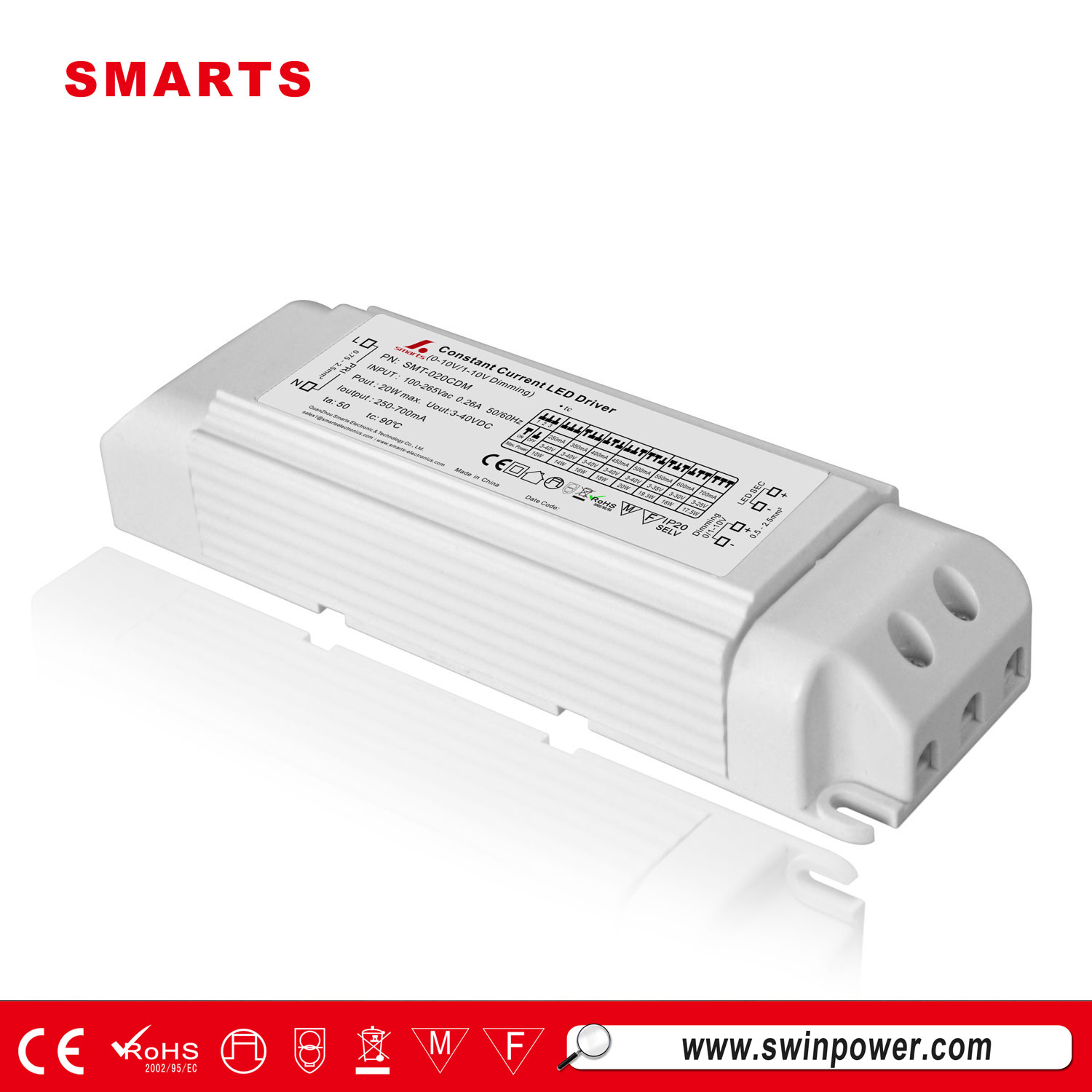

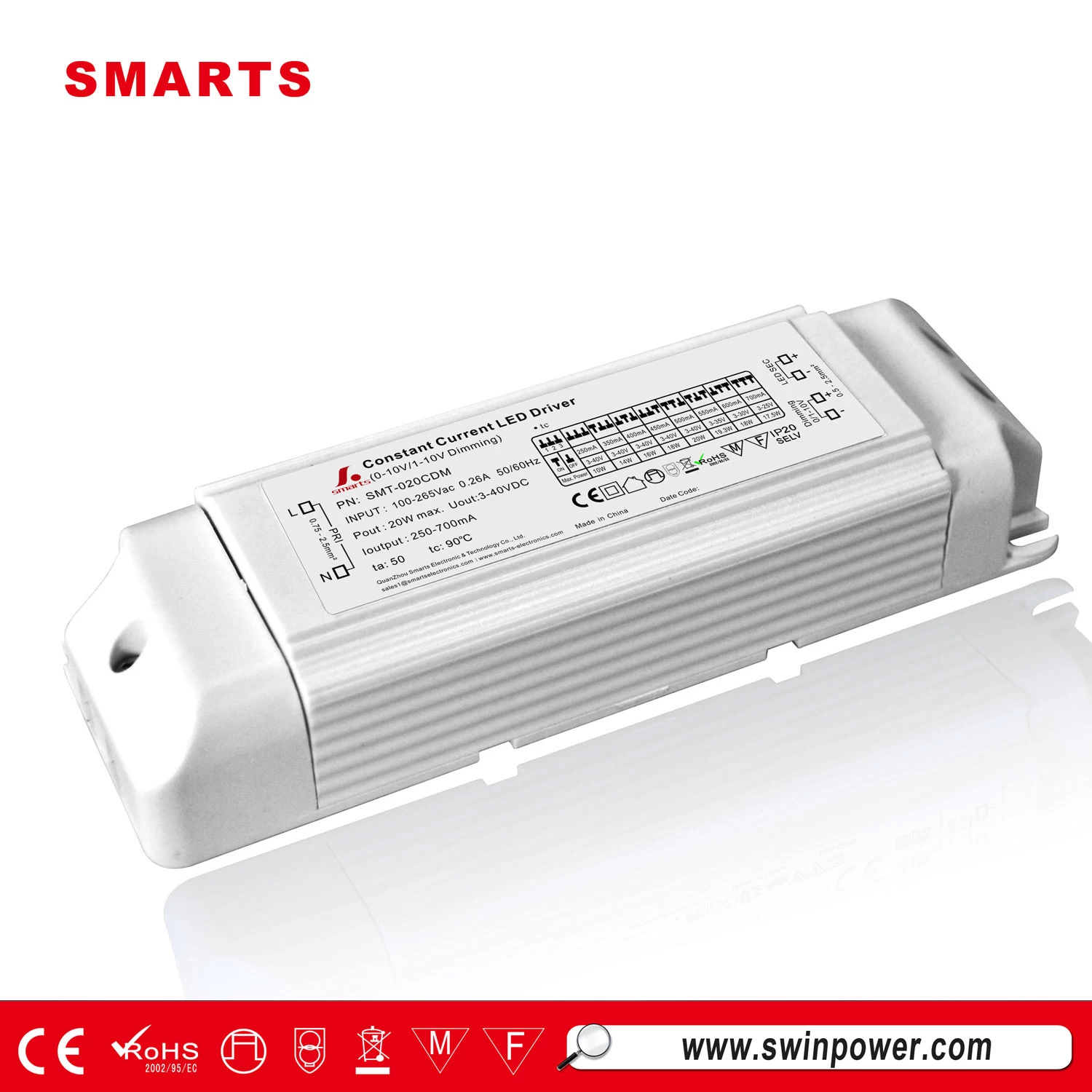

SMARTS’s 0-10V/1-10V/Potentiometer/10V PWM (4 in 1) dimmable 20w led driver, is compatible with all standard 0-10V/1-10V/100K potentiometer/10V PWM dimmer and various lighting control system, such as Lutron, Clispal, C-BUS etc. The current levels, 350mA, 400mA, 450mA, 500mA, 550mA, 600mA, 700mA, , are easily switched by adjusting the built-in DIP switch.
What is your MOQ and lead time for Multi-current DIP Adjustment output constant current led driver?
Answer:
MOQ is 200pcs for each. But we accept trial order or sample order.
Lead time for sample order takes about 7 working days. It takes about 12-15 working days for production order.
It depends on the quantities.
Features for 20w led driver:
·Output constant current type 0/1-10V dimmable led driver
·Input range : 100-265VAC
·Efficiency > 83%
·Protections:short circuit /over load/ over current
·Fully isolated plastic case, IP20 design solution
·Easy installation, suitable for dry location
·Cooling by free air convection
·Dimming function: 0-10V/1-10V/10V PWM dimmable
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·3 years warranty
|
Model
|
SMT-020CDM
|
|
Output
|
Rated current
|
700mA
|
600mA
|
550mA
|
500mA
|
450mA
|
400mA
|
350mA
|
|
Current Tolerance
|
±3%
|
|
DC Voltage
|
3-28V
|
3-32V
|
3-36V
|
3-40V
|
3-45V
|
3-50V
|
3-50V
|
|
Rated power
|
20W
|
20W
|
20W
|
20W
|
20W
|
20W
|
17.5W
|
|
Input
|
Rated Input Voltage
|
100 -265 VAC
|
|
Rated Frequency:
|
47-63HZ
|
|
Power Factor
|
PF≥0.99/100VAC PF≥0.92/230VAC PF≥0.87/240VAC(Full loading)
|
|
Full Load Efficiency(Typ.)
|
>85%
|
>85%
|
>85%
|
>84%
|
>84%
|
>85%
|
>85%
|
|
AC Current(Max.)
|
0.12A
|
0.12A
|
0.12A
|
0.12A
|
0.12A
|
0.12A
|
0.12A
|
|
Leakage current
|
﹤0.7mA/220VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed
|
|
Over Load
|
≤120%
|
|
Protection Class:
|
II
|
|
Environ-
ment
|
Working TEMP.
|
-40-+60℃
|
|
Working Humidity
|
20-95%RH,non-condensing
|
|
Storage TEM. Humidity
|
-40-+80℃,10-95%RH
|
|
TEMP. coefficient
|
±0.03%/℃(0-50℃)
|
|
Vibration
|
10-500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes
|
|
Safety & EMC
|
Safety standards
|
EN61347-1 EN61347-2-13
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
EN55015, EN61000-3-2,3 (≧50% load)
|
|
EMC IMMUNITY
|
EN61000-4-2,3,4,5,6 ,11, EN61547,A light industry level
|
|
Others
|
Weight
|
0.19Kg
|
|
Size
|
140*45*28mm(L*W*H)
|
|
packing
|
CTN size:324*298*188mm, 50PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC & 230VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set us tolerance, line regulation and load regulation .
|

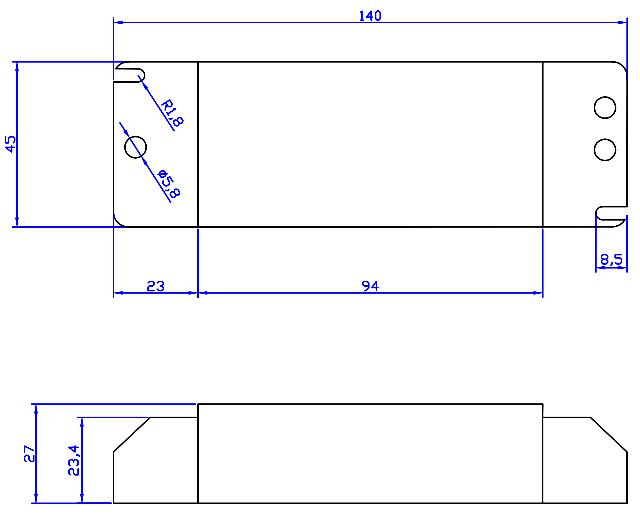

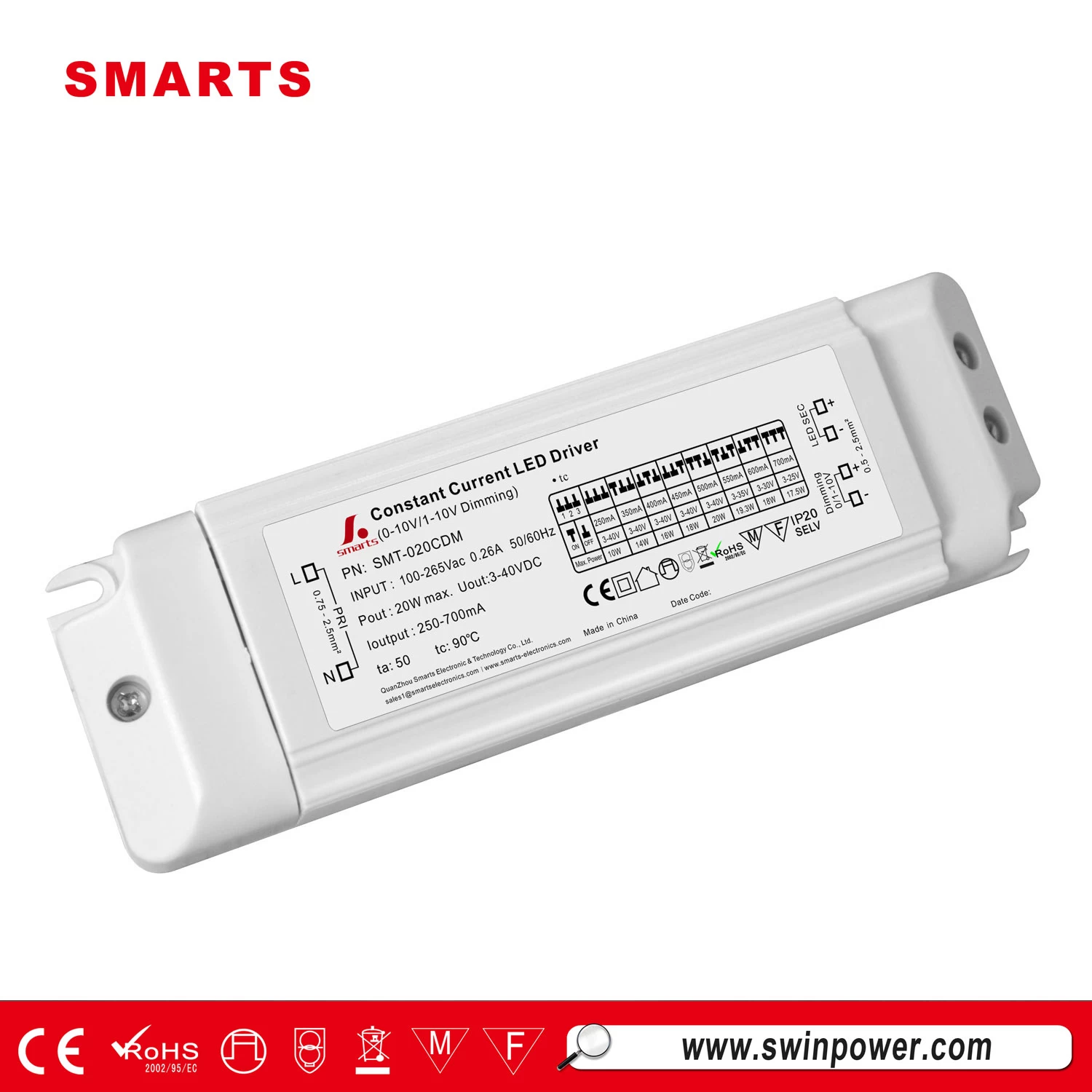

Mechanical Specification for led driver 20w :
Ø Input with Live Wire AC (L), Neutral Wire AC(N)
Ø Output LED SEC output Positive (LED+) , output negative(LED-). Connected to LED Lamps.
Ø Signal dimming:0-10V or 1-10V (DIM +) ,(DIM +) To be connected to 0-10V or 1-10V dimmer or system.
Ø Suggested wire diameter:Input 0.75-2.5m㎡; Output:0.5-2.5m㎡.
Note: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged

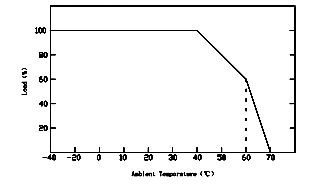

Derating Curve for led driver triac :
0-10V Dimmable LED Driver multiple Connection
Notice for 0-10v led driver:
Ø Built-in 3 in 1 dimming function, IP20 rated .Output luminous can be adjusted through output cable by connecting a resistance or 0/1-10Vdc or 10V PWM signal between DIM+ and DIM-.
Ø Please DO NOT connect “DIM-“ to “LED-“
