0-120V Battery Impedance Tester for Supercapacitor ESR Testing
Features
For Alkaline batteries, lead-acid batteries, lithium ion battery, button battery and supercapacitor ESR Testing
TMAX-AT526 is a new design battery tester with high precision and stability. Adopt high performance ARM microprocessor control.3.5 inch LCD English display, With more sample operation.it’s a high performance intelligent instruments that widely used in contact resistance, battery voltage and battery resistance test.New improved sampling circuit, can measure any kind of battery.
Specifications
|
Model
|
TMAX-AT526
|
|
Test parameters
|
AC resistance, DC voltage
|
|
Basic accuracy
|
Resistance: 0.2%
Voltage: 0.01%
|
|
Measuring range
|
Resistance: 0.001mΩ ~33.000kΩ
voltage: 0.00001V~120.000VDC
|
|
Signal source
|
AC 1kHz, test current: <150ma
|
|
Range
|
Seven range auto and manual
|
|
Test speed
|
145 times/second, 30 times/second, 10 times /second,
1 times/second
|
|
Display results
|
Direct reading,ΔABS,Δ%,θ,to sorting results
|
|
Correction
|
Full range short circuit reset
|
|
Comparator
|
Optional 18 sorting RHI/RNG/RLO output VHI/VNG/VLO outputThe absolute value of tolerance ±TOL Sorting percentage tolerance TOL sorting Sequential sorting
|
|
Trigger
|
Internal trigger, manual trigger, external trigger and remote trigger
|
|
Interface
|
RS-232C interface handler interface (PLC interface)
|
|
power requirement
|
Voltage: 195vac ~ 245vac frequency: 50Hz power: maximum 15va
|
|
Size and weight
|
External dimensions (mm):264 (W) x107 (high) x350 (deep) weight: 4kg
|
|
Appendix
|
ATL502 Kelvin test line,ATL108/ RS232 interface cable
|
|
Others
|
Test line damage detection , color TFT-LCD display, keyboard lock and data hold function, internal flash memory and disk data recording
|
Performance characteristic
1 Vector measurement, simultaneously measuring of multiple parameters
2 Comparator (sorting) function
3 Test line damage detection
4 Compatible SCPI instruction set
Application
1 All kinds of contact resistance test
2 Deterioration and life assessment for Alkaline batteries, lead acid batteries, lithium batteries
3 UPS online detection
4 Battery factory inspection
5 Measurement of super capacitor equivalent resistance (ESR)

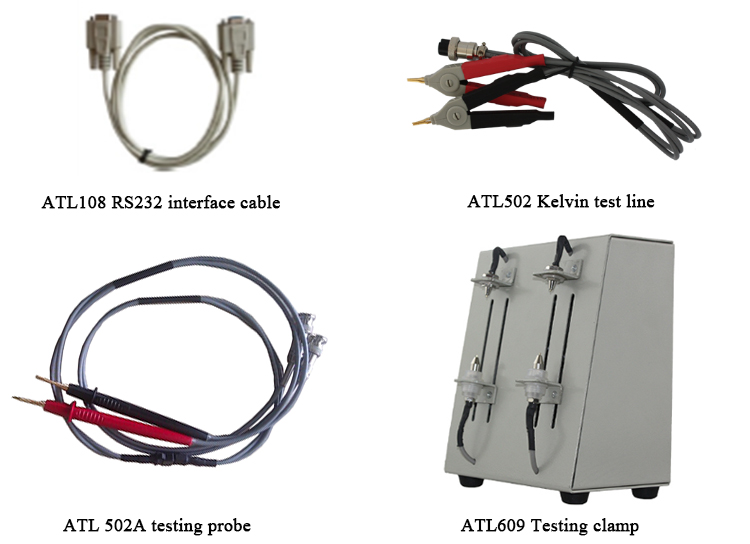

Testing Clamps For AT526 battery voltage and resistance tester
