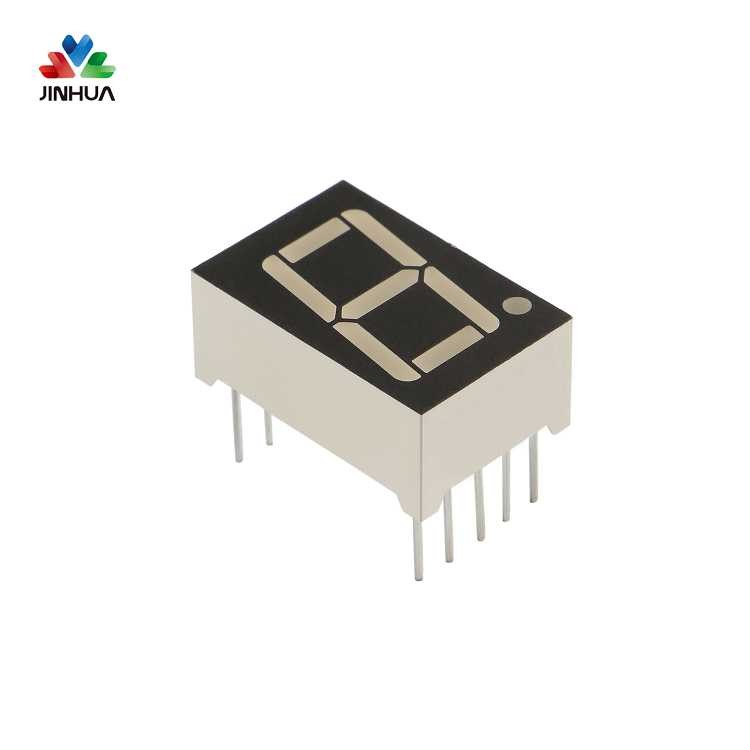

0.28 Inch Multi-color Single Digit Seven Segment LED Display China Supplier
It is a seven segment LED, with both anode and cathode common, uses high glow LED chip, which can display different numbers with stable current input and all colors.
It is a 1 digit 7 segment display with many advantage such as energy-efficient, long lifespan and environmental friendly.
Small Size Seven Segment LED
Product Parameters
| Digit height |
0.28 inch (0.28 inch ~ 4 inch available) |
| Dimensions |
7.4 x 10 x 6mm |
| Digit quantity |
1 Digit |
| Available Emitting Color |
Red/Yellow Green/Yellow/Amber/Blue/White/Pure Green |
| Surface Color |
Black/Gray (white epoxy) |
| Epoxy Colors |
Red, Milky, Blue, Green and more |
| Polarity |
Common Anode/Common Cathode |
| Connector |
Pin |
| Operating Temperature |
-20-80°C |
| Requirements On Environmental Protection |
ROHS HSF |

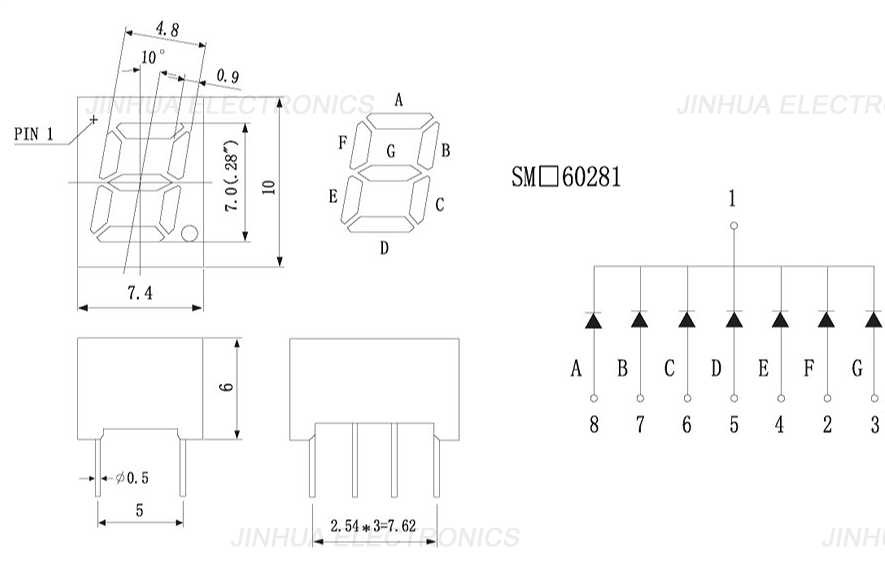

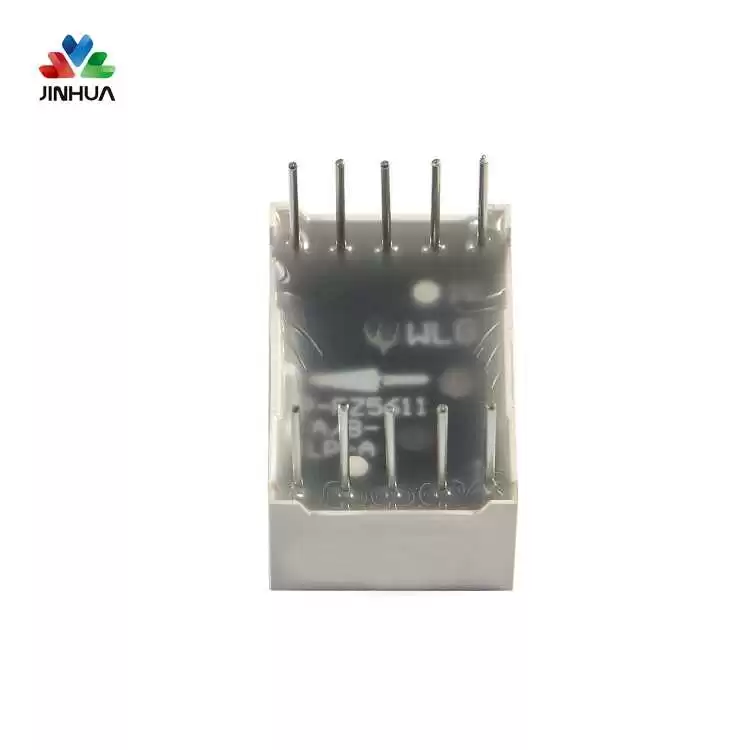

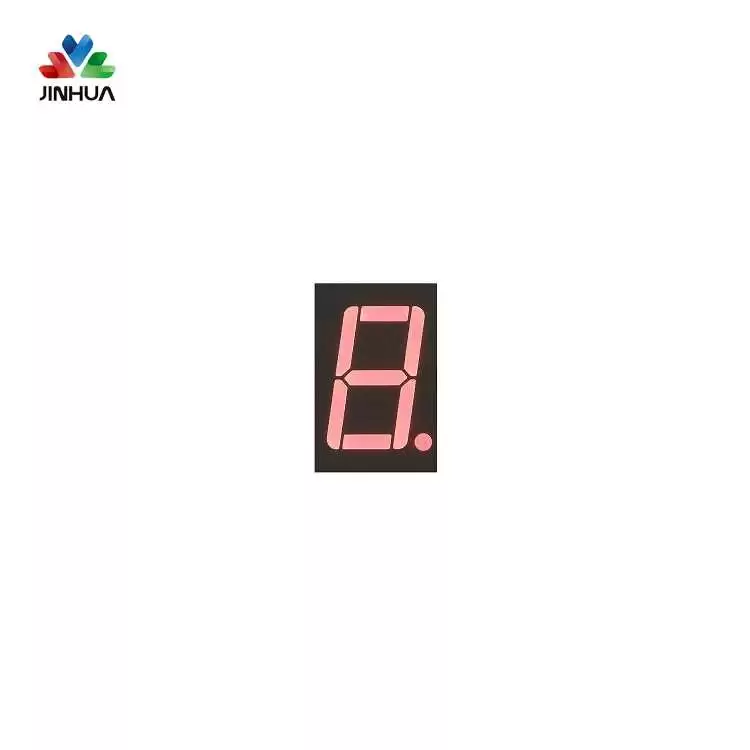

Detailed Picture
Features
Δ Wide Viewing Angle
Δ All Kinds Of Emitted Colors And Size
Δ I.C. Compatible
Δ Low Power Consumption
Δ Long Lifespan
Δ RoHS Compliant
Δ High Luminance
Δ Wide Range Working Temperature
Application
Seven Segment LED Display size is defined by the size of the segment it display. For example, if the segment size is 0.28 inch, then we call it as 0.28 inch segment led display. The application of segment LED display is very extensive. Normally it could be used in such industries like home appliance, medical equipment, consumer electronics ,etc.
