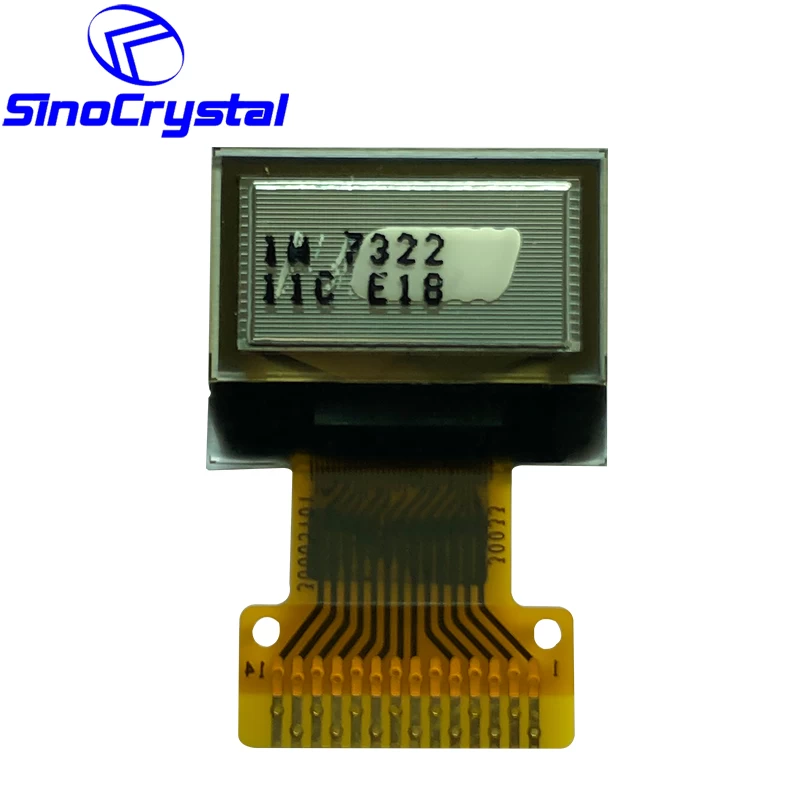

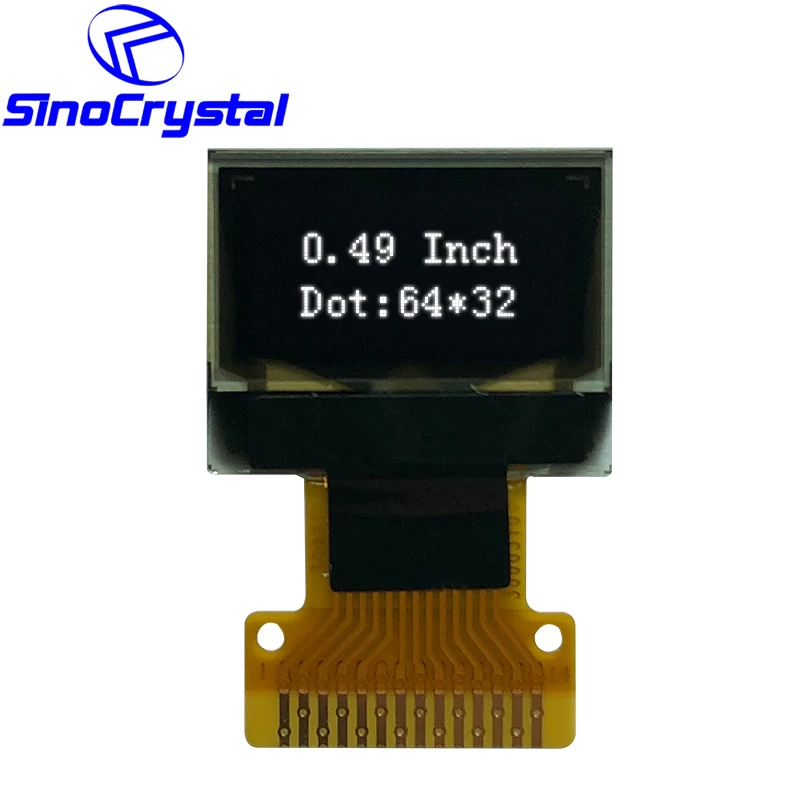

0.49'' Graphic COG OLED LCD Display with 64×32 Resolution

SCE049001-V01 is a OLED Display with COG Type, 64×32 Resolution, SSD1306BZ IC,14PIN

  • FPC typeConnector
  • IC Part No.SSD1306BZ
  • ColorMonochrome (White)
  • Interface4-wire serial interface,I2C
  • Active Area (mm)11.18×5.58
  • Viewing Area (mm)12.58×6.98
  • PIN14
  • Outline Dimension (mm)14.5×11.6
  • Resolution64×32
Facebook Twitter Pinterest LinkedIn 分享

Basic Information


  • Display Color:                 WHITE
  • Dot Matrix:                      64×32
  • Drive IC:                         SSD1306BZ
  • Viewing Angle:               160°
  • Aperture rate:                 71%
  • Outline Dimension:         14.5×11.6
  • View area:                      12.58×6.98
  • PIN:                                14
  • FPC Type:                      Connector

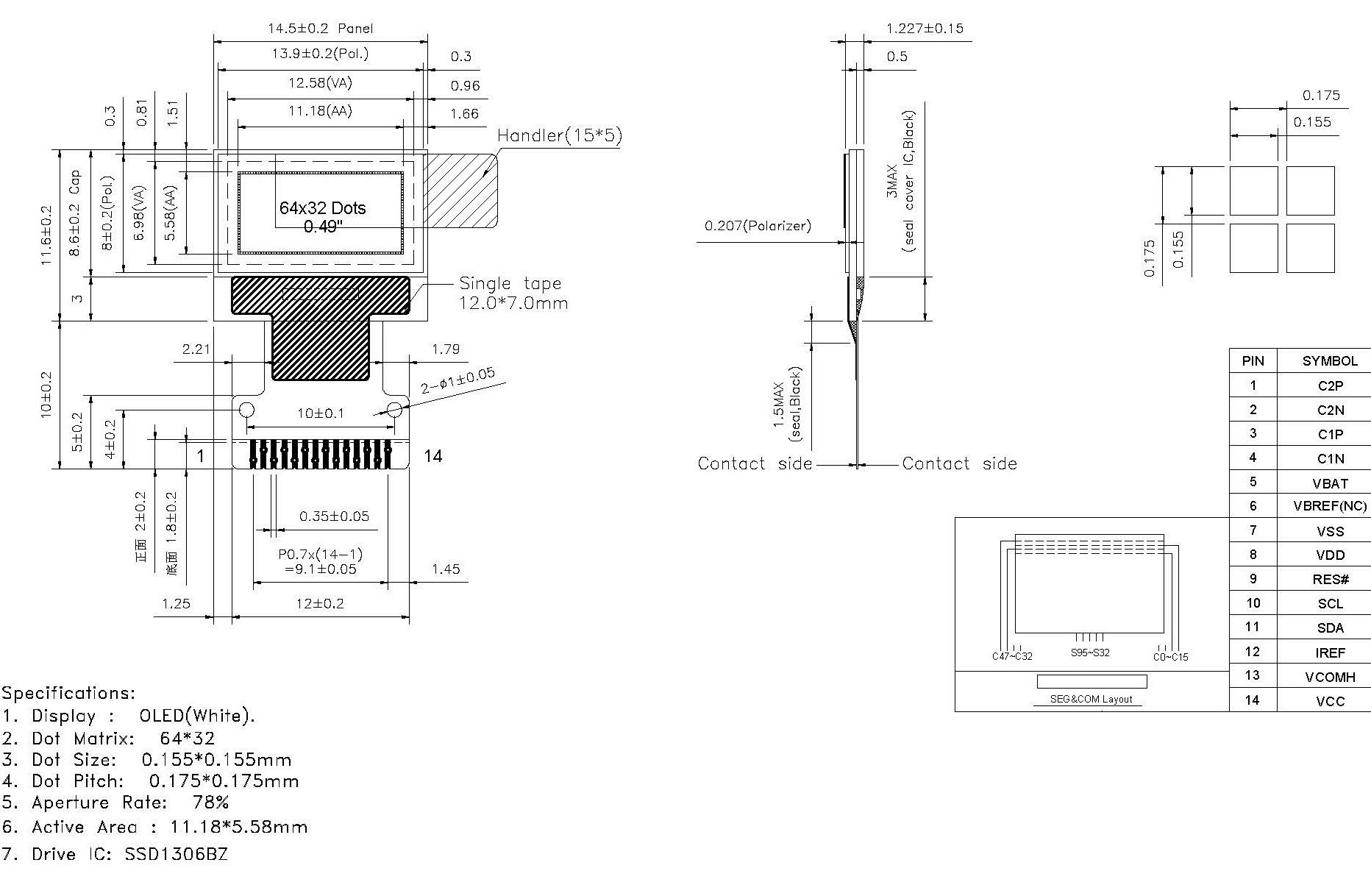

Drawing




General Specification


ITEM SPECIFICATIONS UNIT
 MODULE SIZE 14.5×11.6 mm
 VIEWING AREA 12.58×6.98 mm
 ACTIVE AREA 11.18×5.58 mm
 DOT SIZE 0.108(W) x0.11(H) mm
 DOT PITCH 0.128(W) x0.13 (H) mm
 ASSY.TYPE COG ---
 WEIGHT TBD
