0.4L Small Grinding Ball Mill Machine for Sale
Product specification

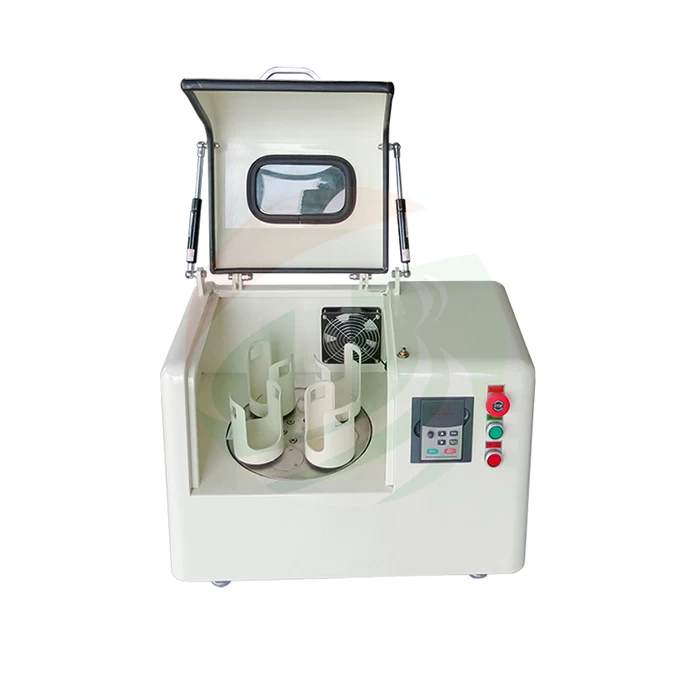

TOB-XQM series of variable frequency planetary ball mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be grinding and mixing by the mill with dry or wet method. The size of ground powder can be reduced to as small as 0.1 micrometer.
|
Model
|
TOB-XQM-0.4
|
|
Grinding tank volume (L)
|
0.1L*4
|
|
Grinding tank material
|
Stainless steel tank or according to requirements
|
|

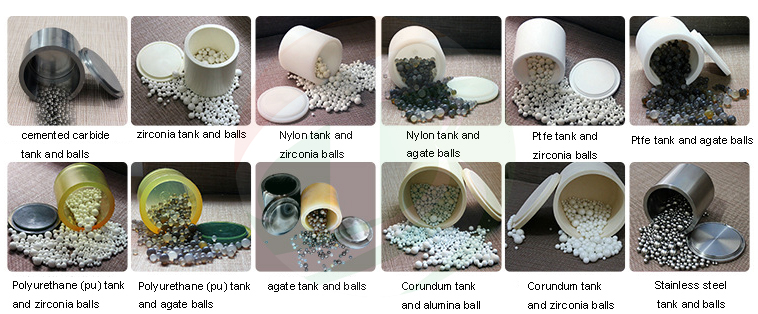

Grinding media
|
Stainless steel tank or according to requirements
|
|
Maximum loading per tank
|
Material and grinding medium does not exceed two-thirds of the volume
|
|
Feeding material size
|
Soil material ≤ 10 mm, other materials ≤ 3 mm
|
|
Discharge material size
|
Min 0.1um
|
|
Rotating speed
|
Revolution 335r/min
Rotation 670 r/min
|
|
Speed ratio
(revolution: rotation)
|
1:2
|
|
Speed mode
|
Frequency, programmable stepless speed regulation, manual, automatic timing forward and reverse
|
|
Transfer method
|
Gear drive
|
|
Working Voltage
|
220V
|
|
Motor power and variable frequency power
|
0.75Kw
|
|
Way of working
|
Two or four cans work at the same time
|
|
Maximum continuous operating time
|
72hours
|
|
Programmable control (electronic monitoring)
|
Ball mill using high-tech microcomputer chip control, can be set to forward and reverse alternately run（0-999min） and forward, pause, reverse, pause, forward (0-999min) alternate operation according to the procedure. Particularly suitable for cooling or intermittent operation.
|
|
Machine Size
|
750*470*564 mm
|
|
N.W (without tank and ball)
|
80KG
|

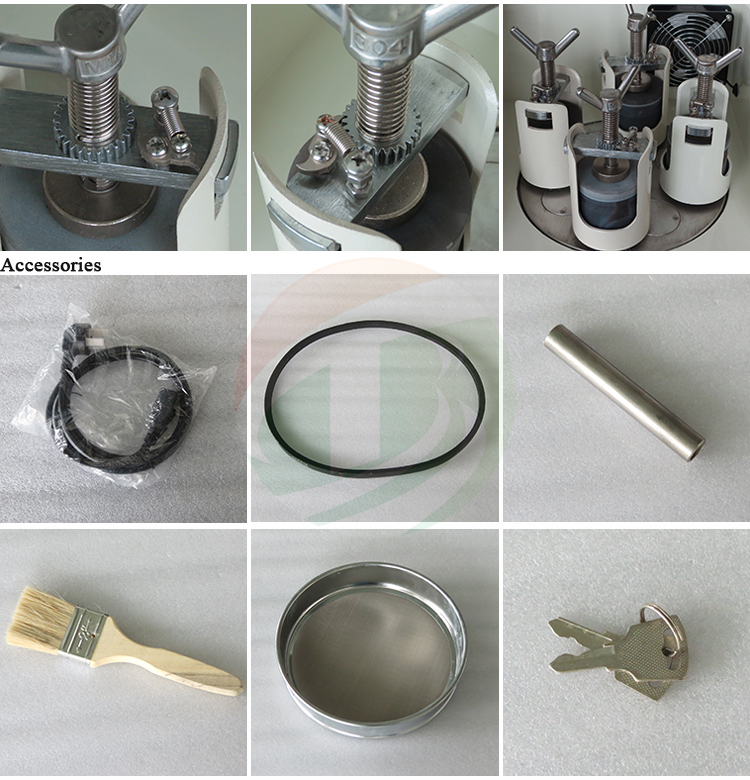

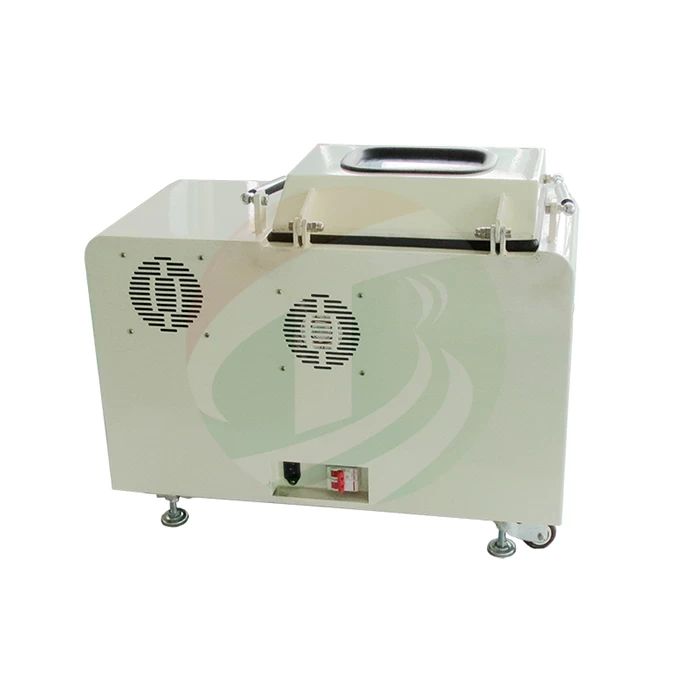

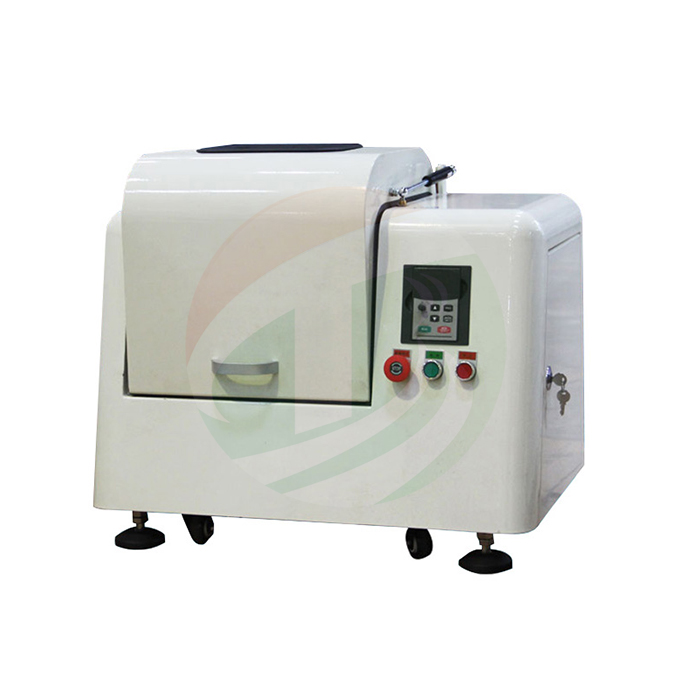

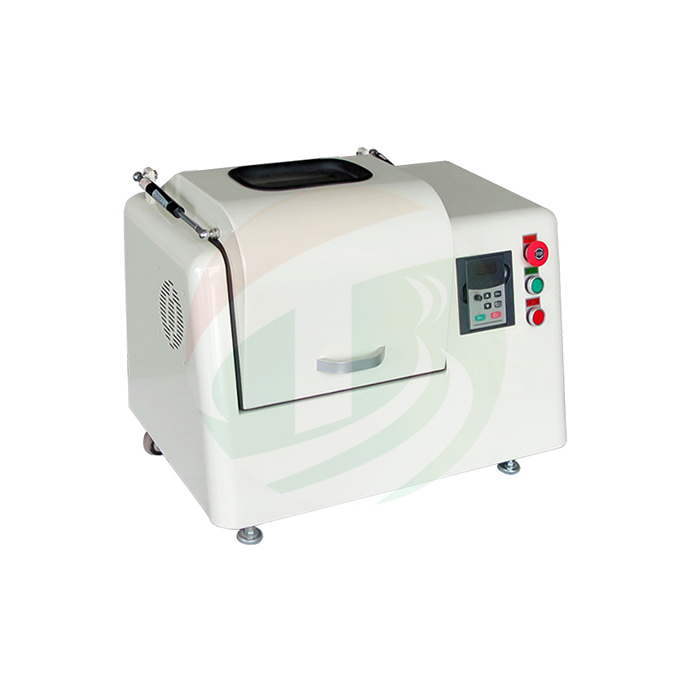

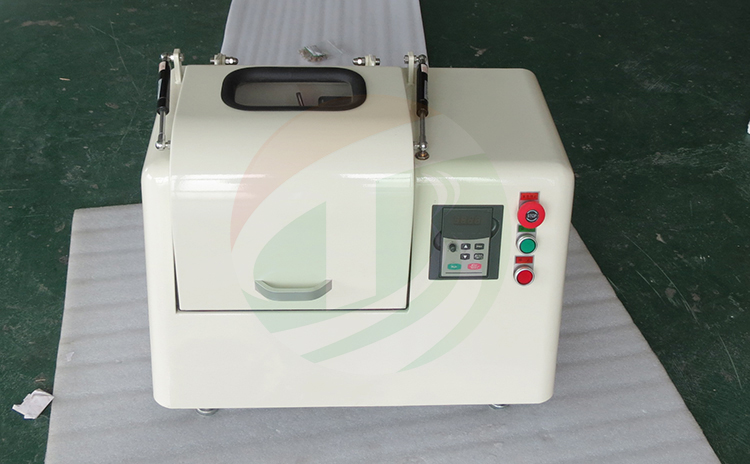

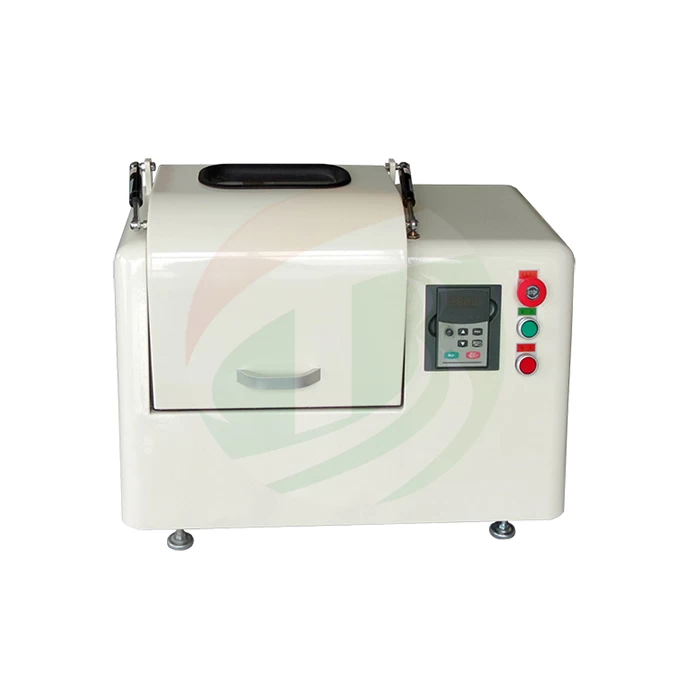

Product Images

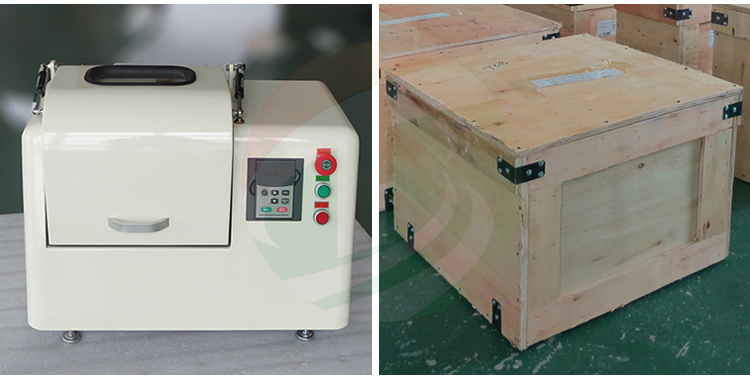

Product Packing
