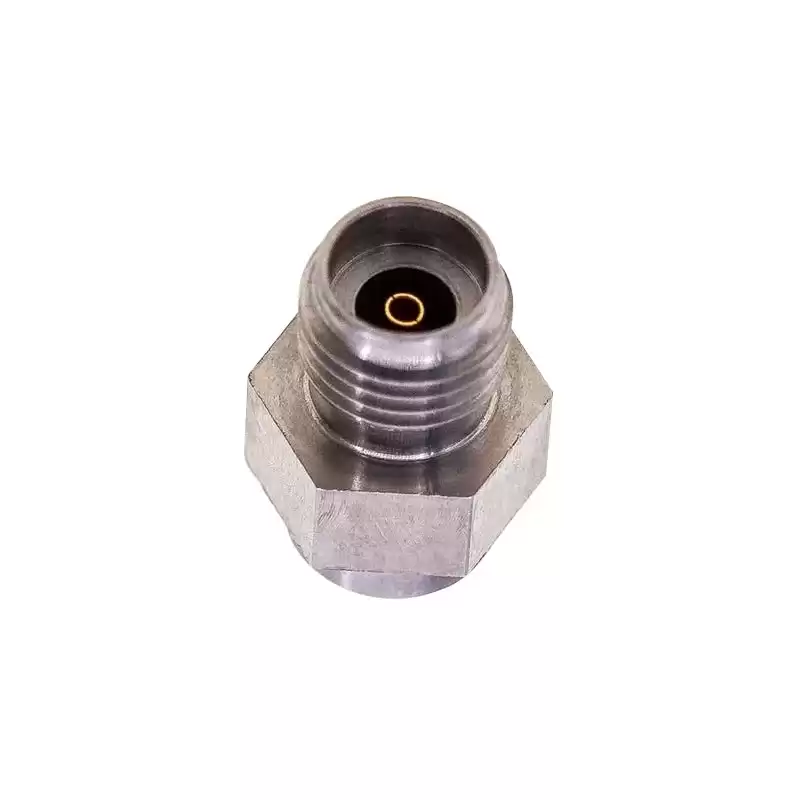

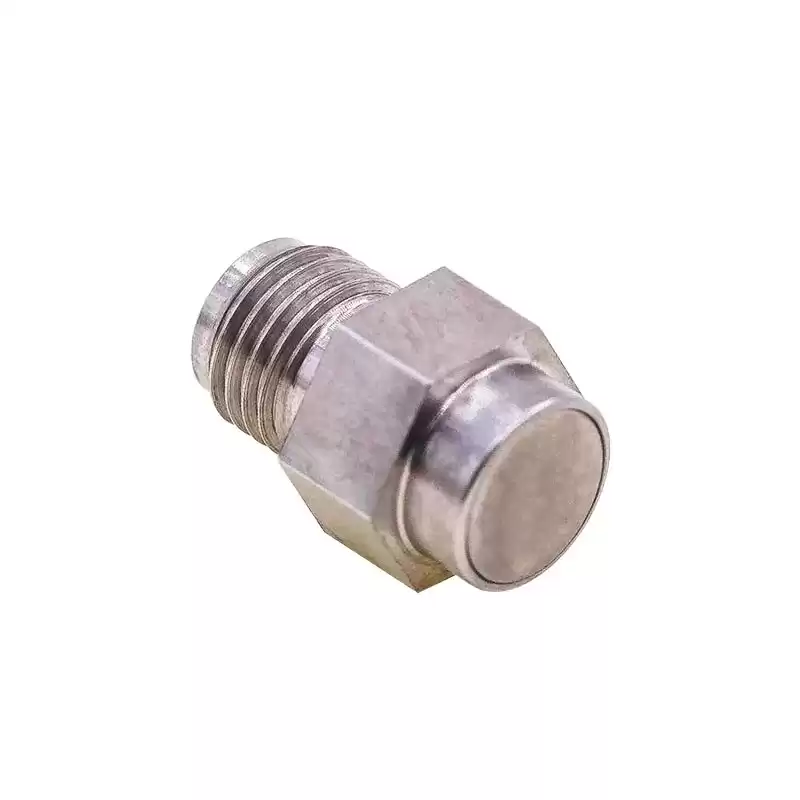

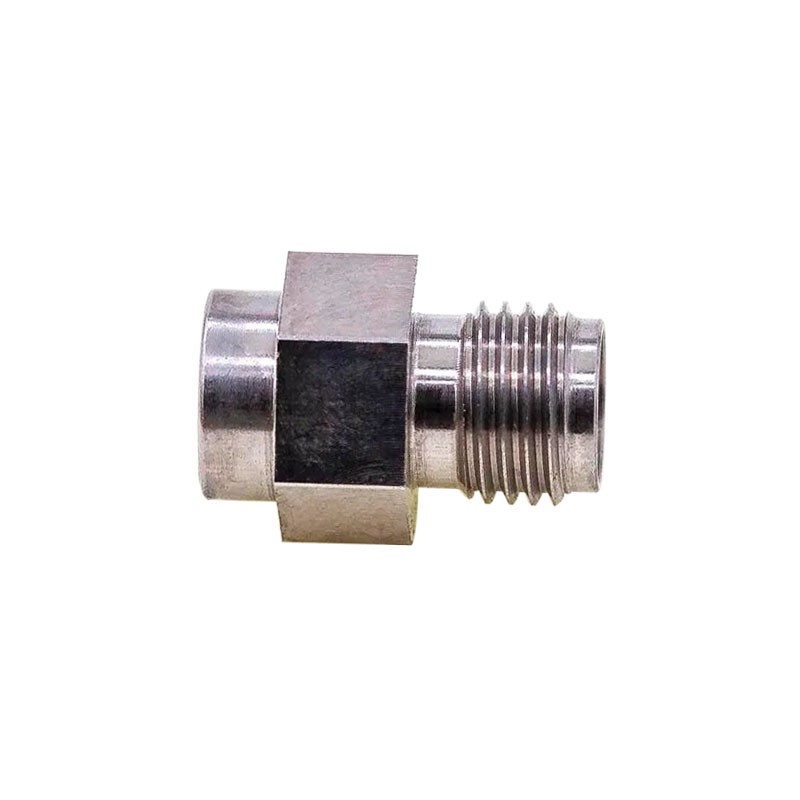

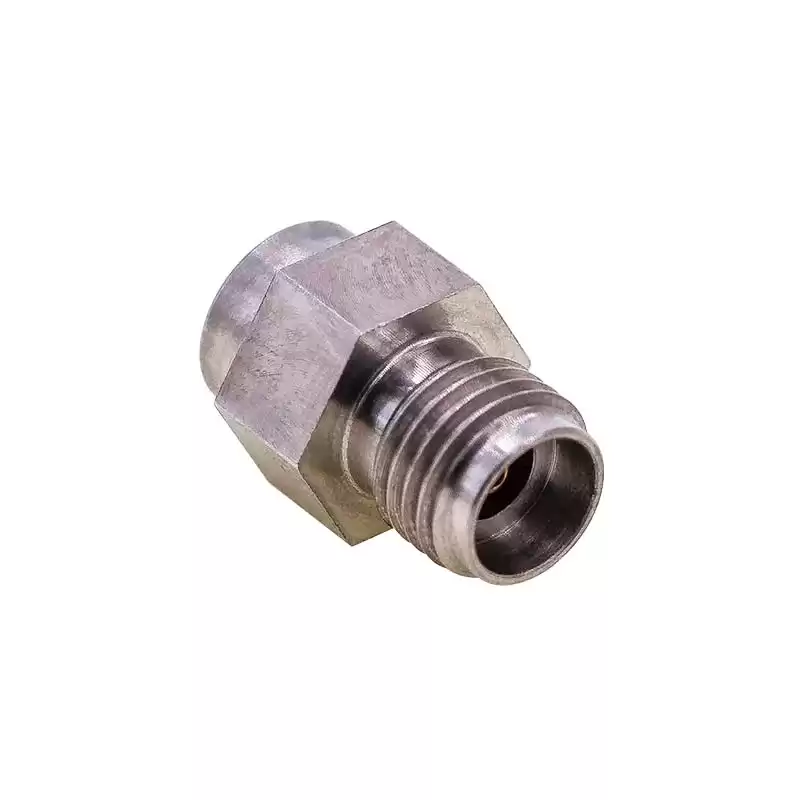

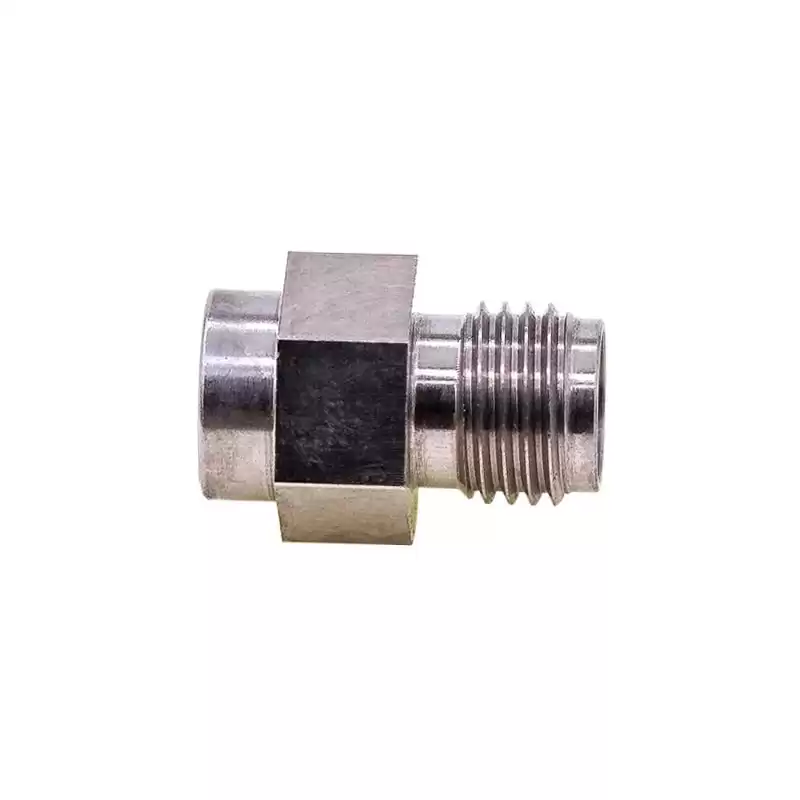

0.5W 2.92mm Female DC-40GHz RF load 50ohm RF Coaxial Termination Dummy load
The 2.92mm Female dummy load(also known as 2.92mm Female termination or 2.92mm Female RF load) has maximum frequency up to 40GHz. This ROHO's Termination is a RF load rated to maximum 2W and has a 50ohm impedance;Signal termination often requires the installation of a terminator at the beginning and end of a wire or cable to prevent an RF signal from being reflected back from each end, causing interference, or power loss.
Specifications
| ELECTRICAL DATA |
|
| Frequency |
DC~40GHz |
| Connector |
2.92mm Female |
| VSWR |
≤1.2 |
| Power |
0.5W |
| Impedance |
50Ω |
| Temperature Range |
-55℃～+125℃ |
| MATERIAL DATA |
|
| Connector body |
Stainless Steel,Passivate |
| Insulator |
PTFE |
| Inner Conductor |
Phosphor Bronze ,Plating Au |
Applications
- Measurement systems
- Multi-port microwave device
- Directional couplers
- Isolators
