About this item
Smoother flow, quieter water systems.
Internal rubber membrane eliminates maintenance and allows universal mounting.
Better control of hot water temperatures.
Simply fitted to new or existing systems.
Longer pump life, lower battery drain. Snap-in port fittings
Specification
|
Model
|
Internal Volume
|
Pre-charge
(PSI/BAR)
|
Max Operating
（GPM/LPM）
|
Air Fill Vale
|
Inlet/Outlet Dia
|
Weight
|
Dimensions
|
|
SFAT-075-125-01
|
0.75L/23.5OZ
|
10/0.7
|
125/8.6
|
standard automotive
style tire valve
|
1/2" MNPT
|
0.79 lbs
|
8.1" x 4.6"
|
|
SFAT-100-125-01
|
1.0L/33.8OZ
|
10/0.7
|
125/8.6
|
standard automotive
style tire valve
|
1/2" MNPT
|
0.79 lbs
|
12" x 4.6"
|

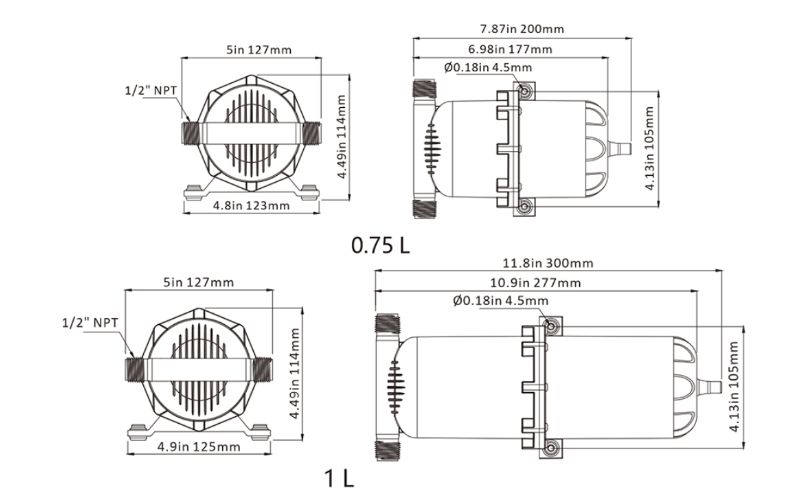

Dimensions
