0.91'' OLED Graphic Display with 128×32 Resolution SSD1316BZ IC,14PIN, I2C interface

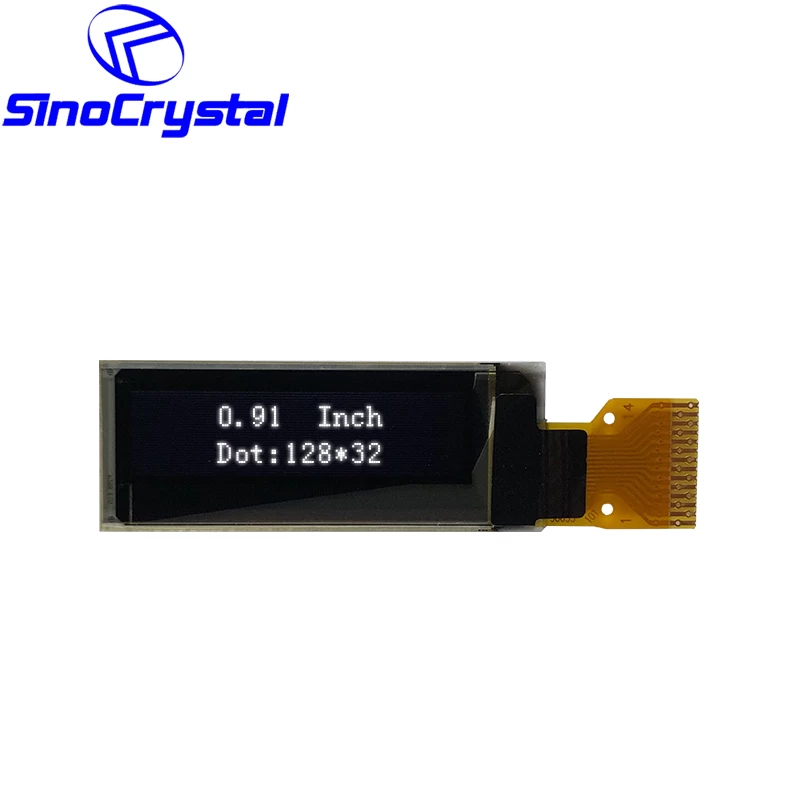

SCE091001-V01 is a OLED Display with COG Type, 128×32 Resolution, SSD1306BZ IC, I2C interface, 14PIN

  • Resolution128×32
  • Outline Dimension (mm)30.0×11.50×1.227
  • Viewing Area (mm)24.384x7.584
  • Active Area (mm)22.384×5.584
  • InterfaceI2C
  • IC Part No.SSD1306BZ
  • ColorMonochrome (White)
  • PIN14
  • FPC typeSoldering
Facebook Twitter Pinterest LinkedIn 分享


Basic Information


Display Color:               WHITE
Dot Matrix:                    128×32
Drive IC:                        SSD1306BZ
Viewing Angle:              160°
Aperture rate:                82.5%
Interface:                       I2C
Outline Dimension:        30.0(W)x11.5(H)x1.227(D)
View area:                      24.384 (W) x 7.584(H)
PIN:                                14
FPC Type:                      Soldering




General Specification



ITEM SPECIFICATIONS  UNIT
  MODULE SIZE 30.0(W)x11.5(H)x1.227(D) mm
  VIEWING AREA 24.384 (W) x 7.584(H) mm
  ACTIVE AREA 22.384 (W) x5.584(H) mm
  DOT SIZE 0.159(W) x0.159(H) mm
  DOT PITCH 0.175(W) x0.175 (H) mm
  ASSY.TYPE COG ---
  WEIGHT TBD




Interface Definition



PIN NO. SYMBOL TYPE FUNCTION DESCRIPTIONS
1 C2P
C1P/C1N-Pin for charge pump capacitor.
C2P/C2N-Pin for charge pump capacitor.
Connect to each other with a capacitor. They must be floated when the
Charge pump not use.
2 C2N
3 C1P I
4 C1N
5 VBAT P Power supply for charge pump regulator circuit.
It must be connected to external source when charge pump is used. It must be float when charge pump is not used.
6 VBREF I Reserved pin. It should be kept NC.
7 VSS P Ground pin. It must be connected to external ground.
8 VDD P Power pin for logic circuit. It must be connected to external source.
9 RES# I Hardware reset input pin. Active "L".
10 SCL I I2C interface clock wire
11 SDA I I2C interface data wire
12 IREF I Current reference for brightness adjustment.
This is segment output current reference pin. A resistor should be connected between this pin and VSS .Set the current at 12.5 uA maximum.
13 VCOMH O COM signal deselected voltage level.
A capacitor should be connected between this pin and VSS.
14 VCC P Power supply for OLED driving voltage. A capacitor should be connected between this pin and VSS, when charge pump is used.
It must be connected to external source when charge pump is not used.
