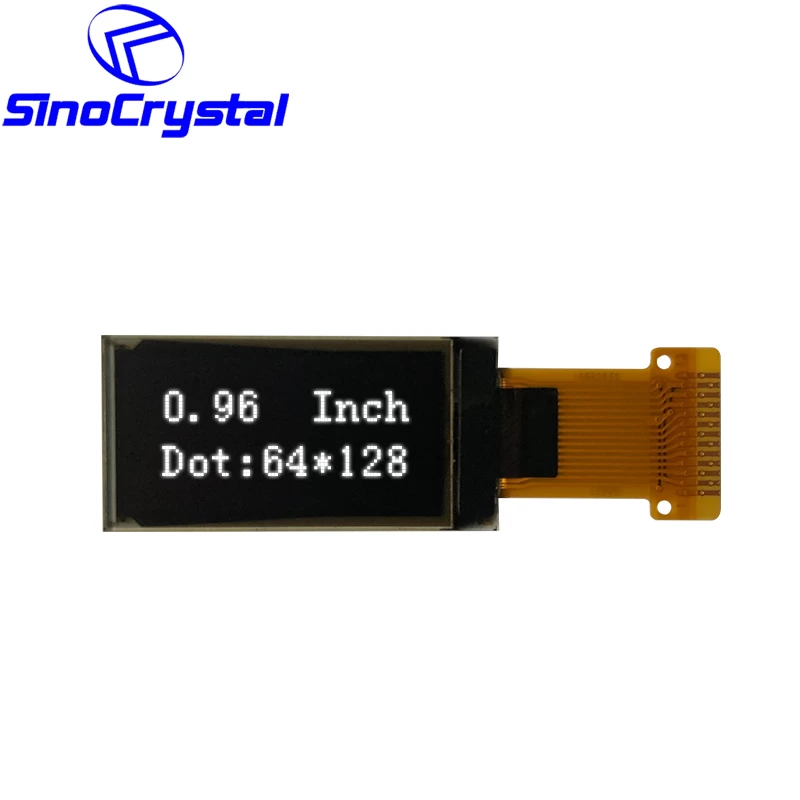

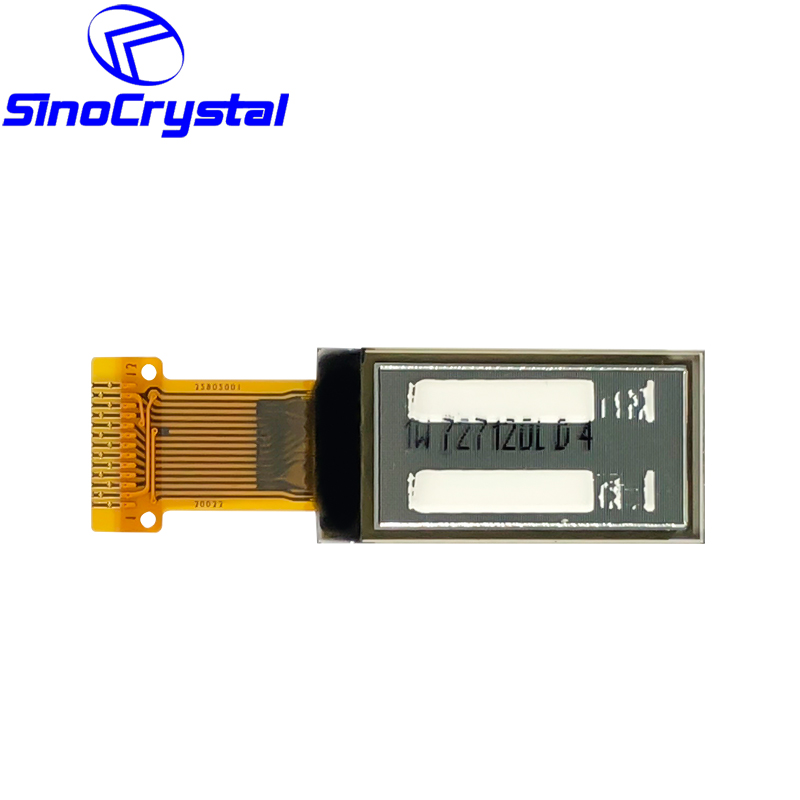

0.96'' Vertical 64x128 OLED display with SH1107 IC, 13PIN, 4wire serial interface, I2C

SCE096013-V01 is a Vertical OLED Display with COG Type, 64x128 Resolution, SH1107 IC, 4wire serial interface, I2C, 13PIN

  • Resolution64×128
  • Outline Dimension (mm)14×28×1.227
  • Viewing Area (mm)11.86×22.74
  • Active Area (mm)10.86×21.74
  • InterfaceI2C/ 4-wire SPI
  • IC Part No.SH1107
  • ColorMonochrome (White)
  • PIN13
  • FPC typeSoldering
Facebook Twitter Pinterest LinkedIn 分享



Basic Information


Display Color:               White
Dot Matrix:                    64X128
Drive IC:                        SH1107
Viewing Angle:              160°

Aperture rate:                78%
Interface:                       4wire serial interface, I2C
Outline Dimension:        14.0(W)x28.0(H)x1.227(D)
View area:                      11.86 (W) x 22.74(H)
PIN:                                13
FPC Type:                      Soldering

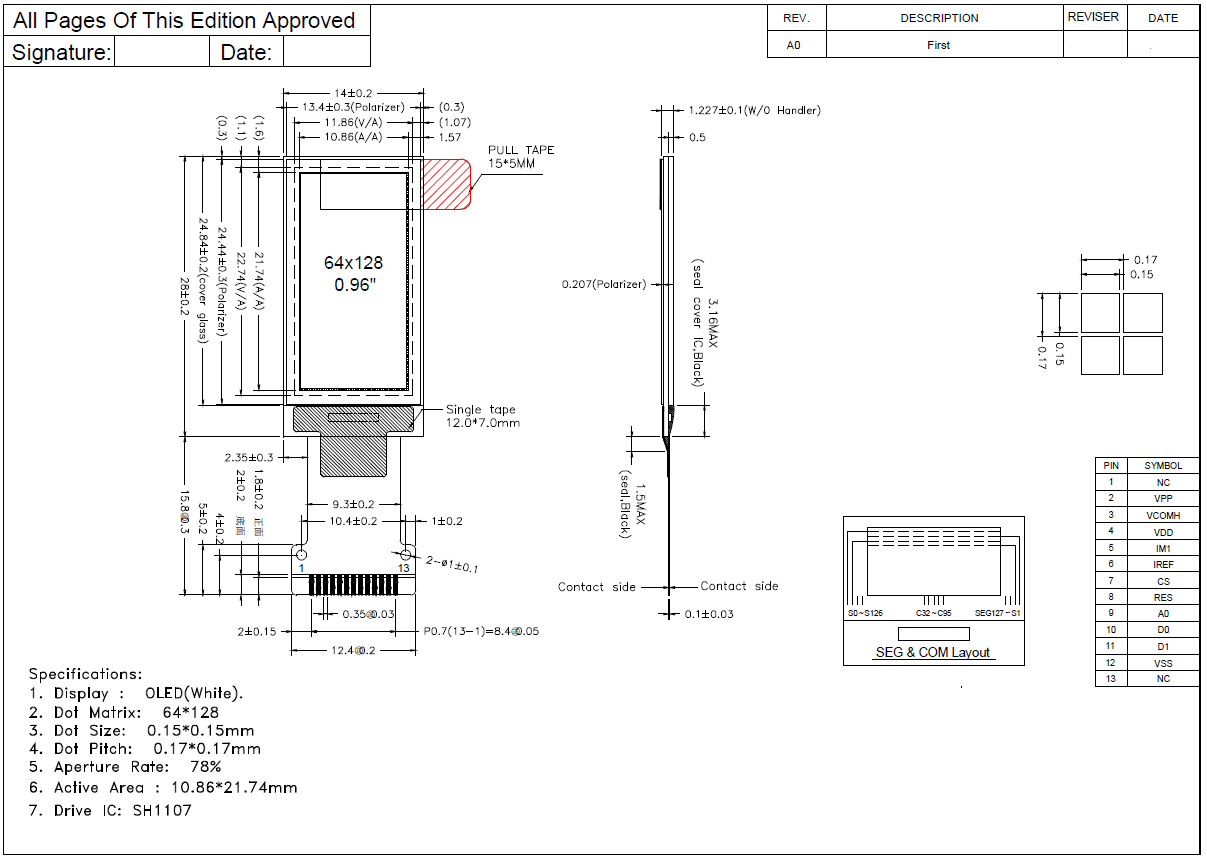

Drawing






General Specification


ITEM SPECIFICATIONS  UNIT
  MODULE SIZE 14.0(W)x28.0(H)x1.227(D) mm
  VIEWING AREA 11.86 (W) x 22.74(H) mm
 ACTIVE AREA 10.86 (W) x 21.74(H) mm
  DOT SIZE 0.15(W) x0.15(H) mm
  DOT PITCH 0.17(W) x0.17 (H) mm
  ASSY.TYPE COG ---
  WEIGHT TBD




Interface Definition


PIN NO. SYMBOL TYPE FUNCTION DESCRIPTIONS
1 NC
NC
2 VPP P Power supply for OLED driving voltage. This is the most positive voltage
supply pad of the chip. It should be supplied externally.
3 VCOMH O This is a pad for the voltage output high level for common signals.
A capacitor should be connected between this pad and VSS.
4 VDD P Power pin for logic circuit. It must be connected to external source.
5 IM1 I

Interface selection pins.

6 IREF I Current reference for brightness adjustment.
This is segment output current reference pin.
A resistor should be connected between this pin and VSS .
Set the current at 15.625 uA maximum.
7 CS I Chip Select input pin. Active "L"
8 RES I Hardware reset input pin. Active "L".
9 A0 I This pin is Data/Command control pin.
When the pin is pulled HIGH, the data at D[7:0]  is data.
When the pin is pulled LOW, the data at D[7:0] is command.
In I2C mode, this pin acts as SA0 for slave address section.
10 D0 I/O When the serial interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SI).
When the I2C interface is selected, then D0 serves as the serial clock input
pad (SCL) and D1 serves as the serial data input pad (SDA).
11 D1
12 VSS P Ground pin. It must be connected to external ground.
13 NC
NC
