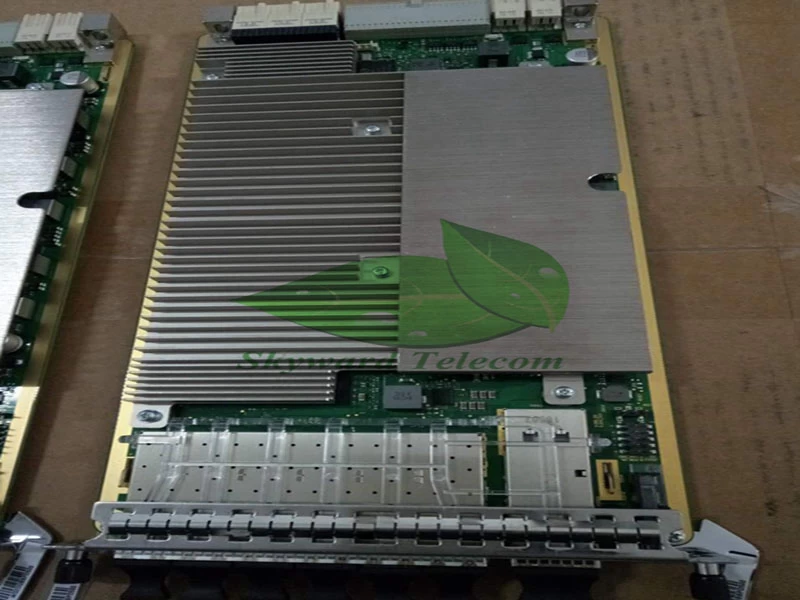

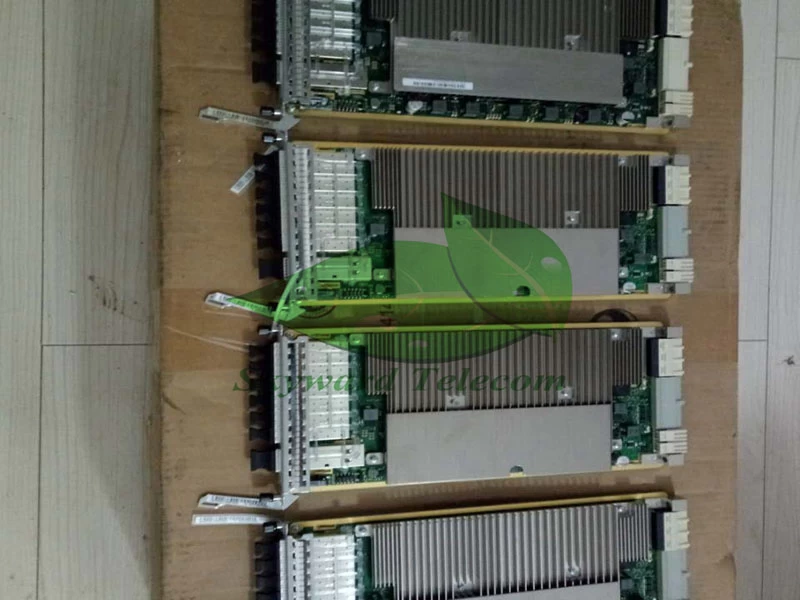

03022HEL UBBPd5 WD2DUBBPD500 Universal baseband processing unit for Huawei BBU3900 BBU3910

UBBPD5 WD2DUBBPD500 022HEL network Refrigeration Equipment

Applications:

All UBBPD5 WD2DUBBPD500 022HEL series Gigabit Ethernet ports can receive and process pause frames from other devices. However, not all UBBPD5 WD2DUBBPD500 022HEL series Gigabit Ethernet ports can transmit pause frames to other devices, identifies the Catalyst Gigabit Ethernet switches, modules, and ports that can transmit pause frames to other devices.

Specification

• Brand Name:                    Huawei
• Model Number:                 WD26UBBPd5
• Application:                     Wireless Base Station for BBU3900/BBU3910
• Power supply:                   -48v DC
• Work Mode:                     GSM LTE FDD GL LM GLM

What is UBBP?

The universal baseband processing unit (UBBP) can serve as a baseband processing board working in any mode.

A UBBP board can be configured in either a BBU3900 or a BBU3910.

The UBBP performs the following functions:

•  Multiplexes baseband resources among different modes, thereby supporting multimode concurrency.
•   Provides CPRI ports for communication with RF modules and processes uplink and downlink baseband signals.

What are the types of UBBP boards?

From SRAN9.0 onwards, UBBP boards are classified into the following types: UBBPd1, UBBPd2, UBBPd3, UBBPd4, UBBPd5, UBBPd6, and UBBPd9.

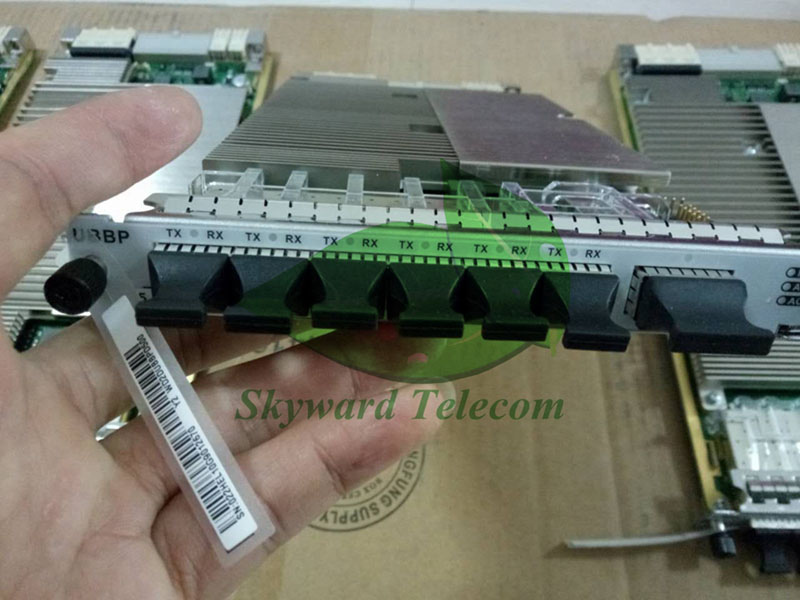

All UBBP boards have the same appearance: On the upper left of a UBBP panel, there is a silkscreen "UBBP". On the lower left of a UBBP panel, there is a label indicating the type of a UBBP board.

What modes are supported by UBBP boards?
