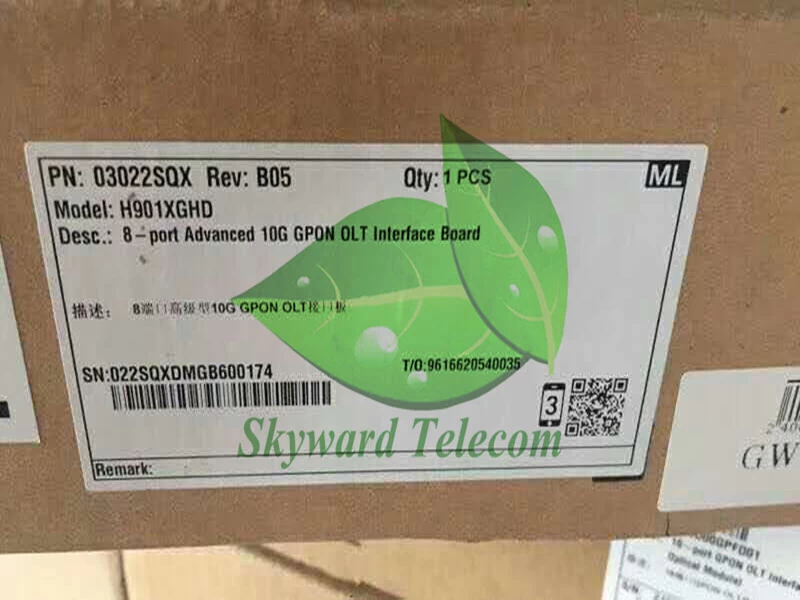

Part #
|
03022SQX
|
|
Model #
|
H901XGHD
|
|
Description
|
8-port Advanced 10G GPON OLT Interface
Board
|
|
Product Series
|
MA5800-X7
|
|
Dimensions (H x W x D)
|
442 mm x 268.7 mm x 263.9 mm
|
|
Maximum Number of Ports in a Subrack
|
112 x GPON/EPON
336 x GE/FE
56 x 10G GPON/10G EPON
56 x 10G GE
224 x E1
|
|
Switching Capacity of the System
|
7 Tbit/s
|
|
Product Line
|
Networking
|
|
Maximum Number of MAC Addresses
|
262,143
|
|
Maximum Number of ARP/Routing Entries
|
64K
|
|
Ambient Temperature
|
-40°C to 65°C Note: The MA5800 can start up
at a lowest
temperatureof -25°C andrun at -40°C. The
65°C temperature refers
to the highest temperature measured at the
air intake vent
|
|
Working Voltage Range
|
-38.4V DC to -72V DC
|
|
Layer 2 Features
|
VLAN + MAC forwarding, SVLAN + CVLAN
forwarding, PPPoE+, and DHCP option82
|
|
Layer 3 Features
|
Static route, RIP/RIPng, OSPF/OSPFv3,
IS-IS, BGP/BGP4+, ARP, DHCP relay, and VRF
|
|
MPLS & PWE3
|
MPLS LDP, MPLS RSVP-TE, MPLS OAM, MPLS BGP
IP VPN, tunnel protection switching, TDM/ETH PWE3, and PW protection
switching
|
|
IPv6
|
IPv4/IPv6 dual stack, IPv6 L2 and L3
forwarding, and DHCPv6 relay
|
|
Multicast
|
IGMP v2/v3, IGMP proxy/snooping, MLD
v1/v2, MLD Proxy/Snooping, and VLAN-based IPTV multicast
|
|
QoS
|
Traffic classification, priority
processing, trTCM-based traffic policing, WRED, traffic shaping, HqoS,
PQ/WRR/PQ + WRR, and ACL
|
|
System Reliability
|
GPON type B/type C protection, 10G GPON
type B protection, BFD, ERPS (G.8032), MSTP, intra-board and inter-board LAG,
In-Service Software Upgrade (ISSU) of the control board, 2 control boards and
2 power boards for redundancy protection, in-service board fault detection
and rectification, and service overload control
|
