0603 All Colors High Glow SMD LED Chip China Manufacturer
The 0603 LED chip adopts SMT process to realize adavantages of high glow and low power consumption. It also has wide range of operating temperature and storage temperature as well.
The 0603 LED chip series have all kind of color such as red, orange, yellow, green, blue, ice blue, white and other color according to client requirements.
0603 LED chip SMD LED
Product Parameters
| Chip No. |
0603 |
| Package Size |
1.6*0.8*0.6mm |
| View Angle |
120 Degree |
| Emitted Color |
White, Red, Green, Yellow, Blue, Orange |
| Power Consumption |
Max. 70 mW |
| Peak Forward Current |
60 mA |
| Continuous Forward Current |
20 mA |
| Soldering Temp. |
Reflow Soldering : 260°C for 10 sec |
| Hand Soldering : 350°C for 3 sec |
| Operating Temperature |
-30-80°C |
| Luminous Intensity |
IF=5mA, Max. 400 mcd |
| Requirements On Environmental Protection |
ROHS HSF |

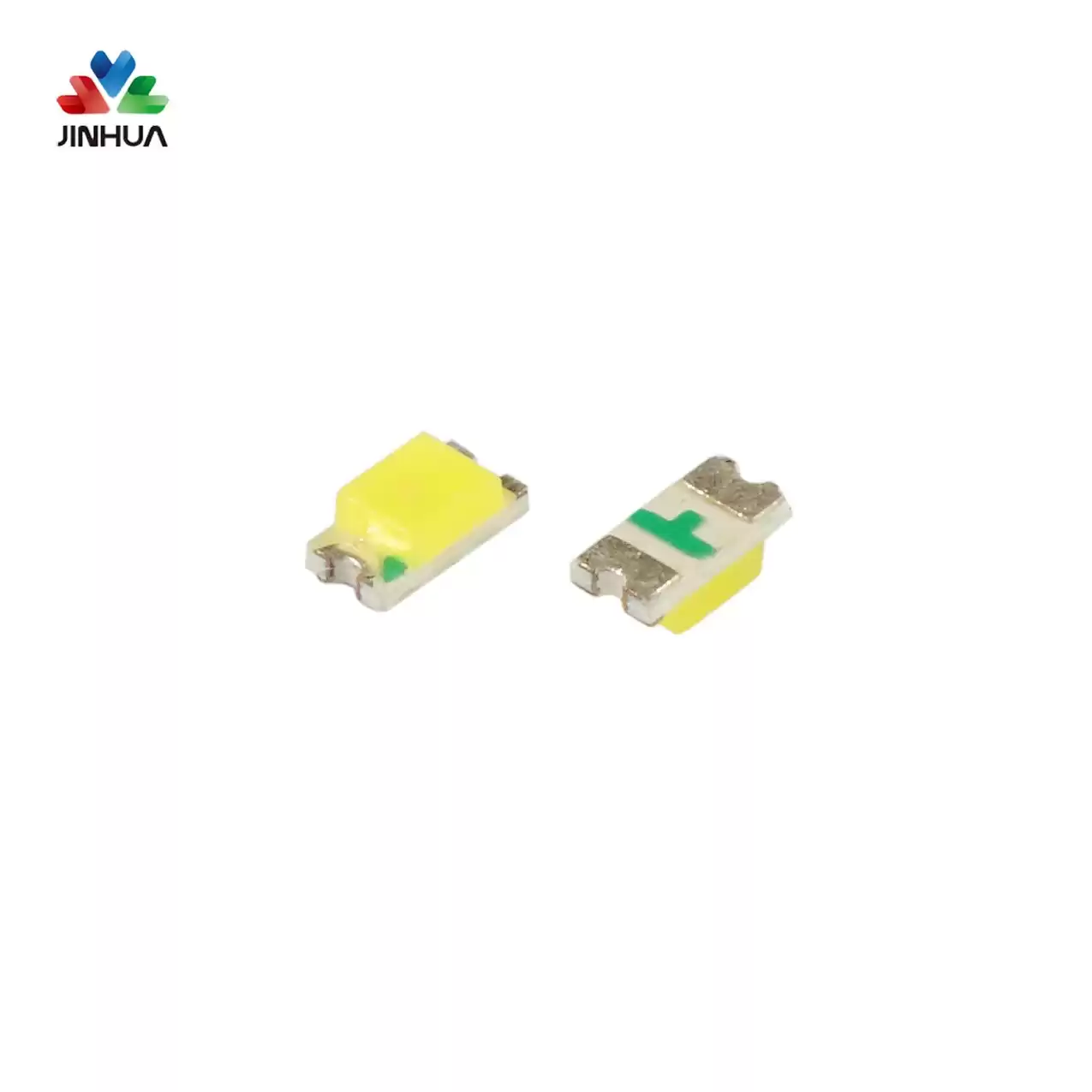

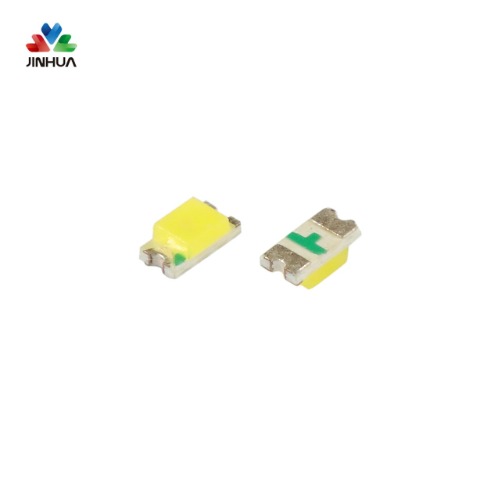

Detailed Picture
Features
Δ Wide Viewing Angle
Δ All Kinds Of Emitted Colors And Size
Δ I.C. Compatible
Δ Low Power Consumption
Δ Long Lifespan
Δ RoHS Compliant
Δ High Luminance
Δ Wide Range Working Temperature
Application

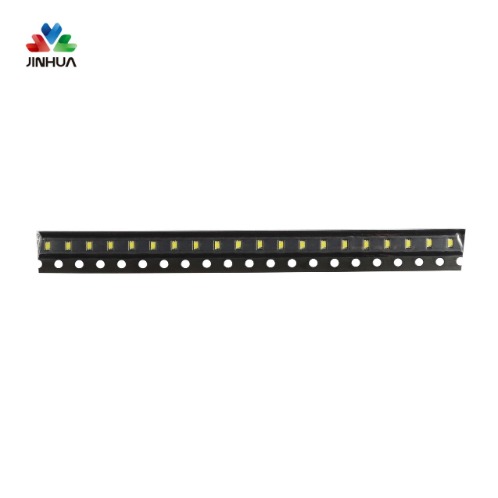

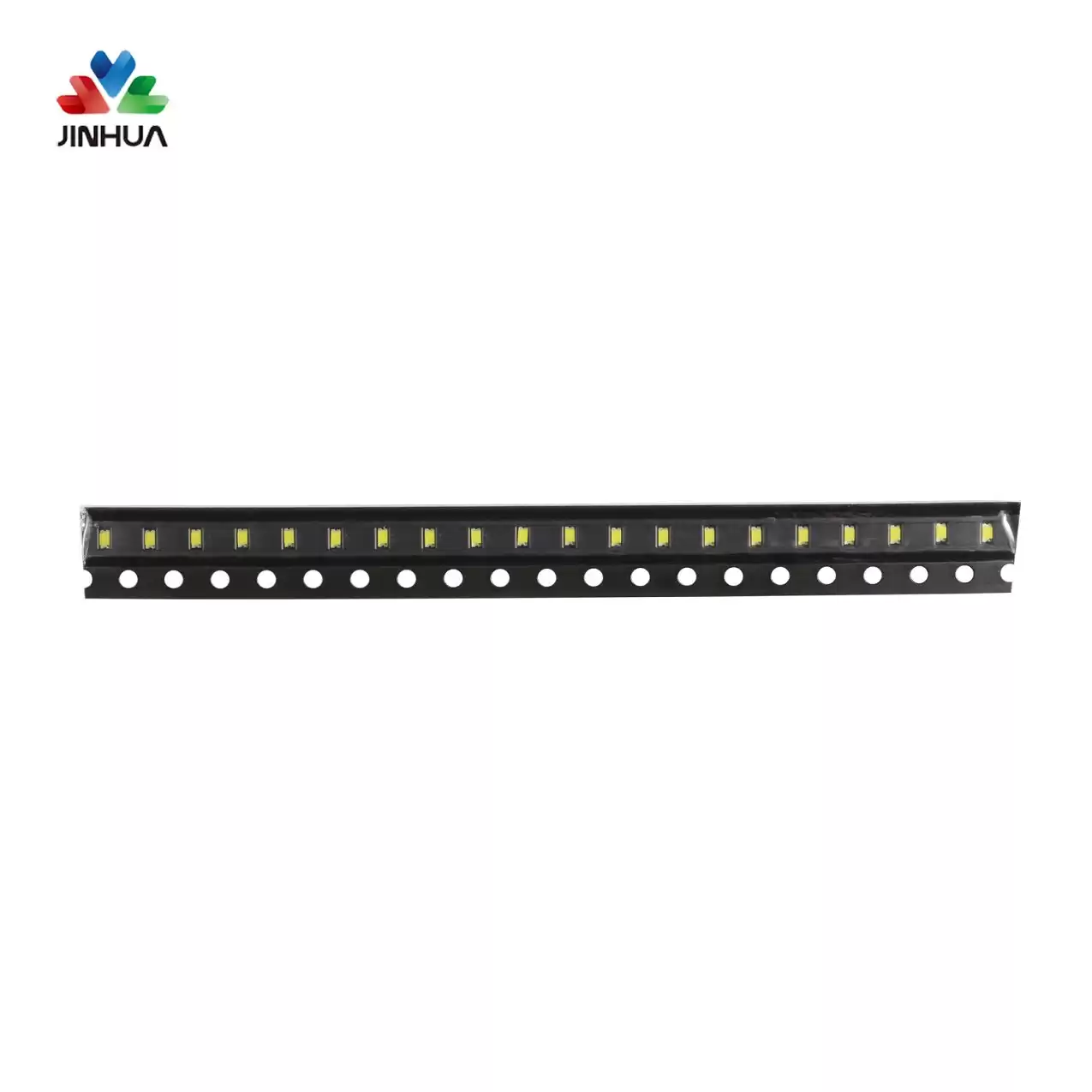

0603 LED chip is able to used in all kinds of LED display products. Manufactured by high precise SMT machine, it's packaged by material wheel easy for automatic machine feed in during assembly.

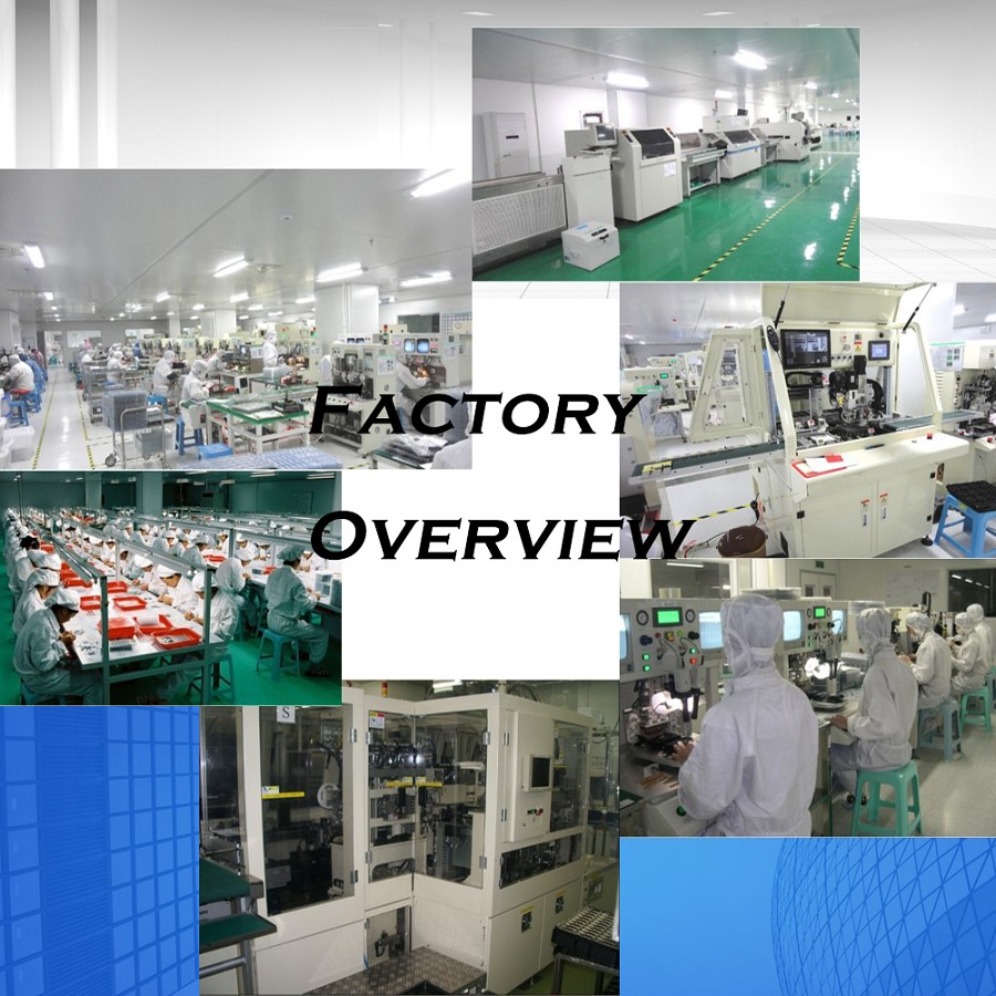

Production Line And Equipment
Company Profile
Why Choose Us
1. Your inquiry for our products or prices will be replied in 24 hours.
2. We offer the OEM and ODM service, and we have been in this field for 20 years.
3. Protection of your sales area, ideas of design and all your private information.
4. We gurantee both quality and service regardless of your big or small order.
5. Advanced equipment and good materials:ASM machine,good chips and epoxy resin.
FAQ
Q1:Are you a factory or trading company?
A1:We are a factory with 20 years experience in this field. And we provide OEM&ODM services.
Q2:Can I get a sample?
A2: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3: How do you ship the goods and how long does it take arrive?
A3: We usually ship by UPS, DHL, EMS, FEDEX or TNT. It usually takes 3-7 days.
(The freight for sample delivery is at receiver's side; For saving the cost, we recommend the way of prepaid instead of collect.)
Q4:Where is your location?
A4: Our Headquarter located in Nanjing city, Jiangsu Province, a beautiful city with more than 3000 years of history.
Q5.What is the delivery time?
A5.Normally it takes 20-45days after receiving your payment,but it could be negotiated based on your order quantity and our production schedule.
