Product Name:1.2 ton Capacity Battery Electric Reach Forklift Truck
Specification
|
Name
|
Electric pallet stacker（24V）
|
|
Model No.
|
Unit
|
CDD10B-25
|
|
Capacity
|
Kg
|
1000
|
|
Mast type
|
|
duplex
|
|
Max lifting height
|
H（mm）
|
2500
|
|
Load center
|
C（mm）
|
500
|
|
Wheel type
|
|
Polyurethane tire （PU）
|
|
Fork size
|
（mm）
|
1070*100
|
|
Fork adjust range
|
（mm）
|
210-680
|
|
Overall length
|
L（mm）
|
2814
|
|
Overall width
|
S(mm)
|
983
|
|
Height--Mast Lowered
|
H1（mm）
|
1850
|
|
Maximum height when fork is lifting
|
H2（mm）
|
3417
|
|
turning radius
|
WQ(mm)
|
1645
|
|
Min.stacking.aisle.1000*1000pall
|
(mm)
|
3080
|
|
Max.Walking Speed
|
Km/h
|
4.0-5.0
|
|
Grade ability
|
%
|
5-8
|
|
Total Weight
|
Kg
|
1700
|
|
Driving wheel
|
mm
|
Ø230*75
|
|
Front wheel
|
mm
|
Ø210*85
|
|
Balance wheel
|
mm
|
Ø150*50
|
|
Battery capacity
|
V/Ah
|
24/210
|
|
charger
|
V/A
|
24/30
|
|
Driving motor
|
Kw
|
1.5
|
|
Lifting motor
|
Kw
|
2.2
|
|
Walking Adjustable Type
|
|
Holzer accelerator
|
Basic configuration：
1、US CURTIS Control system，Stepless speed regulation
2、Brand contactor,
3、Brand hydraulic lifting pump station;
4、24V/210AH Lead acid battery；
5、24V/30Aexternal intelligent charger
6、Brand sealing elements
7、Vertical AC drive motor
8、Vertical transmission gearbox
9、High wear resistant polyurethane wheel（Bearing wheel, driving wheel and balancing wheel）
10、EPS
11、Multi functionelectric reader
12、Electromagnetic breake
13、Pedal foot switch, seat, steering wheel
14、Forged fork, suitable for single and double pallets
15、Fork raising with buffer

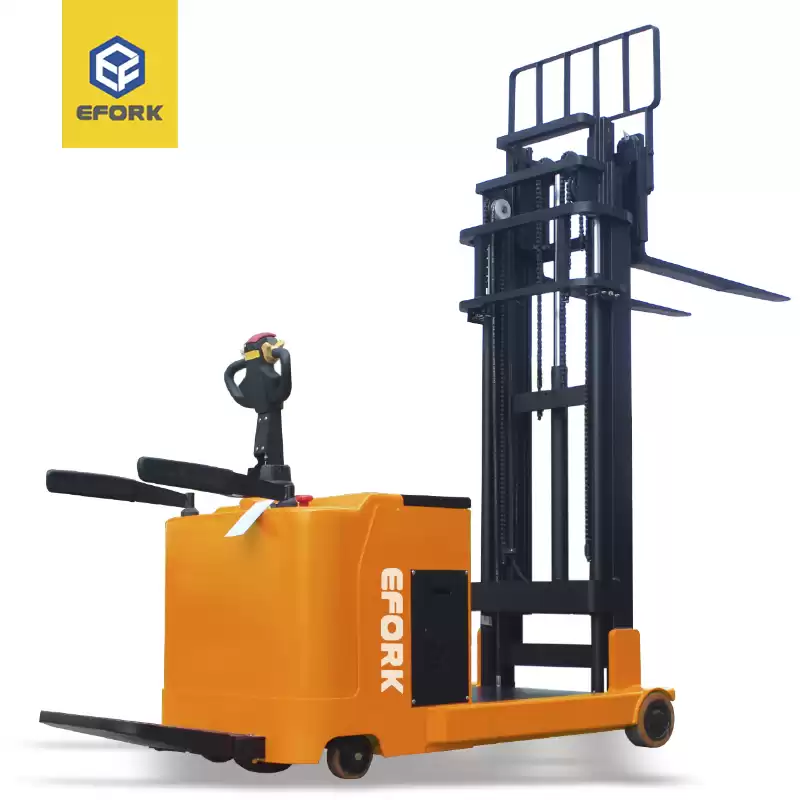

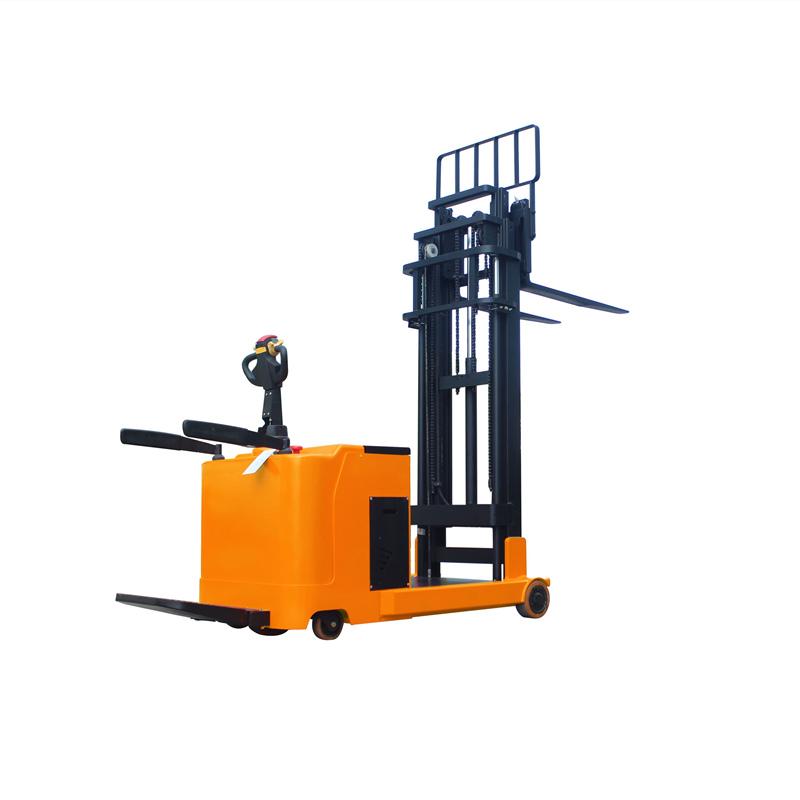

Product Display
