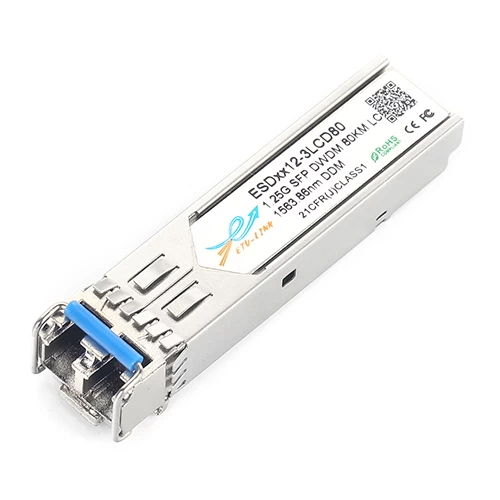

ESDxx12-3LCD80
1.25Gbps
DWDM SFP Optical Transceiver, 80KM Reach
Features
Ø Wavelength selectable to C-band ITU-T grid wavelengths
Ø Suitable for use in 100GHz channel spacing DWDM systems
Ø DWDM SFP MSA Compliant
Ø Dual data-rate of 1.25Gbps/1.063Gbps operation
Ø Up to 2.67Gb/s data rate
Ø OC24 Long Reach 80km
Ø Cold Start up Wavelength Compliance
Ø Low Power Dissipation <1.3W Maximum
Ø -5ºC to 70ºC Operating Case Temperature
Ø Diagnostic Performance Monitoring of module temperature, supply
Voltages, laser bias current, transmit optical power, receive optical
power,
Laser temperature and TEC current
Ø Extended link budget with APD receiver technology
Ø RoHS compliant and lead free
Applications
Ø SFP Transceivers for DWDM SONET/ SDH
Ø Ethernet IEEE 802.3ae
Ø Fiber Channel
Description
ETU-Link
DWDM SFP Transceiver exhibits excellent wavelength stability, supporting
operation at 100 GHz channel, cost effective module. It is designed for DWDM
SONET/ SDH, Gigabit Ethernet and Fiber-
Channel
applications.
The
transceiver consists of two sections: The transmitter section incorporates a
colded DFB laser. And the receiver section consists of a APD photodiode
integrated with a TIA. All modules satisfy class I laser safety requirements.
ETU-Link DWDM SFP transceiver provides an enhanced monitoring interface, which
allows real-time access to device operating parameters such as transceiver
temperature, laser bias current, transmitted optical power, received optical
power and transceiver supply voltage, laser temperature and TEC current.
