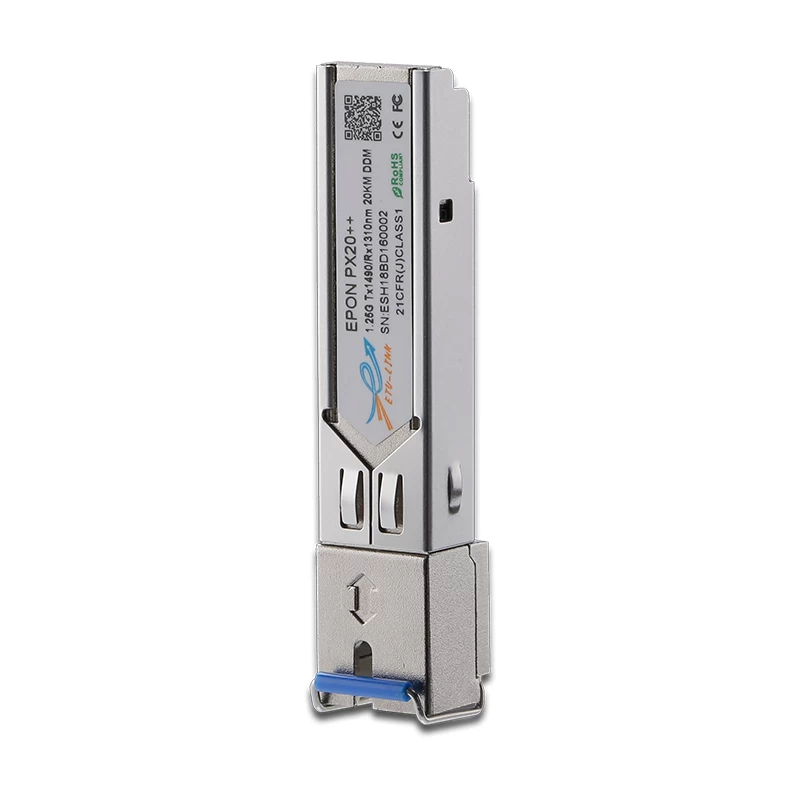

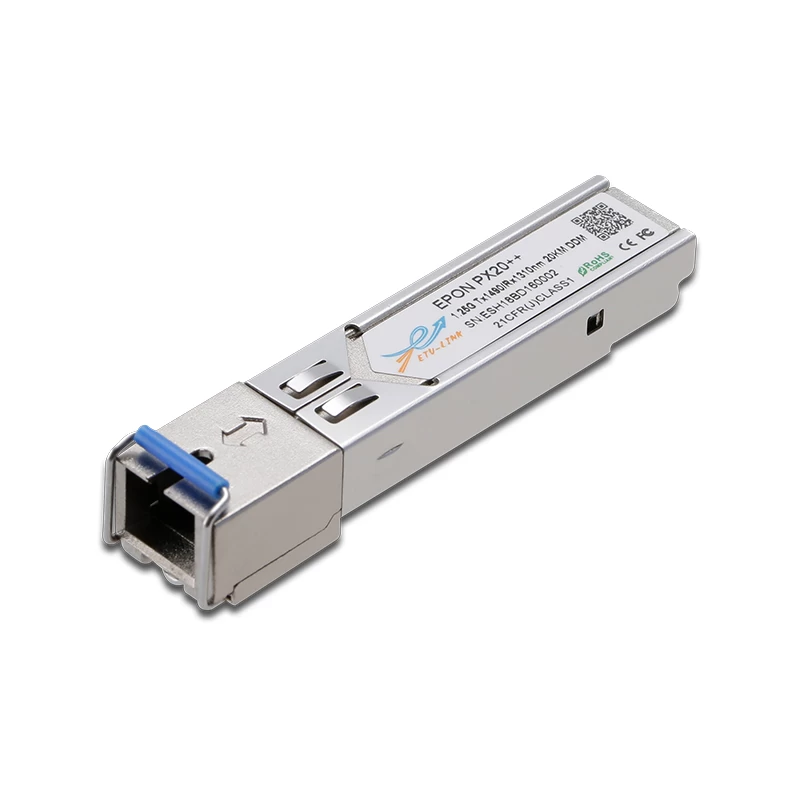

EEP4311-3SCDP2x

1.25G SFP SC GEPON OLT PX20++

Ø Single fiber bi-directional data links symmetric 1.25Gbps application

Ø 1490nm continuous-mode DFB laser transmitter and 1310nm burst-mode APD-TIA receiver

Ø Reset-less burst-mode receiver simply the system design

Ø +5~+8dBm high Average Launch Optical Power

Ø More than 25dB wide dynamic range

Ø 0 to 70°C operating temperature

Ø Single 3.3V power supply

Ø Digital diagnostic monitoring interface

Ø Digital burst RSSI function to monitor the input optical power level

Ø LVPECL compatible data input/output interface

Ø LVTTL transmitter disable control

Ø LVTTL transmitter laser fault alarm

Ø LVTTL receiver loss of signal indication

Ø Low EMI and excellent ESD protection

Ø Class 1 laser safety standard IEC-60825 Compliant

APPLICATIONS

Ø Gigabit Ethernet Passive Optical Networks (GEPON) 20Km 1:32 application or 10Km 1:64 application.

Ø STANDARDS

Ø Complies with SFP Multi-Source Agreement (MSA) SFF-8074i

Ø Complies with SFF-8472

Ø Complies with IEEE 802.3ah™-2004

Ø Complies with FCC 47 CFR Part 15, Class B

Ø Complies with FDA 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007
