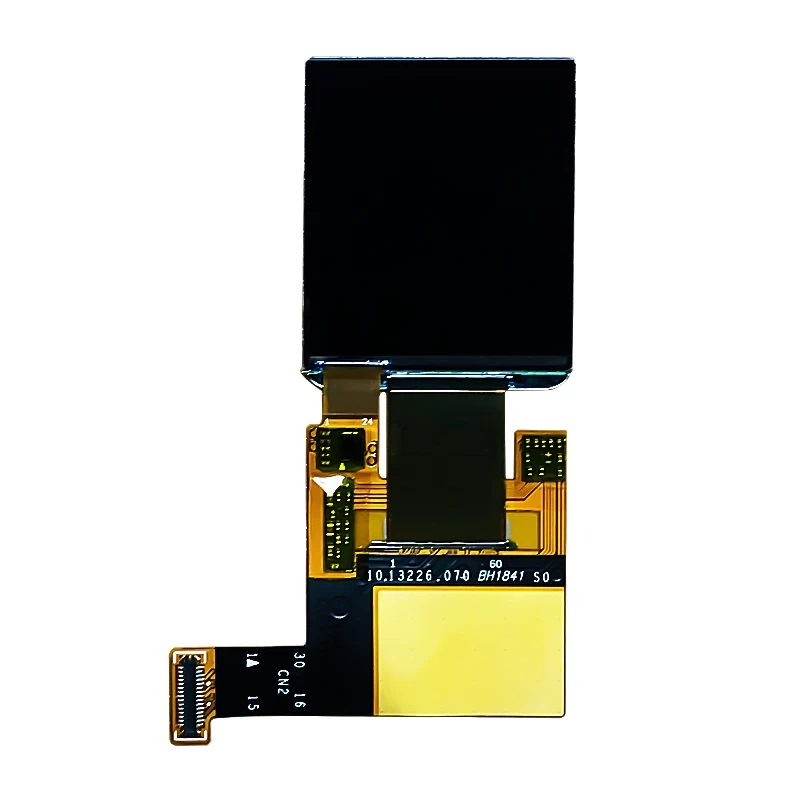

1.41'' OLED with 320*360 dot matrix ZTW522 IC, 30PIN, MIPI interface For smart watch

SCE0141001-V01 is a OLED Display with COG Type, 320x360 Resolution,TP ZTW522 IC, MIPI interface, 30PIN

  • Resolution320x360
  • Outline Dimension (mm)26.04x31.78
  • Viewing Area (mm)26.04 x30.18
  • Active Area (mm)23.84x26.82
  • InterfaceMIPI
  • IC Part No.TP IC: ZTW522
  • ColorMonochrome (White)
  • PIN30
  • FPC typeConnector
Facebook Twitter Pinterest LinkedIn 分享


Basic Information


Display Color:               White
Dot Matrix:                    320X360
Drive IC:                        ZTW522

Interface:                       MIPI
Outline Dimension:        26.04x31.78
Active area:                    23.84x26.82
PIN:                                30
FPC Type:                      Connector

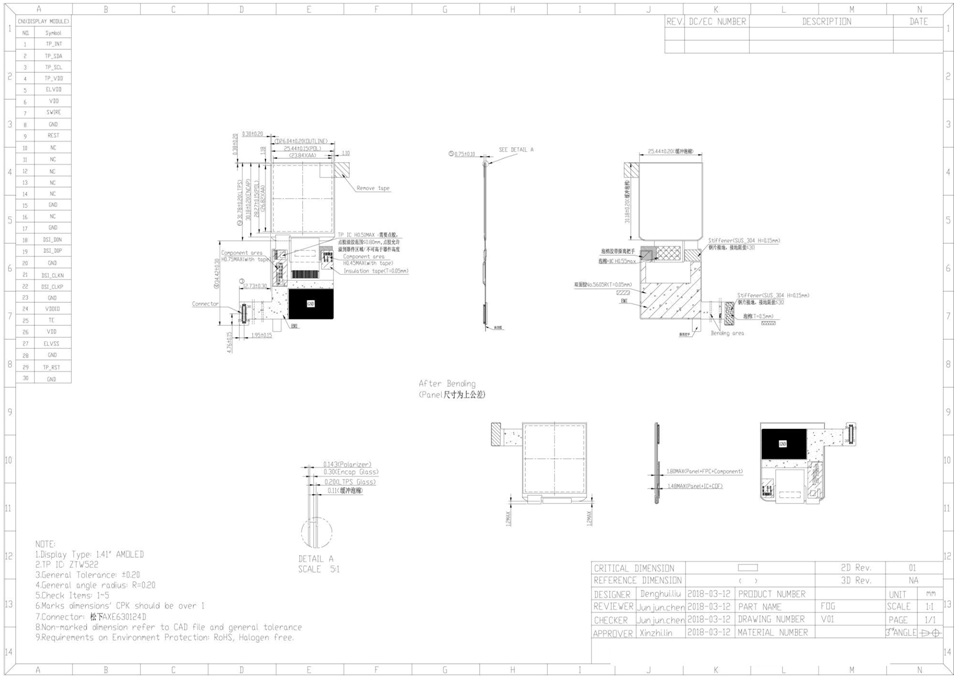

Drawing





General Specification



ITEM SPECIFICATIONS  UNIT
 MODULE SIZE 26.04x31.78 mm
 VIEWING AREA 26.04 x30.18 mm
 ACTIVE AREA 23.84x26.82 mm
 DOT SIZE 0.21(W) x0.21(H) mm
 DOT PITCH 0.23(W) x0.23 (H) mm
 ASSY.TYPE COG ---
 WEIGHT TBD
