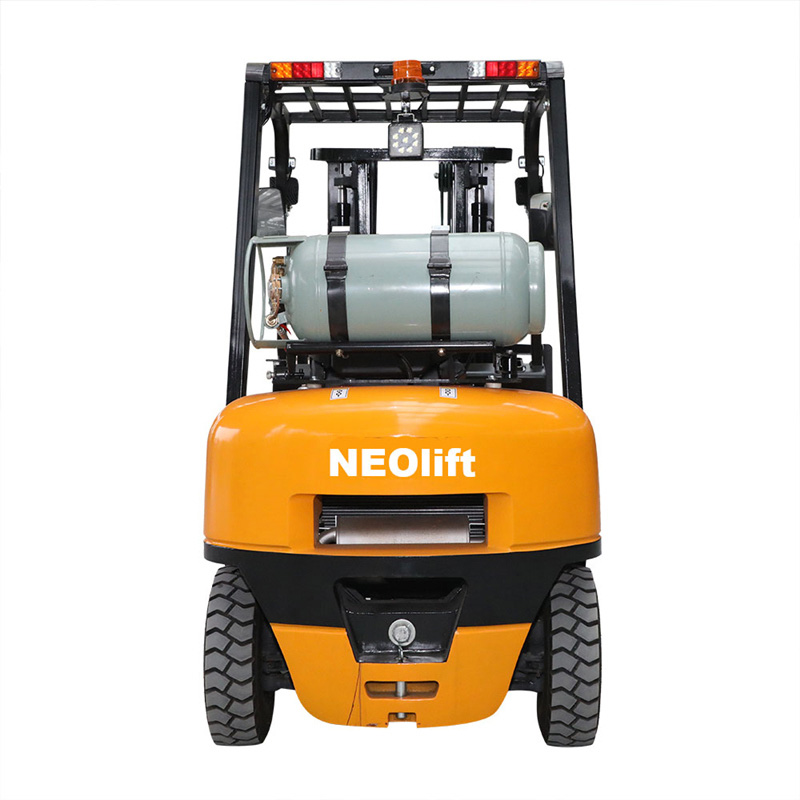

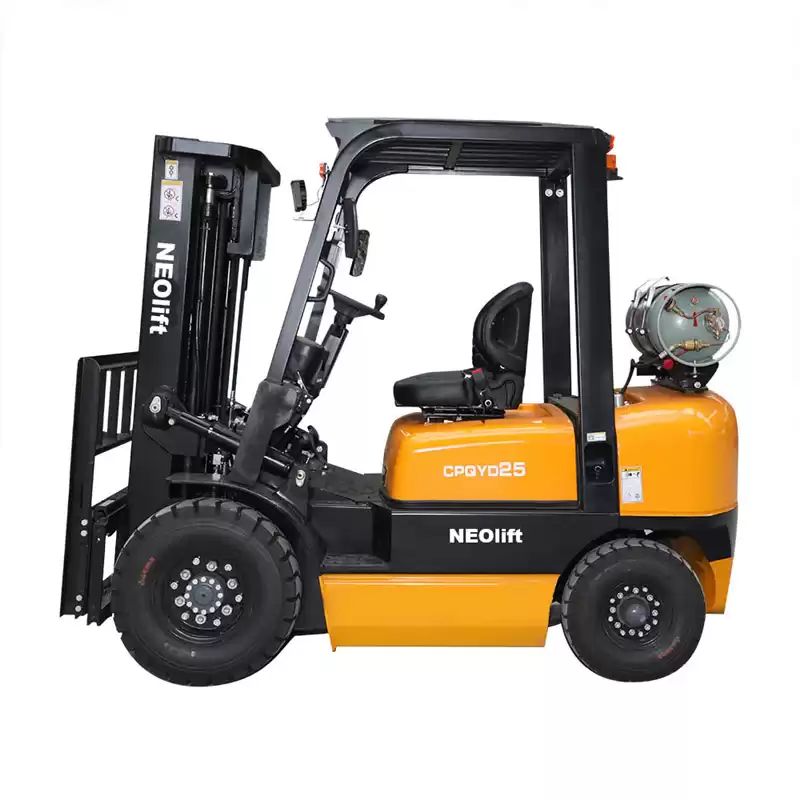

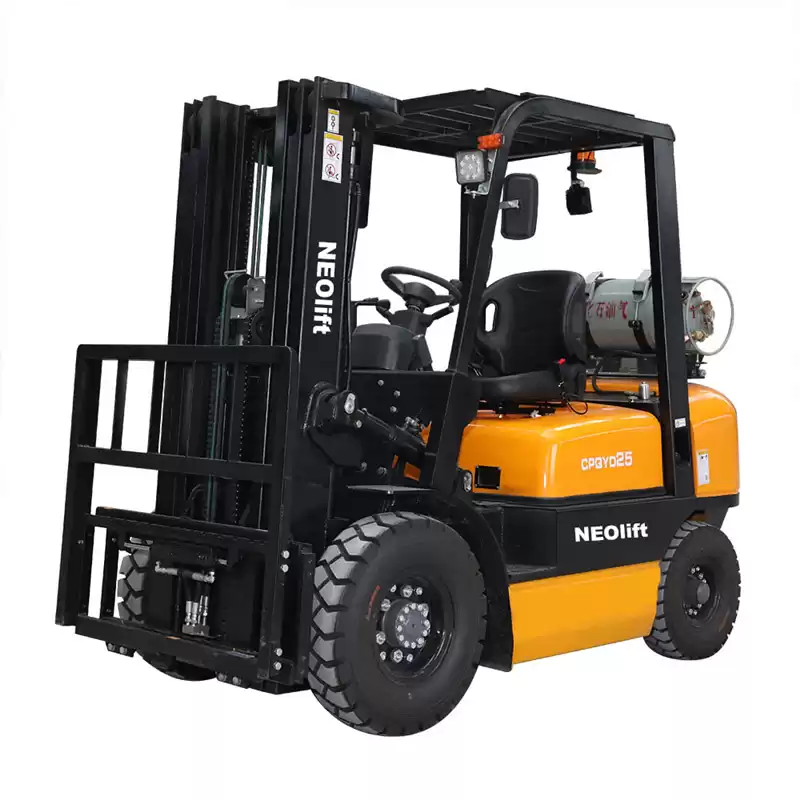

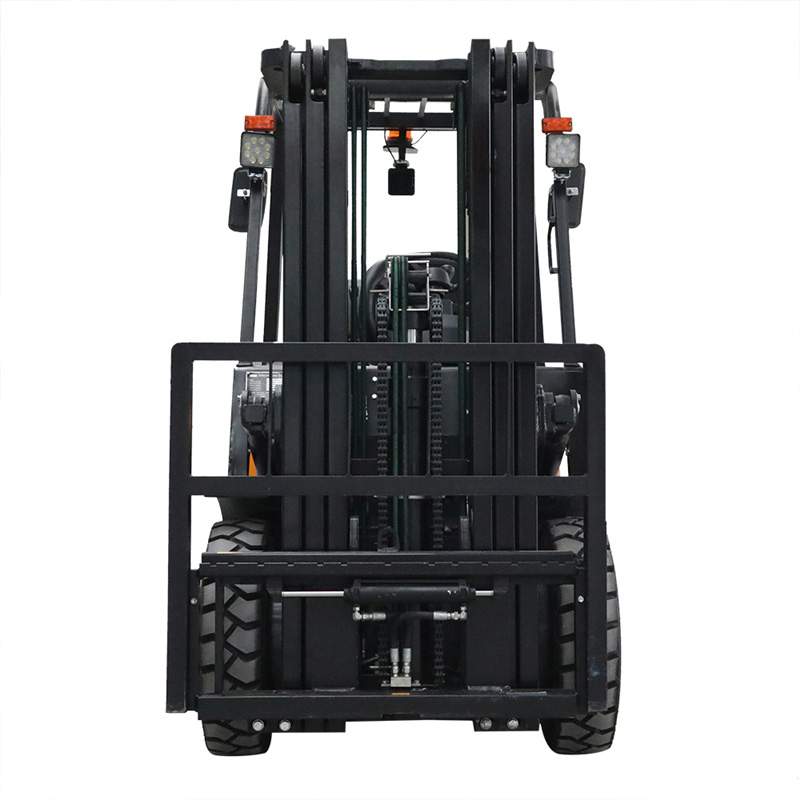

1.5-4.0 Tons Gasoline and LPG Counterbalance Forklift
Gasoline and LPG Counterbalance Forklift encompasses both brilliant performance and high quality. Capacity range 1.5-4.0 tons,lifting heights 3000-6000mm.They need no maintenance, user friendly and anti corrosive in nature, thus are widely demanded in the national and international market.High quality and low price, strong power, can adapt to various complex working conditions, environmental protection and safety, and are deeply loved by users.

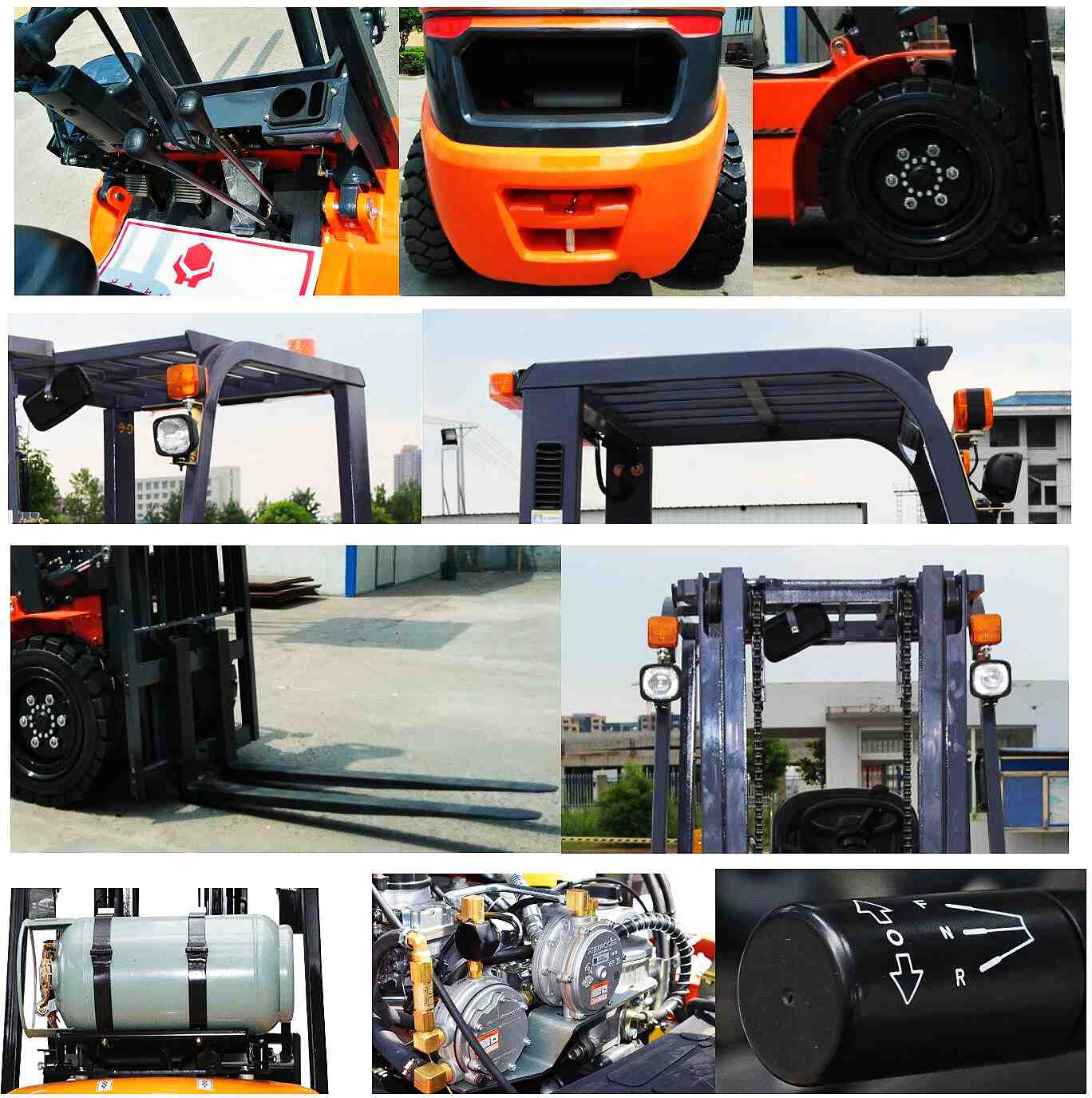

Features:
1.Smooth and novel shape, with automobile design elements counterweight, strong personality and dynamic；
2.Reasonable oil circuit layout and pipeline design reduce oil pressure loss and prevent oil temperature from being too high；
3.High strength integrated engine hood and safety frame molded in one piece are safer in operation；
4.Ergonomic design is adopted to place the control device low to the right, which greatly reduces the fatigue of the operator；
5.The double suspension structure reduces excessive vibration of the engine and makes the operation more comfortable；
6.Integral steering gear, more sensitive directivity, smoother operation and more stable quality；
7.Large Angle steering wheel adjustment can meet the driving needs of different people；
8.Easy replacement of large-capacity steam bottles, which can meet the needs of long-term operation.
Specification:
| |
|
Manufacturer |
NEOlift |
|
| Model |
Unit |
CPQD15 |
CPYD15 |
CPQD20 |
CPYD20 |
CPQD25 |
CPYD25 |
CPQD30 |
CPYD30 |
CPYD35 |
CPYD40 |
| Power type |
Gasoline/Liquefied gas/Natural gas |
| Rated capacity |
kg |
1500 |
2000 |
2500 |
3000 |
3500 |
4000 |
| Max.lift height of fork(standard) |
mm |
3000 |
3000 |
3000 |
3000 |
3000 |
3000 |
| Fork size |
mm |
920X100X45 |
920X100X45 |
1070X100X45 |
1070X125X45 |
1070X125X50 |
1070X130X50 |
| Total weight |
kg |
2680 |
3320 |
3680 |
4270 |
4700 |
4270 |
| Driving Brake |
|
hydraumatic pedal |
| Parking Brake |
|
Mechanical manual |
Engine
(standard) |
Model |
|
GQ-4Y |
CQ-4Y |
| Rated output |
kw/rpm |
37/2800 |
57/2800 |
| Rated torque |
N.m/rpm |
154/1800 |
198/1800 |
| No.of cylinder |
|
4-91X86 |
| Displacement |
L |
2.237 |
| Fuel tank capacity |
L |
60 |
| Number of speeds for transmission |
1-1 Power shift transmission / 2-2 Hand shift transmission |
| |

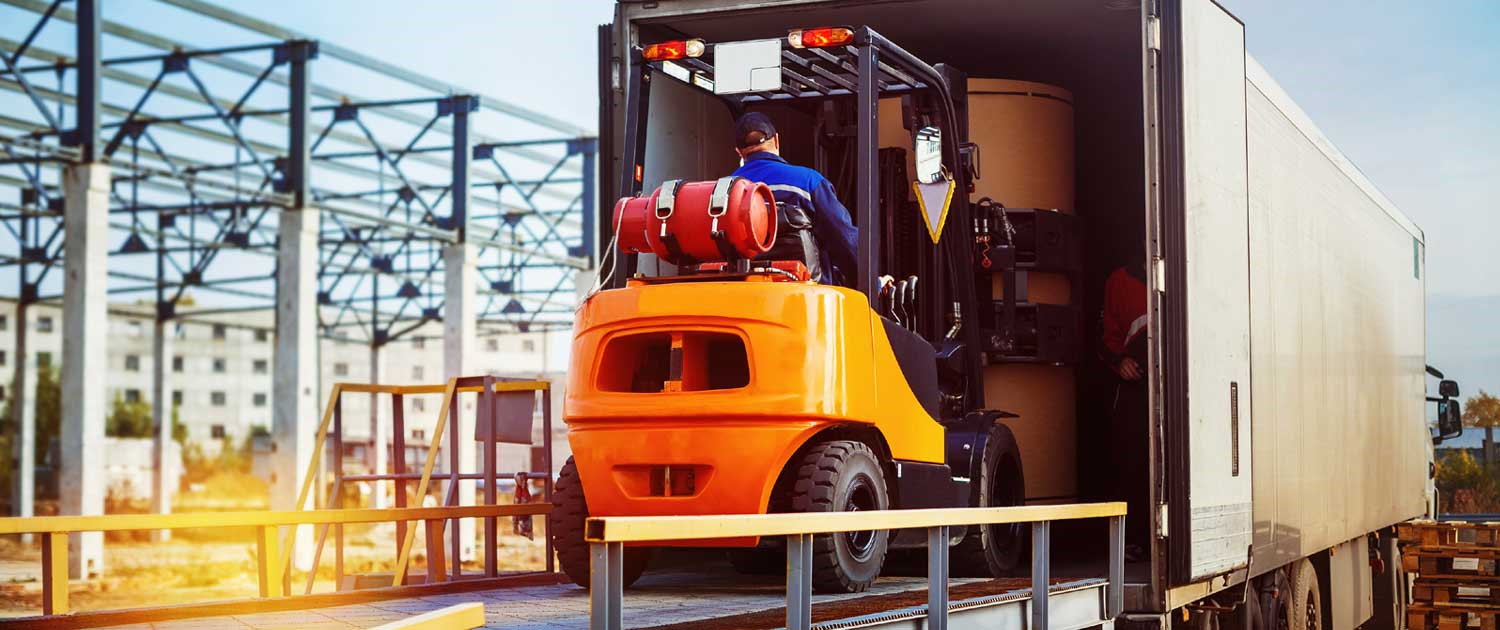

Application:
1.Warehouse
2.Port
3.Factory
4.Distribution Center
5.Logistics
Certificate:
Why choose NEOlift?
1.NEOlift has 20+ years experience in the field of electric material handling equipment! We can provide our customers with full range warehouse equipment based on various requirement.
2.The product range is comprehensive, the quality is safe and reliable.We have strict quality management system. We can provide customers with non-standard customized solutions according to their needs.
3.Professional and strong technical research and development team and timely and effective after-sales service.Shanghai Zon-Cho Huge Science And Technology Co., Ltd. has more than 60 professional technical R&D personnel, and each model has a professional R&D personnel responsible for it. Among them, more than 30% of the R&D personnel have a master's degree, 5 have a doctorate degree, and more than 60% of the R&D personnel have been engaged in the industry for more than 5 years.
