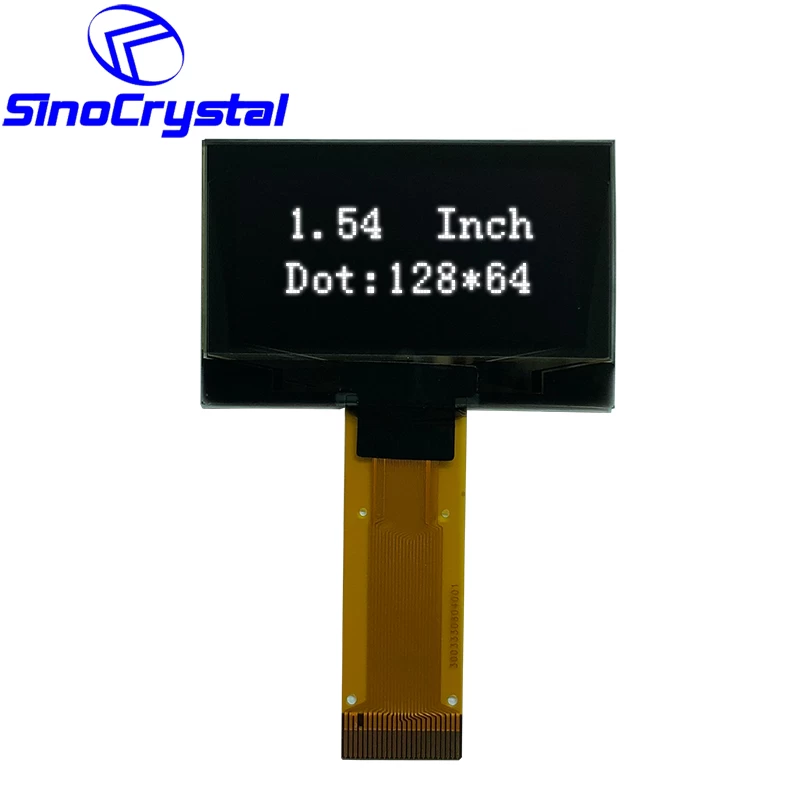

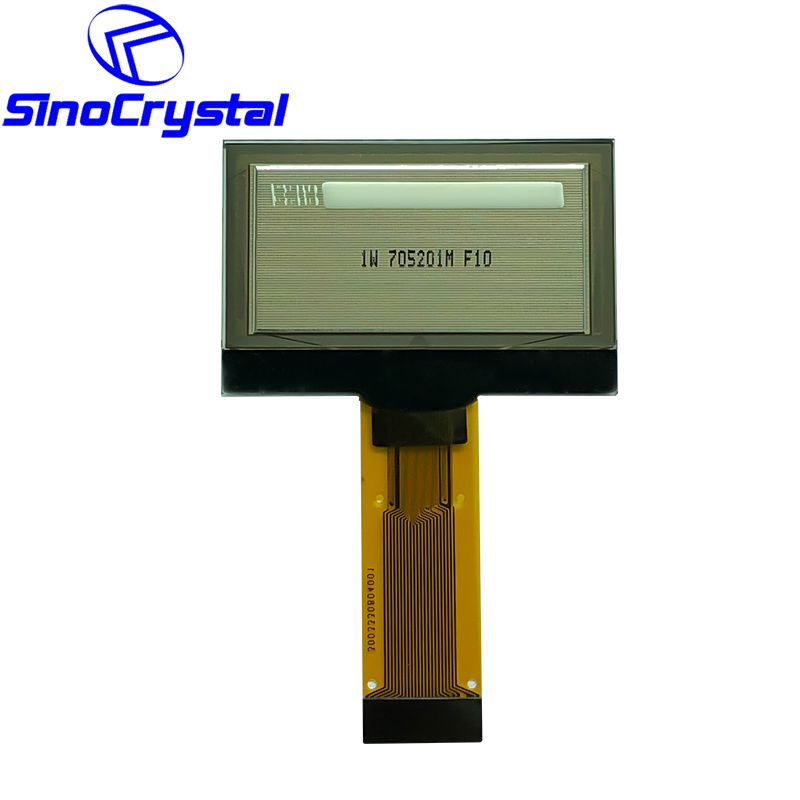

1.54'' 128×64 OLED with SPD0301ZD IC, 24PIN, 6800/8080 interface, 4 wire serial interface, I2C

SCE154001-V01 is a OLED Display with COG Type, 128×64 Resolution, SPD0301ZD IC, 6800/8080 interface, 4 wire serial interface, I2C, 30PIN

  • Active Area (mm)35.052x17.516
  • Viewing Area (mm)37.052x19.516
  • Outline Dimension (mm)42.04x27.22×1.41
  • Resolution128×64
  • Interface6800/8080 interface, 4 wire serial interface, I2C
  • IC Part No.SPD0301ZD
  • ColorMonochrome (White)
  • PIN24
  • FPC typeConnector
Facebook Twitter Pinterest LinkedIn 分享


Basic Information


Display Color:               White
Dot Matrix:                    128×64
Drive IC:                        SPD0301ZD
Viewing Angle:              160°

Aperture rate:                86%
Interface:                       6800/8080 interface, 4 wire serial interface, I2C
Outline Dimension:        42.04x27.22×1.41
View area:                      37.052x19.516
PIN:                                24
FPC Type:                      Connector

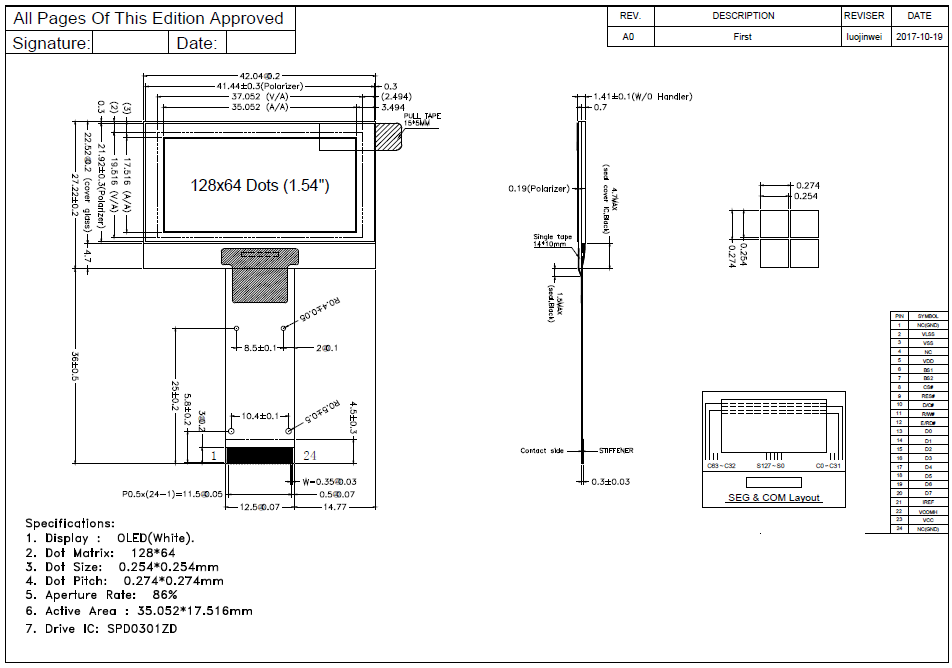

Drawing





General Specification


ITEM SPECIFICATIONS  UNIT
 MODULE SIZE 42.04(W)x27.22(H)x1.41(D) mm
 VIEWING AREA 37.052 (W) x 19.516(H) mm
 ACTIVE AREA 35.052(W) x17.516(H) mm
 DOT SIZE 0.254(W) x0.254(H) mm
 DOT PITCH 0.274(W) x0.274 (H) mm
 ASSY.TYPE COG ---
 WEIGHT TBD





Interface Definition



PIN NO. SYMBOL TYPE FUNCTION DESCRIPTIONS
1 NC(GND) P It should be connected to external ground.
2 VLSS P This is an analog ground pin. It should be connected to VSS externally.
3 VSS P Ground pin. It must be connected to external ground.
4 NC
NC
5 VDD P Power pin for logic circuit. It must be connected to external source.
6 BS1 I

Interface selection pins.


7 BS2
8 CS# I Chip Select input pin. Active "L"
9 RES# I Hardware reset input pin. Active "L".
10 D/C# I WThis is Data/Command control pin.
When the pin is pulled HIGH, the data at D[7:0]  is data.
When the pin is pulled LOW, the data at D[7:0] is command. In I2C mode, this pin acts as SA0 for slave address section.
When 3-wire serial interface is selected, this pin must be connected to VSS
11 R/W# I This is read/write control input pin.
8080: data write enable; 6800: read/write select pin.
When serial or I2C interface is selected, this pin must be connected to VSS.
12 E/RD# I This is read/write control input pin.
8080: data read enable; 6800: read/write enable pin.
When serial or I2C interface is selected, this pin must be connected to VSS.
13 D0 I/O These are 8-bit bi-directional data bus to be connected to microprocessor's Data bus.
When serial interface mode is selected, D2 should be kept NC, D1 will be the serial data input: SDIN, D0 will be the serial clock input: SCLK.
When I2C mode is selected, D2, D1 should be tied together and serve as SDA and D0 is the serial clock input, SCL.
14 D1
15 D2
16 D3
17 D4
18 D5
19 D6
20 D7
21 IREF I Current reference for brightness adjustment.
This is segment output current reference pin. A resistor should be connected between this pin and VSS .Set the current at 10 uA maximum.
22 VCOMH O COM signal deselected voltage level.
A capacitor should be connected between this pin and VSS.
23 VCC P Power supply for OLED driving voltage. A capacitor should be connected between this pin and VSS.
24 NC(GND) P It should be connected to external ground.
