1.5t mini electric vna forklifts

Full Nalift articulated forklifts ranges are standard equipped with 80V AC ZAPI dual-core controller which makes it has a lower failure rates and creates lower heat after long time using, 80V AC lifting motor and driving motor and 80V 400ah-600ah lead acid battery or li-ion battery which provides stronger power, increases efficiency and greatly reduces maintenance costs.

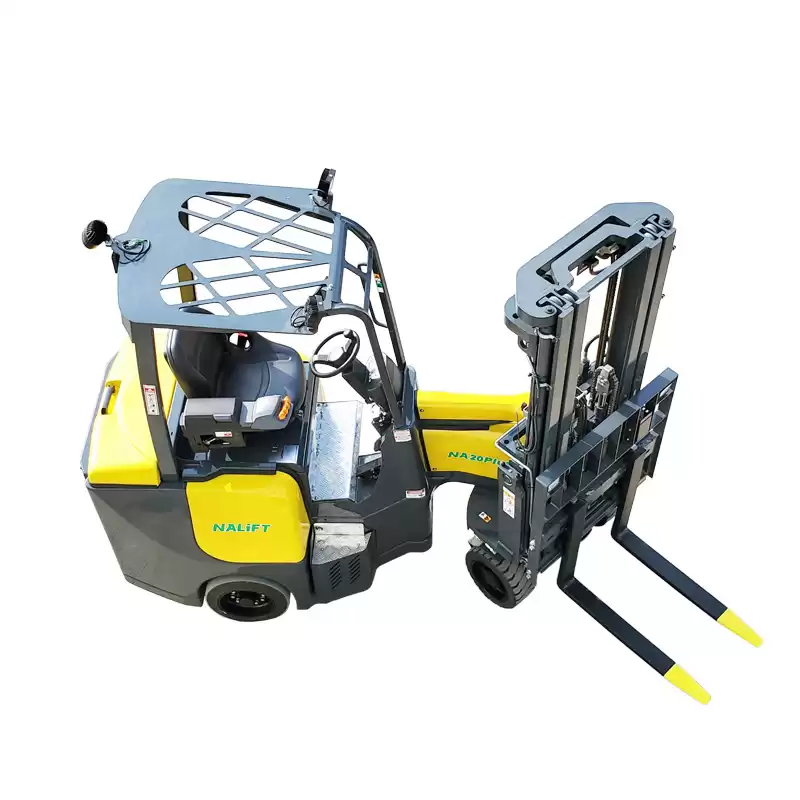

Product Item: Nalift 1.5t Mini Electric Vna Forklifts


The Nalift narrow aisle forklifts is firm, versatile and durable. Designed to bear heavy-duty use inside and outside, each tough articulating narrow aisle forklift is made to the supreme standards. With the ability to work in super narrow aisles (1800mm), the Nalift vna forklifts increases storage of working operations; whether it be current or new warehouses. Furthermore, by using the one truck, buyers can increase productivity and eliminate double handling and speed up “truck to rack” operations.

The Nalift electric articulated forklifts provides the lowest cost of ownership while maximizing space and productivity to benefit every users. Nalift VNA forklifts are designed to withstand heavy-duty use both inside and outside, it can drive on any floor surface, eliminating double handling, moving pallet from lorry to racks in one step. Comparing to reach trucks, Nalift VNA trucks creats 30% more pallet positions, compairing to counterbance forklifts, it creats 50% morepallet positions. So the Nalift VNA articulated forklifts can save users much time, space and money.


Full Nalift articulated forklifts ranges are standard equipped with 80V AC ZAPI dual-core controller which makes it has a lower failure rates and creates lower heat after long time using, 80V AC lifting motor and driving motor and 80V 400ah-600ah lead acid battery or li-ion battery which provides stronger power, increases efficiency and greatly reduces maintenance costs.


Advanced Parts Descriptions


fingertip joystick



Fingertip armrest

Combines fingertip armrest and electro proportional valve, Nalift VNA forklifts provides better driving experience, more flexible and accurate operation. It also provides a special picking mode, easy for drivers to load/unload pallets in narrow aisles. With better inching performance, it makes the Nalift articulated forklifts very suitable for high-intensity work.



solenoid valve
Proportional valve
Electro-hydraulic proportional valve match with fingertip armrest can adjust the speed of mast lifting/falling, side shift and tilting at will, making it easier and more accurate to pick up/unload goods in narrow aisles.



zapi controller





ZAPI Controller

Nalift VNA articulated forklift ranges are standard fitted with 80V full AC ZAPI dual-core controller. As the voltage is higher, it produces lower current, lower heating, lower failure rate. Therefore, all electrical components will have a longer service life.






electric motor




Lifting Motor (left)

Fitted with external encoder bearing, easy for maintenance. 80V AC 15kw/h
Lifting speed: 0.44/0.5m/s



Driving Motor (right)
Fitted with external encoder bearing, easy for maintenance
80V AC 19.5kw/h
Driving speed: 16km/h
Gradeability: 18%/20%



forklift seat



Adjustable Suspension Seat

OPS system
Safe belt
High suitability


forklift gear


Bearings

The steering motor drives the large gear ring through the small gear ring, which is more labor-saving and has longer service.

Extremely small gear clearance ensures structural stability and thus reduces failure rates.

10 years warranty for the gear.



cooling fans


Cooling Fans

All Nalift VNA forklifts are equipped with two efficient cooling fans, even in high temperature environment it can quickly cool down the motor and gear pump.


guiding laser
Guiding lasers
When the laser point to pallet center then drivers can steer direction, pushing forks into fork section accurately. It reduces accidents greatly.


Configurations

Standard parts Optional parts
Fingertip armrest Wireless camera and monitor
Electro-hydraulic proportional valve Lithium ion battery
80V AC ZAPI controller Double deep forks
80V AC lifting&;driving motor
Weighing forks
80V 400AH lead acid battery and customized charger station
Height pre-selector
LED &; warning light
Cabin
Cooling fans
White tyres
Triplex full free mast
Quad mast
Integral side shift Fork positioner
Load backrest

Black solid tyres

Backup mirror
Suspension seat with safety belt and OPS system

Guiding lasers

Specifications

Model Unit NALIFT15
Capacity KG 1500
Mast lift height MM 4300-7050
Mast free lift height MM 1365-2435
Mast closed height MM 2265-3335
Mast full extended height MM 5561-8311
Overall length(excluding forks) MM 2780
Ground clearance MM 50
Overhead guard height MM 2270
Chassis width rear MM 1030
Chassis width front MM 980
Load center MM 600
Wheelbase MM 1735
Seat height MM 1220
Mast tilt angle(back/fwd) DEGREE 3/1
Front chassis rotate angle(left/right) DEGREE 220
Ground speed KM/H 16
Lift speed(load/unload) M/S 0.44/0.5
Front tyre size MM 412x174
Rear tyre size MM 457x150
Grade ability(load/unload) % 18/20
Battery voltage/capacity V/AH 80/400
Weight including battery KG 5150
Weight excluding battery KG 6400
Traction motor KW 19.5
Lifting motor KW 15
Min net working aisle width MM 1800
Transfer aisle width MM 2700


Less Cost
Narrower Aisle

Higher Productivity




Lift Up To 7000mm
Smart Fingertip Armrest
80V Full AC Control System
Aisle Width As Narrow As 1800mm


The full range of the articulating narrow aisle forklift trucks:

NALIFT15 rated capacity 1500KG, lift height 4300mm -7050mm,

NALIFT20 rated capacity 2000KG, lift height 4300mm-10050mm,

NALIFT25 rated capacity 2500KG, lift height 4300mm-12400mm,

NALIFT30 rated capacity 3000KG, lift height 4300mm-12400mm.
