1.6 ton Magnetic guidance Man up Electric VNA Forklifts

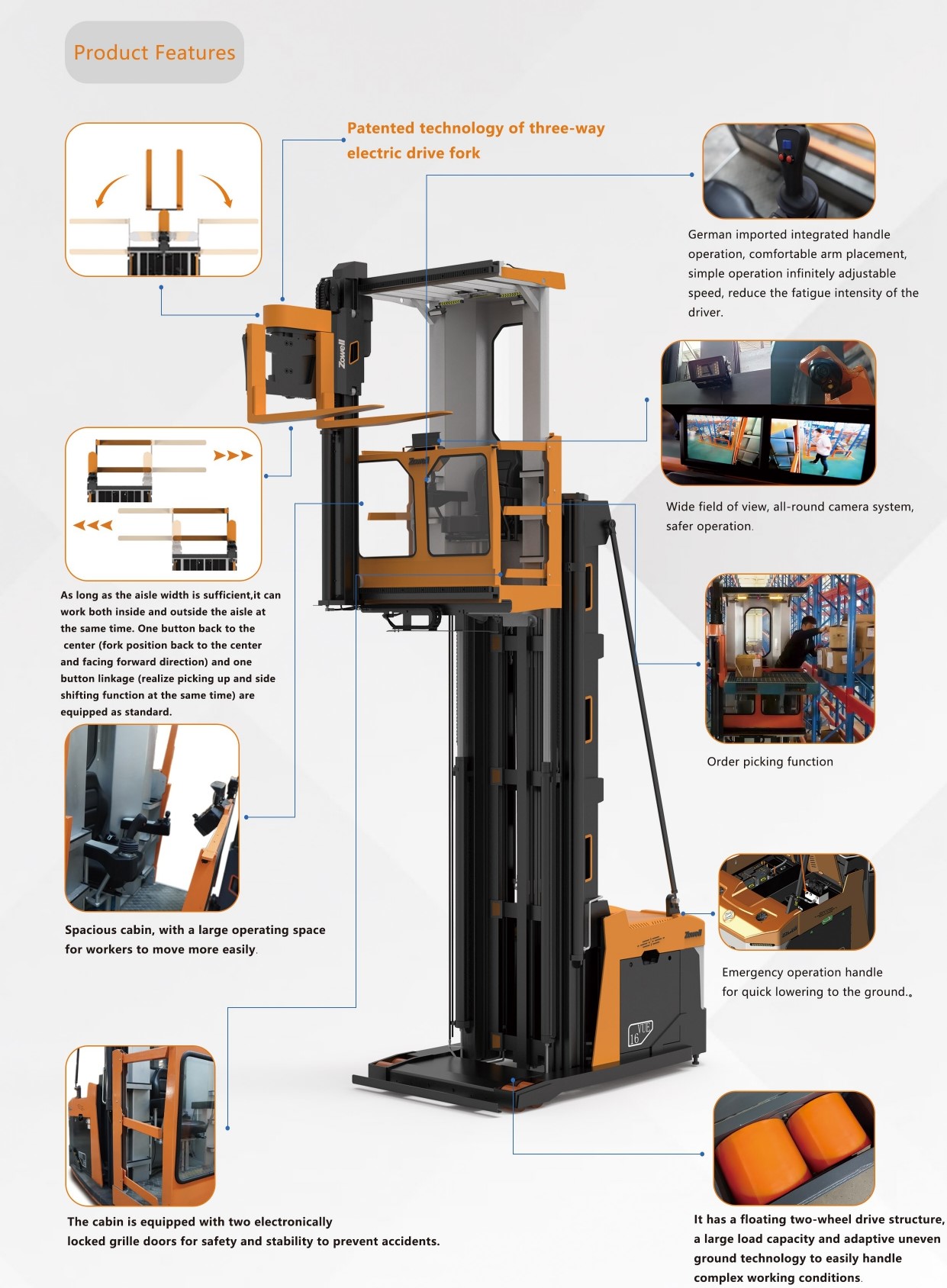

Zowell Man-up trilateral VNA forklift is the latest generation forklift fitted with the electric drive fork and has stacking and picking function. The maximum load capacity is 1600kg and the maximum lifting height is 13,500mm. It is equipped with three-way electric drive fork, full AC control system and stable and efficient electromagnetic wire guidance technology owns efficient energy recovery system, self-adaptive uneven ground function, comfortable operating cab, multiple active protection for the whole forklift make operation safer. Suitable for wide range of application and a variety of configurations can be optional. It can increase warehouse space by 270%.

Facebook Twitter Pinterest LinkedIn 分享

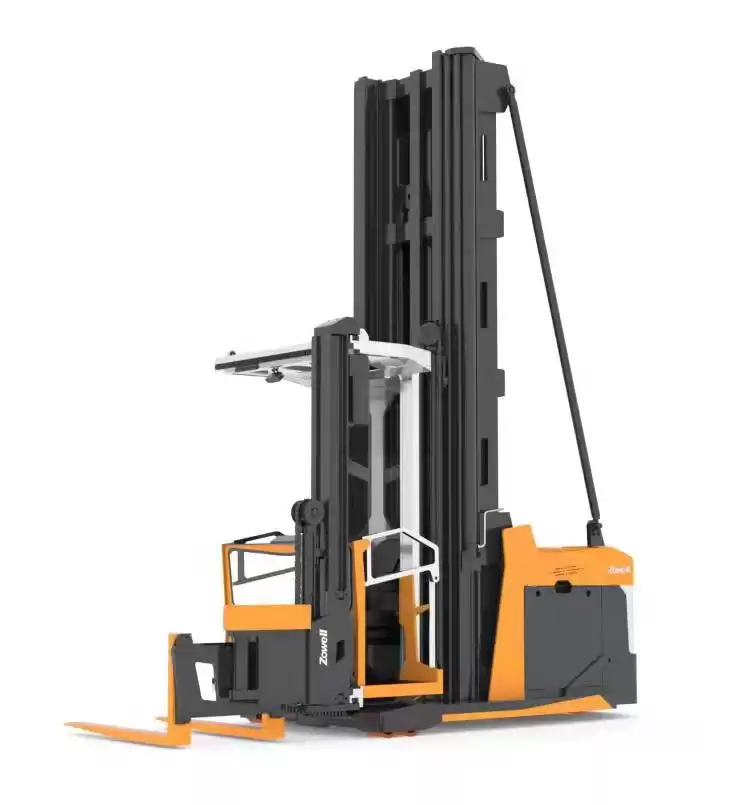

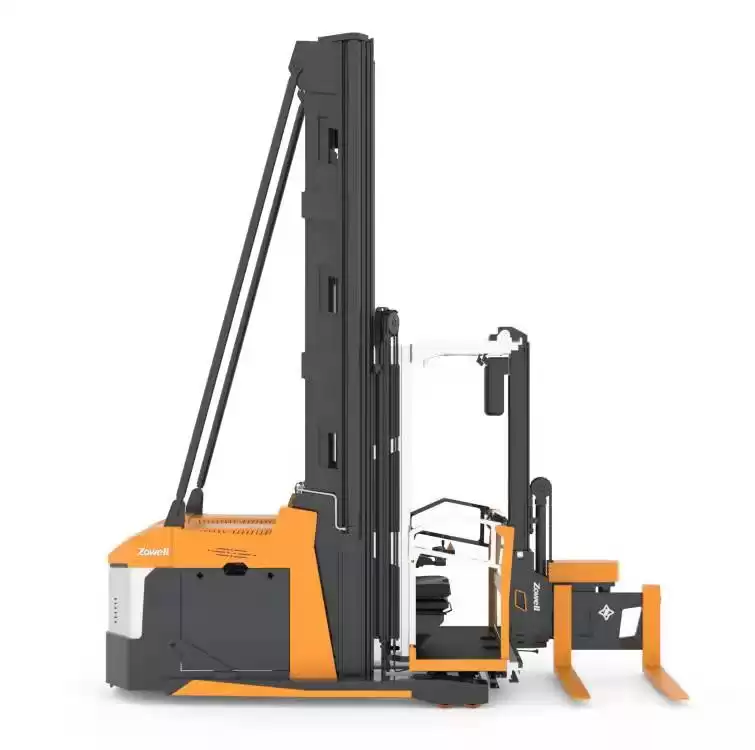

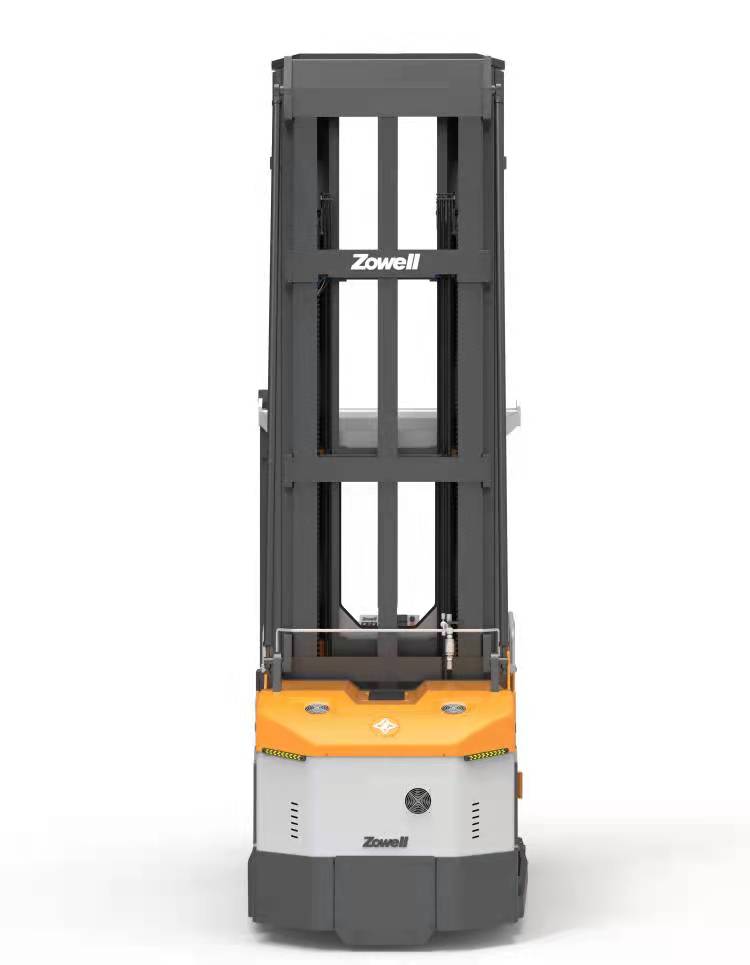

Zowell 1.6 ton Man up Electric VNA Forklifts


Advantages:
Significantly faster pallet handling in narrow aisle applications hence providing significant productivity gains.
Reduces operator error as they have a clear and view of the loads they are handling, reducing risk of racking damage.
Reduces aisle width to 1.75 metres, increasing warehouse holding capacity.
Highest racking solution up to 13.5 metres, compared to 8-12 metres for articulated forklift or reach trucks.

Model     VUE116-70 VUE116-105S
Basic Specifications Mast type   Double Mast Triple Mast
Drive type   Electric Electric
Operation type   three way stacking three way stacking
Load Capacity Q(kg) 1600 1600
Load Center C(mm) 600 600
Driving type y(mm) Sitting Sitting
Truck weight（Include battery） kg 7850 8800
Tyres Tyres type Front wheel/Rear wheel   PU PU
Rear driving wheel（Diameter×width) mm φ400×160 φ400×160
Front load wheels（Diameter×width) mm φ165×145 φ165×145
Tyres quantity (x= drive wheels) pcs 1X/4 1X/4
dimensions Height with mast closed   4218 4320
Sub Lifting height mm 1500 1500
Lifting height ° 7000 10500
Height with mast extended   8165 11665
Seat height h1(mm) 485 485
Overall length （fork in side position） l1(mm) 3820 3820
Overall width（without guide wheels） b1(mm) 1500 1500
Fork dimensions l/e/s(mm) 1200/122/50 1200/122/50
Fork class/type b2(mm) 2/A 2/A
Fork width b5(mm) 297-750 297-750
Wheelbase center height from the ground   80 80
Min turning radidus(go straight) Wa(mm) 2356 2356
Pallet width   1000 1000
Pallet length   1200 1200
Aisle width   1750 1750
Min main aisle width （mm） 5000 5000
Performance Driving speed loaded/unloaded km/h 8.5/9 8.5/9
Lifting speed loaded/unloaded mm/s 300/320 300/320
Lowering speed Loaded/unloaded mm/s 350 350
Driving Brake   Electromagnetic brake / recycled brake Electromagnetic brake / recycled brake
Parking Brake   Electromagnetic brake Electromagnetic brake
Electric Motor Drive motor power kw 7 7
Driving motor type   AC AC
Lifting motor power (S2-60min) kw 20 20
Lifting motor type   AC AC
Battery voltage and capacity V/Ah 48/1000 48/1000
Battery weight   1550±5% 1550±5%
