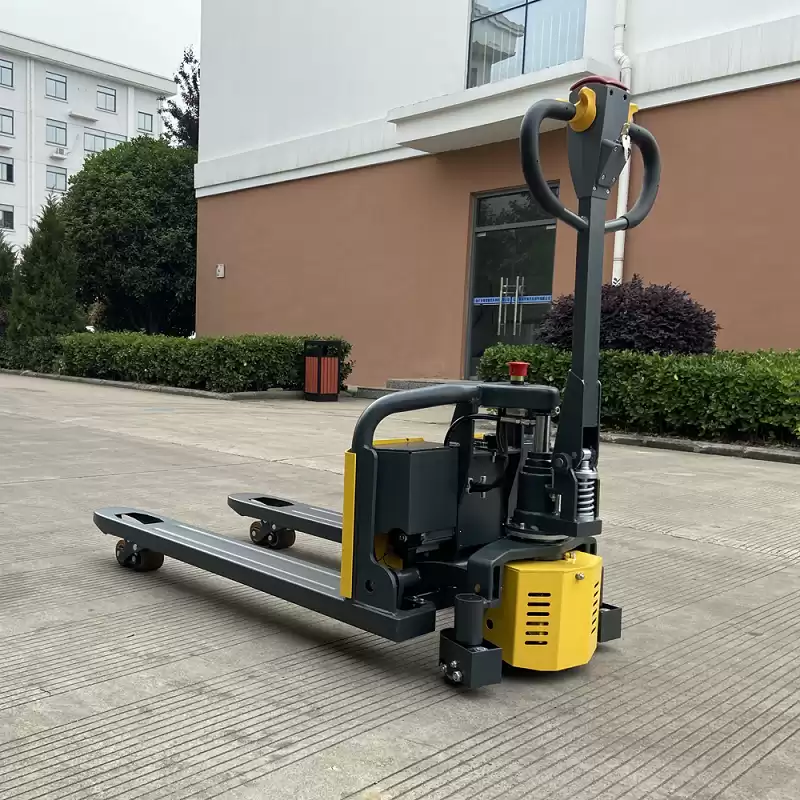

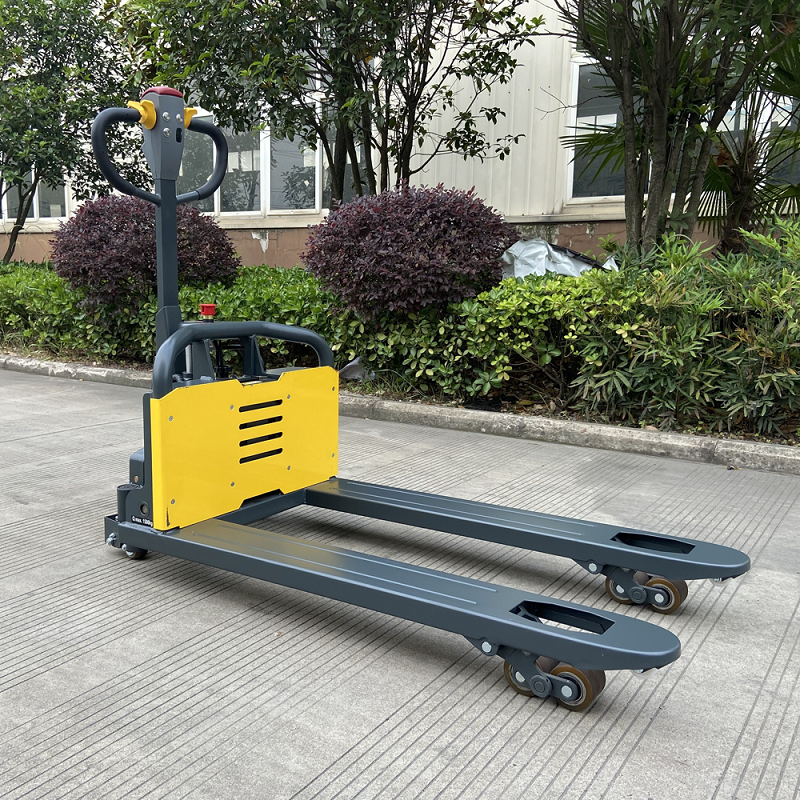

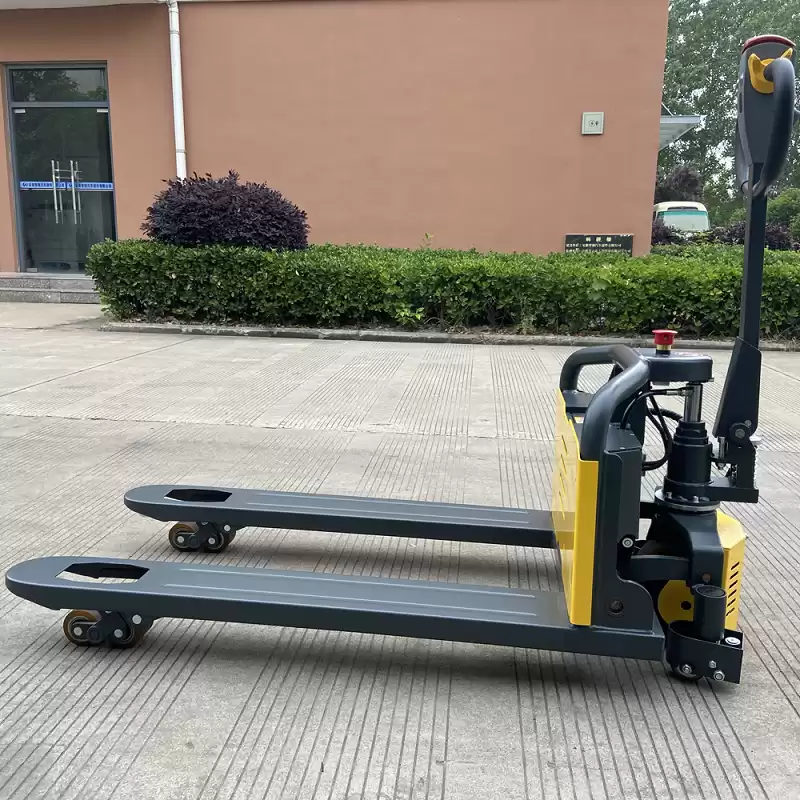

1.6 ton series Marshell Hopper Electric Pallet Truck CBH16 &CBD16

Load capacity/Rated load: 1600KG

Overall length: 1540 MM

Overall width:560/680MM

Turningradius:1350MM

Manufacture's type designation	HOPPER
Model			CBH16	CBD16
Power type			Electric Electric	Electric Electric
Type of operation			Pedestrian	Pedestrian
Load capacity/rated load		t	1.6	1.6
Load center distance		mm	600	600
Total weight(with lithium battery)		kg	145/150	155/160
Driving wheel size		mm	∮210x70	∮210x70
Tyre size (Front)		mm	∮80x70	∮80x70
Wheels material			PU coated iron core	PU coated iron core
Overall length	L1	mm	1540	1540
Overall width	B	mm	560/680	560/680
Height of operating Handlebar(Max)	H3	mm	1220	1220
Frame height	H4	mm	560	560
Lifting height(Max)	H1	mm	190	190
Lifting height(Min)	H	mm	85	85
Fork length	L	mm	1150	1150
Fork Dimension	B1	mm	160	160
Turning radius	R	mm	1350	1350
Center distance between front and rear wheels	L2	mm	1220	1220
Traveling speed(laden/ unladen)		km/h	4.5	4.5
Max. Gradeability (laden/unladen)		%	44260	44260
Drive motor rating		kw	0.75	0.75
Lift motor rating		kw	/	/
Battery voltage/capacity		V/Ah	24/20	24/20
