1-slot Rackmount 1U Industrial PC Support ATX/ Micro-ATX motherboards
Product Introduction
Designed for controlling industrial automation solutions, the IPC-ITX1U01 Intelligent Industrial PC (iPC) delivers consistently high real-time performance — plus security that stays up-to-date without disrupting your operating system. The 1-slot Rackmount 1U Industrial PC is set up for consistently high real-time performance, so you can expect long-term durability and reliable operation of your industrial automation solution. Other industrial PCs try to achieve this, but tend to yield too much performance jitter and real-time errors.
| Specifications |
Optional Configurations |
| Chassis |
All steel structure, industrial black |
Optional other color |
| Front |
Power/HDD indicator |
|
| Back |
1U power supply; large square hole for motherboard; 1-slot expansion;2COM can be added |
|
| Hard disk rack |
1*2.5" shock-resistant hard drive cages |
|
| Adaptive Motherboard |
Support all ATX/MATX motherboards in Yanyue |
|
| CPU/GPU |
Intel i3 2120 Dual Core 4 Threads 3.3G Hz |
Support all generations of Celeron, Pentium, i3, i5, i7 series CPU |
| Memory |
4G DDR3 |
Optional 2G/8G/16G/32G memory |
| Hard Disk |
128D SSD |
Optional 32G/64G/256G/1T SSD; support 2.5 inch SSD and HDD |
| Interfaces |
AC input;6USB;2RJ45(Gigabite);VGA,DVI;HDMI;Audio Line-Out;MIC Input;2COM(Standard) |
Depends on the baffle connector of the motherboard |
| Expand |
PCI or PCIEx16 |
|
| Size |
Handle not included:483*300*45.2 |
Net/Gross Weight |
4/5KG |
| Power Supply |
200W 1U Industrial Powern Supply |
Optional higher power |
| Installation mode |
19" Standard Rackmount |
Product Features
■ Heat dissipation, dust and vibration resistance
■ Support all ATX/ Micro-ATX motherboards in Yanyue
■ 1PCI or PCIE expand
■ 2COM can be added
■ Flexible configuration, flexible configuration of CPU, memory, hard disk according to customer requirements
| Work and Environment |
| Working temperature |
（-20～60）℃ |
Storage temperature |
-40～75℃ |
Environmental humidity |
0~90% air humidity, no condensation |
| |
|
Vibration |
5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration |
| EMC |
GB9254-2008 class A |
Shock |
10g acceleration, 11ms duration |

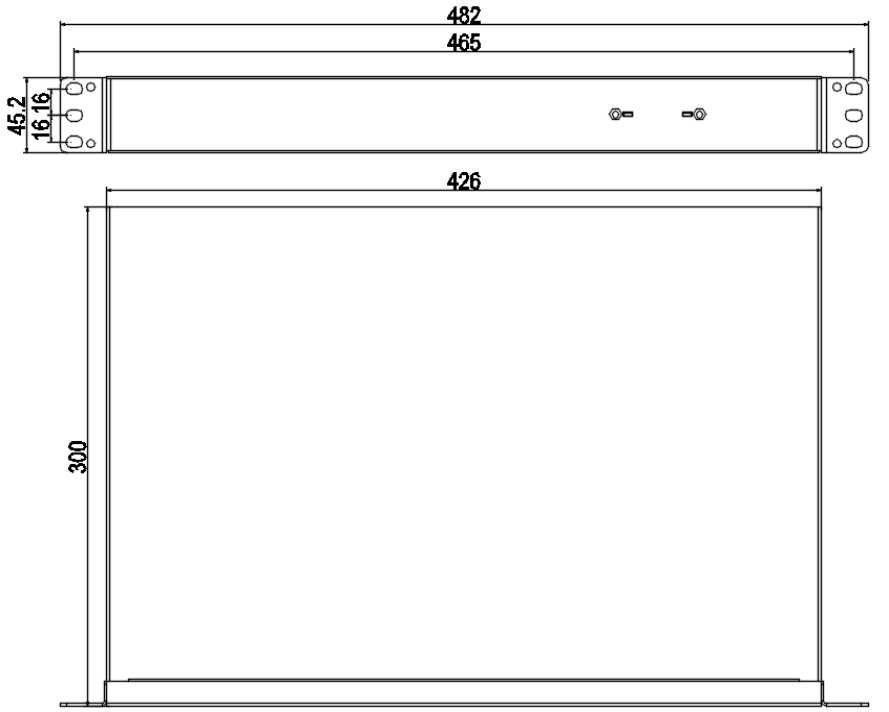

Product Installation Dimension Diagram
