1 T

1 Tons knuckle boom crane trucks on sale, SIDA diesel engine 65 kw, Manual 5-shift gearbox for hot sale, with Left hand drive and Right hand drive model for optional. Equipped with 1T knuckle boom crane, maximum lifting height can be 1500kg. With Remote Control for customer choose





1tons knuckle boom crane trucks whole sale



 Applications:



Truck Mounted Crane (also called XCMG crane, UNIC crane, crane truck, lorry mounted truck, truck cargo with loader, knuckle boom crane on truck chassis, truck with mounted back crane, crane mounted cargo truck, truck with loading crane, boom crane, boom crane truck, articulated crane truck) is used to lift the cargo, load, transport and unload heavy stuff.



There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:

Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton

Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton, 50T, 100T



The Cranes can be of famous brands as Palfinger (Canada), Unic (Japan), XCMG (China top brand), Zoomlion, etc.



 Key Features:



---- T-King chassis ensures perfect performance on driving

---- SIDA technology engine, super powerful, no overhaul within 100,000 km.

---- High strength cargo body, nice shape and rational structure.

---- Easy operation and easy maintenance.

---- Premium cranes Palfinger (Canada), Unic (Japan), XCMG (China top brand), Zoomlion, etc.


Crane Features:

---- Advanced development & analysis means make sure that the design is very reliable.

---- Higher lifting capacity with four connected bar mechanism.

---- Flange telescopic boom coupling technology.

---- Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation.

---- The more symmetrical center design of hexagon boom make it has bigger anti-bending capacity.

---- Float three-point bridge structure design can lower the accessional stress on the chassis frame when traveling.



 Specifications:

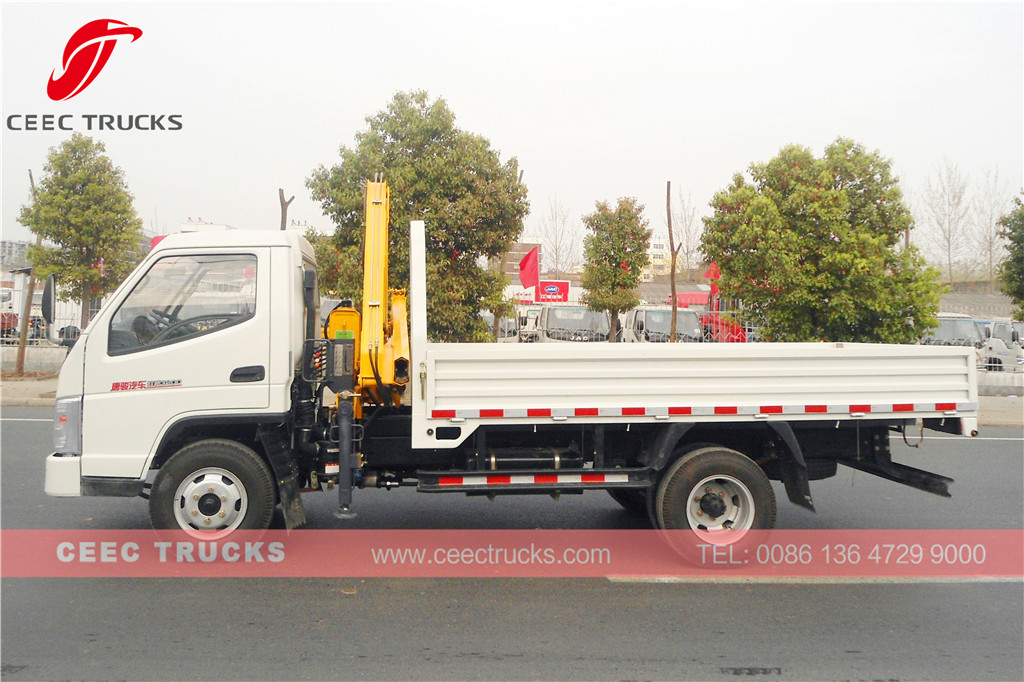

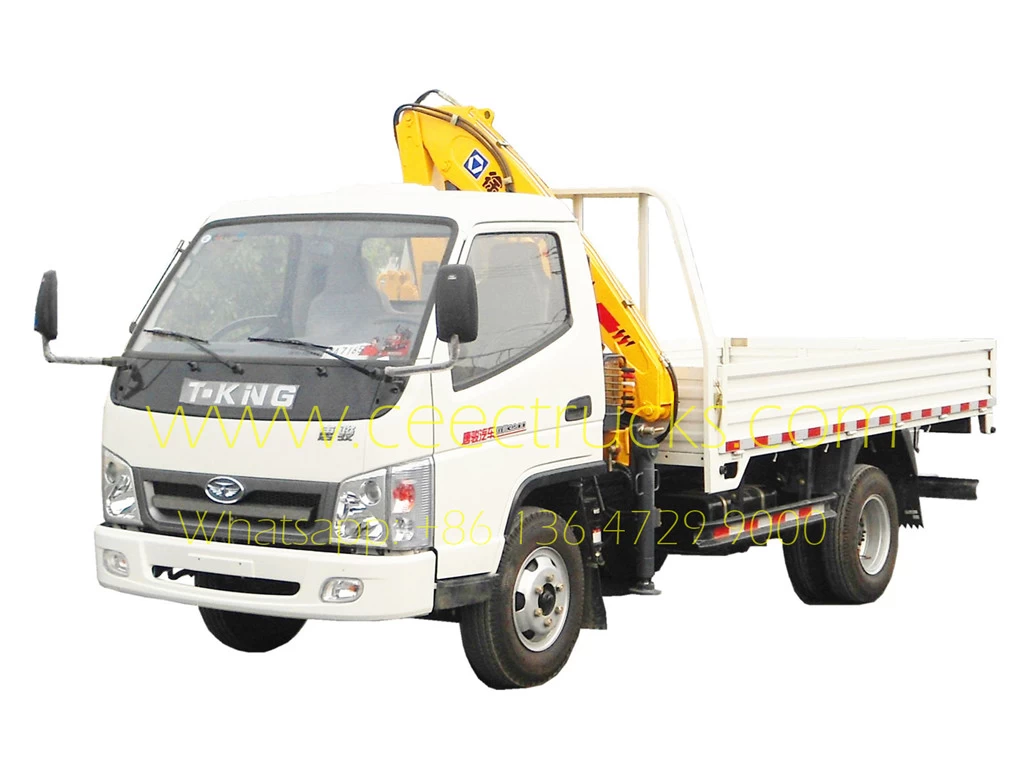

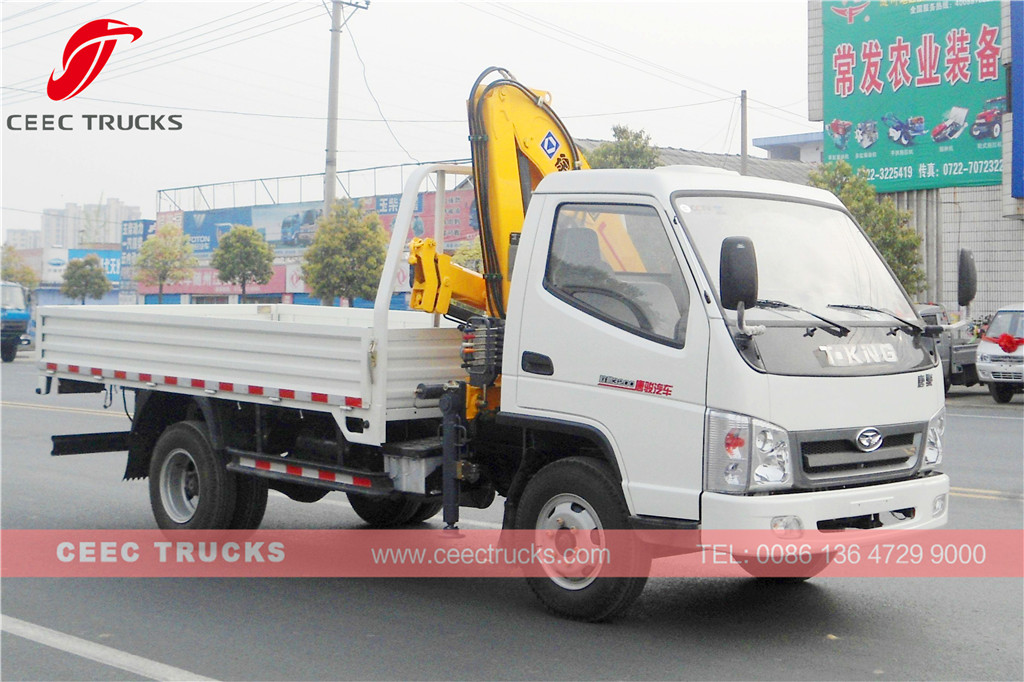

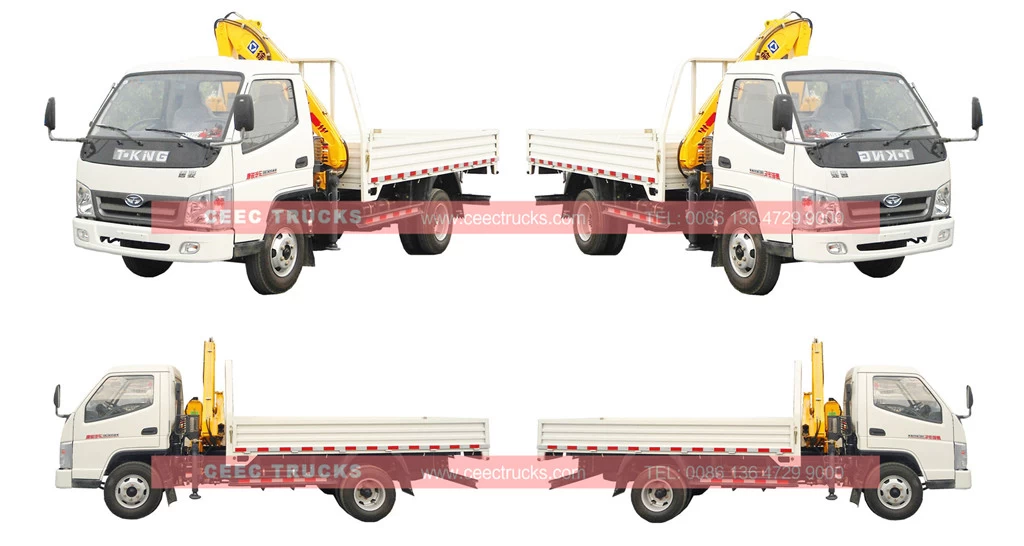

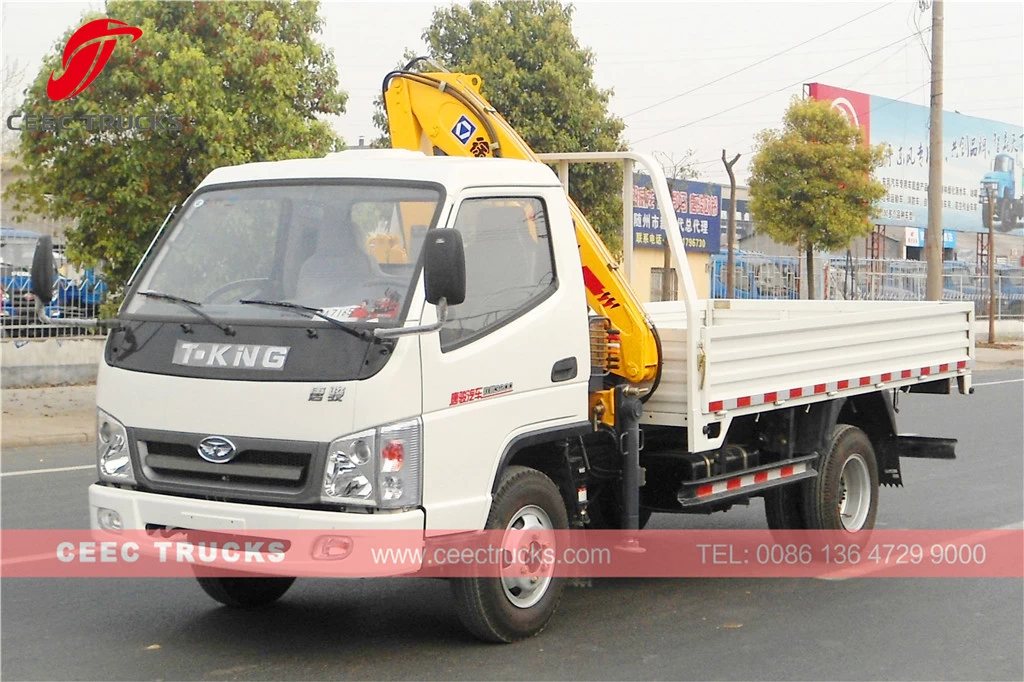

Knuckle boom Crane truck (1Ton boom crane)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

T-KING

Overall Dimension

5995 * 2000 * 2765 mm

GVW / Kerb Weight

4,495kg / 3,150kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

SIDA

Power

88 HP (65 KW)

Displacement

2545 ml

Emission Standard

Euro 3 or 4

Chassis

Drive Type

4X2, (Left hand drive or Right hand drive)

Transmission

Manual 5 speed levers with 1 reverse

Wheelbase/No. of axle

3200 mm / 2

Tire Specification

6.50-16

Tire Number

6 tires and 1 spare tire

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Cargo Box Dimension

3300*1790*400 mm

Crane Type

Knuckle boom crane

Max Lifting Capacity

1000 kg

Slewing Angle

360° All rotation

Crane Weight

540 kg

Installation Space

550 mm

Control panel

English or Your language

All standard accessories: Basic tool kit, English manual……

Optional

** Knuckle boom crane.

** Hydraulic tipper box.

** Box thickness according to requirement.

** Box height could be nominated
** Remote Control Box optional

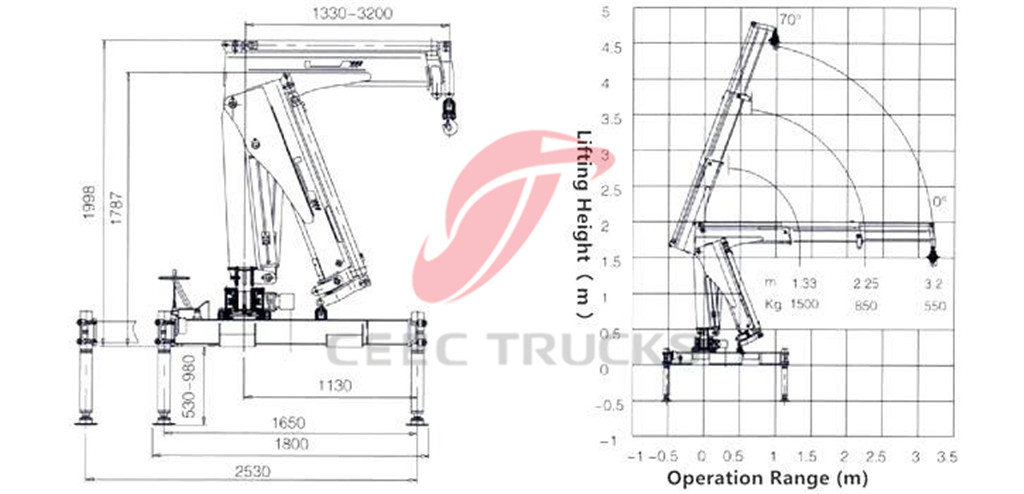

1 tons knuckle boom crane CAD drawing
