10.1 Inch ips 1280(RGB)*800 module with wide operating temperature or with a PCAP

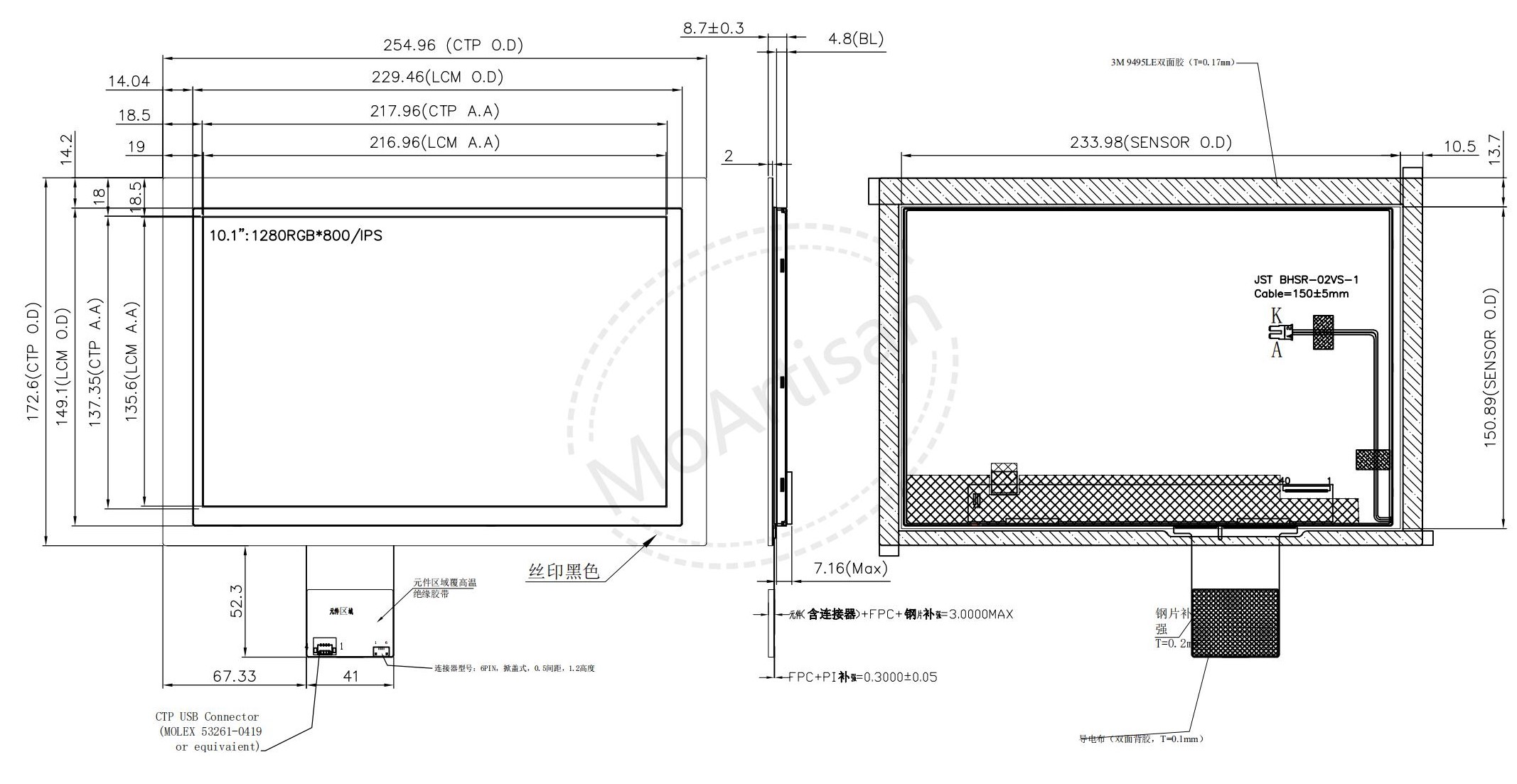

Production Drawings

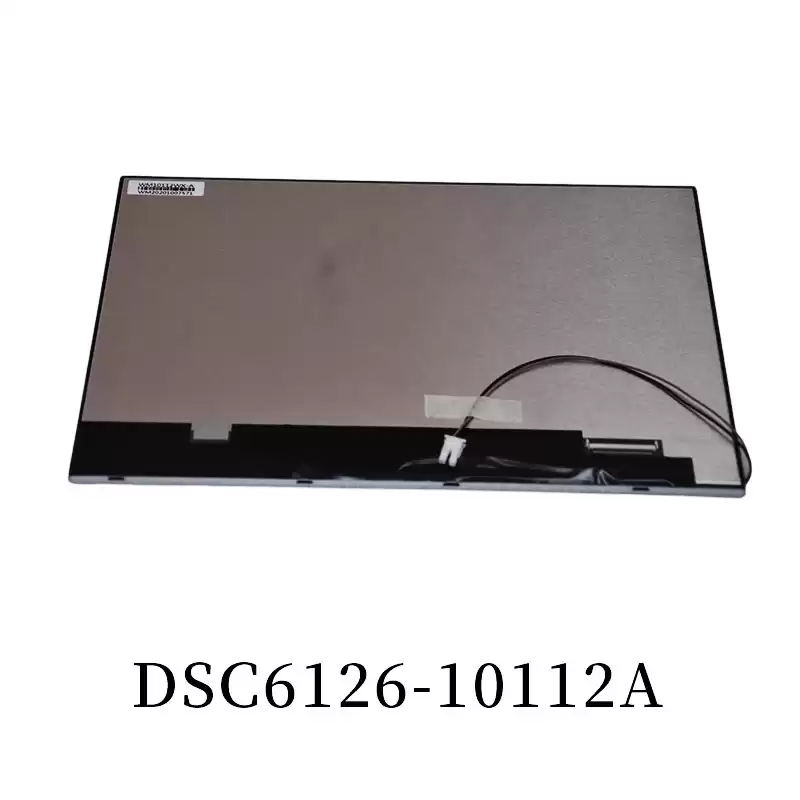

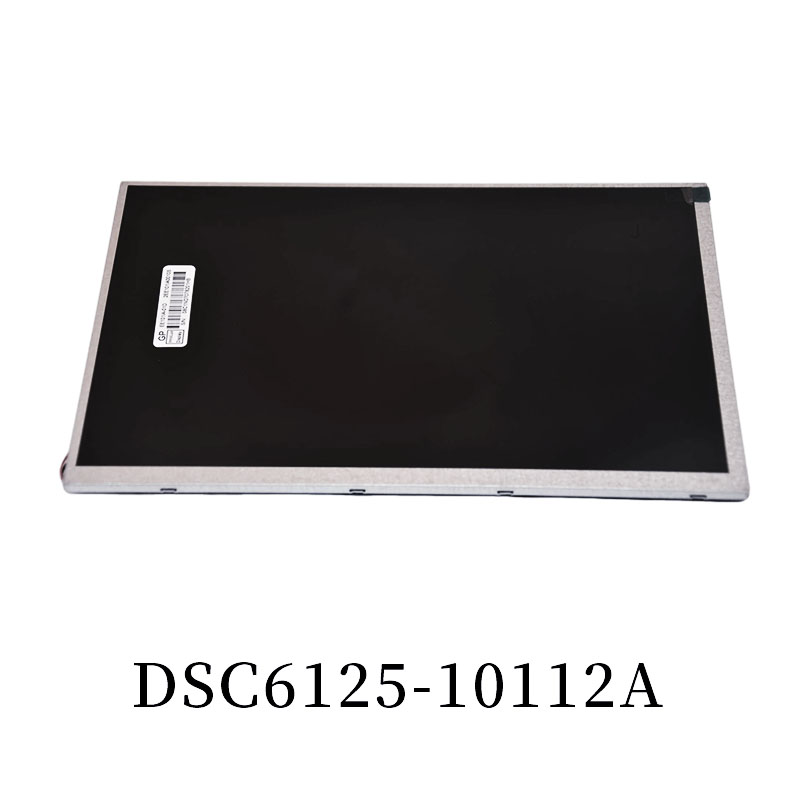

WM101MO012WX-A/B and WM101MC012WX-B Introduction
-
10.1 (16:10) inch
diagonally measured active display area.
-
WXGA (1280 horizontal by 800 vertical pixel) resolution.
-
10.1 inch 1280RGB800 TFT LCD module with 1200/600 nits brightness.
-
40 PIN CON, LVDS interface.
-
The LCM is laminated a PCAP module with OCA.
|
|
About Part Number
WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module;
MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…;
001---Serial Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T (Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
10.1
|
WXGA, 1280RGB*800, IPS, landscape view screen,
or PCAP
|
229.46*149.1*4.8
229.46*149.1*4.8
239.9*170.1*7.15
|
8X5
4X6
8X5
LED
(50K)
|
40 PIN Con, 8-Bit, LVDS
|
1200 nits/800
600 nits/800
1000 nits/800
|
Topa: -20~+70
Tstg: -30~+80
|
85/85/85/85
|

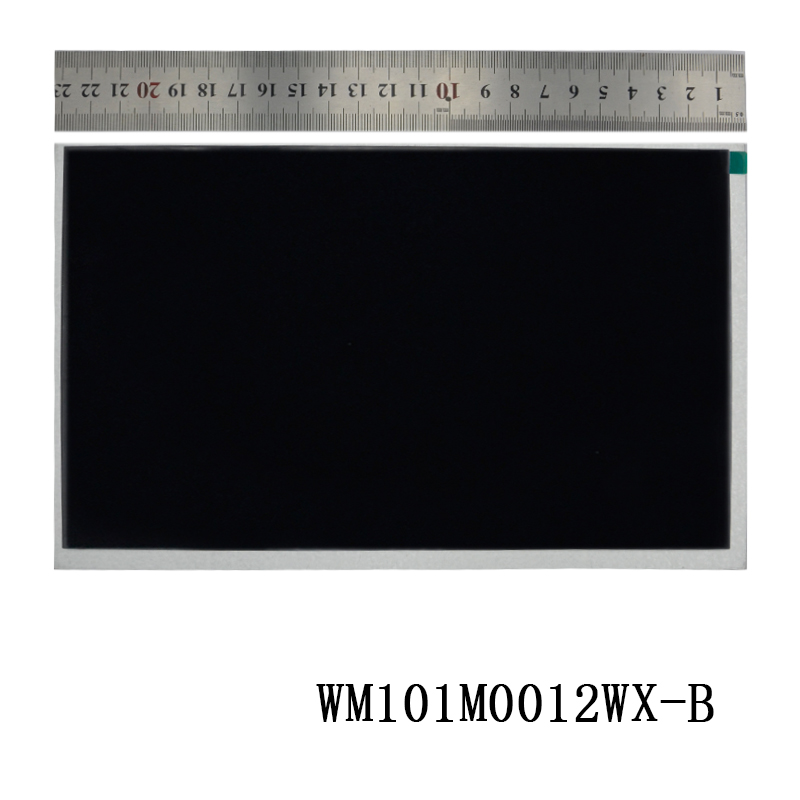

WM101MO012WX-A
WM101MO012WX-B
WM101MC012WX-A
|
Production Applications
Mobile Terminal, Personal Navigation Device, Multimedia applications and Others AV system.
Production Customized
It can
be modefied according to customer requirements.
Lead time for sample: 3~4 weeks.
Notes:
It is a one of main products, designed and manufactured according high reliabilty LCM.
This series LCM can be used for industrial scenarios.
