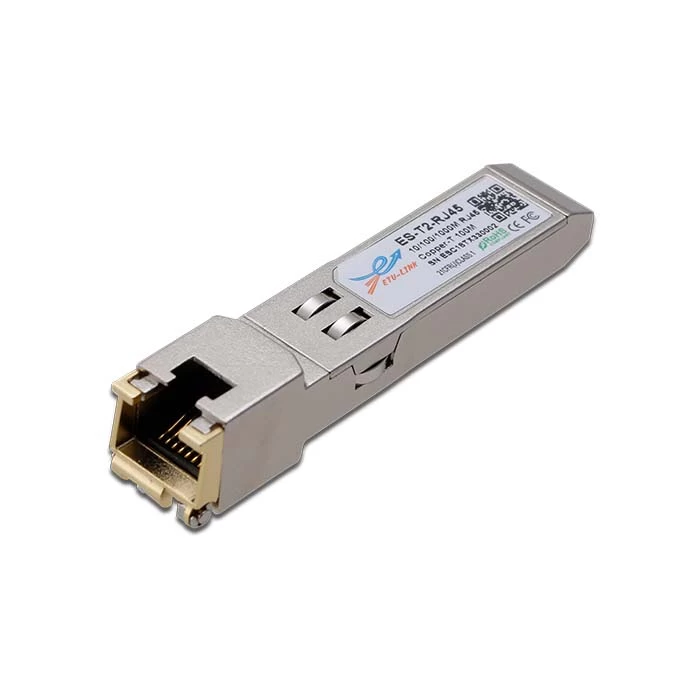

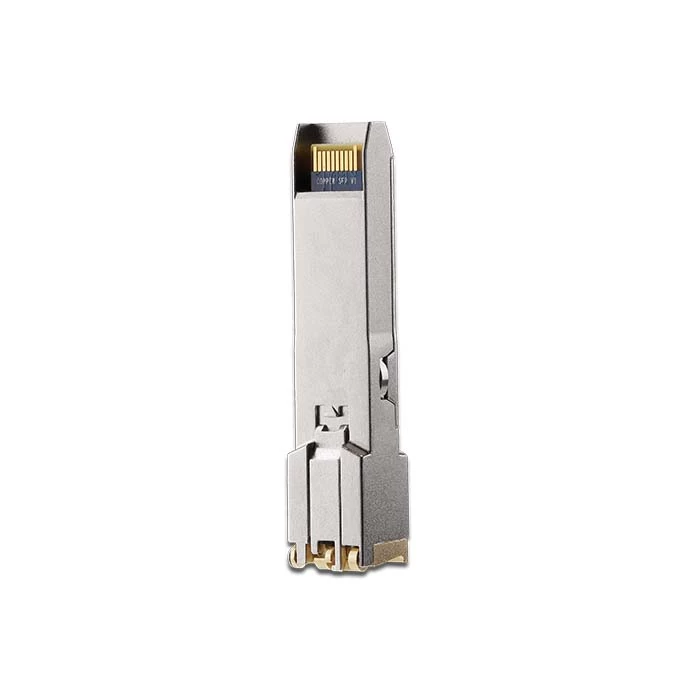

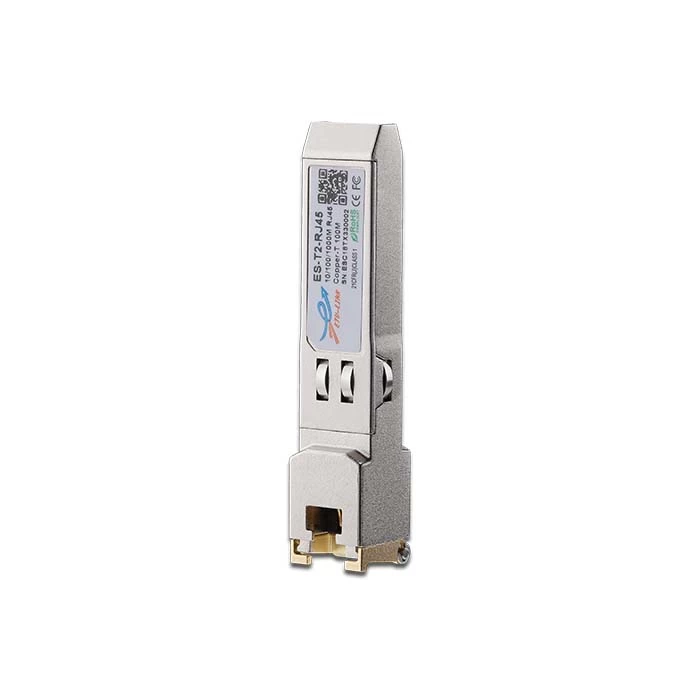

10/100/1000BASE-T SFP Copper RJ45 100m Module

Description: The ETU-Link Copper SFP compliant with 1000BASE-T and connects a SFP port to Category 5 wiring using a standard RJ-45 interface. The maximum Category 5 wiring distance is 328 feet (100 meters).



ES-T2-R


10/100/1000BASE-T Copper SFP Transceiver


Features

Up to 1.25Gb/s bi-directional data links

Hot-pluggable SFP footprint

TX Disable and RX Los/without Los function

Fully metallic enclosure for low EMI

Low power dissipation (1.05 W typical)

Compact RJ-45 connector assembly

Access to physical layer IC via 2-wire serial bus

10/100/1000Mbps compliant in host systems with SGMII interface

Operating case temperature range of

0°C to +70°C (Commercial)

-20°C to +85°C (Extend)

Product Description

ETU-LINK`s ES-T2-R Copper Small Form Pluggable (SFP)transceivers is high performance, cost effective module compliant with the Gigabit Ethernet and 10/100/1000BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supp- orting 1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair category 5 cable. The module supports1000 Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair. The module provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2wire serial bus at address ACh.
