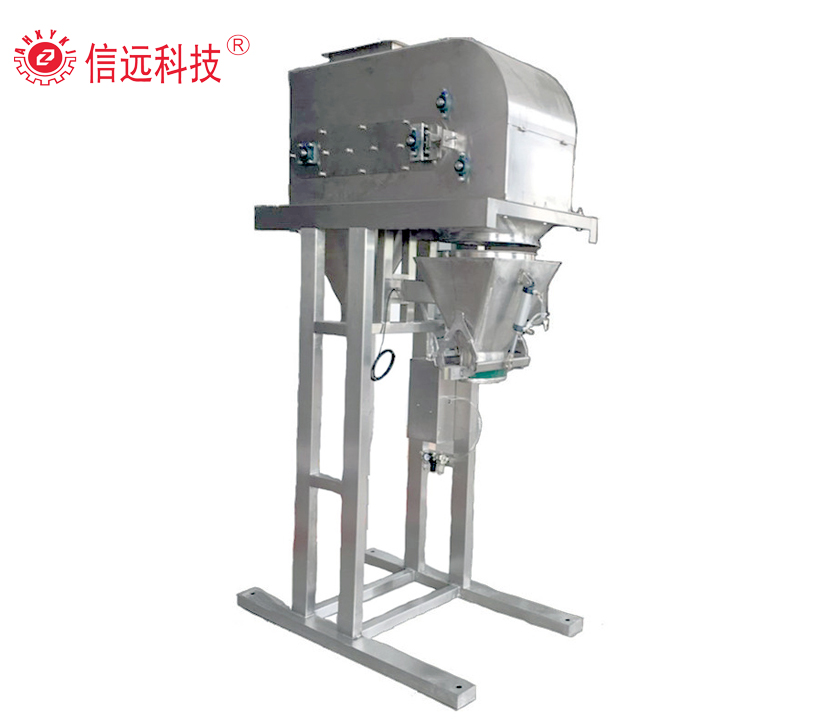

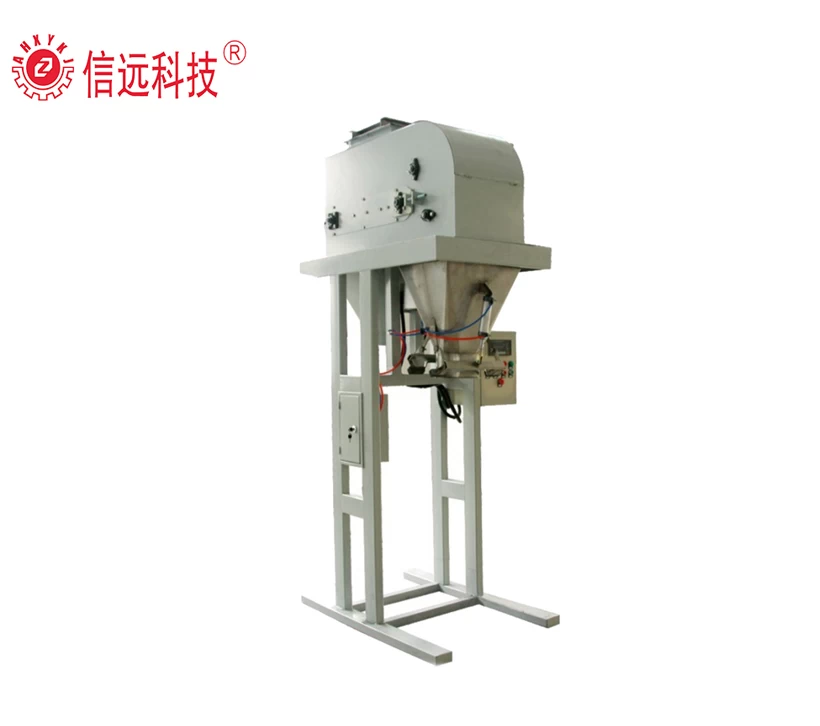

10-50kg big bag heavy bag organic fertilizer packing machine

Applicable to organic fertilizer,phosphate fertilizers and other materials with large water content and poor fluidity



Organic fertilizer packing machine applicable to organic fertilizers ,phosphate fertilizers and other materials with large water content and poor fluidity

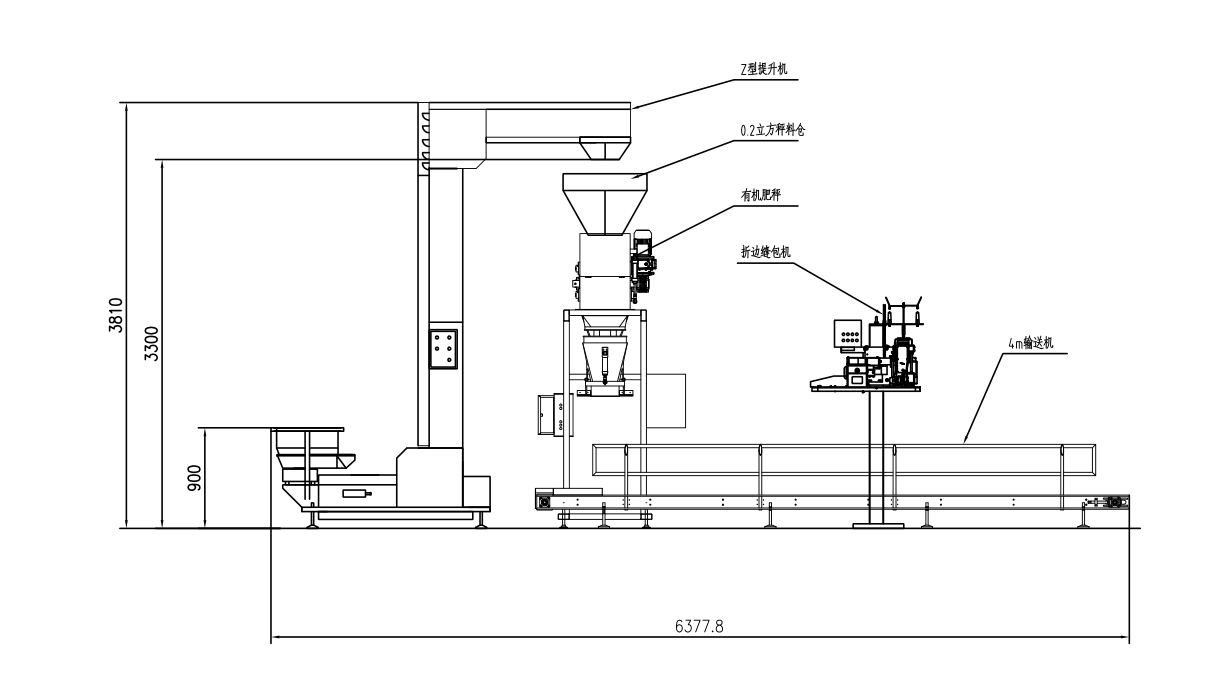

1.Equipment components include:silo,belt-type multi-stage feeding device ,bagging and weighing device ,scraping and recovery device,electrical control cabinet and electrical control system.

2.Belt multistage feed device automatically adjust the material thickness,the width of the material layer,feed rate ,to achieve fast ,medium and slow automatic powder feed ,improve the measurement accuracy.

3.There are measures to prevent the material from being emptied in the silo and prevent the material from blocking at the discharge port,so as to ensure smooth material feeding.

4.Acsraping and recovery device is provided to ensure that the material will not adhere to the feeding belt and that the material will not cause environmental pollution.

5.Production capacity:180-300bags/h,with accuracy:±0.5%(Package size 25-50kg).

6.The well-known brands are used for weighing control instruments and electrical accessories,They have good reliability,corrosion resistance,and long lifespan,They are suitable for use in fertilizer packaging environments.

7.All contact material parts are 304 stainless steel.

organic fertilizer packing machine

Did you find our machine interesting?

We will help you with selecting the machine, and suggest tailor-made solutions.


notice

1. provide customized design for special requirement

2. Provide optional device as per actual need

Technical Data:


Model DCS-50FW DCS-50FW-LF DCS-50FW/T
Production capacity(bags/h) ≥240 180-300 ≥300
Weighing range(kg) 5-50 10-50 10-50
Accuracy ±0.2% to ±1% ±0.4% to ±2% ±0.2% to ±0.5%
Applied material Ammonium sulfate
/ ammonium bicarbonate crystals
Organic fertilizer
/Phosphate fertilizer
Less viscious powder
fertilizer/chemical products


Transportation&After Service:

◎All the machine shall be packed in Export wooden box;

◎Engineers are available to do service abroad;

◎Training &Technical instructing lessons shall be provide during installation;

◎Video instruction installation is also available if customer have professional technical engineers;

◎One year warranty is provided for customer.
