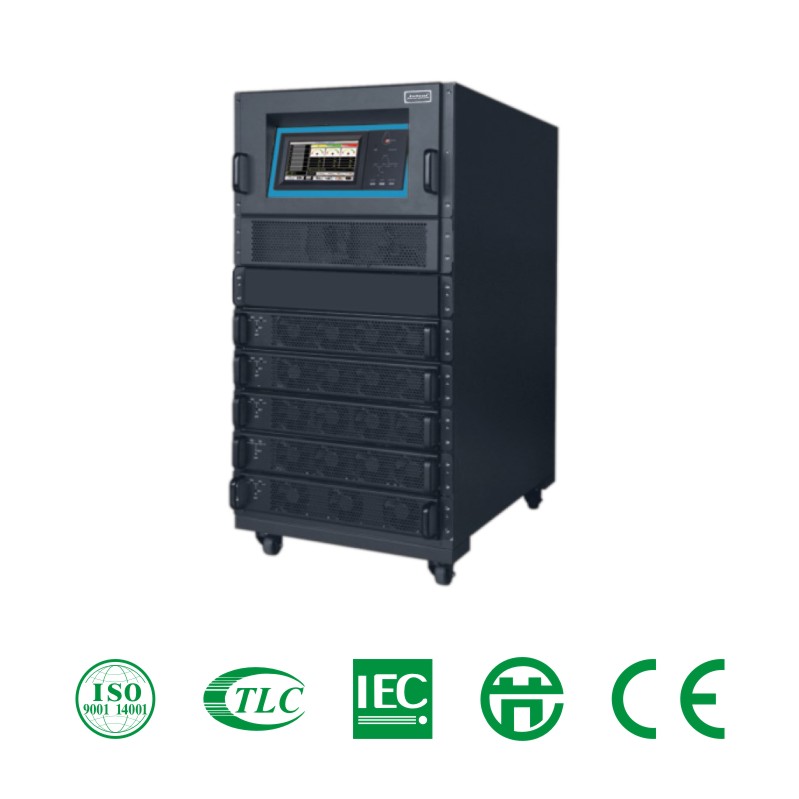

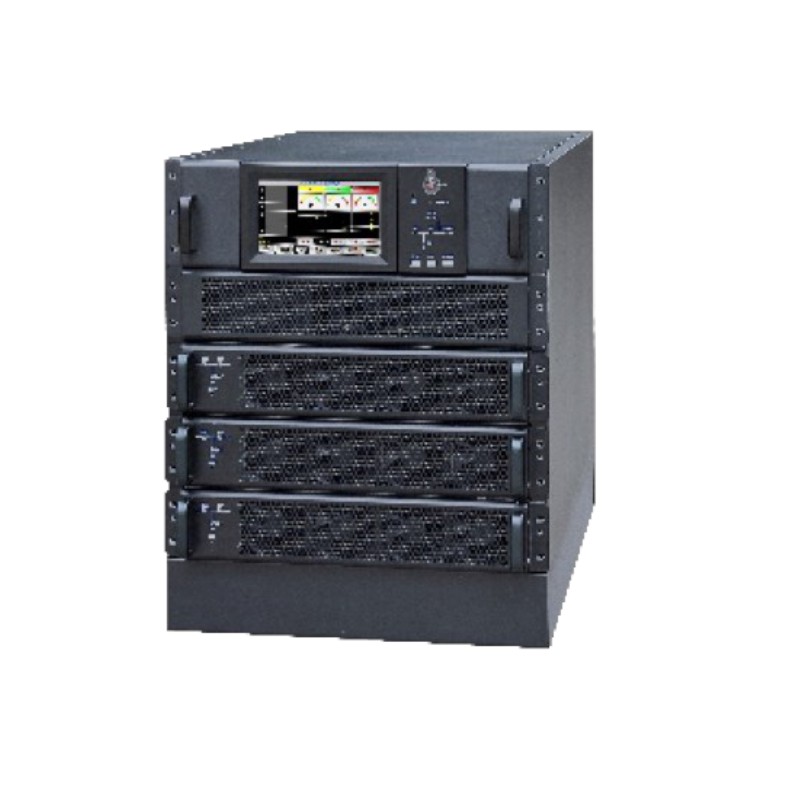

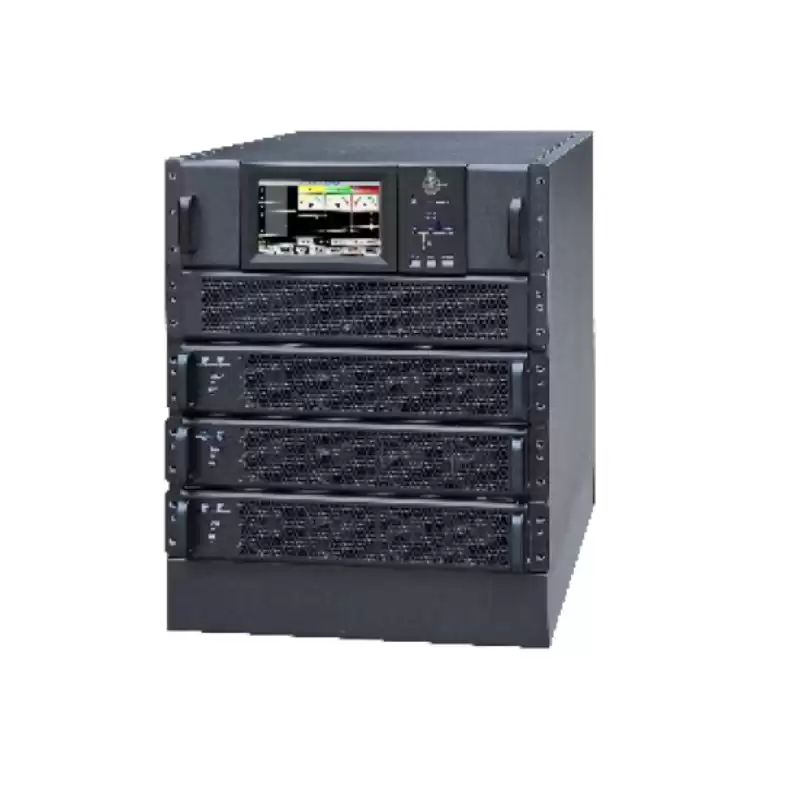

10-50kVA PDM Plus Series Modular UPS

10-50kVA PDM Plus Series Modular UPS

10kVA module, 200/208/220VAC, 3:3

The PDM Plus Modular Series UPS is a new generation Uninterruptible power supply. The parallel architecture adopts a highly  intelligent modular design to achieve maximum power availability and redundancy. With advanced IDC power solutions and smart management technologies, It is specially designed to meet the protection demands of mission critical loads in data centers or other important applications.


  • ApplicationsMedium Facilities, Large Facilities, Data center
  • EfficiencyUp to 98%
  • Rated frequency40Hz-70Hz
  • Rated voltage200V/208V/220V
  • ModelPDM
  • CertificateCE, TLC



Technical Features




High scalability
Smart Sleep function
Smart Sleep function
10kVA power module in 2U height, saving great amount of space, easy for capacity expansion
Can intelligently make some power modules to go to sleep when load is relatively low, improving the
efficiency of the remaining power modules and saving customers on power and cooling costs.

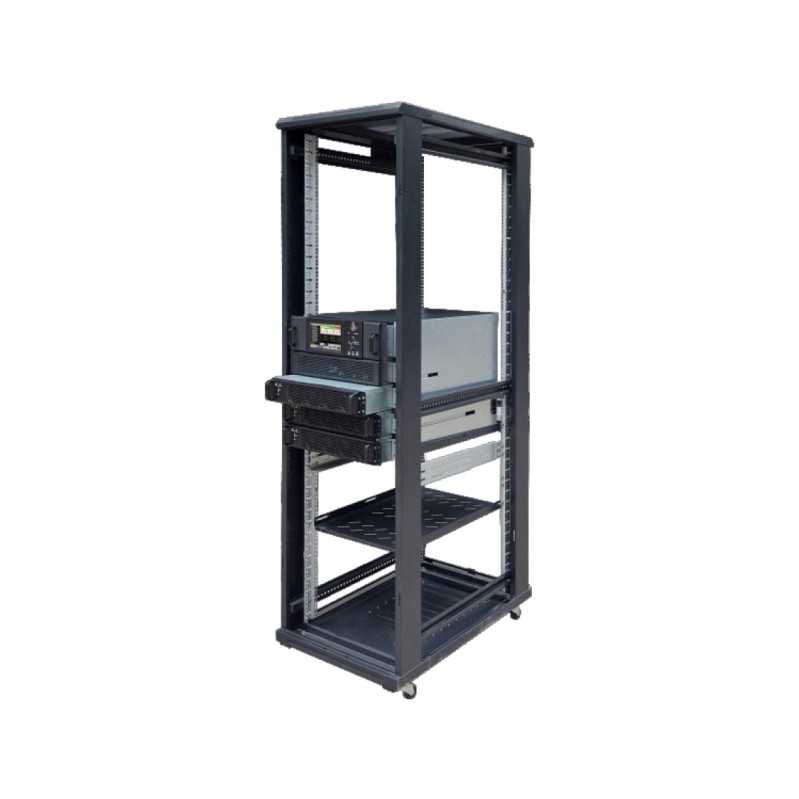

Modular design, compatible with 19* standard rack cabinet, convenient to be integrated with servers



Smart LCD display
High efficiency

Self-aging function


4" touch screen color LCD with graphic display, more information displayed and easier for customer to opearte
Improved efficiency up to 98%,  input power factor is 0.99 and the total harmonic distortion current is less than 4% that reducing power and cooling costs
Simulate different load conditions without connecting to any real load, saving more than 90% of energy. On site setting supported, easy for factory testing



Intelligent charging management

Smart operation

Energy saving

The system intelligently control the whole process of charging and discharging, effectively improving the ;life time of the battery.
System can intelligently shut down some power modules to increase total load rate, achieving higher efficiency
Energy internal circle technology, system can run with full load saving more than 90% energy.



Applications

Medium Facilities, Large Facilities, Data center
