10 CBM Refrigerated Truck ISUZU

ISUZU 10CBM Refrigerator truck, CEEC Glass fibre reinforced plastic material, thickness for insulating layer over 8mm. Standard America Carrier cooling units for high performance, as for box capacity can be 6-10CBM optional. ISUZU LHD chassis, 98HP Japanese technology engine, MSB 5-shift manual gearbox



Refrigerated trucks are kind of enclosed van truck that equipped with refrigerated units and polyurethane insulation compartments, mainly used to transporting frozen foods, fresh fruit and vegetables, vaccine medicine, medical waste and so on.



ISUZU 10000Liters Refrigerated Vehicle



ISUZU refrigerator trucks


Refrigeration truck includes truck chassis, insulated heat preservation box body(polyurethane material, fiber glass, color plate, stainless steel etc), refrigeration units, cabin temperature recorder and so on. For special required trucks such as meat hook refrigeration truck, there can also add meat hooks, blocking cargo belt, aluminium alloy guide, ventilating slot and so on.

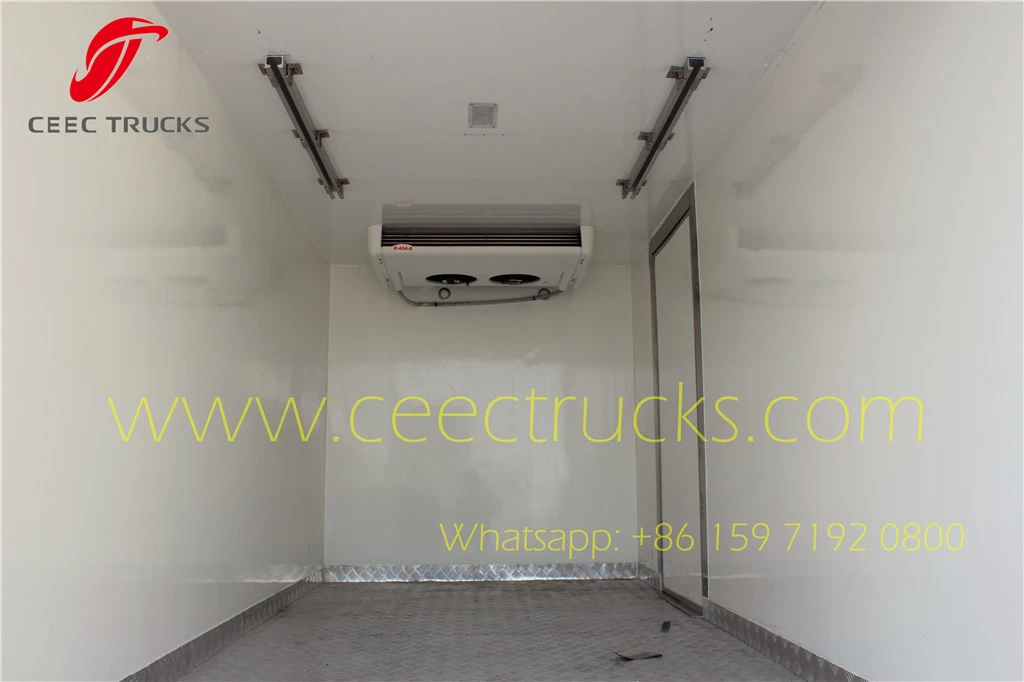

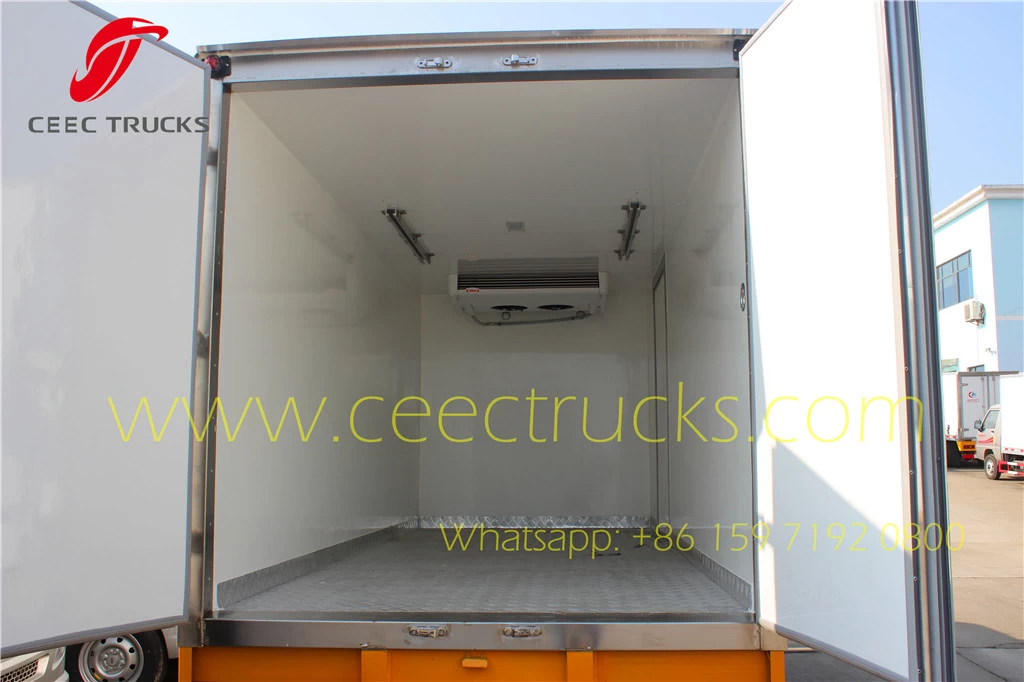

Refrigeration Truck Insulated box body: ” sandwich” type structure–Fiberglass+PU+fiberglass.

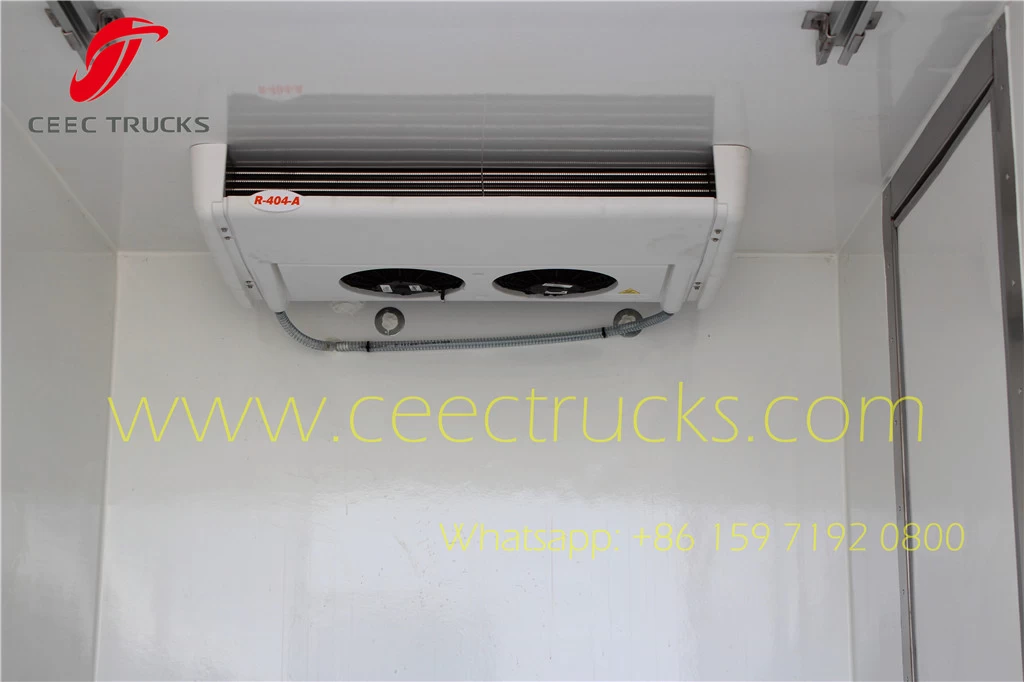

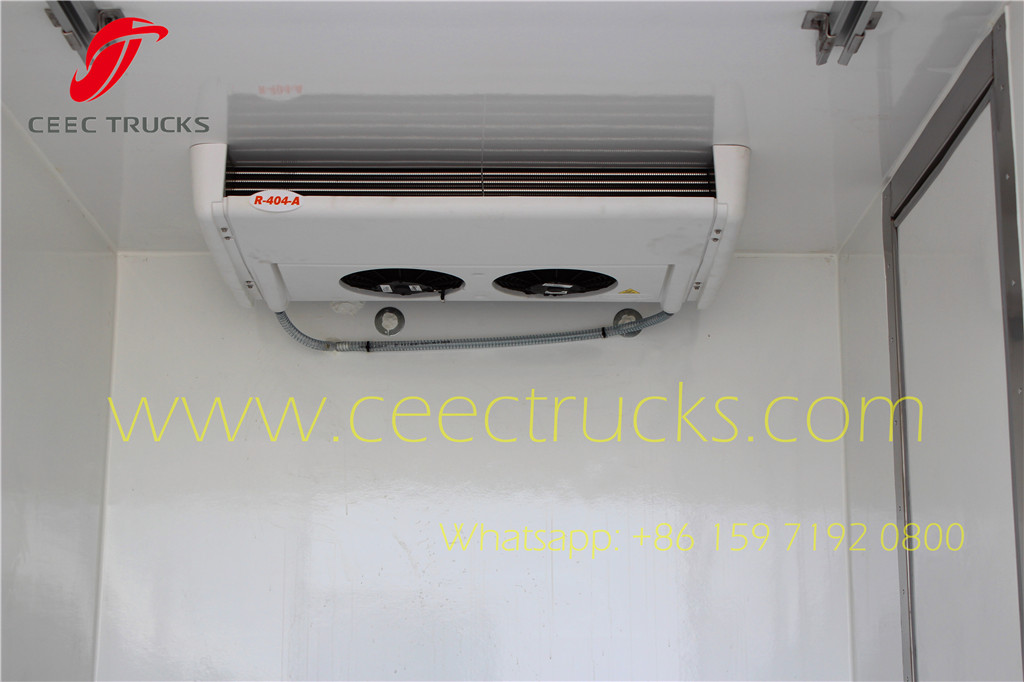

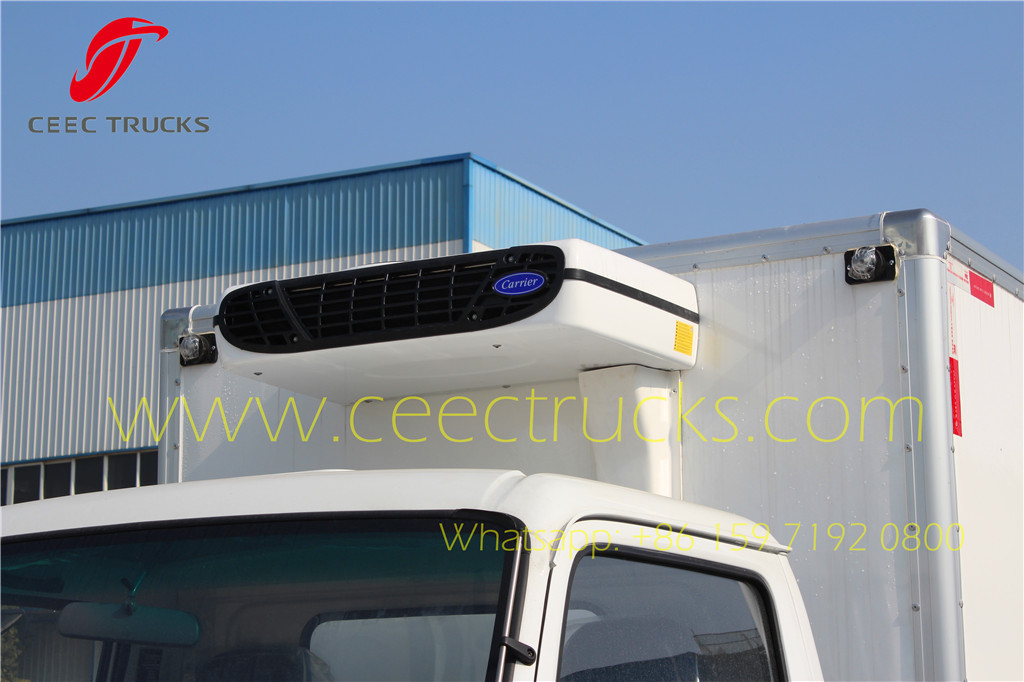

Refrigeration units: independent type refrigeration units and dependent type refrigeration units. with brand Carrier, K series, etc.



CEEC supplied Refrigeration Units widely used in following vehicles:

----Refrigerator Trucks

----Refrigeration Semitrailer

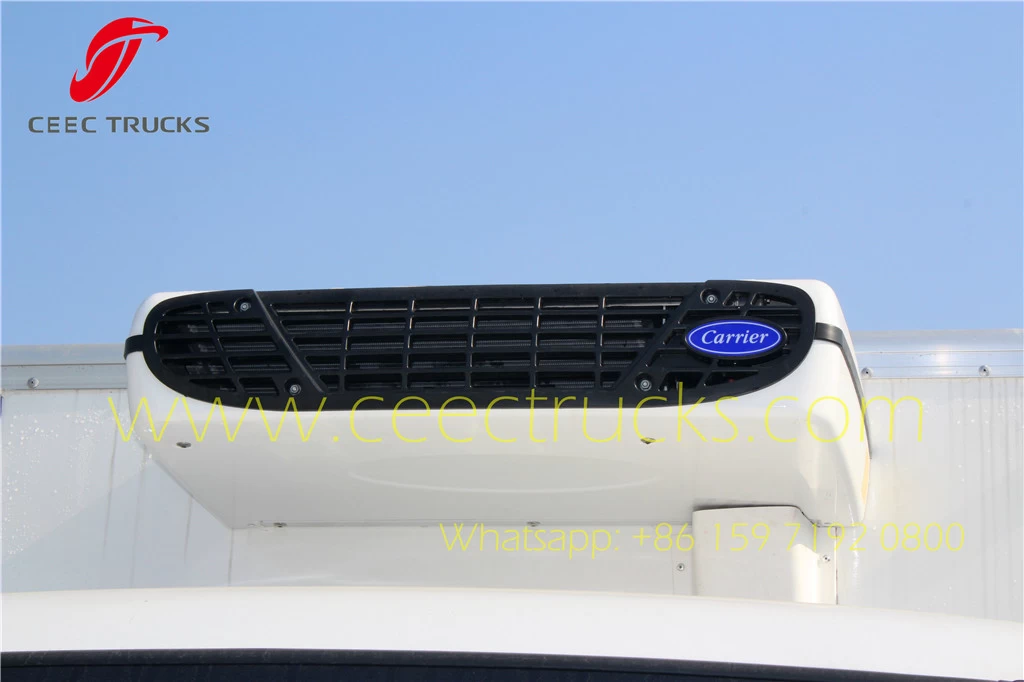

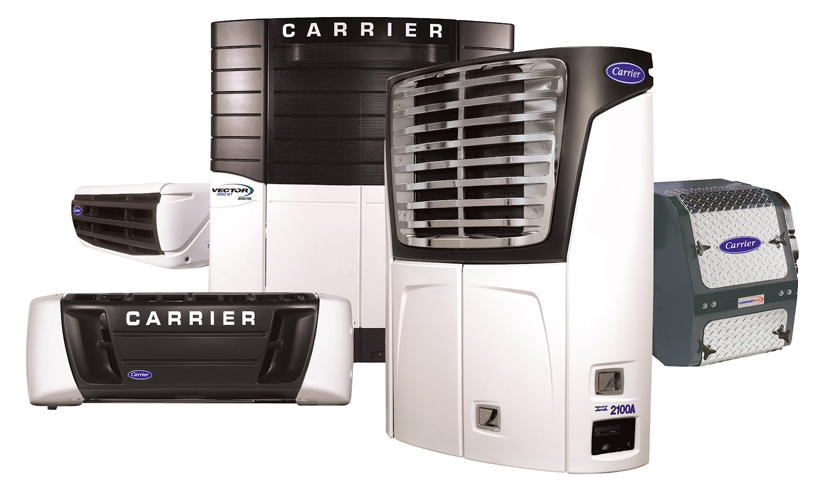

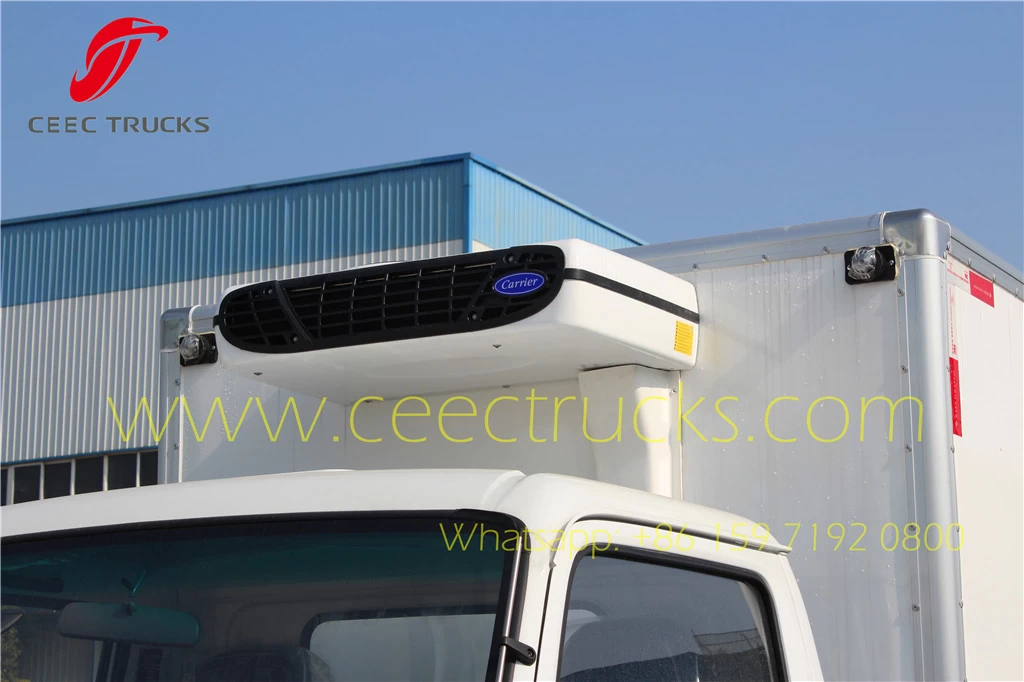

Carrier Refrigerator units



Key Words: Refrigerator truck, refrigerated vehicle, ISUZU cooling truck, ISUZU refrigerator vehicle, vaccine delivery truck, food refrigerated truck, Medical waste refrigerated truck



Truck
Drive Mode 4×2 4×2 6×4
Chassis QL1040 DFL1120B DFL1250A9
Engine 4JB1CN Cummins ISDe180 30 Cummins ISDe 245 30
Type 4-cylinder in line, turbocharging, electrical control common-rail engine 4-cylinder in line, turbocharging, electrical control common-rail engine 6-cylinder in line, turbocharging, air cooling, inter cooling, electrical control engine
Max. power(Kw/rpm) 72 136/2500 180/2500
Max. torque(Kw/rpm)
650/1200-1700 925/1200-1700
Displacement(ml) 2771 4500 6700
Type of fuel Diesel Diesel Diesel
Compression ratio
17.3:1 17.3:1
Overall dimension (mm) 5970×1980×2970 8530×2495×3840 10960×2500×3200
Wheel base (mm) 3360 5000 5350+1300
Front/Rear tread(mm) 1506/1442 1880/1800 1940/1940
App./Dep. angel (°) 19/13 20/13 20/13
Max. speed(Km/h) 90 90 90
Payload (Kg) 1735 5900 25000
Curb weight(Kg) 2565 6400 11485
G.V.W (Kg) 4495 12495 34900
Special functions Overall dimension of body (mm) 4700×1900×1600 6000×2260×2300 8600×2300×2400
Refrigerating capacity


Refrigerant Carrier Carrier Carrier
Inside and outside of van’s material FRP(Fiber Reinforced Plastics) FRP(Fiber Reinforced Plastics) FRP(Fiber Reinforced Plastics)
Middle of van’s material Polyurethane Polyurethane Polyurethane
Insulation layer Under 120kPa high pressure,overall foam Under 120kPa high pressure,overall foam Under 120kPa high pressure,overall foam

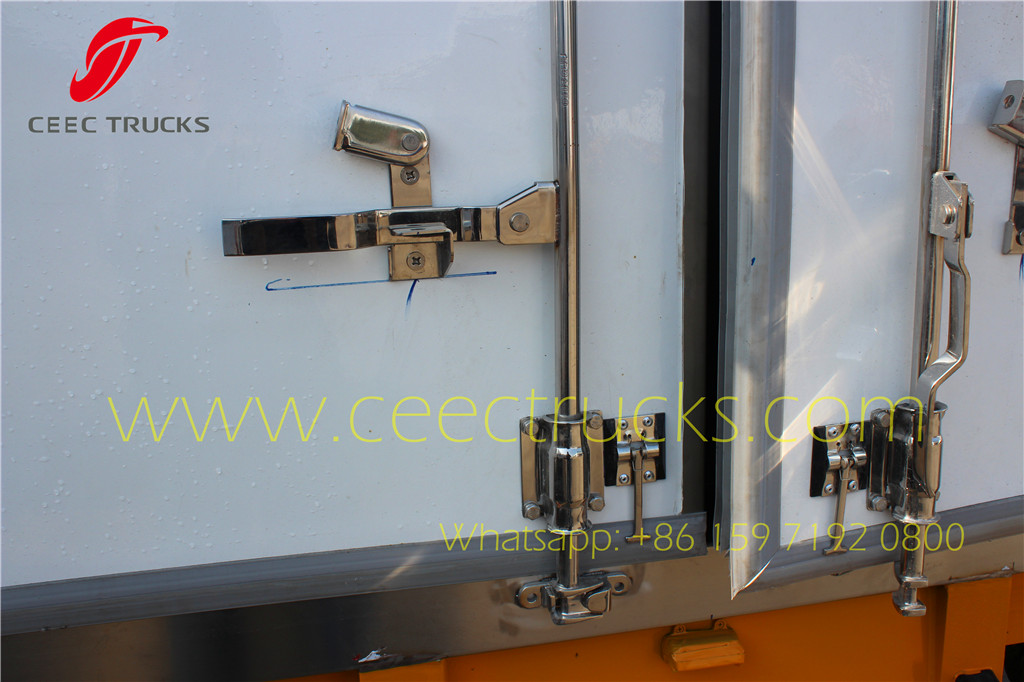

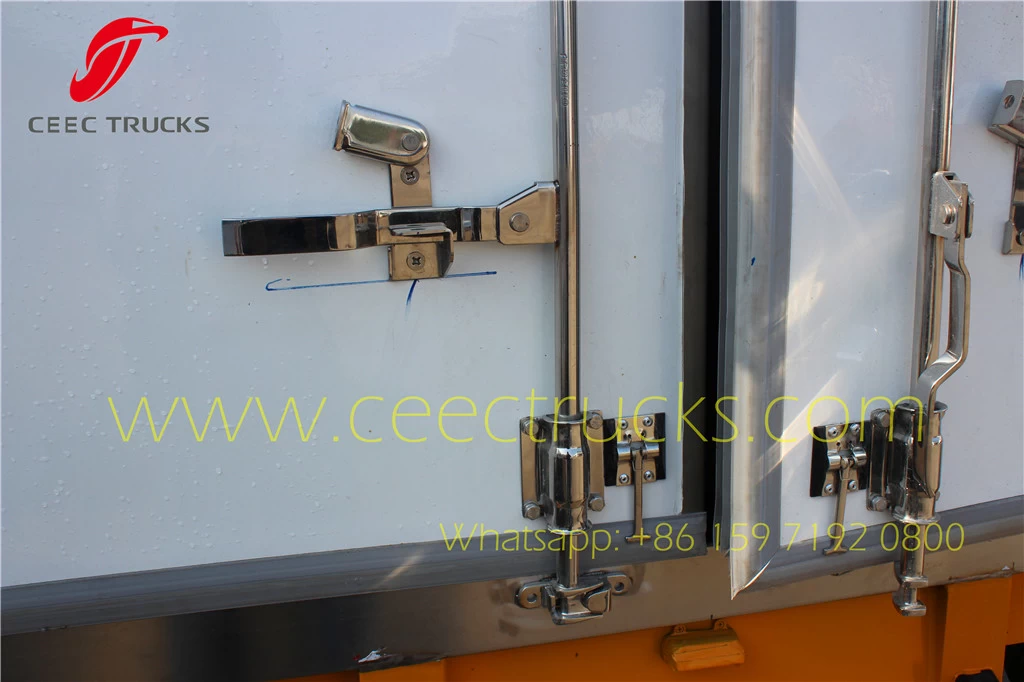

Rear doorpost stainless steel stainless steel stainless steel
ventilation opening yes yes yes
Min. temperature(℃) -15 -15 -18

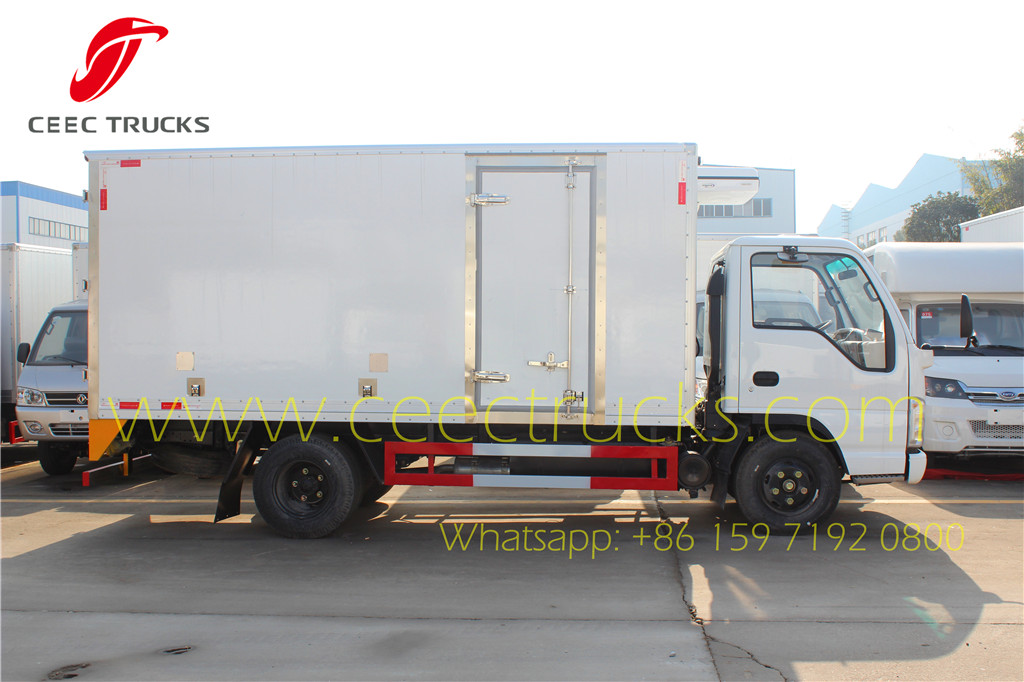

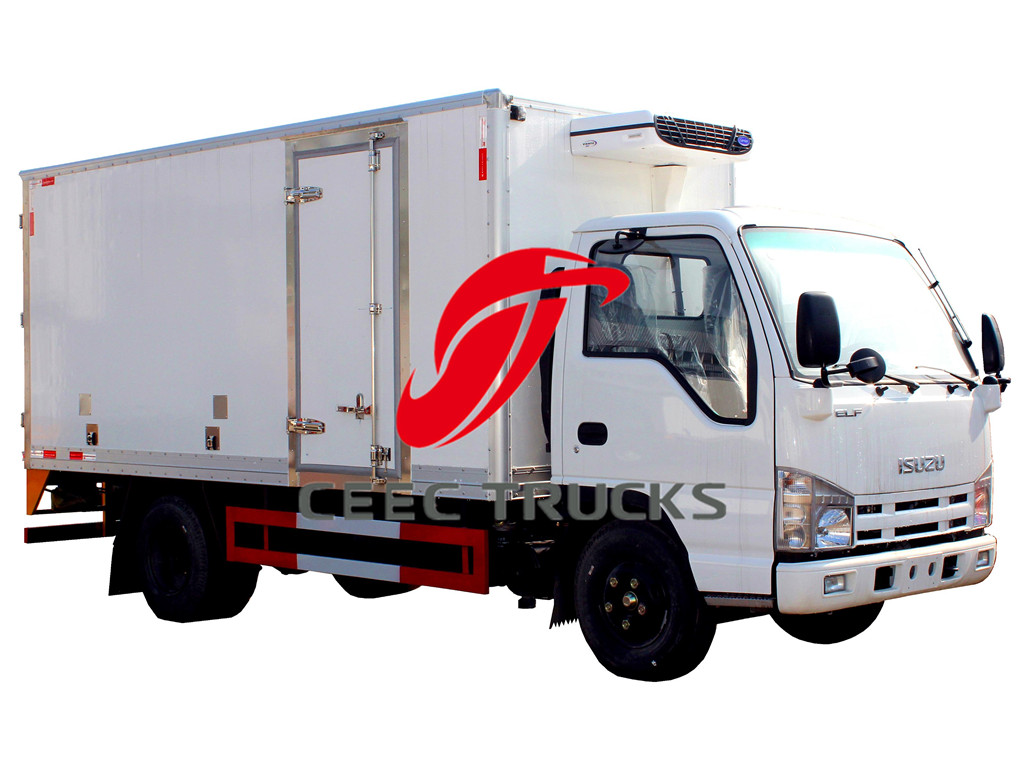

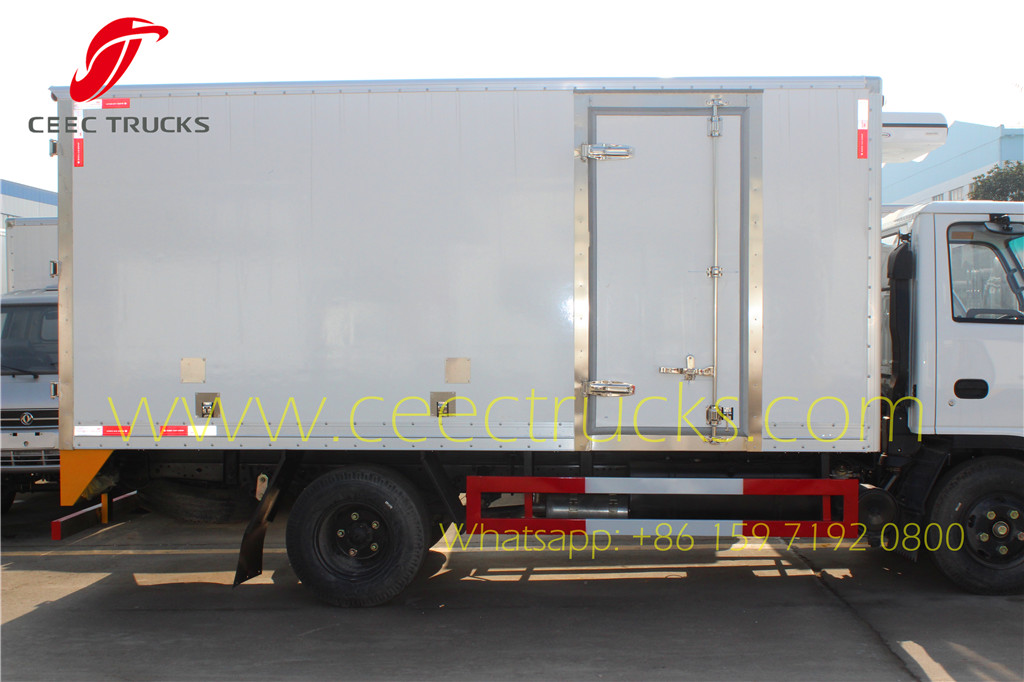

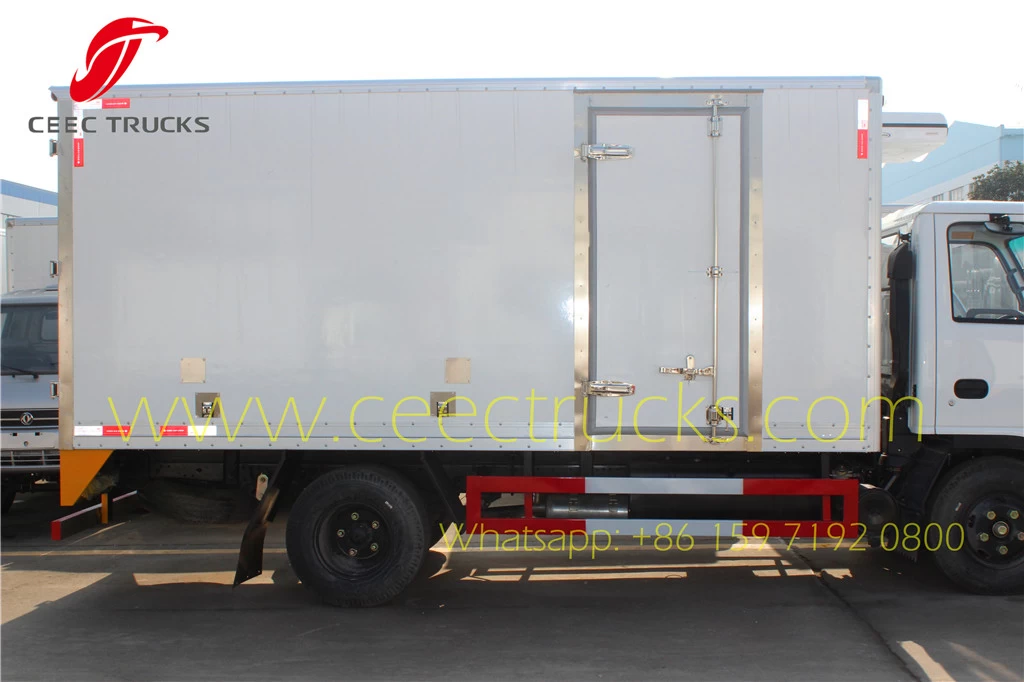

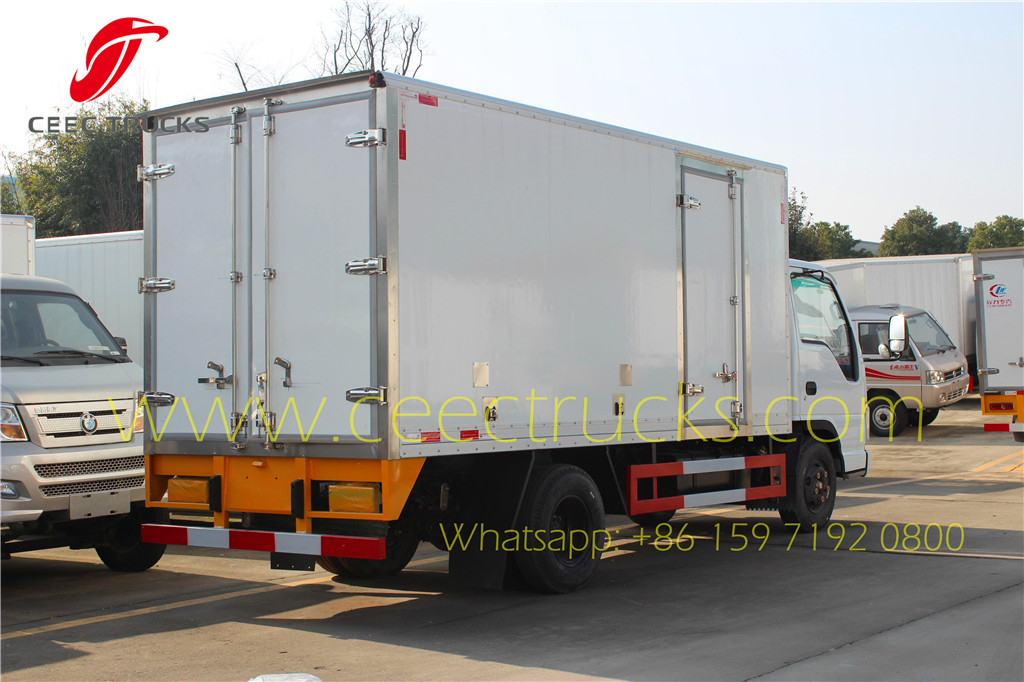

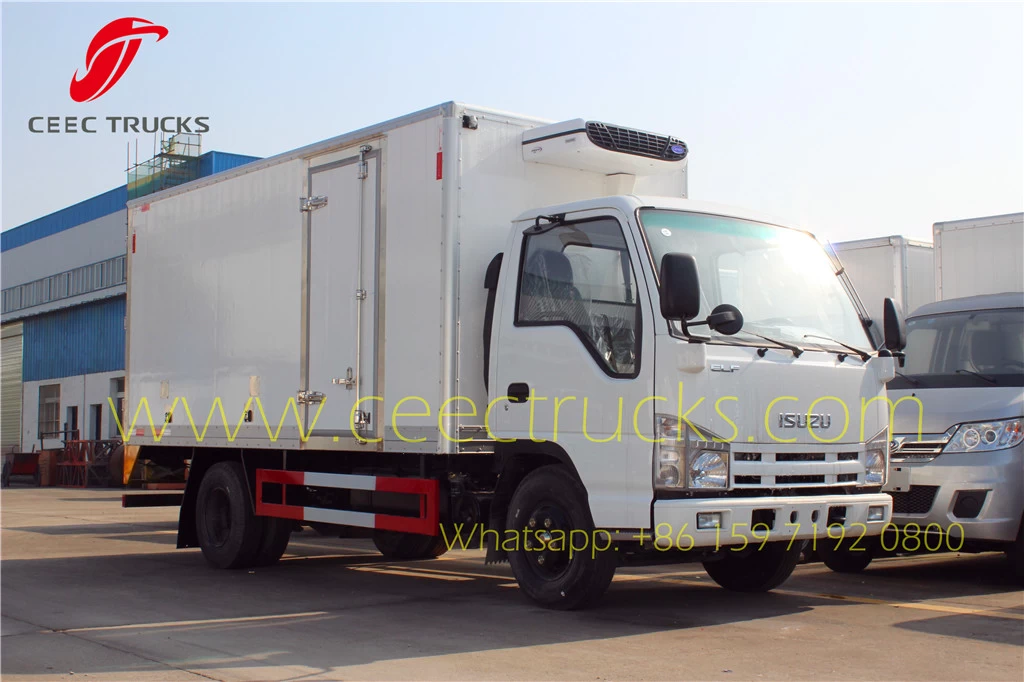

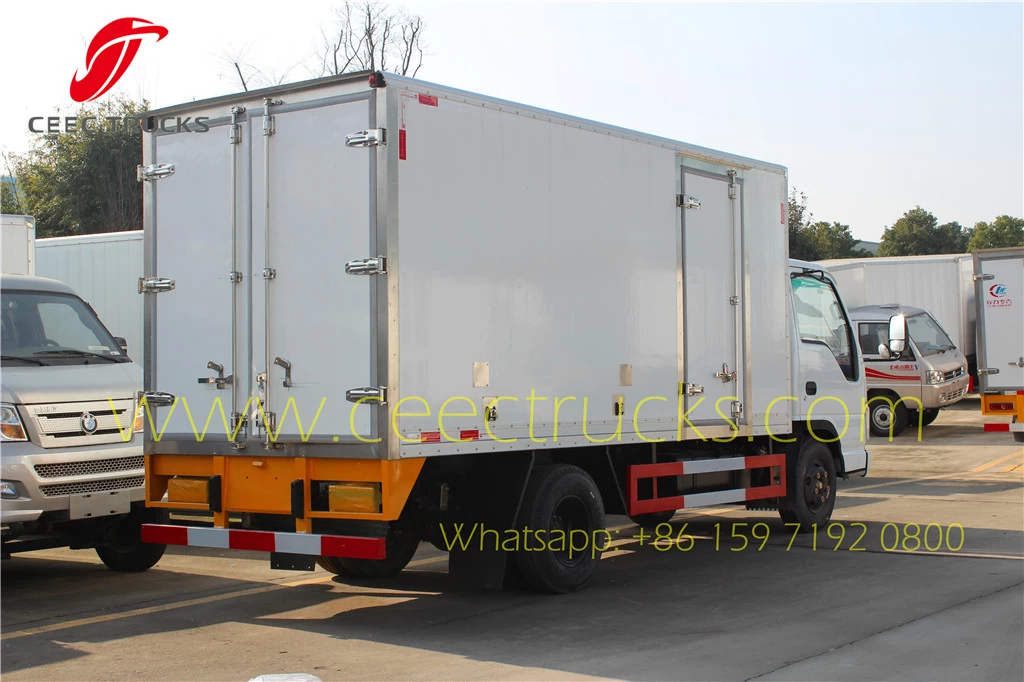

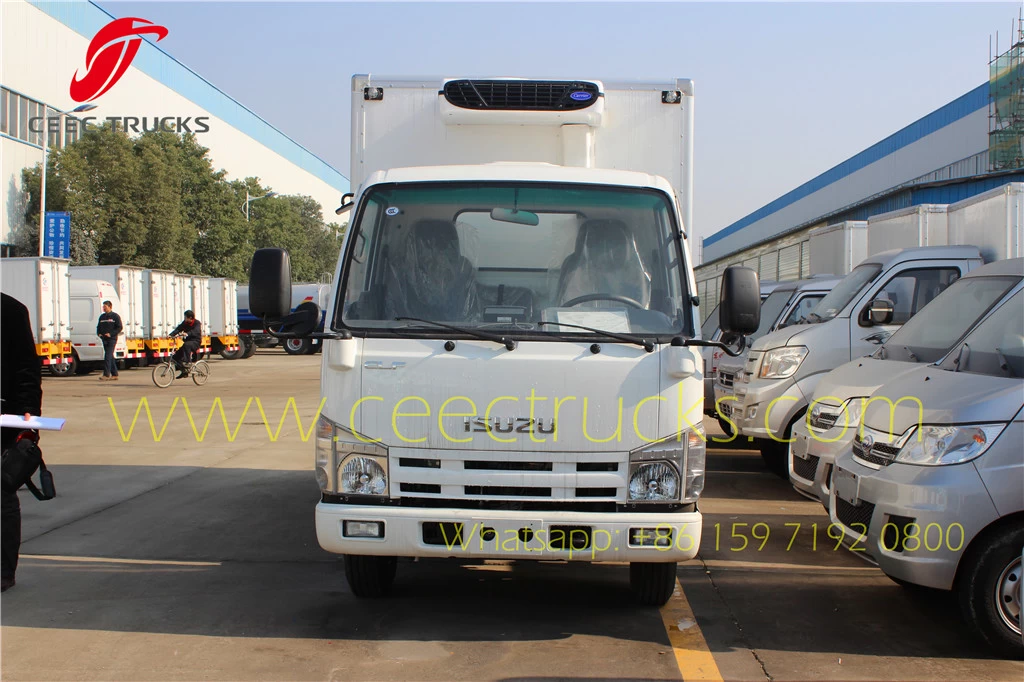

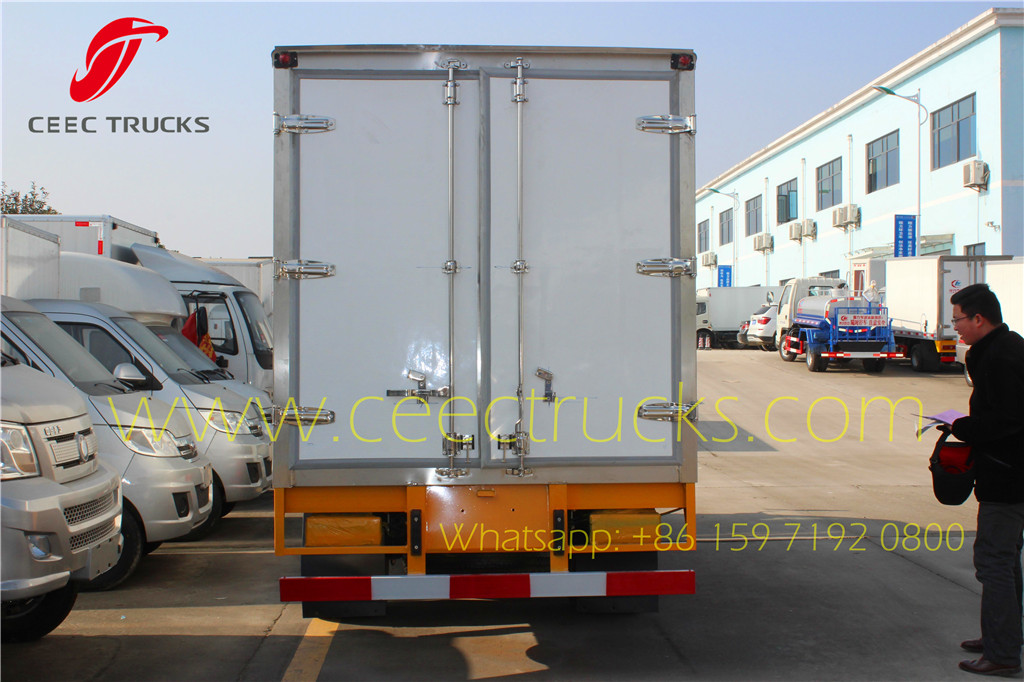

ISUZU 6-10CBM refrigerator truck

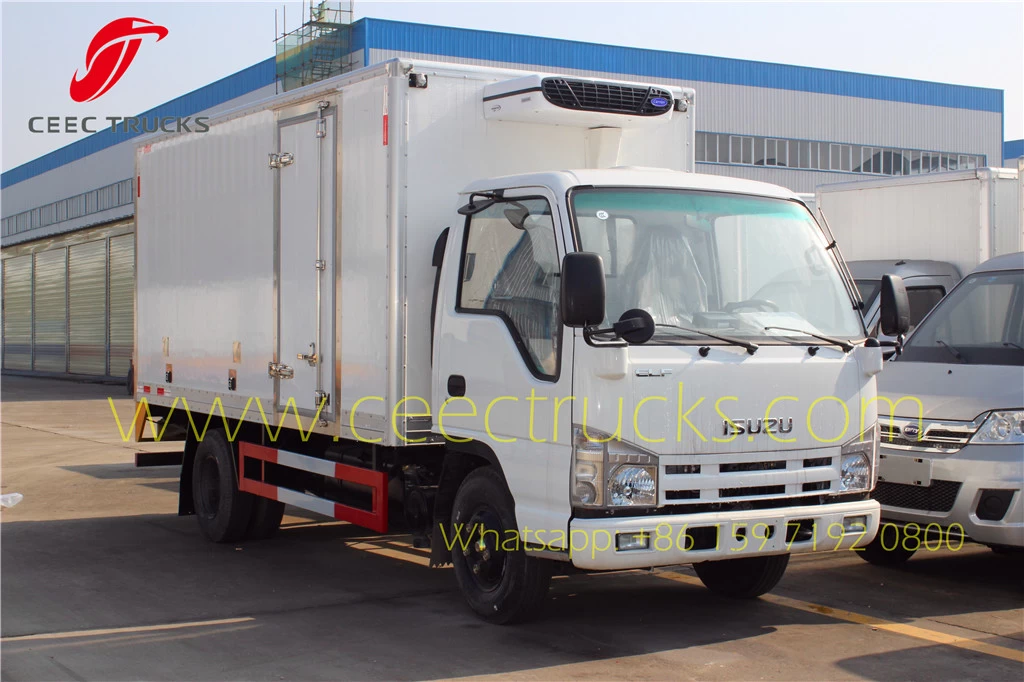

ISUZU 6-10CBM refrigerator truck

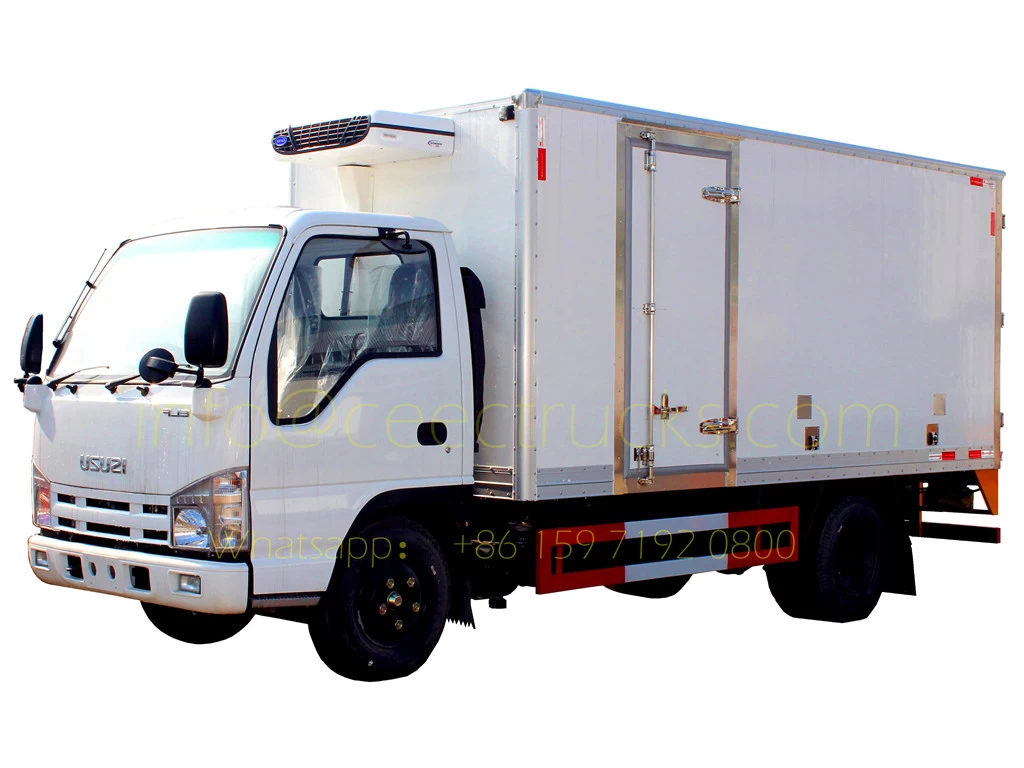

ISUZU 6-10CBM refrigerator truck

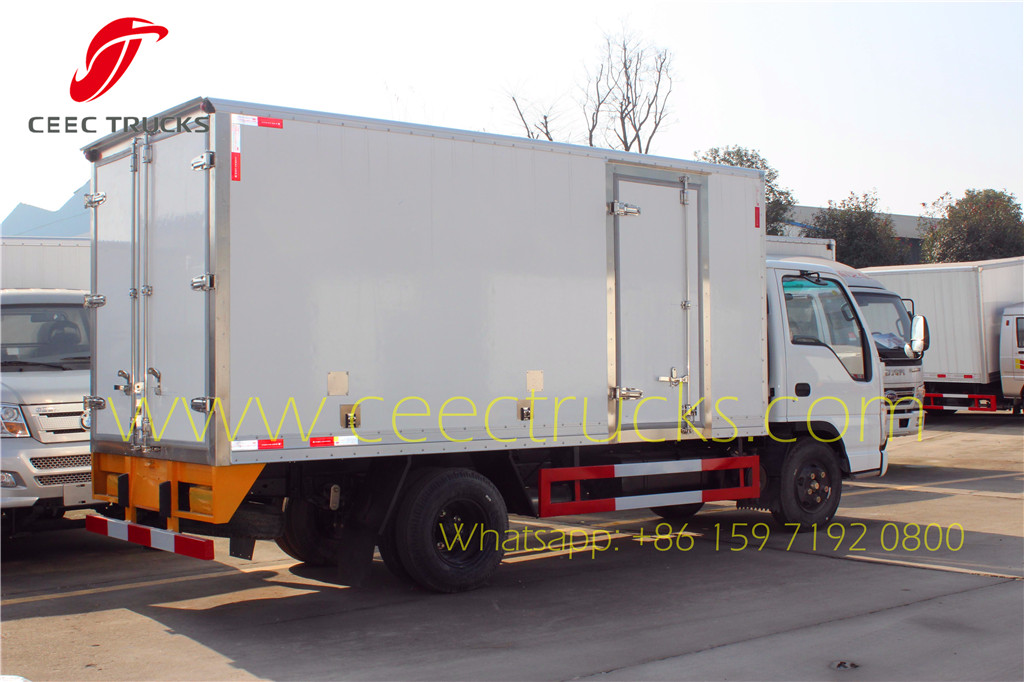

ISUZU 6-10CBM refrigerator truck

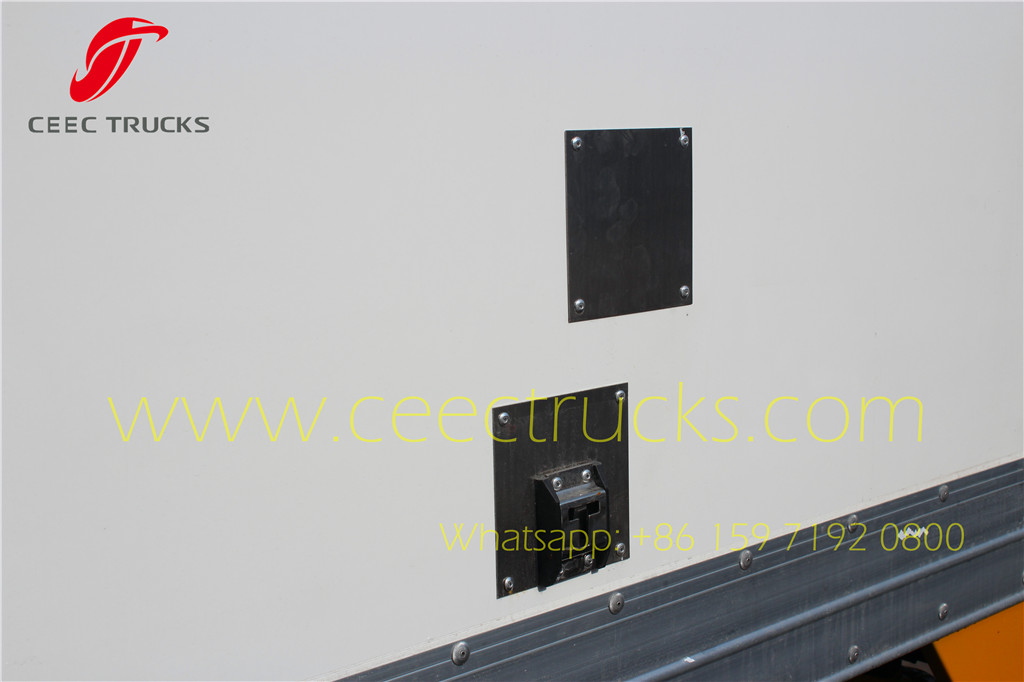

ISUZU 6-10CBM refrigerator truck

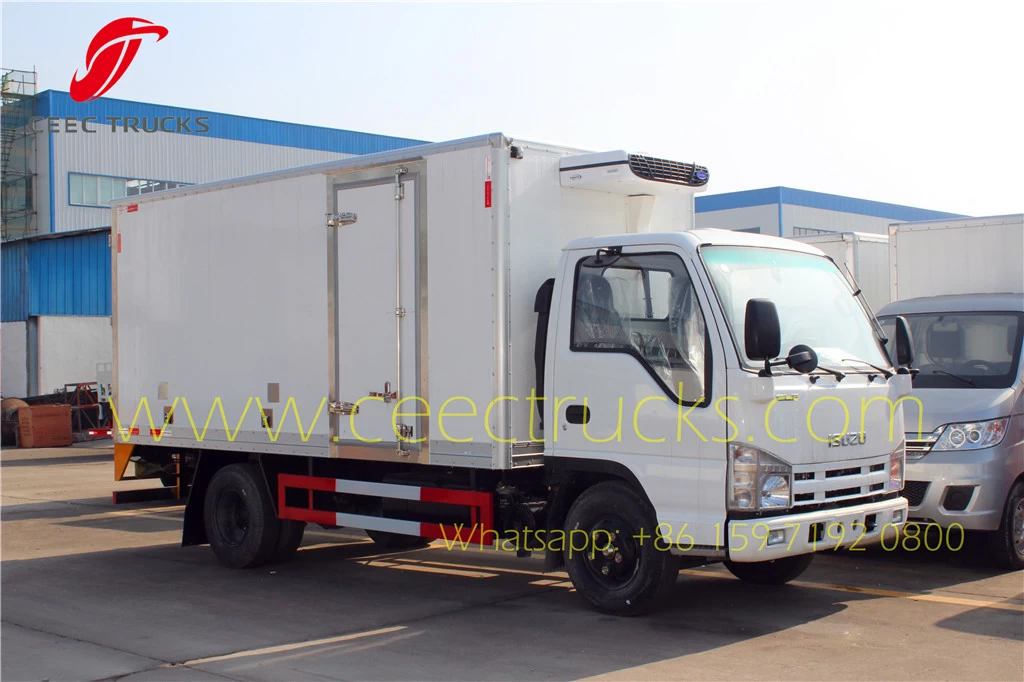

ISUZU 6-10CBM refrigerator truck
