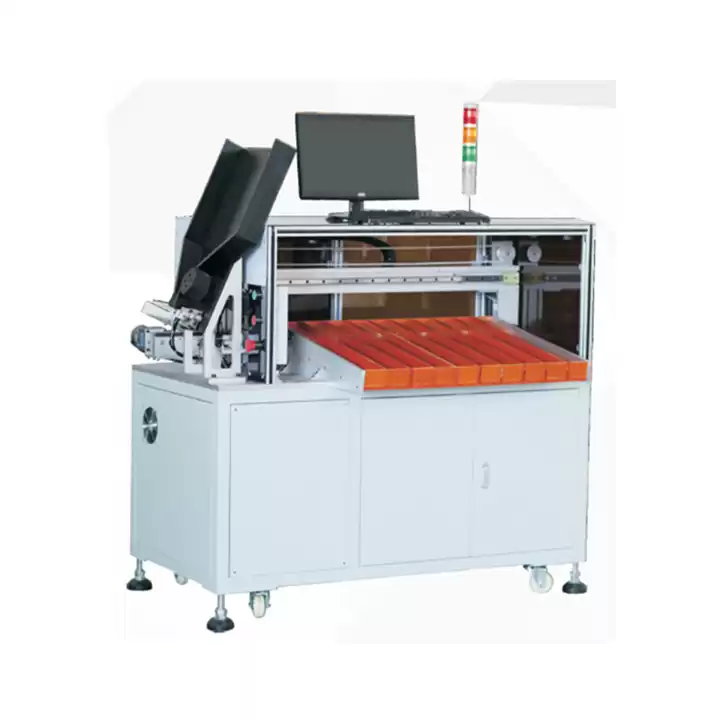

10 Channels Automatic Battery Sorter For 18650, 26650, 21700 Cell Sorting


The 10-channel cylindrical battery sorter is a machine consisting of a voltage internal resistance tester, which is used to test the voltage internal resistance of batteries. The power of each battery is calculated according to the software settings of the host computer, and the batteries of different grades are converted according to the judgement results. Different channels for automatic classification of battery products.

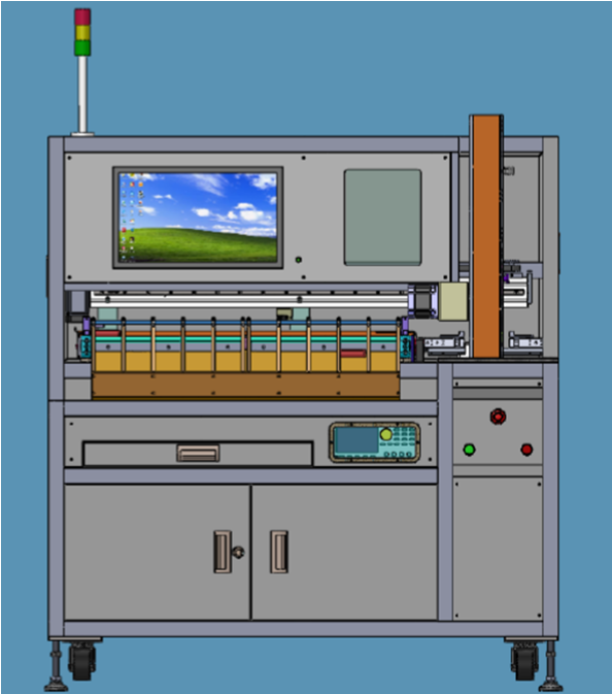

The automatic sorting device consists of feeding mechanism, detection mechanism, automatic sorting mechanism and receiver mechanism. The machine system designs and develops the upper computer software according to the user's requirement, and automatically classifies the batteries according to the grouping information, and collects them into the corresponding receivers.





1. It is a must equipment for Battery Pack Manufacturer for voltage and resistance testing and sorting.

2. 10 Channel automatic cell sorter is designed to sort cylindrical cells

3. Sort by cell's voltage and impedance up to 10 groups

4. Automatic sorting control

5. Fast sorting speed ≥90PPM

6. Easy to refill cells during the process

7. Wheels design, easy to move the machine to any operating place


Model

TMAX-FN-10

Power supply

AC220V ± 10% 50Hz

Power Consumption

≤1000W

Display Screen

Large size LCD screen/Touch screen

Compressed Air Pressure

0.5 ~ 0.7Mpa

Sorting Speed

≥ 90PPM



Chance of Damaged Product

≤0.1%

NG Equipment Failure Rate

≤0.1%



Open Circuit Voltage Accuracy

± 0.1% rdg

Display Resolution: 0.1 millivolt

AC Resistance Accuracy

± 0.5% rdg

Display Resolution: 0.1 milliohm

Productivity

5000pcs/h

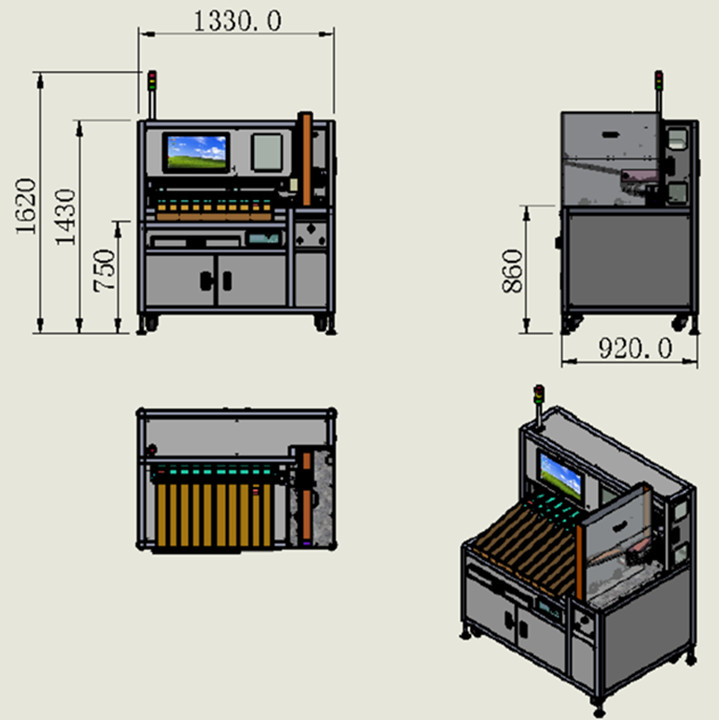

Dimension

1330x920x1600mm



Adaptation Battery

Cylindrical Battery

(18650,32650,18500,26650,14500,21700 etc.)

Receiving Channel

10 channels

Operating Temperature Range

25 ° C ± 5 ° C



Humidity

≤85%

Total weight

300kg


Battery Sorter

Battery Sorter

Battery Sorter


Cylindrical Cell fabrication
