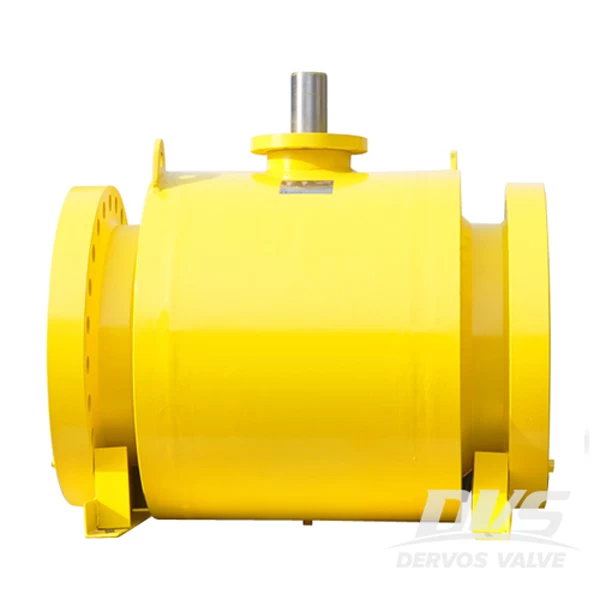

The 20 inch metal seated ball valve is designed for high temperature application or application with solid particulate. The valve has welded body, RF flange connection, bare stem for actuators, belonging to trunnion mounted type.
Quick Detail
|
Type
|
Ball Valve
|
|
Size
|
20"
|
|
Pressure
|
ANSI 600
|
|
Construction
|
Trunnion Type,
One-Piece Body, Fully Welded, Metal to Metal Seat
|
|
Connection
|
Flanged
|
|
Operation
|
Bare Stem
|
|
Body
Material
|
Forged
Steel ASTM A105
|
|
Design
Standard
|
API 6D
|
|
Pressure
& Temp
|
ASME B16.34
|
|
Face to Face
Dimension
|
ASME B16.10
|
|
End
Connection
|
ASME B16.5
|
|
Inspection
|
API 598
|
|
Temperature
Range
|
-29℃~+200℃
|
|
Media
|
Oil,
Water, Gas
|
Dimension
|
CLASS 600
|
|
DN
|
mm
|
50
|
65
|
80
|
100
|
150
|
200
|
250
|
300
|
350
|
400
|
450
|
500
|
|
NPS
|
in
|
2
|
2.5
|
3
|
4
|
6
|
8
|
10
|
12
|
14
|
16
|
18
|
20
|
L
(RF)
|
mm
|
292
|
330
|
356
|
432
|
559
|
660
|
787
|
838
|
889
|
991
|
1092
|
1194
|
|
in
|
11.5
|
13
|
14
|
17
|
22
|
26
|
31
|
33
|
35
|
39
|
43
|
47
|
L1
(BW)
|
mm
|
292
|
330
|
358
|
432
|
22
|
660
|
787
|
838
|
889
|
991
|
1092
|
1194
|
|
in
|
11.5
|
13
|
14
|
17
|
559
|
26
|
31
|
33
|
35
|
39
|
43
|
47
|
L2
(RTJ)
|
mm
|
295
|
333
|
359
|
435
|
562
|
664
|
791
|
841
|
892
|
994
|
1095
|
1200
|
|
in
|
11.63
|
13.13
|
14.13
|
17.13
|
22.13
|
26.13
|
31.13
|
33.13
|
35
|
39.5
|
43.1
|
47.3
|
|
H
|
mm
|
153
|
165
|
195
|
213
|
272
|
342
|
495
|
580
|
630
|
725
|
800
|
850
|
|
in
|
6.02
|
6.5
|
7.68
|
8.39
|
10.7
|
13.5
|
19.5
|
22.85
|
24.8
|
28.5
|
31.5
|
33.5
|
|
Do(W)
|
mm
|
600
|
850
|
1250
|
1300
|
1500
|
*350
|
*350
|
*600
|
*600
|
*800
|
*800
|
*800
|
|
in
|
23.62
|
33.46
|
49.25
|
51.22
|
59
|
13.8
|
13.8
|
23.6
|
23.6
|
31.5
|
31.5
|
31.5
|
|
RF(Kg)
|
|
38
|
56
|
66
|
122
|
217
|
350
|
660
|
820
|
830
|
1160
|
1420
|
1650
|
|
BW(Kg)
|
|
31
|
51
|
58
|
117
|
200
|
327
|
605
|
790
|
800
|
1030
|
1305
|
1505
|
|
*Worm Gear or Electric actuator operated
|
Related Knowledge
When to use metal seated ball valve?
The seat of a metal seated ball valve is often stellite, stainless steel, or tungsten carbide instead of soft seat material like ptfe, peek, nylon, teflon, and devlon. These metal to metal seat ball valves are especially applicable for:
-Media with high temperature
-Media with solid particulate for high abrasion
-Media with severe condition, like high erosion and corrosion
-Media with high viscosity like heavy oil
