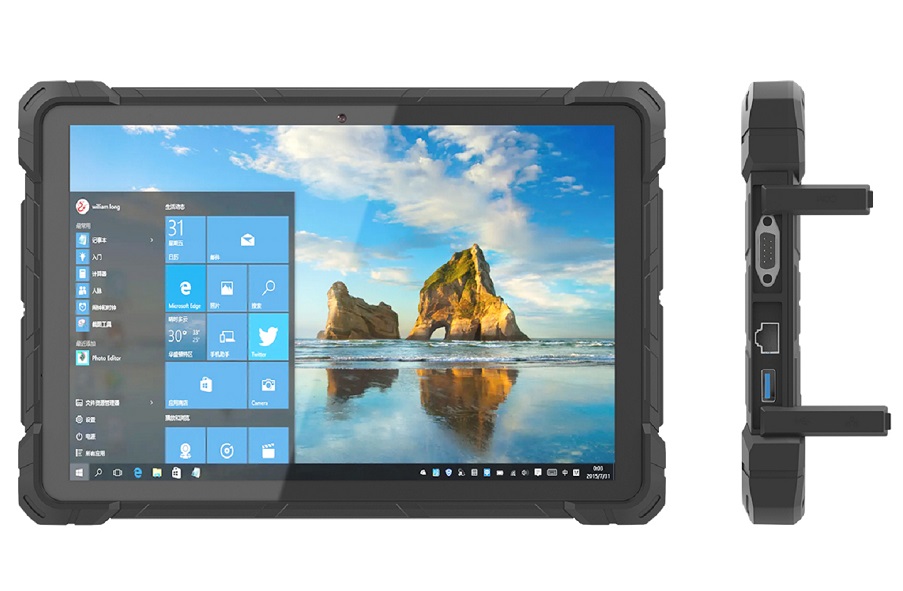

10 Inch IP65 Explosion-proof Industrial Rugged Panel PC

10 inch Rugged Panel PC, Intel cherry trail N4120 Soldered on board, Windows10, 1xRS232



10 Inch IP65 Explosion-proof Industrial Rugged Tablet PC



Product Introduction

Yanyue TPC-N4120 10 Inch Industrial Rugged Tablet PC is certified for use in the extreme operating environments presented by oil and gas, marine, and railway. And we offer OEM/ODM customization services in terms of appearance, screen size, screen types, and function modules.



Product form and standard configuration:
Type Description Specification
Size & weight Form Factor IP65 Rugged Tablet PC
Dimensions 280×184×26.5mm
Weight 1.15KG
Screen Screen Size 10.1"
Screen Resolution 800×1280 (IPS+HD+300lm)  (Standard)
Screen Resolution High-definition highlight screen 1200×1920 (IPS+FHD+600ANSI)  (Optional)
Touchscreen Touch Module  G+G multi-touch (10-point touch)
Battery Type Rechargeable lithium cobalt acid battery
Capacity 8000mAh/7.6V
Working Time More than 8 hours (full HD local video playback)
Main hardware configuration:
Type Description Specification
CPU Type Intel Gemini lake N4120(Quad-core processor)
Speed 1.1GHz ~ 2.6GHz (N4120)
Graphics card Type Intel UHD 600 Graphics
Memory Capacity 8GB LPDDR4
Storage eMMC 128GB
SSD Interface (mini PCI-E interface)
Camera Front 2M
Rear 5M
Speaker Built-in 8Ω/1W*2pcs Waterproof speaker
MIC Built-in Support
Gravity sensor Built-in Support
Light sensor Built-in Optional
Network configuration:
Type Description Specification
WIFI WIFI Module: Intel AC3165 WIFI 802.11ac/b/g/n 2.4G&5Ghz Dual-band
Bluetooth BT Module: Intel AC3165 Bluetooth4.2
3G/4G LTE Optional Optional
QR code scanning Optional Optional
GPS BD2 (Beidou)/GPS/Glonass choose two of three Optional
NFC Optional Optional
Fingerprint recognition Optional Optional
RFID UHF module Optional
Wired network RJ-45 1000Mbps Gigabit Lan

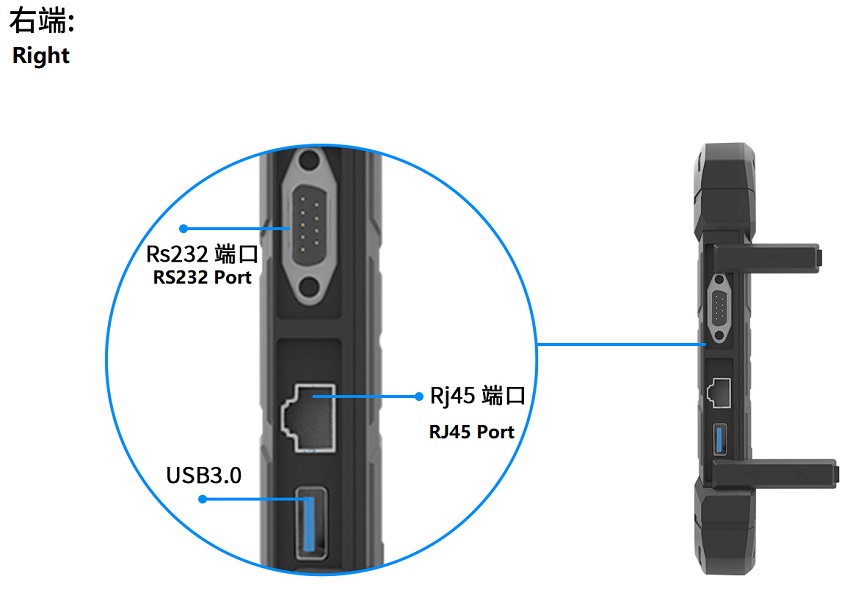

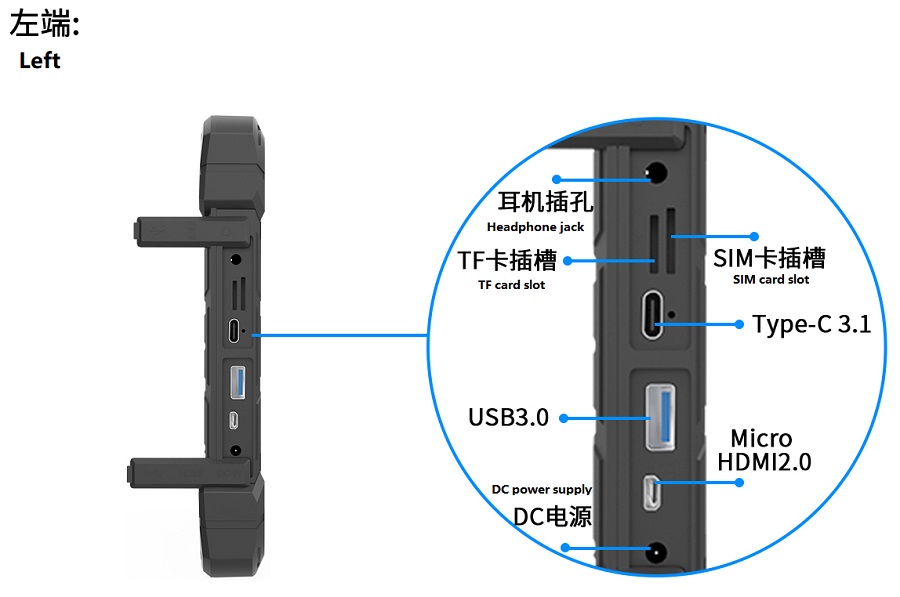

Port configuration:
Type Description Specification
Type-C Type-C 3.1 ×1pc
USB Interface USB3.0 ×2pcs
SD / TF Card reader TF Card reader ×1pc (up to 512GB)
SIM  Card Slot SIM Slot for 3G/4G LTE ×1pc
Audio Jack 3.5mm standard headphone+Microphone ×1pc
HDMI Micro HDMI2.0 ×1pc (Can output 4K@60 frames ultra HD video)
COM DB9 (RS232) ×1pc
Key switch:
Type Description Specification
Power switch On/Off ×1pc
Volume Down/UP ×1pc
Shortcut keys QR code scanning shortcut keys ×1pc
Force restart When the user encounters an abnormal stuck, he can press the restart button to force a restart Support
Accessory:
Type Description Specification
Adapter DC 12V/3A ×1pc
User manual User's Manual ×1pc
Handle/strap Handle×1pc + Hand-held strap×1pc Optional
Charging base USB2.0; Power charging;  RJ45; RS232 Optional
Car bracket USB2.0; Power charging;  RJ45; RS232 Optional
Software Configuration:
Type Description Specification
Power supply method Button power-on/power-on power-on/timing power-on optional Support
Wake-on-network Wake up on Lan by RJ45 Standard
PXE remote installation Preboot Execution Environment Standard
Data security TPM2.0 Hardware data encryption Optional
OS Windows 10 Pro or higher Optional (Windows genuine key optional)
Environment:
Temperature Working temperature -10oC ~ 55oC (1080p or 4K local playback)
Storage temperature -20oC ~ 70oC  (Stand still at the operating temperature for 2 hours before use)
Humidity working humidity 35% ~ 80%  (Relative humidity, no condensation)
Storage humidity 20% ~ 93%  (Relative humidity, no condensation)
Certification:
IP65 IP65 waterproof and dustproof certification Support
CE CE-Red Support
MIL-STD-810G Meet U.S. military product reliability standards Support













Our Advantages

1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.

2.Our products are 100% original and have strict QC inspection before shipment.

3.Professional and efficient sales team to serve for you diligently.

4.Sample order is welcomed and will be delivered within 1-3 days.

6.We support Trade Assurance to ensure On-time shipment and product quality.

7.We provide OEM/ODM service according to your requirements.

8.We provide 2 years maintenance warranty for our products.



FAQ

1.Q: What's the Minimum Order Quantity(MOQ)?

A: Just 1 piece is OK.

2.Q: Are you a factory or a trading company?

A: We are one of the professional computer manufacturers located in Shenzhen, China.

3.Q: What about the after-service?

A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.

4.Q: Can you provide DIY/OEM/ODM service?

A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
