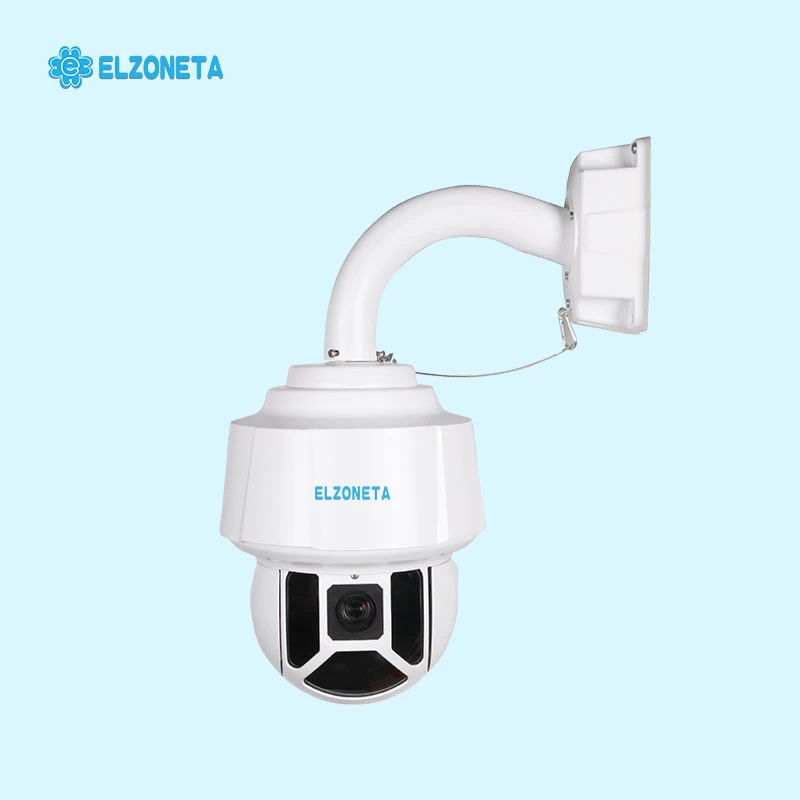

EC-HS06 10 Inch IP High Speed Dome Camera
Features:
* Support P2P function
* 10" full metal body construction, IP66
* 12pcs LED+4pcs Laser LED,IR range up to 250M
* ONVIF2.4 ; Compatible with HIKVISION, DAHUA, XM, Video park NVR .etc
* Compatible with CMS,UC2, Milestone, NUUO and AXXON platform.etc
* Intelligent IR illumination & power consumption is variable, dependant the zoom factor
Specifications:
|
Camera
|
|
Sensor
|
1/3" CMOS
2MP Sony323
|
1/3" CMOS
5MP AR0521
|
1/3" CMOS 2MP
Panasonic34220
|
|
Output pixel
|
1920*1080@30fps
1920*1080@25fps
|
2592x1944@15fps
2592x1520@22fps
|
1920*1080p/30fps
1920*1080p/25-60fps
|
|
Lens
|
20X f=4.7mm～94mm
|
36X f=4.6～ 165.6mm
|
|
BLC
|
Support
|
|
AGC
|
Auto/Manual
|
|
WB
|
Indoor/Outdoor/Auto/Manual
|
|
DNR
|
2DNR,3DNR
|
|
WDR
|
DWDR
|
WDR≥79dB
|
|
S/N Ratio
|
≥50dB
|
|
Dome
|
|
Communications
Protocol
|
TCP/IP, HTTP,
NTP, IGMP, DHCP, UDP, SMTP, RTP, RTSP, ARP, DDNS, DNS, HTTPS, P2P
|
|
Software
Control
|
IE, CMS,
Management Platform, P2P
|
|
Mobile
View(optional)
|
Android ,
iPhone
|
|
Rotation range
|
Pan:0~360°,Tilt:0~93º
|
|
Rotation speed
|
Pan:0~200°/s, Tilt:0~100°/s
|
|
Medium rotation speed
(optional)
|
Pan:0~80°/s, Tilt:0~40°/s
|
|
Auto Flip
|
Horizontal
180º,Vertical 93º
|
|
Preset Points
|
220pcs presets（dwell time 01-60s interval
available）
|
|
A-B scan
|
User programmabel(scan speed
1-64 levels setting available)
|
|
Guard Tours
|
3 groups( Max.16 points,
dwell time user selectable)
|
|
Video
compression
|
H.264/H.265M-JPEG
|
|
Audio compression
|
G711, PCM
|
|
Operating
temperature
|
-40℃～+60℃
|
|
Operation menu
|
English
|
|
Power
|
DC 12V 4A
|
|
Consumption
|
≤25W
|
|
Lightning
Protection
|
Transient voltage 6000V
|
|
Related
validation
|
IP66,CE,FCC,RoHs
|
|
IR parameters
|
|
IR distance
|
Up to 250 meters
|
|
LEDs
|
12Pcs Array 42Mil IR LED+4Pcs Laser LED
|
