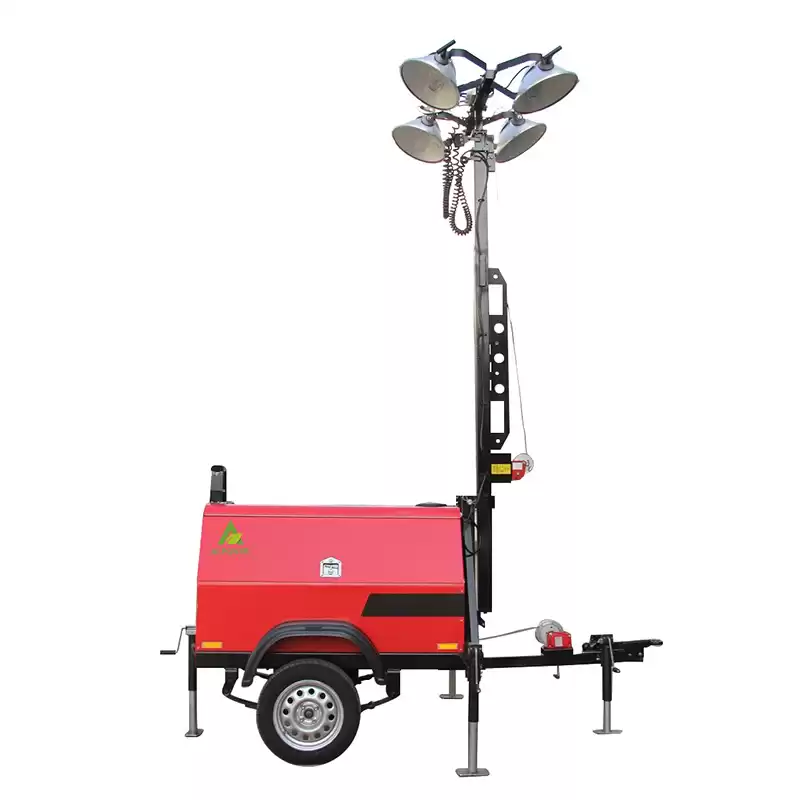

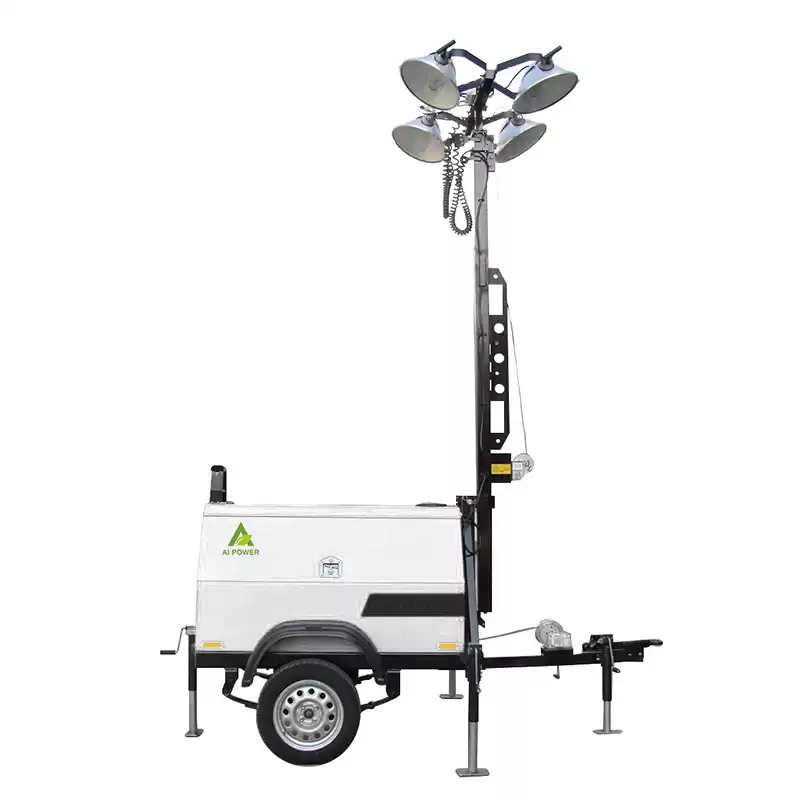

10 kva Diesel Fuel Mitsubishi Road Portable Generator 6m 9m Manual Light Tower
Ai Power focus on the industry in innovative light tower solutions. Our vertical mast and compact light towers have revolutionized industrial mobile lighting. Easy to setup, operate and maintain, our light towers provide maximum power in a minimal footprint. With extended run times and service intervals, LED safety features, innovative engine technologies and programmable controls, our products can be trusted to maximize uptime and return on your investment.
Lighting
Tower
|
Lighting towr model
|
|
AP10H5-H
|
|
(P.R.P) Power
|
KVA/KW
|
10
|
|
Frequency
|
HZ
|
50
|
|
Voltage
|
V
|
230
|
|
Max. dimension(working mode)L*W*H
|
mm
|
2910*2600*9000
|
Min. Dimension(transport model)
L×W×H
|
mm
|
2150*1450*2500
|
|
Weight unfuelled
|
Kg
|
1500
|
|
Fuel
|
|
Diesel
|
|
Tank capacity
|
L
|
100
|
|
Max. Continuouse running time
|
hr
|
50
|
|
Engine
|
Engine model
|
|
Perkins 403A-15G1 or Kubota D1105-E2BG
|
|
Cylinders
|
|
3L
|
|
Type
|
|
4 cycle, in line, water cooled, diesel
|
|
Aspiration
|
|
Natural
|
|
Rated speed
|
rpm
|
1500
|
|
Fuel consumption(100% Light load)
|
L/H
|
4.4
|
|
Speed governor
|
|
Mechanical
|
|
Alternator
|
Alternator Model
|
|
Leroy somer LSA 40 VS2
|
|
Poles No.
|
|
4
|
|
Type
|
|
Brushless, self excitation
|
|
Voltage regulation
|
|
Automatic
|
Nameplate
Customer logo and info accepted
4*1000W metal halide light
Light output(Lumens 100hours): 115000 * 4
Rated Lifte (Hrs. 10 Hr. 1 Start): 10000
AL-KO trailer chassis system
World famous AL-KO brand chassis offers the best performance and security:
1. Rubber torsion axle
2. Adjustable height of tow-bar
3. Inertial brake and hand brake
4. Strong wheeled jack
Mast
Galvanized mast
Hydraulic operation
6 sections
Max hight 6m.
350 degree rotation
Engine Features:
1. World most famous brand diesel engine: Kubota/Mitsubishi/UK, China engine etc.
2. Mufti-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption
9. Installed conveniently and maintain easily
Alternator Features:
1. World famous brand AC alternator: Leroy Somer, Stamford, Meccalte etc
2. Brushless, 4 poles, rotation magnet
3. IP21-23(NEMA1) enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤±1%
Company Profile
Xiamen Ai Power Technology Co.,Ltd, which is located in the beautiful tourism city of Xiamen city, Fujian Province.
Ai Power products adopts internationally and domestically reputed high-quality engines and alternators for our industrial diesel generator sets, gas diesel genset, marine generator, movable generator, lighting towers, generator spare parts and other high value-added electrical products, like ATS, synchronization system, transformer, switchgear, loadbank, etc.
