SOEASY SAL-W solar carport mounting system is developed from SAL-NW , which add water slot to achieve structual water proof.
Professional structual design, dismountable waterproof structure provide customers with more choices.
SOEASY will keep optimizing the design of solar carport mounting system to offer a excellent installation experience for users.
1.Customized solutions to maximize the utilization of land resources.
2.Hidden connection parts makes a better appearance for carport.
3. Dismountable waterproof structure provides customers with more choices.
4.10 years warranty, 25 years lifelong.
5.Professional design solution and detailed manual will save the cost and time for installation.

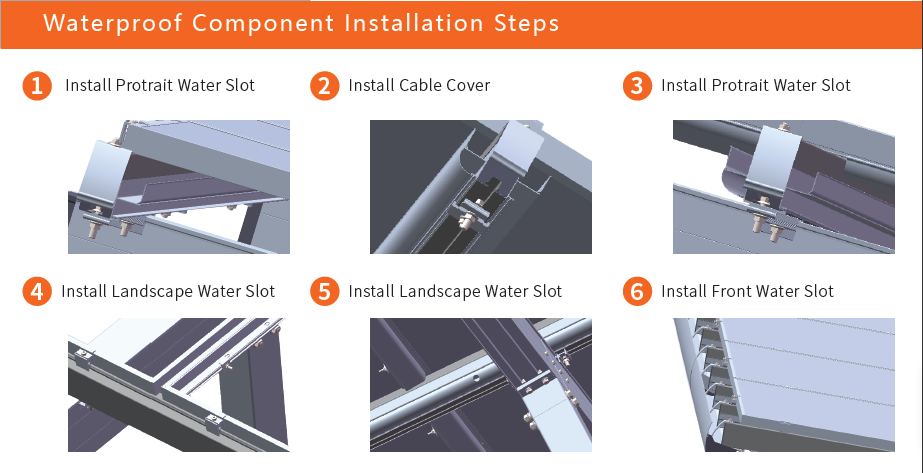

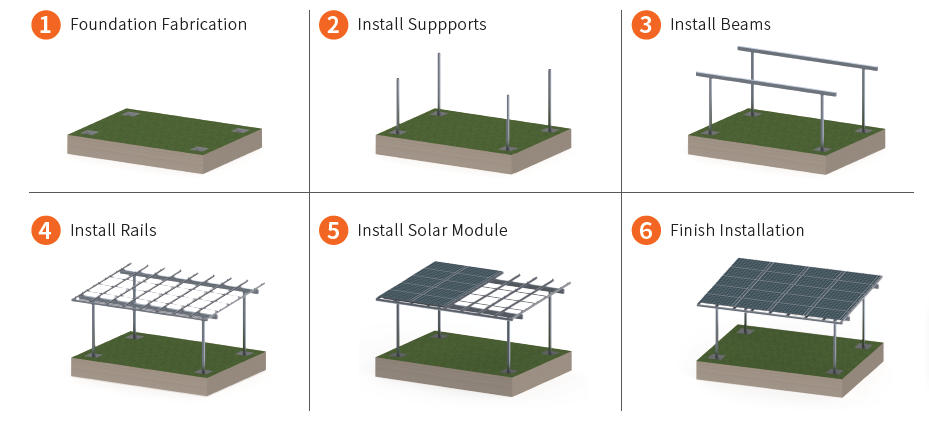

lnstallation Steps
|
Item
|
SOEASY 10kw aluminum solar mounting carport structure freme
|
|
Installation site
|
Open Ground
|
Capplication Modules
|
Concrete Foundation
|
|
Panel Orientation
|
Landscape/Portrait
|
|
installation Angel
|
0-20°
|
|
Wind Speed
|
≤60m/s
|
|
Snow Load
|
1.7KN/ /m2
|
|
Design Standards
|
JIS C8955:2017;
AS/NZS 1170;
DIN1055;
ASCE/SEI7-10;
International Building Code: lBC 2009
|
|
Ground Clearance
|
≥1800mm
|
|
Material
|
AL6005-T5
|
|
Fastener Material
|
SUS304
|
|
Component Material
|
SUS304/AL6005-T5
|
|
color
|
Silver or Customized
|
|
Warranty
|
10 Years
|
1. High percentage of factory pre-assembled components deliver significant installation savings.
2. Easy installtion.
3. Carport systems allow for generous tolerances for vertical and horizontal adjustment.
4. A completely modular installation program.
Soeasy solar mounting system packing & shiping
- Package: Standard Carton & Steel Pallet
- Shippment: BY SEA
- Put Warranty solar mounting products into standard carton/ wooden pallet/other customized packages.
- Wrapped the aluminium profile with plastic film to against the moisture during shipping
- Always shiped on time !!!
