10 Mins Fast Charging Yinlong LTO 2.3V 33Ah Deep Cycle Battery

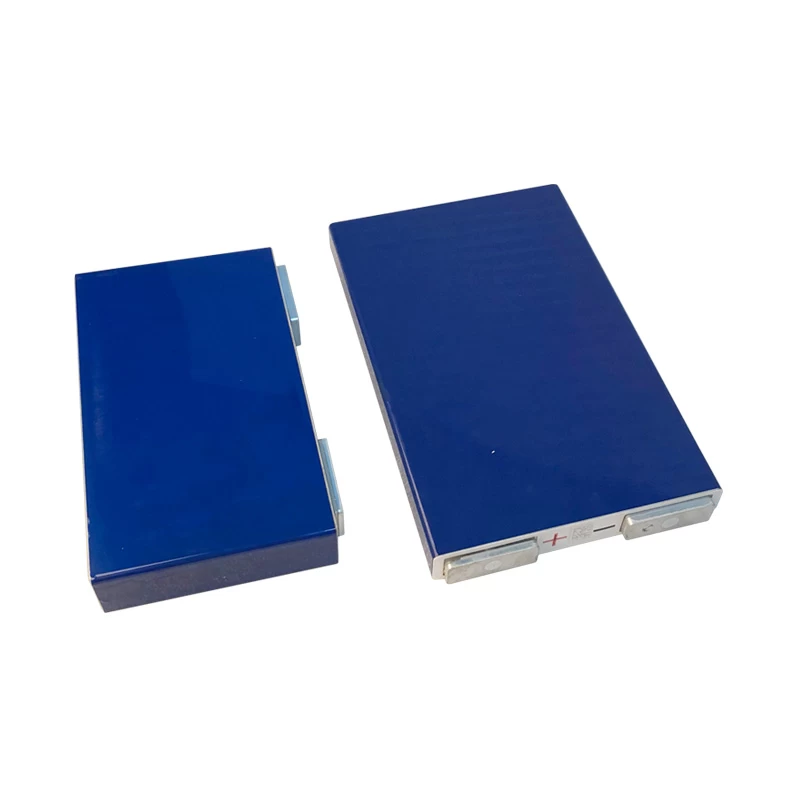

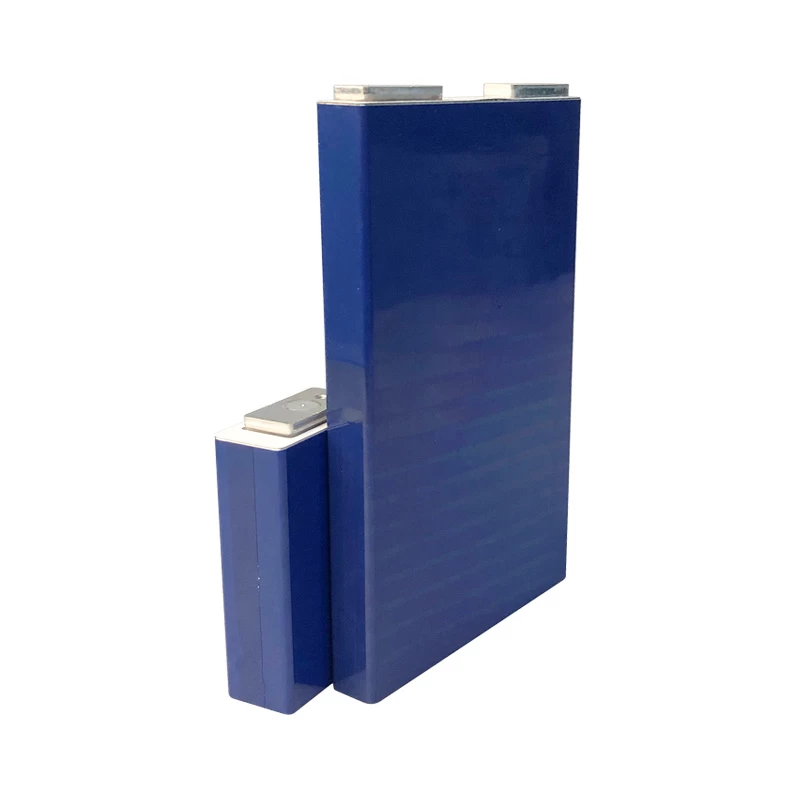

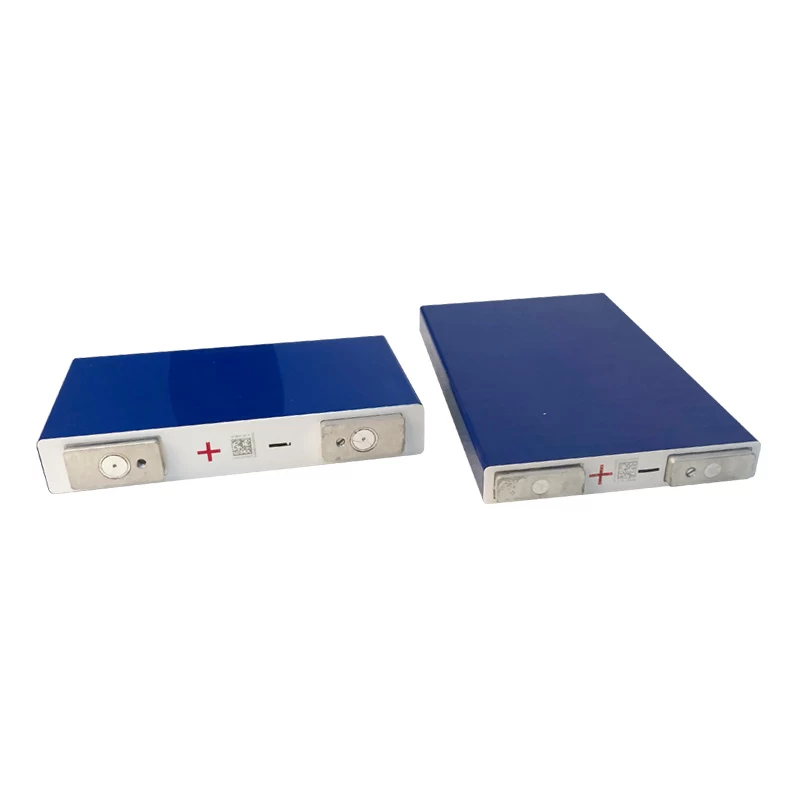

-The LTO Prismatic Battery cell 2.3v33Ah has 30000cycles life,fast charge(up to 10C) and wide working temperature range(-50°C ~ 65°C) .

-Size is 130*205*20mm,weight is 1.22kg .

-It has been widely used for electric vehicles, household&industrial solar storage ,car audio&car start ,UPS etc. Applications .



Product name

10 Mins Fast Charging Yinlong LTO 2.3V 33Ah Deep Cycle Battery

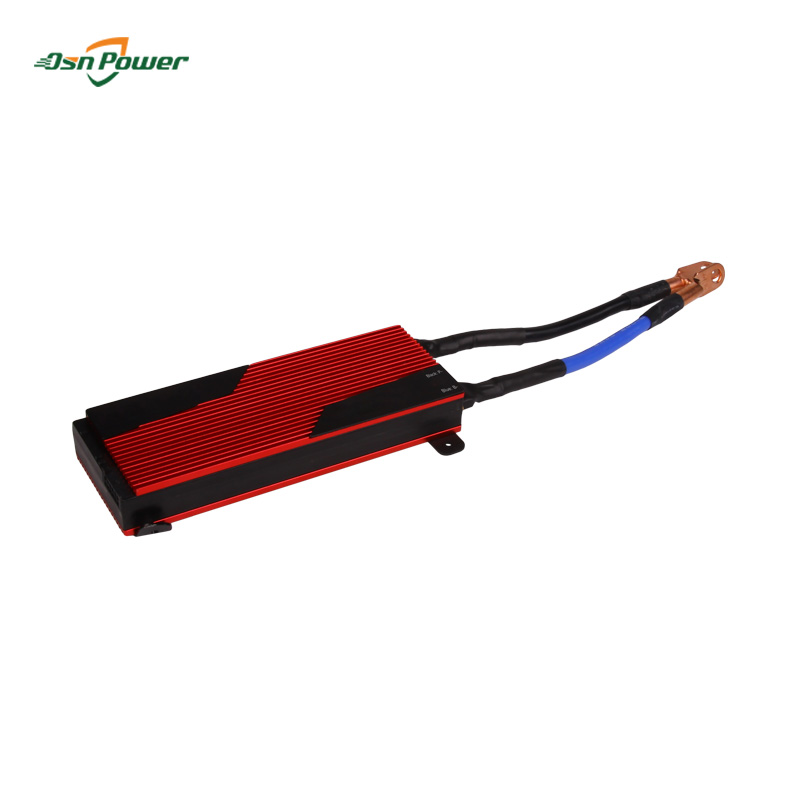

We can also provide you with 6S-32S 45-250A LTO BMS.

Specification


Item

Parameters

Model

OSN-13020520-LTO33Ah

Materials

LTO

Nominal capacity

33Ah

Nominal voltage

2.3 V

Dimension

130*205*20mm

Cell construction type

     Prismatic

Weight

                                                    1.22kg

Internal Resistance

≤1mΩ

Operating voltage

Charge cut-off voltage

2.8 V

Discharge cut-off voltage

1.5 V

Maximum charge current

4C

Maximum discharge current

ccucurrentcucurrent

10C

Cycle life

30000 times

Operating Thermal Ambient

Charging

-50℃~ 65

Discharging

-50℃~ 65

Storage Thermal Ambient

Short term

(within 1 month)

-20℃~ 45

Short term

(within 1 year)

-20℃~ 20


Highlight


  •   Super long cycle life: over 30,000 times
  •   Faster charge: 10mins fully charged
  •   Higher discharge rate: Up to 10C
  •   Wide working temperature range: -50°C ~ 65°C
  •   High Safety(No fire, explosion,leakage)



LTO battery


Related Product

LTO Battery


Applications

LTO battery


With 10 years experience of making LiFePO4/NCM/LTO packs, we can customize any packs for you.

Please email us at service@osnpower.com to get solution and quotation.
