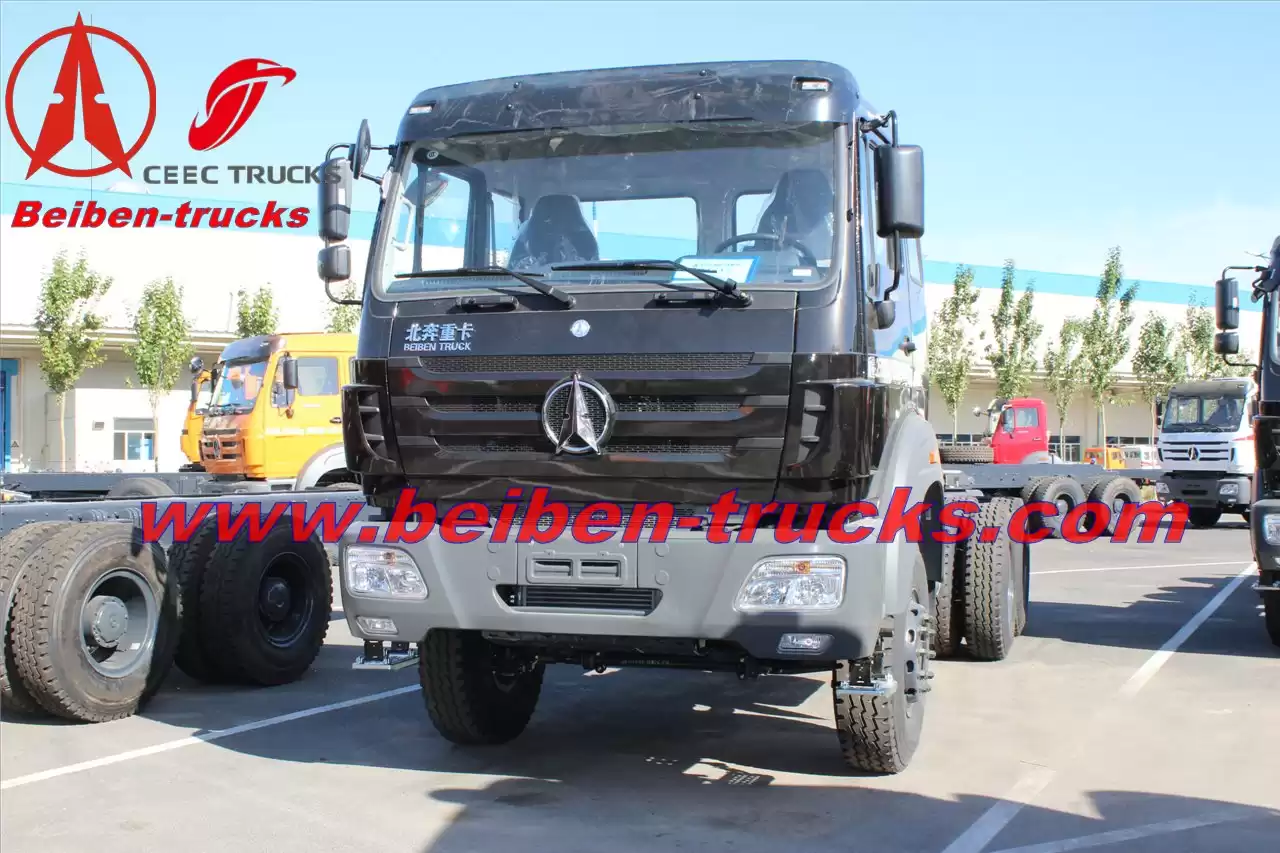

| 2538S /6×4/3450+1450/Long Cab/LHD |
| Dimension |
6935*2495*3340mm |
| Approaching angle/Departure angle |
20/64° |
| Overhang(front/rear) |
1410/625mm |
| Wheel base |
3450+1450mm |
| Max speed |
100km/h |
| Curb weight |
9200kg |
| Max towing weight |
39670kg |
Max loading on fifth wheel, Permitted(kg)
|
15670kg
|
| Slope climbing capability |
Max.40% |
| Engine |
Model |
WP10.380E32,water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection |
| Displacement |
9.726L/Diesel |
| Stroke |
126/130mm |
| Max. power |
309/2200 (kw/rpm) |
| Max.torque |
1750/1300-1400(Nm/rpm) |
| Emission stantard |
EuroⅢ |
| Fuel tanker capacity |
400L |
| Clutch |
430, Single dry frictional disc,Hydraulic boosting |
| Gearbox |
12JS200T, mechanism,12 forward gears,2 reverse gear, manual operated, with synchronizer
|
| Gear ratio of gear box |
15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.10/1.64/1.28/1.00 R:14.86/3.33 |
| Suspension system |
Front |
Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 13pcs |
| Rear |
Non-free standing stablization spring, balance suspension system, 13pcs |
| Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
| Assistant brake |
Engine exhaust brake |
| Park brake |
Potential springs pressing on middle and rear wheels |
| Steering system |
TAS85,whole circulation in ball, hydraulic booster |
| Frame |
Fish belly shape, variable width, variable sections |
Model
|
JOST 90 single direction
|
Height of fifth wheel(mm) (unload)
|
1410
|
Radius of front gap (mm)
|
2300
|
Radius of rear slew (mm)
|
2600
|
| Front axle (Mercedes Technology) |
Double-shoe pneumatic brake, non-driving steering axle |
| Middle and Rear axle (Mercedes Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle |
| Tyre |
12.00-R20 |
| Electrical system |
Battery |
2X12V/135Ah |
| Generator |
28V-35A |
| Starter |
5.4Kw/24V |
| Cabin |
NG80B Long-Flat roof cabin with single sleeper
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back seat for driver;Electric lifting window ;
With inner A/C |
