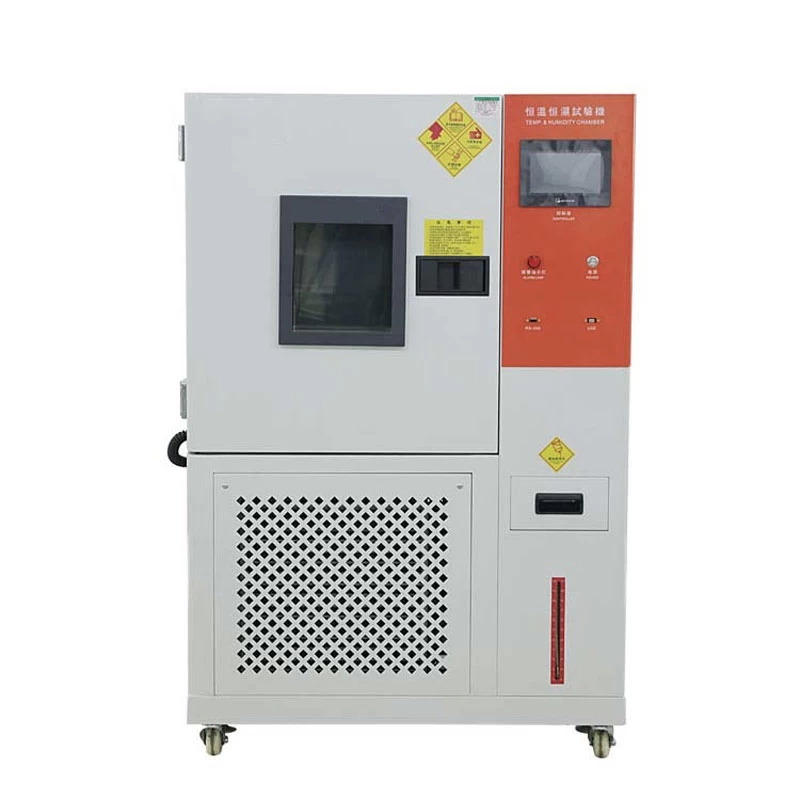

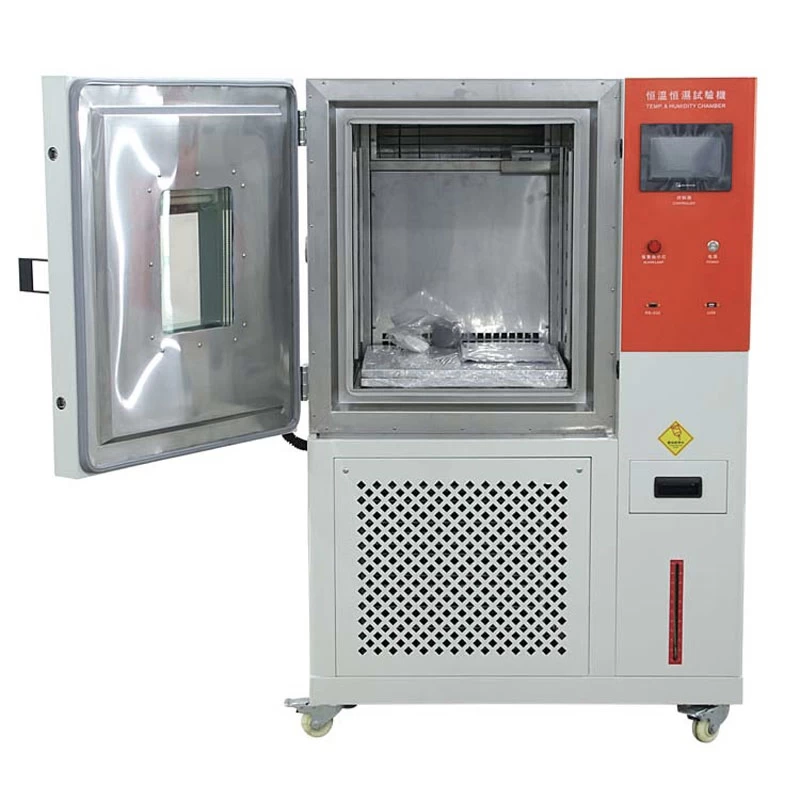

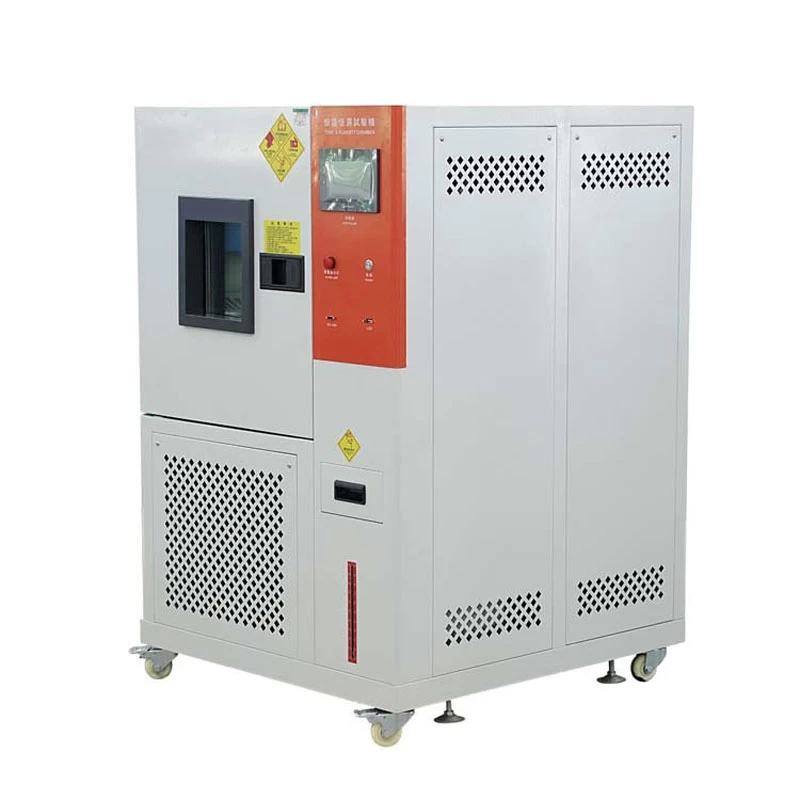

100-1000L Programmable High Low Temperature Test Chamber


  • Delivery Time 8-10 day
  • Packaging DetailsStandard export wooden box
  • Dimension(L*W*H)1160*1000*1610mm
  • Power4.5kw
  • Temperature range-20°C~+150°C
  • Voltage108V-380V 50/60HZ
  • Minimum Order Quantity1
  • ComplianceCE Certified
  • Model NumberOLT-100A-LJ


Model OLT-TH-80 OLT-TH-150 OLT-TH-225 OLT-TH-408 OLT-TH-800 OLT-TH-1000
Inner Chamber Size W*H*D(cm) 40*50*40 50*60*50 60*75*50 80*85*60 100*100*80 100*100*100
External Chamber Size W*H*D(cm) 90*142*100 100*152*113 110*167*113 130*177*123 150*192*144 150*192*163
Inner Chamber Volume(L) 80 150 225 408 800 1000
Temperature Range -70°C~+150°C(180°C)(A:-20℃ B:-40℃ C:-60°℃ D:-70℃) (Optional)
Humidity Range N/A
Humidity range
20% ~ 98% RH
Temperature fluctuations
± 0.5 ℃
Temperature deviation
± 2.0 ℃
Humidity deviation
± 2.5% RH
Heating rate
3 ℃ / min
Cooling rate
1 ℃ / min
Cooling system
Mechanical compression refrigeration system
Humidifier
External isolation, stainless steel surface evaporation humidifier
Air circulation
Centrifugal wind fan
Exterior material
Steel Plate with protective coating
Interior material
SUS304 stainless steel



Standard Reference

GB11158 GB10589-89
GB10592-89         GB/T10586-89
GB/T2423.1-2001   GB/T2423.2-2001
GB/T2423.3-93   GB/T2423.4-93
GB/T2423.22-2001 IEC60068-2-1.1990
MIL-STD-810F-507.4   MIL-STD883C 1004.2
JIS C60068-2-3-1987   IEC68-2-03
ASTM D1735   JESD22-A101-B-2004
JESD22-A103-C-2004  JESD22-A119-2004


Constant Temperature Chamber,Small Temperature Chamber Used is for testing material heat, cold, dry resistance, humidity resistance.Suitable for electronics, electrical appliances,Communications, instrumentation, vehicles, plastic products, metal, food, chemical,building materials, medical, aerospaceand other products.



1. Are you manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are manufacturer of Thermal Chamber Price,Constant Temperature Chamber,Small Temperature Chamber. Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers. If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.



2. What’s the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.



3. Do you accept customization service? Can I have my logo on the machine?

Yes, of course. We can not only offer standard machines, but also customized

machines according to your requirements. And we can also put your logo on the machine
