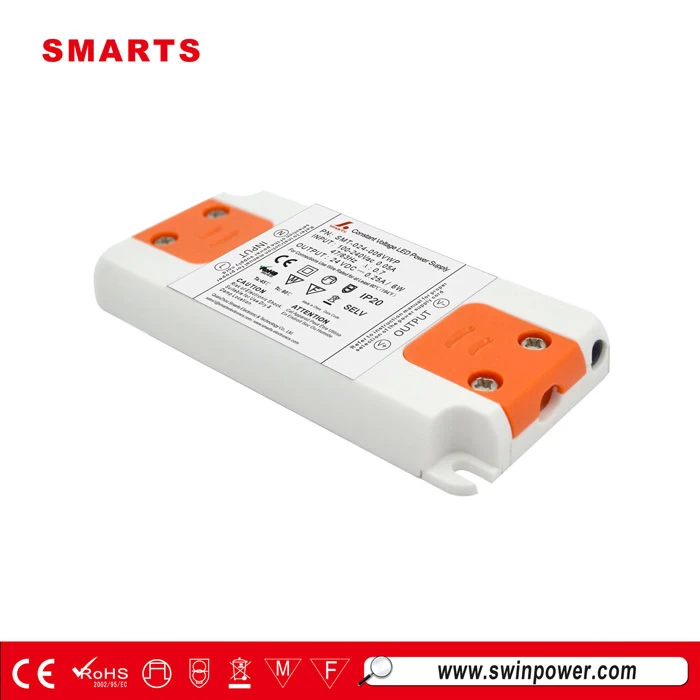

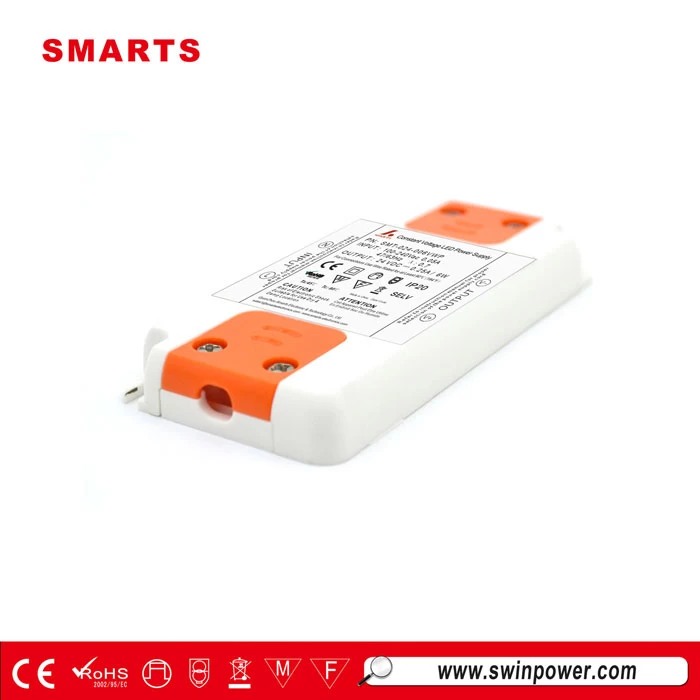

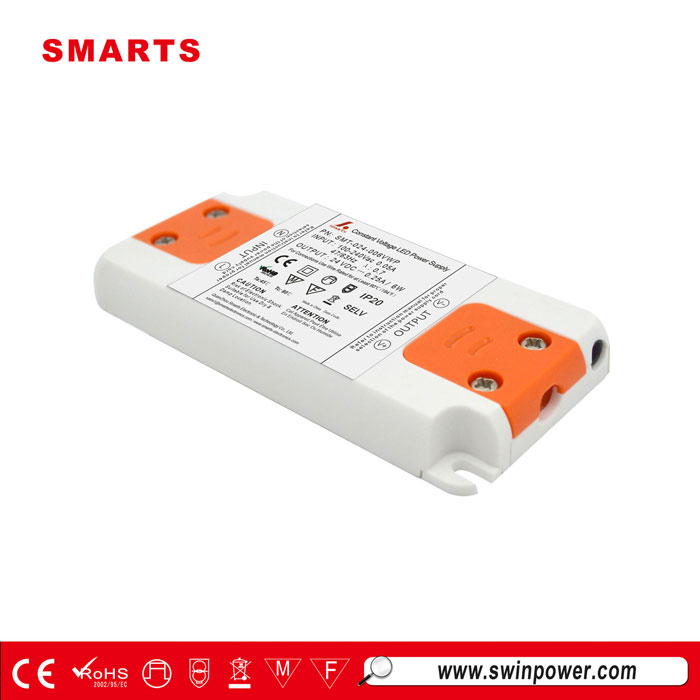

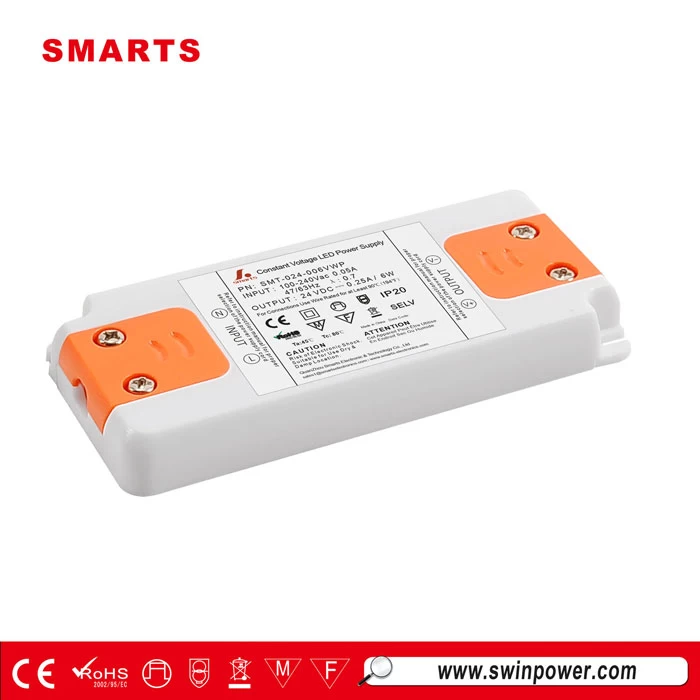

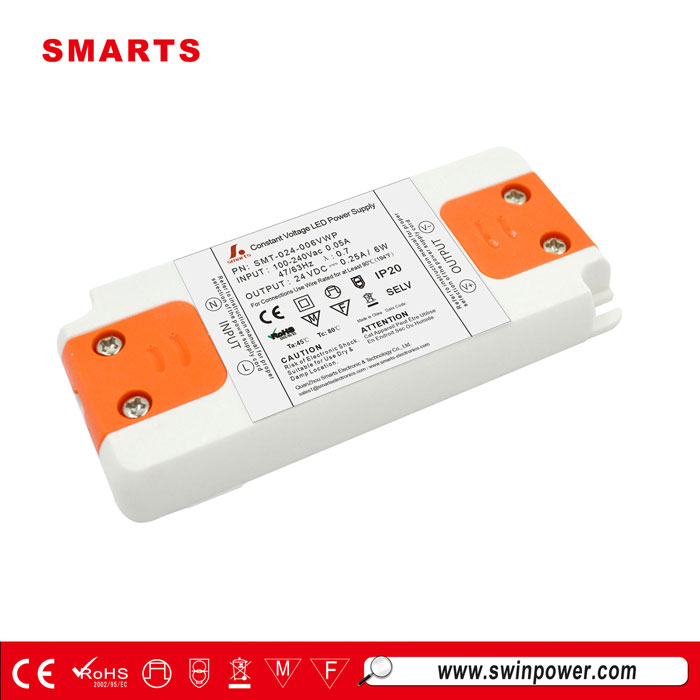

100-240vac 24v 6w led transformer for mr16 led lights
This SMT-024-006VWP is 24 volt transformer for led lights 6W ,CE,ROHS approval, Input voltage range 100-240VAC ,Output voltage 12v/24vDC.IP20 design for indoor dry environment installations

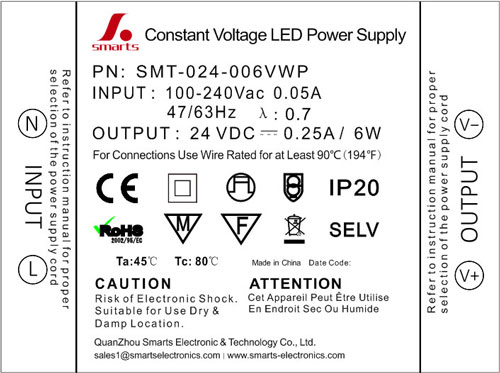

Label for 6w led driver:
Specification:
|
MODEL
|
SMT-012-006VWP
|
SMT-024-006VWP
|
|
OUTPUT
|
DC VOLTAGE
|
12V
|
24V
|
|
RATED CURRENT
|
0.5Amp
|
0.25Amp
|
|
VOLTAGE RANGE
|
0-0.5A
|
0-0.25A
|
|
RATED POWER
|
6Watt
|
6Watt
|
|
RIPPLE&NOISE(max)
|
300mV
|
300mV
|
|
VOLTAGE TOLERANCE
|
±5%
|
±5%
|
|
LINE REGULATION
|
±1%
|
±1%
|
|
LOAD REGULATION
|
±2%
|
±2%
|
|
INPUT
|
VOLTAGE RANGE
|
100-240VAC
|
100-240VAC
|
|
FREQUENCY RANGE
|
47-63Hz
|
47-63Hz
|
|
POWER FACTOR(Typ.)
|
|
|
|
EFFICIENCY(Typ.)
|
﹥83%
|
﹥83%
|
|
AC CURRENT(Typ.)
|
0.0.9A/110VAC, 0.06A/220VAC
|
0.0.9A/110VAC, 0.06A/220VAC
|
|
PROTECTION
|
SHORT CIRCUIT
|
Protection type:recovers automatically after condition is removed
|
|
OVER CURRENT
|
overload protected@145-160% above peak rating
|
|
OVER LOAD
|
1.0A
0.6A
|
0.6A
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-10～+50℃ (Refer to output load derating curve)
|
|
WORKING HUMIDITY
|
20～99% RH non-condensing
|
|
STORAGE TEMP.,HUMIDITY
|
-40～+80℃,10～99%RH
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
EN61347-1;EN61347-2-13; CE /ROHS approval
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
|
|
EMC Test Standards
|
EN55015;EN61000-3-2;EN61000-3-3;
|
|
EN61547;EN61000-4-2,3,4,5,6,8,11;
|
|
NOTE
|
1.All parameters NOT specially mentoned are measured at 110V,220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.
|
Feture for led driver 6w:
● IP20 design for indoor installations
● Protections:Short circuit/Overload/Over temperature
● Cooling by free air convection
● 100% full load burn-in test
● Suitable for LED lighting
● Products through CE Certification
● 2 years warranty
Question:
1. What is the different of IP67 and IP68?
Answer:
IP67 refers to "Product has protection against dust and temporary immersion in water"--Two models you purchased can attain the IP67 rating.
P68 refers to "Product has protection against dust and continuous immersion in water"--Two models you purchased can not attain the IP68 rating.
Applications:
Our products are widely used in various industries, such as
· indoor LED illuminating lights,
· LED Neon,
· LED urban Decoration
· LED Lighting Advertising,
· LED Display,
· Safety Protection Apparatus,
· Telecommunications,
· Networks,
· Vehicle Lights, Controller Panels, etc.
