100-240VAC input 25.2V lithium battery charger 120W constant current 5A with CE

Charging current 5A 25.2V lithium battery charger 120W with input 100-240AC input from China manufacturer




Charging current 5A 25.2V lithium battery charger 120W

Description:

25.2V lithium battery charger 120W,the charging current is constant current 5A,the charging voltage is 17-25.2V,

and it passed the EN62368-1,now it is popular among the market.


Features:

1,25.2V lithium battery charger with Constant current charging function;
2,International universal full voltage input;
3,Overload, short circuit, reverse connection and other protection;

Parameter

                     Item NO.

CG-130L6

Output

Charging current


5A constant current

Charging voltage


25.2V

Charging voltage range


17-25.2V

Floating charge turn lamp current



0.2A±10%


Rated max power


126W

Ripple


100mVp-p


Output Accuracy

±1%

Line Regulation

±0.5%

Load Regulation

±1%

Set up,Rise,Keep up time

1000ms,50ms,12ms

Input

Input Voltage range

90~264V AC

Input current


1A/230Vac  2.2A@100Vac


Input frequency

47~63Hz

Efficiency

>86% @ 220V AC

Inrush current

COLD START   60A/230V

Leakage Current

<0.5mA/240VAC

Protection

Over load,short circuit protection


105~150% Snoring protection, automatic recovery


Output reverse connection protection



Via external fuse


Charging instruction


No load

LED1: RedLED2: Green


Charging



LED1: RedLED2: Red


Charging full

LED1: RedLED2: Green

Environment

Working Temp.,Humidity

-20~60℃,10~90% RH,No condensation

Storage Temp.,Humidity

-20~85℃,10~95% RH

Temp.,Drift

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES

Satery&EMC standards

Safety standards

GB4943,EN60950-1,EN62368-1

withstand voltage

I/P-O/P:1.8KV; I/P-FG1.8KVO/P-FG:0.6KV AC 1min.


Insulation resistance

I/P-O/P, I/P-FG,:500VDC / 100M Ohms

EMC standards

/

Others

Dimension


163*90*50mm(L*W*H)(doesn’t include the terminals and wire)



Weight

0.7Kg

Note

1. All parameters 220VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;

2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;

3. Ripple Test: 30cm long strands connect the power supply and the load, the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;

4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;

5. Load regulation: the measured output load from 0 to 100% load change measured.

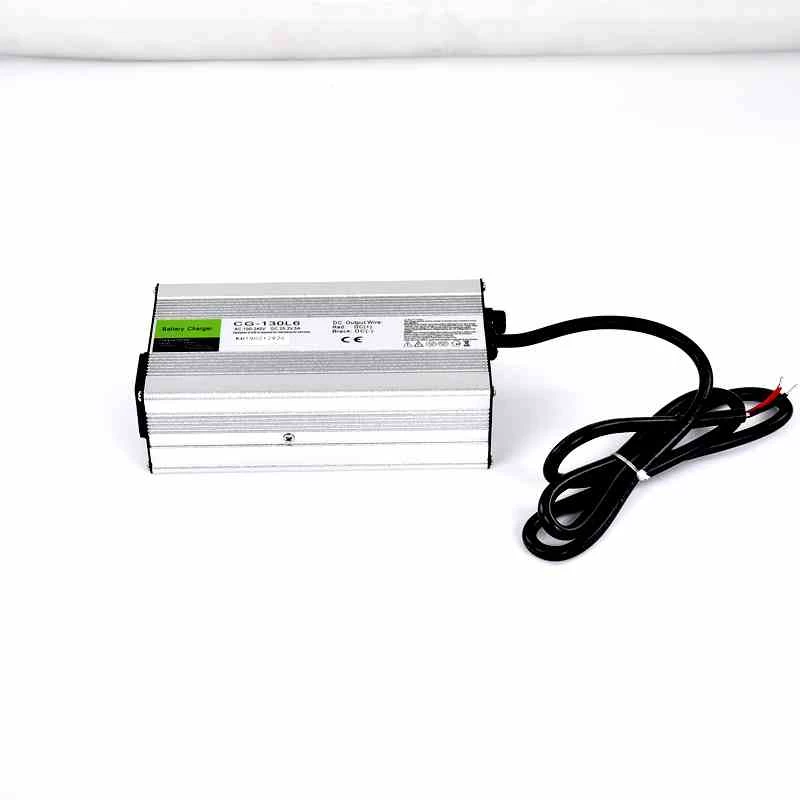

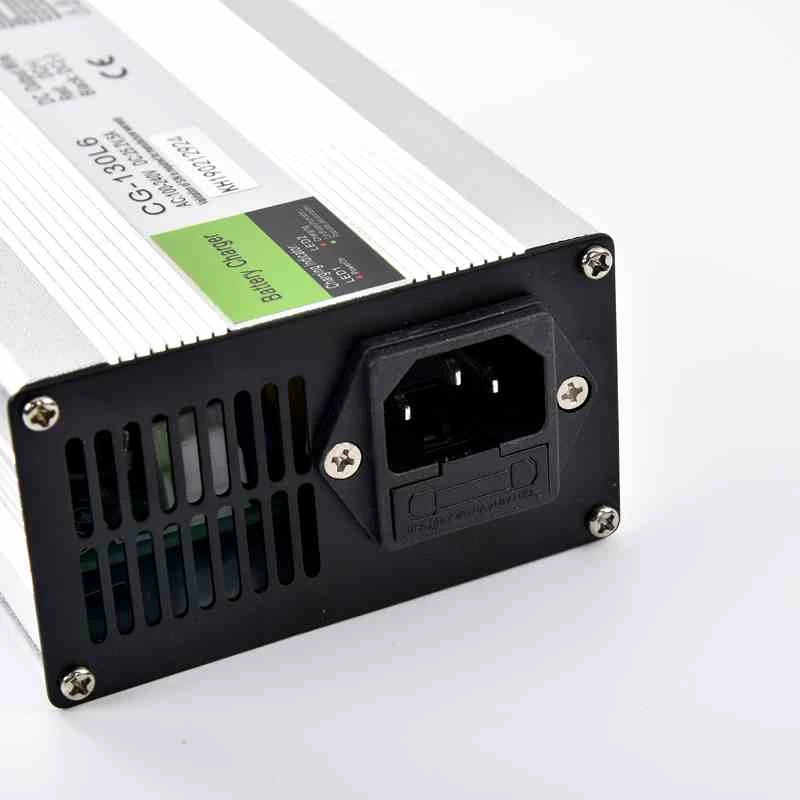

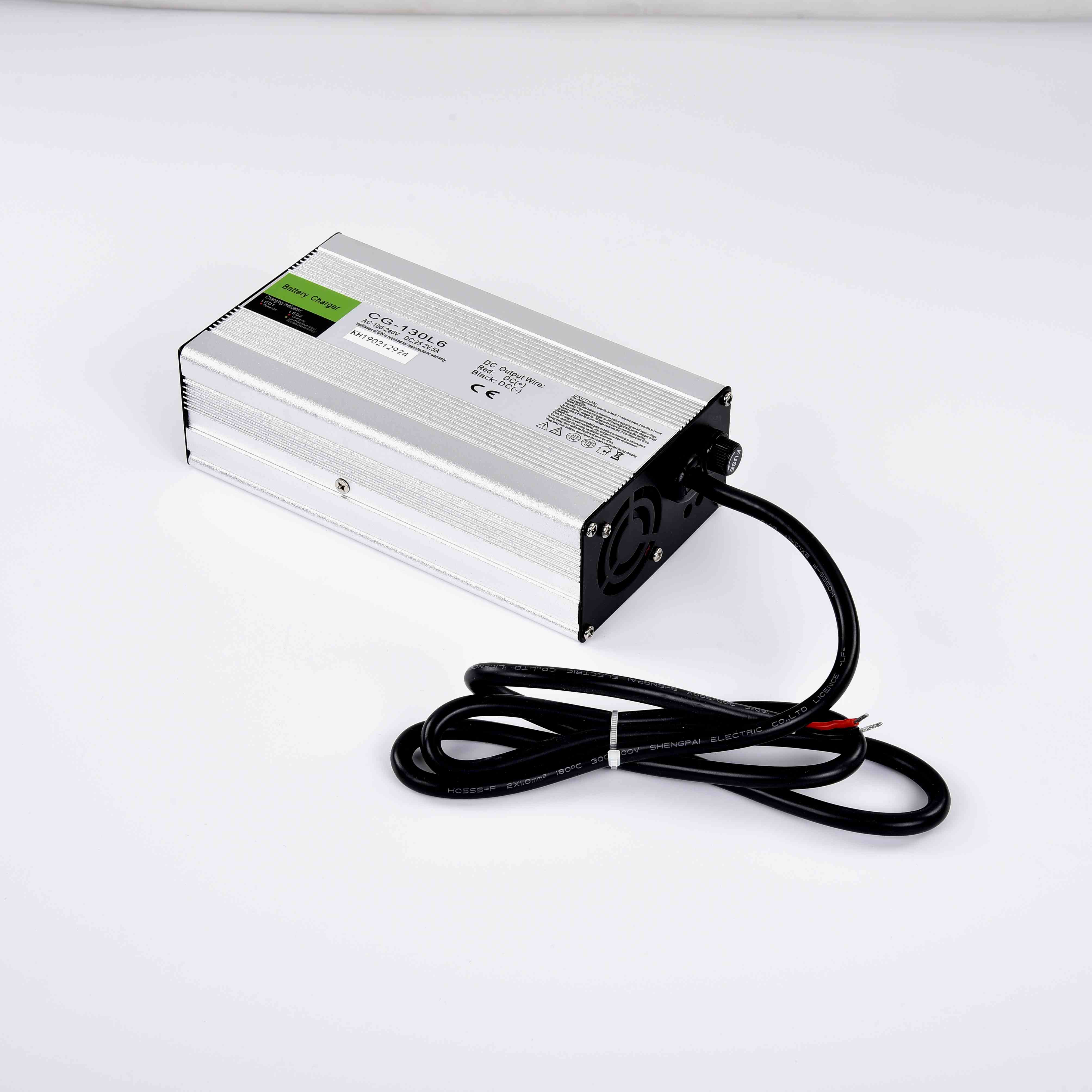

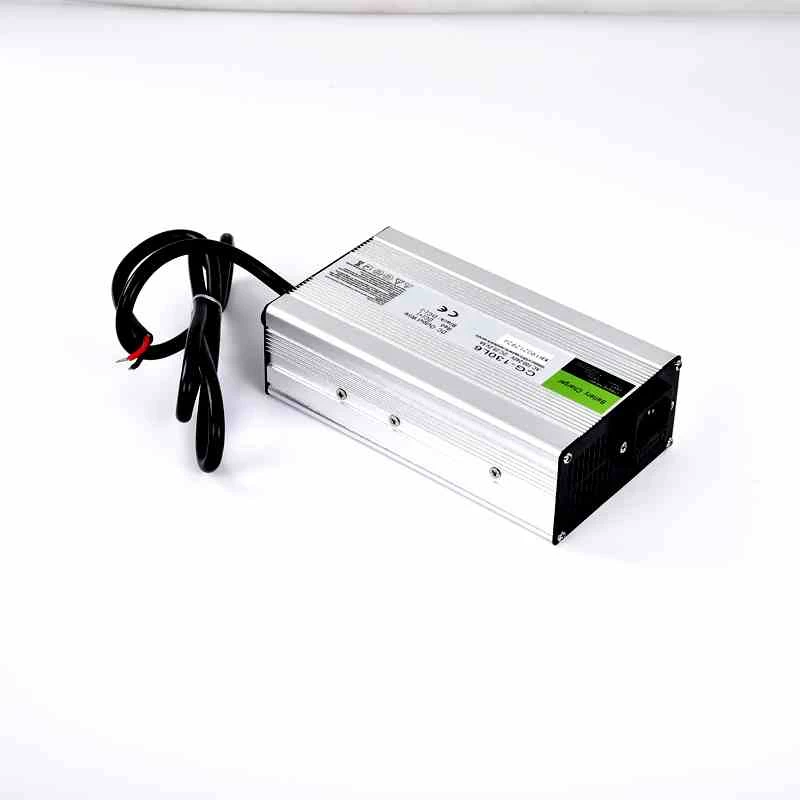

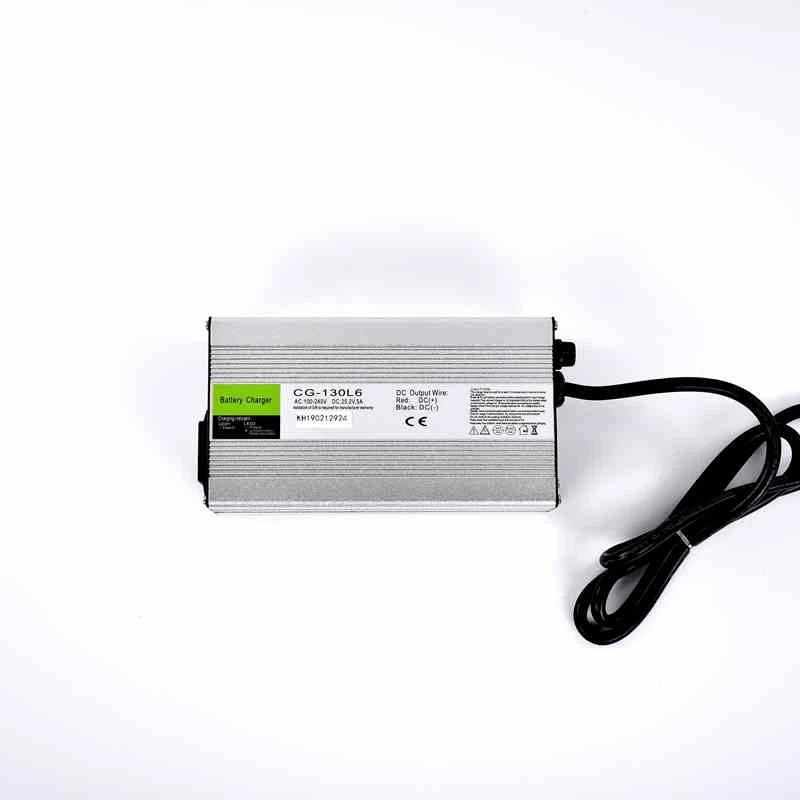

Product picture:

120W battery charger
