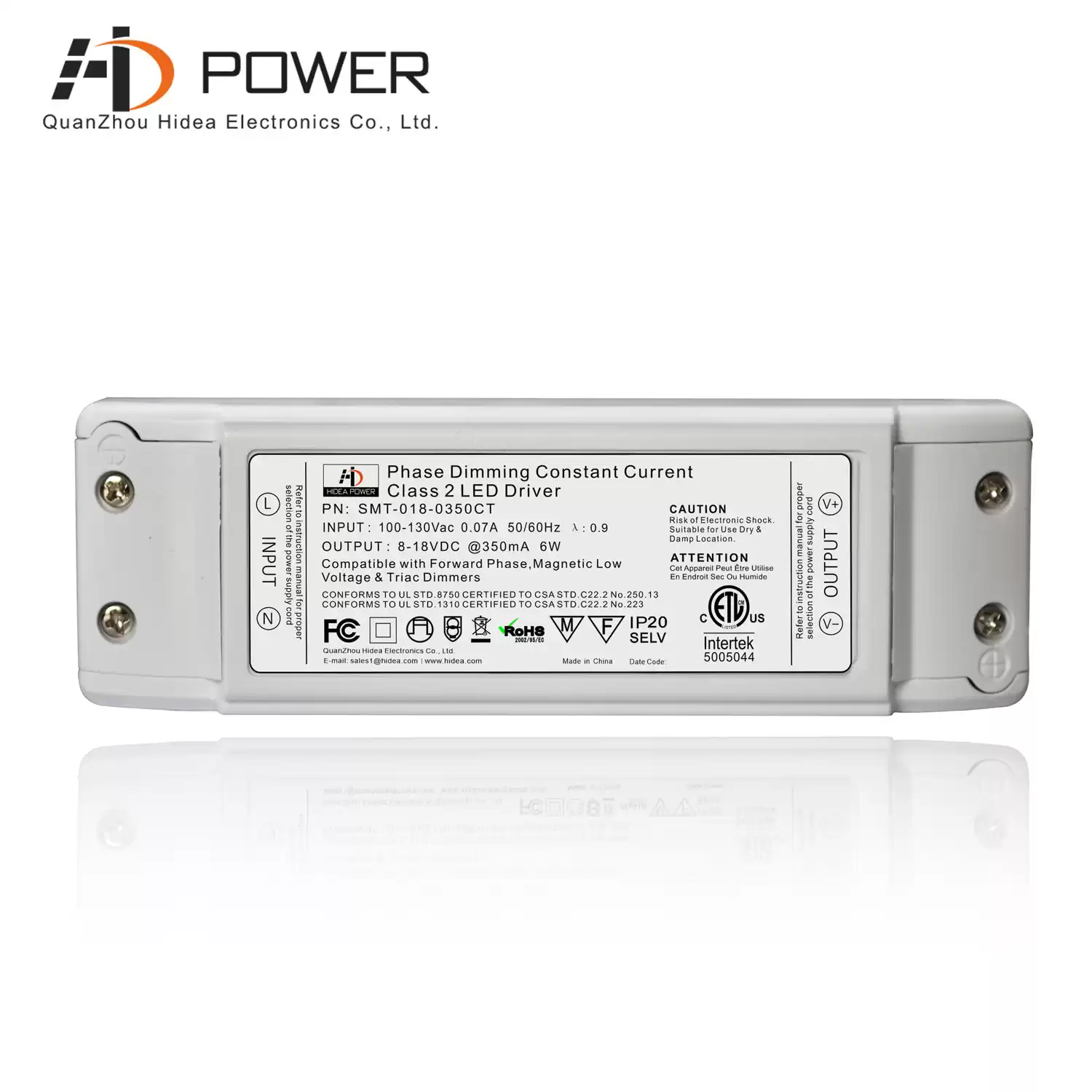

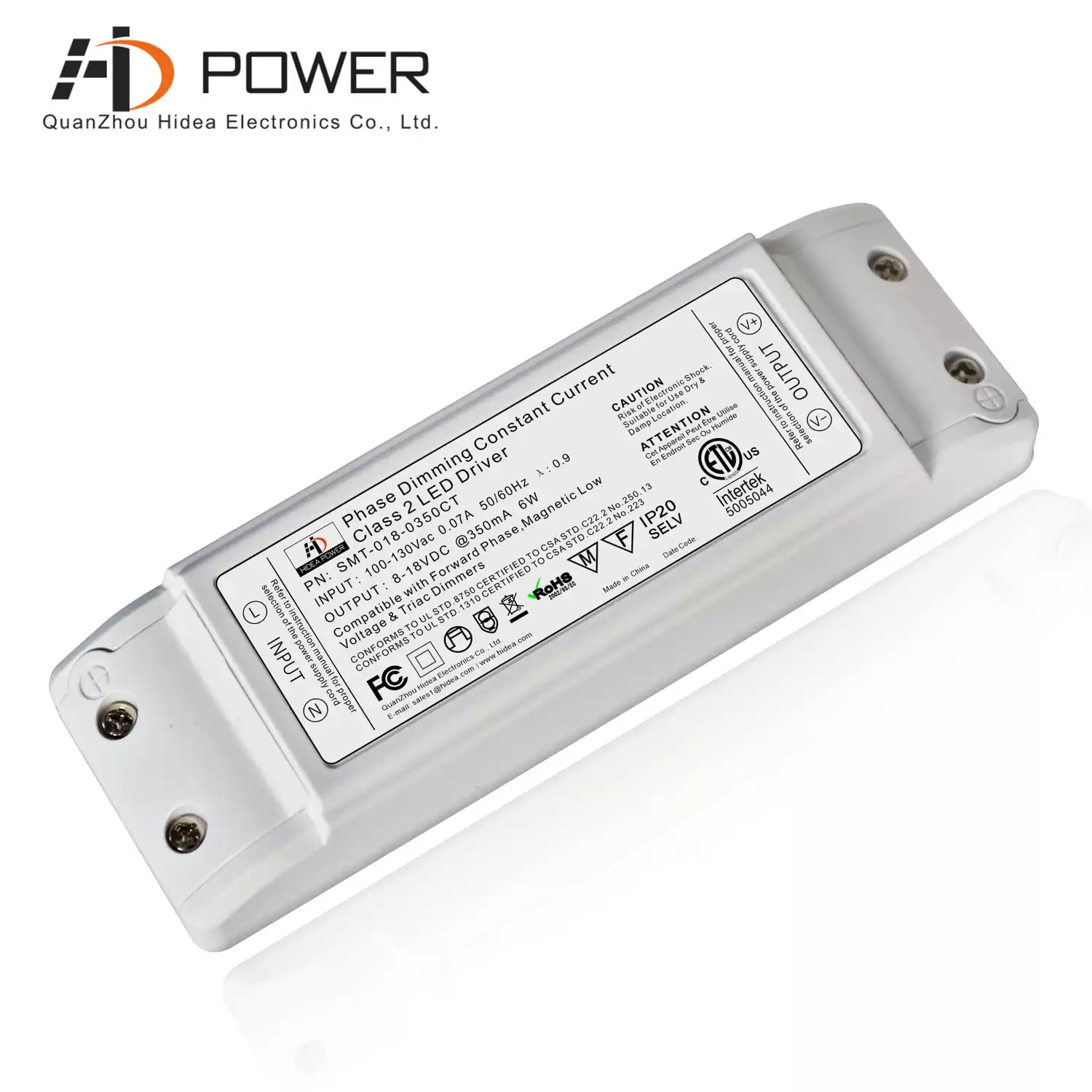

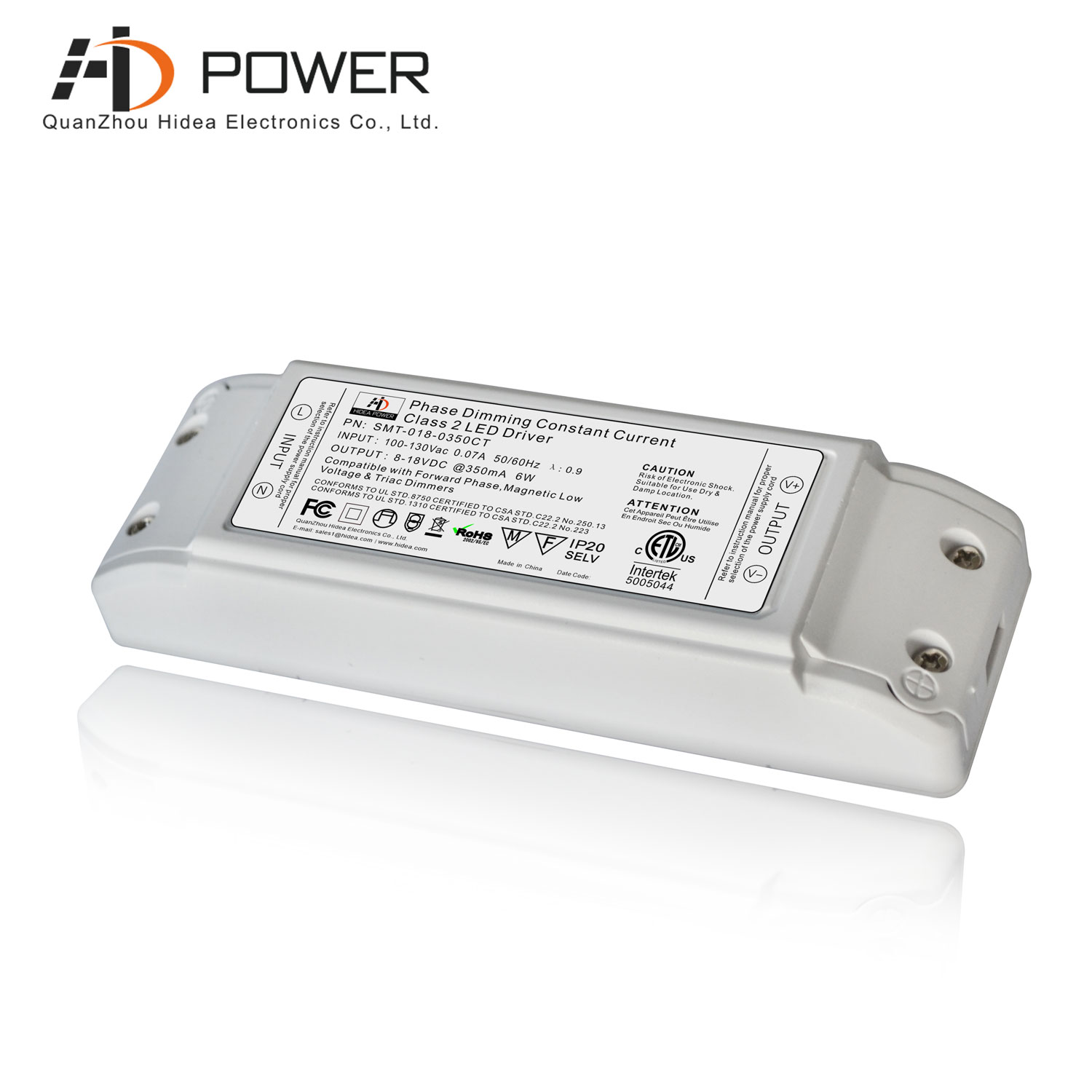

Hidea power 350ma dimmable led driver High quality, the product qualification rate is as high as 99.98%, ETL listed conforms to international standards, and can be compatible with constant current lamps of major international brands
Specification
|
Model
|
SMT-018-0350CT
|
SMT-032-0320CT
|
SMT-030-0350CT
|
SMT-015-0700CT
|
|
Output
|
DC Current
|
350mA
|
320mA
|
350mA
|
700mA
|
|
Current Accuracy
|
±5%
|
|
Voltage Range
|
8~18V
|
15~32V
|
15~30V
|
7-15V
|
|
Rated power
|
6W
|
10W
|
10W
|
10W
|
|
Input
|
Voltage Range
|
90-135VAC / 170~265VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor (Typ.)
|
PF≧0.91/110V ; PF≧0.93/220V ; PF≧0.93/250V
|
|
Full Load Efficiency(Typ.)
|
>84%
|
>84%
|
>85%
|
>85%
|
|
AC Current(Typ.)
|
0.14A/110VAC 0.12 A/220VAC 0.01A/250VAC
|
|
Leakage current
|
<0.27mA/110VAC; ﹤0.25mA/220VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over voltage
|
≦150VAC@110V / ≦270VAC@220V
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN-60950-1, EN-61347-1-2
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance toEN55015,EN61000-3-2 (≧50%load)
|
|
EMC IMMUNITY
|
Compliance to EN55015,EN61000-4-2,3,4,5,6,8,11,A light industry level (surge4KV)
|
|
Others
|
Weight
|
0.16Kg/pcs
|
|
Size
|
140*45*28mm
|
|
packing
|
324*298*176mm
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and 25℃of ambient temperature.
|
|
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
|
|
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|
Compatible Light Type

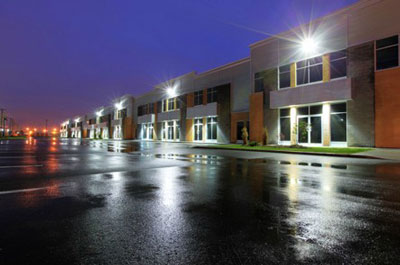

SMT-018-0350CT has strong compatibility. The constant current dimmable led driver 6w can be compatible with SANSI LED's LED floodlight to achieve flicker-free dimming.
Related Products
|

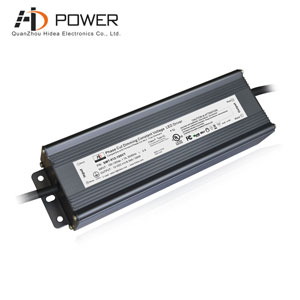

 12v 100W triac dimmable power supply The waterproof grade of the fully enclosed metal shell is ip67
