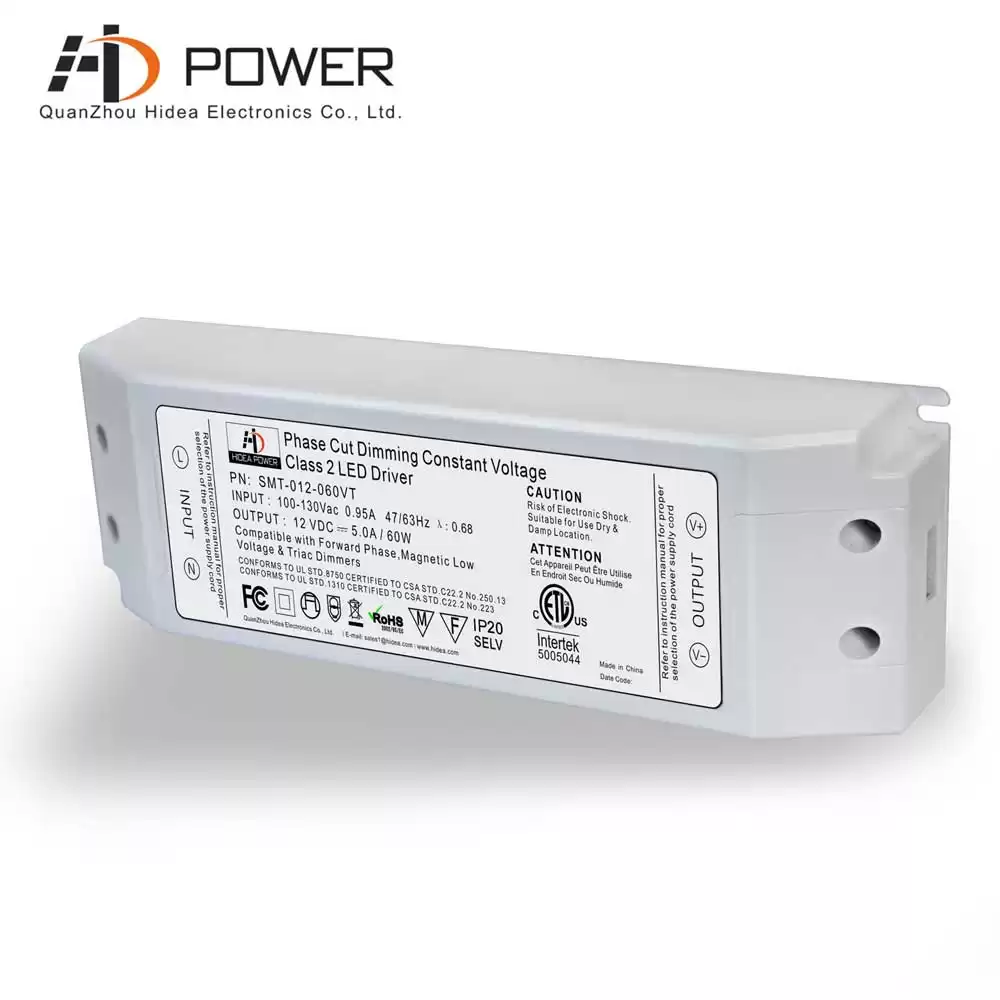

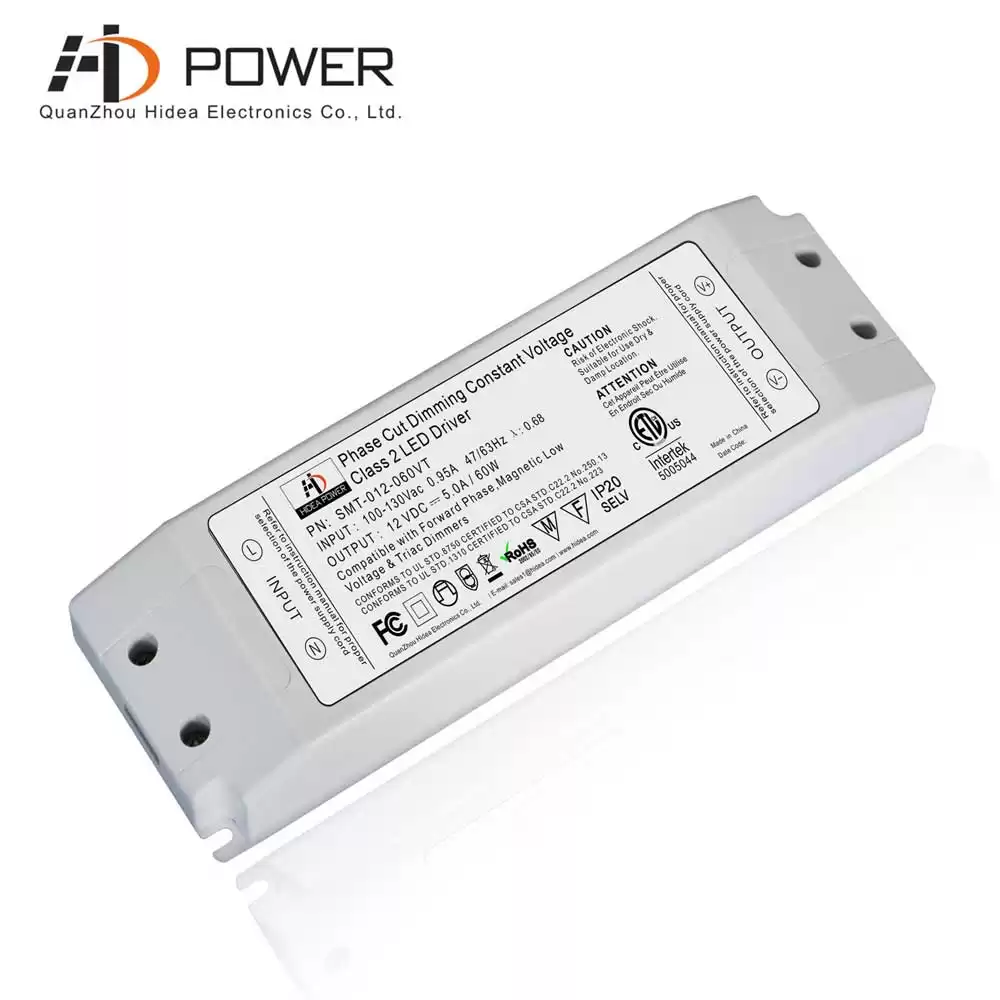

100% dimmng range 12v 60w dimmable transformer for led lights

Smarts Electronics dimmable led power supply 12v delivers a dependable power supply and dimming solution for low voltage EDMON LED strip lighting and tape light projects.


  • Size180*60*34MM
  • Shape & SizeStandard Size
  • Output Voltage12/24Vdc
  • Output Power(Watt)60W
  • Input Voltage170-265Vac
  • Input Voltage100-130Vac
  • Working ModeConstnat Voltage LED Driver
  • Dimming ModeTriac Dimming
  • Weight550g
  • CertificationETL
  • Warranty5 Years

Triac dimmable led driver 12v 60w allows us to manage the brightness of your Canarm indoor LED light strips with a variety of compatible dimmers which include, Forward Phase, Magnetic Low Voltage, and Triac Dimmers. Ideally, this driver should be installed in indoor applications.

  Specification

Model SMT-012-060VT SMT-024-060VT
output DC Voltage 12V 24V
Voltage Tolerance ±0.5V
Rated current 5A 2.5A
Rated power 60W
input Voltage Range 100-130VAC
Frequency Range 47~63HZ
Power Factor 0.65(Full loading)
Efficiency(Typ.) 85% 87%
AC Current(Max.) 1.0A 1.0A
Leakage current ﹤0.50mA/120VAC
Protection Short Circuit Hiccup mode, recover automatically after fault condition is removed
Over Current ≤1.2*I out
Over Loading ≤120%
Over temperature 100℃±10℃,Shut down o/p voltage,recover automatically after temperature goes down.
Environment Working TEMP. -40~+60℃
Working Humidity 20~90%RH, non-condensing
Storage TEMP. Humidity -40~+80℃,10~95%RH
TEMP .coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz,2G 12min./1 cycle,period for 72min. each along X,Y,Z axes
  Safety standards UL8750+UL1310  Class 2 unit
Safety& EMC Withstand voltage I/P-O/P:1500VAC
  Isolation resistance I/P-O/P:100MΩ/500VDC/25℃/70%RH
  EMC EMISSION FCC Part 15 B
others Net. Weight 1.07kg=0.55(driver)+0. 52kg(JB12-1)
Size 350*77*37mm(L*W*H)
Packing 430*375*190mm     20PCS/CTN
Notes 1. All parameters if NOT specially mentioned are measured at 110VAC input , rated load and 25℃of ambient temperature.
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
3.Loading should be 5-100%.

led driver 12V
dimmable led driver
constant voltage led driver
SMARTS led power supply


  Compatible Light Type

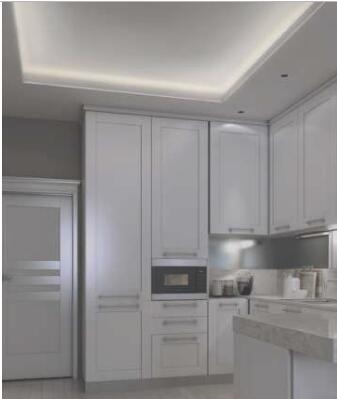

Utilizing the latest energy efficient LED technology, the BAZZ led strip lights integrated LED self adhesive strip will instantly illuminate any space in your home with a soft white light. Use it with led driver 12v 60w to light up shelves, book cases, closets or any counter tops in your home.

led driver 12v 60w

  Related Products

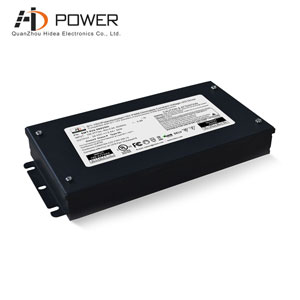

led driver 12v 60wTake control of your room's atmosphere by adjusting dimmable led power supply 12v for any occasion. Set the right mood at any time of the day.


Mode:SMT-012-060VTH

Dimming Mode : Triac Dimming

Output Power : 60W

intput voltage:100~277V AC

Size:188*92*41MM   (L*W*H)
