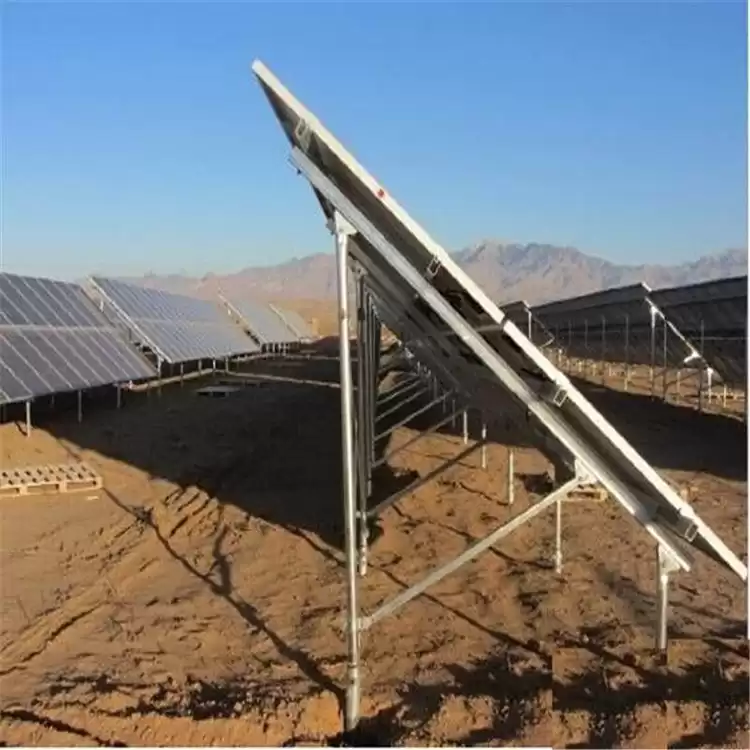

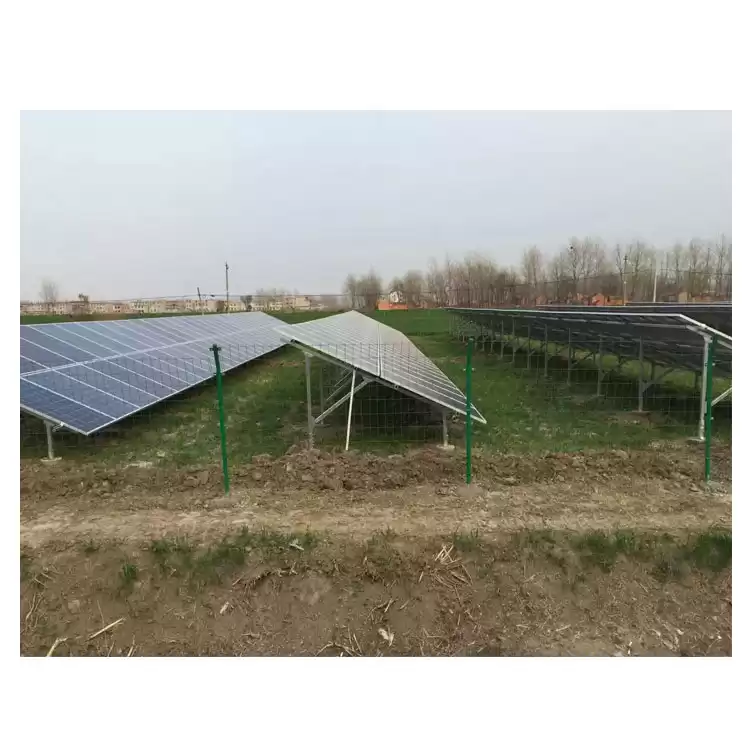

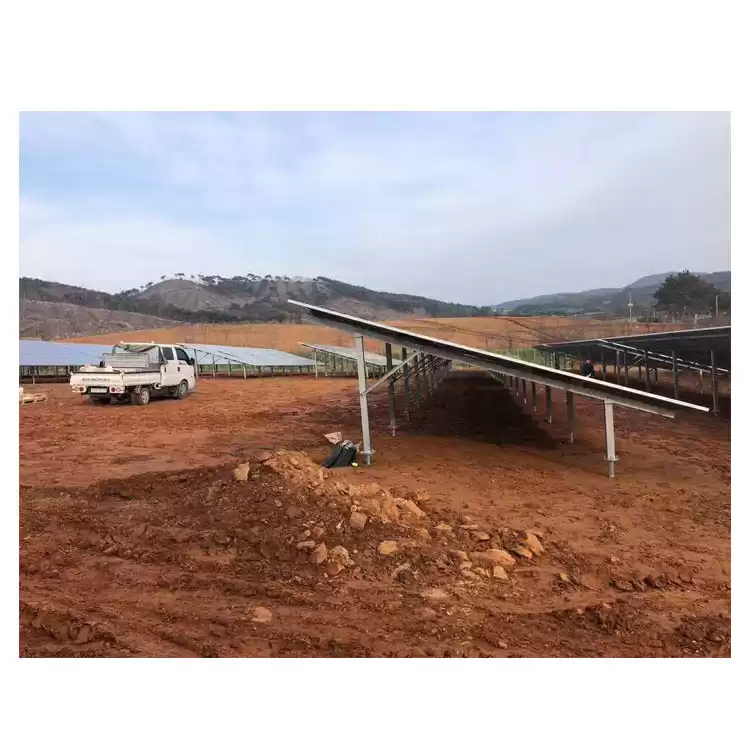

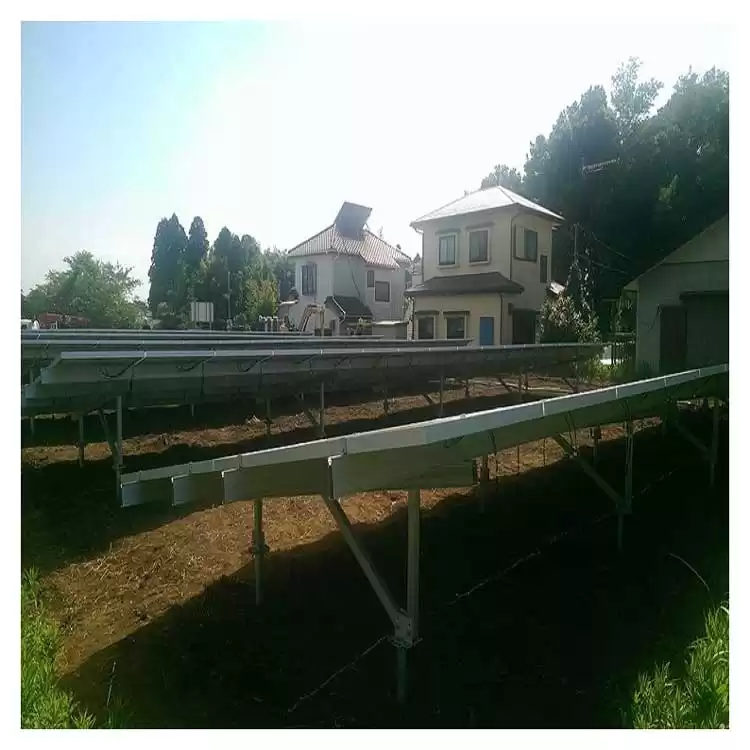

100% New Material Solar Ground Mount Racking Systems
Solar Ground Mount Racking Systems designed with great flexibility both for commercial and residential solar system. It is suitable for installing framed and frameless modules on the ground , Easy installation, High-preassembly parts and Customized solution will save your installation time and money.
Structure
Single Arm Side Solar Support Double Arms Side Solar Support
Technical Parameters
System Name
|
Ground Mount System GM02
|
Panel Layout
|
Landscape or Portrait
|
Foundation
|
Concrete Foundation,Ground Screw
|
Material
|
Anodized AL6005-T5 &
Steel Q235B(hop dip galvanized)
|
Tilt Angle
|
0-60degrees
|
Fastener
|
SUS304 &Zinc-Nickel Alloy Electroplated Steel &Steel Q235B(hop dip galvanized)
|
Snow Load
|
1.6KN/㎡
|
Color
|
Customized or Silver
|
|
Wind Load
|
60m/s
|
Design Standard
|
AN/NZS1170,DIN1055,JIS C8955,etc.
|
Applicable Solar Module
|
Framed or Frameless
|
Warranty
|
10 Years
|
|
Ground Clearance
|
500-2000mm
|

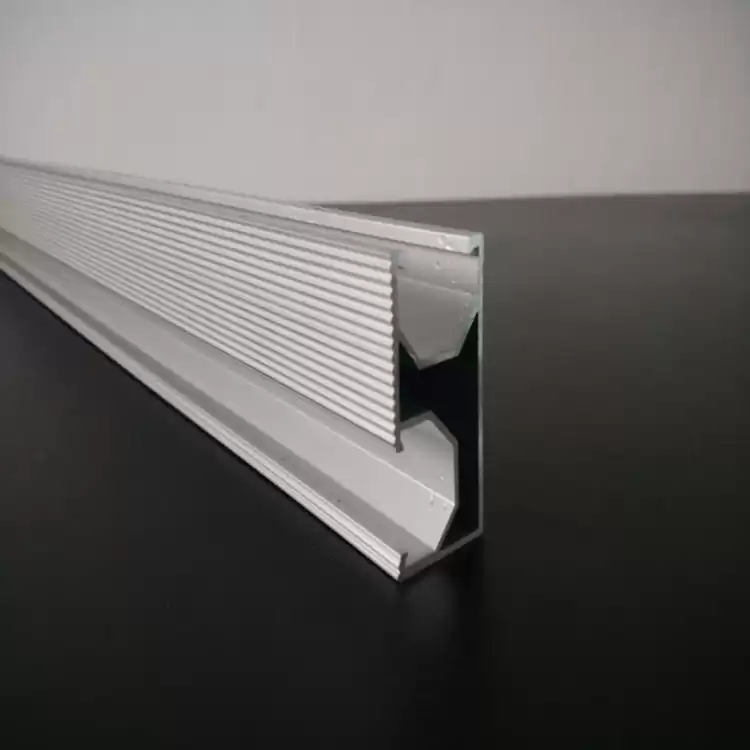

Small Components
|
Anodized AL-6005-T5
|
Why Choose US
Ground Mount Solar Racking easily scales from kilowatt to multi-megawatt PV arrays,a
foundation design solution for every soil condition. Ground Mount Solar Racking is optimized for strength, durability and quick installation.
Our Factory
Jesfer solar provide high quality of solar mounting system & accessories to clients around the world. We are professional solar mounting bracket manufacturer from China, we’ve engaged in producing and exporting solar aluminum mount for more than 15 years.
Our Team
Our energetic and positive team always work efficient and provide excellent service to customers from all over the world.
Our Value
Integrity, Accountability, Passion, Collaboration, Creating customer value, Employee growth
Our Service
we are Provider of solar smart solutions,Customzied complete solar energy system is available.
with over 15years combined solar energy experience,Jesfer solar continues to be part of the renewable energy transition by helping your harvest clean energy at any given location in the world.
