Product Name

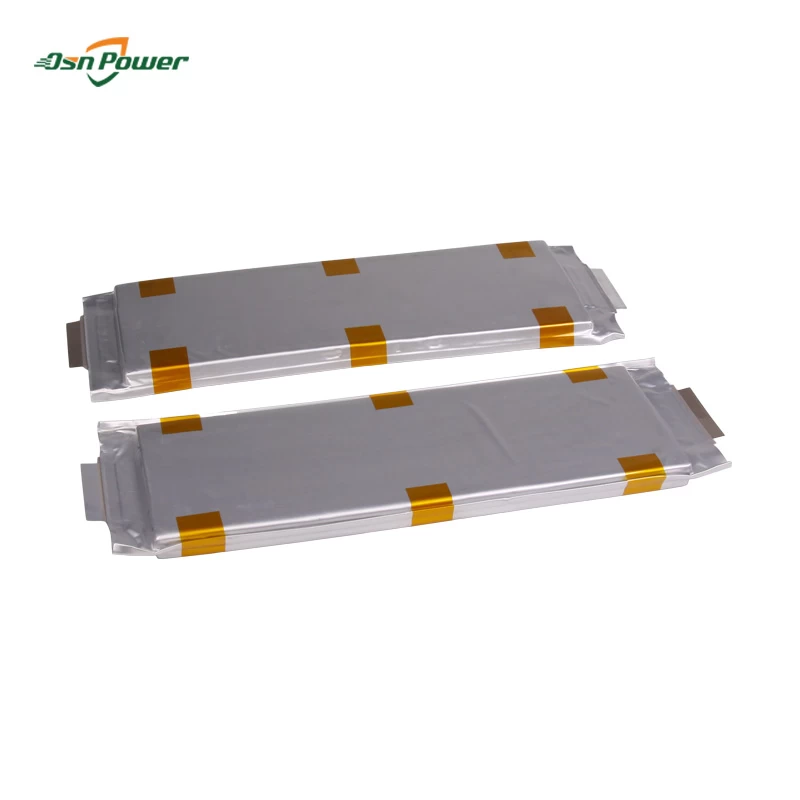

100% Original LG Chem Battery Cell 3.6V 60Ah for ESS Solar Storage
Highlights
Compared with traditional AGM/lead acid batteries, Lithium ion phosphate batteries are:
-
non-toxic, non-contaminating and contain no rare earth metals
-
10 times life span longer
-
1/4 lighter than Lead acid batteries.
-
NCM battery can work in wide temperature from -20 to +75°C
-
No memory Effect.
Technical Parameters
|
No.
|
Items
|
Specifications
|
|
1
|
Nominal Voltage
|
3.6V
|
|
2
|
Nominal Capacity
|
60Ah
|
|
3
|
Standard Charge Current
|
0.2C-0.5C
|
|
4
|
Max. Charge Current
|
1C
|
|
5
|
Continuous Discharge current
|
2C
|
|
6
|
Peak Discharge Current
|
5C
|
|
7
|
Charge Cut-off Voltage
|
4.2V
|
|
8
|
Discharge Cut-off Voltage
|
2.5V
|
|
9
|
Inner Resistance
(Impedance)
|
≤2mΩ
|
|
10
|
Weight
|
835g
|
|
11
|
Dimensions
|
Length:303 mm
Width:101.2 mm
Thickness: 13.5 mm
|
|
12
|
Operating Temperature
|
Charging: 0°C ~ 45°C
Discharging: -20°C ~ 60°C
(The cell surface temperature cannot exceed 70°C)
|
|
13
|
Storage Temperature/Humidity
|
Temperature: -10°C ~ +35°C
Humidity:65%±20%RH
(optimal store temperature of 23 ± 5°C for long term storage)
|
|
14
|
Cycle Life
|
≥1000 times (100% DOD till 80% of initial capacity at 0.2C rate, IEC Standard)
|
There is no doubt that choosing LFP is the most cost effective, environmental way.
Come us at service@osnpower.com to get LiFePO4 catalog and quotations.
