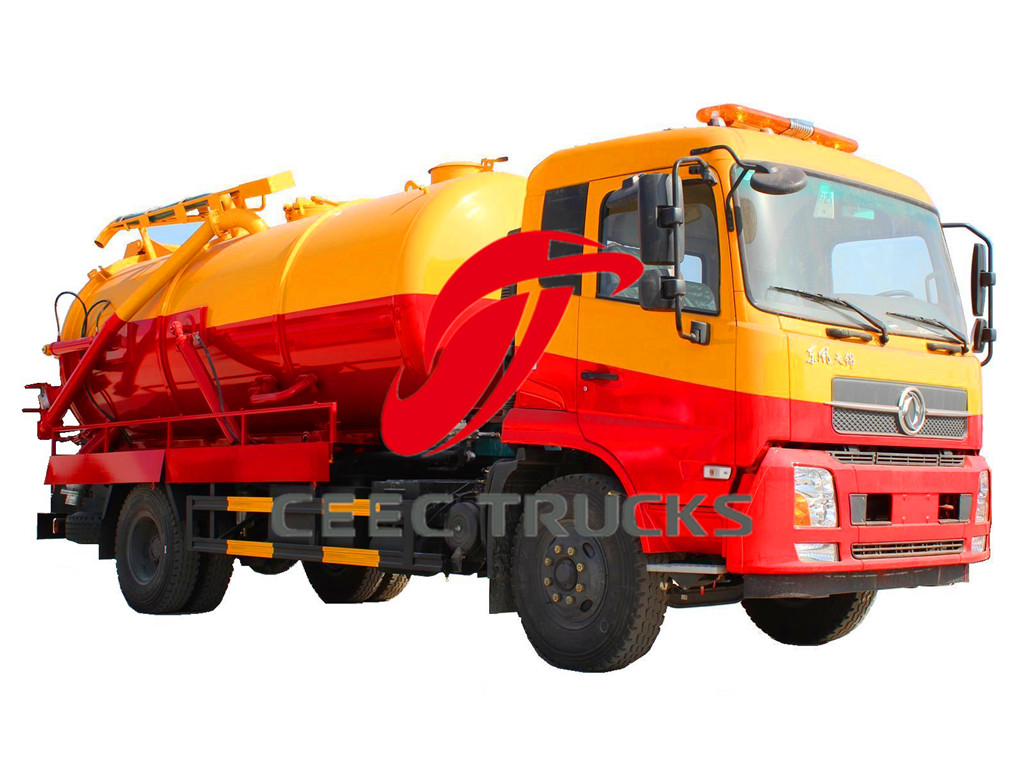

10000 L Cesspit Emptier

Dongfeng 10 CBM cesspit emptier, Cummins B190 33 engine, 8-shift manual gearbox, NISSAN axle technology, carbon steel Q345 material sewage tank, thickness over 6mm, export to Ecuador, South africa, Kenya, Zambia



Professional enviornmental trucks manufacturer in China, we CEEC TRUCKS can supply dongfeng 10 CBM vacuum sewage suction truck, beiben 1927 cesspit emptier, isuzu 4*2 vacuum suction tanker trucks, Faw 18 CBM heavy duty vacuum tanker trucks, all our cesspit emptier widely export Africa congo, tanzania, zambia, south africa, algeria, etc.



Best 10 CBM cesspit emptier for Kenya

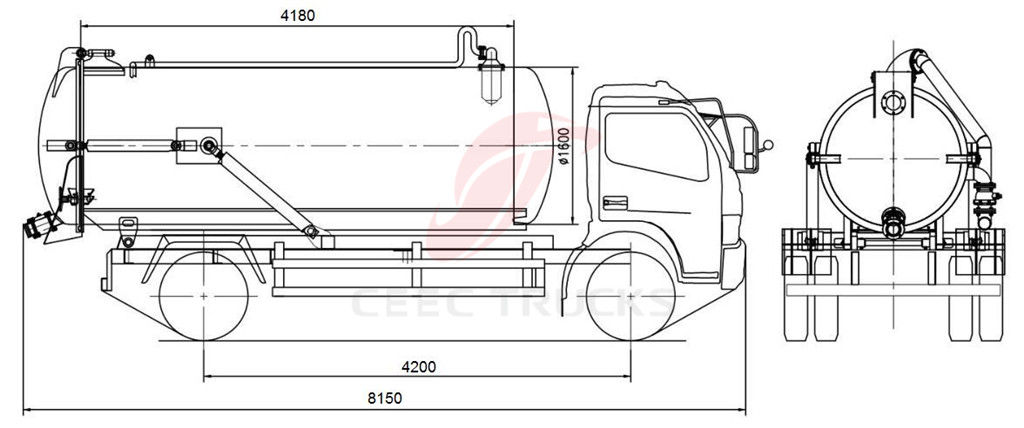

dongfeng 10 CBM cesspit emptier drawing

Congo customer choose Dongfeng 10000L vacuum suction trucks advantages:

1.    We CEEC TRUCKS are manufacturer, specializing in producing Vacuum Sewage Suction truck many years with good reputation.

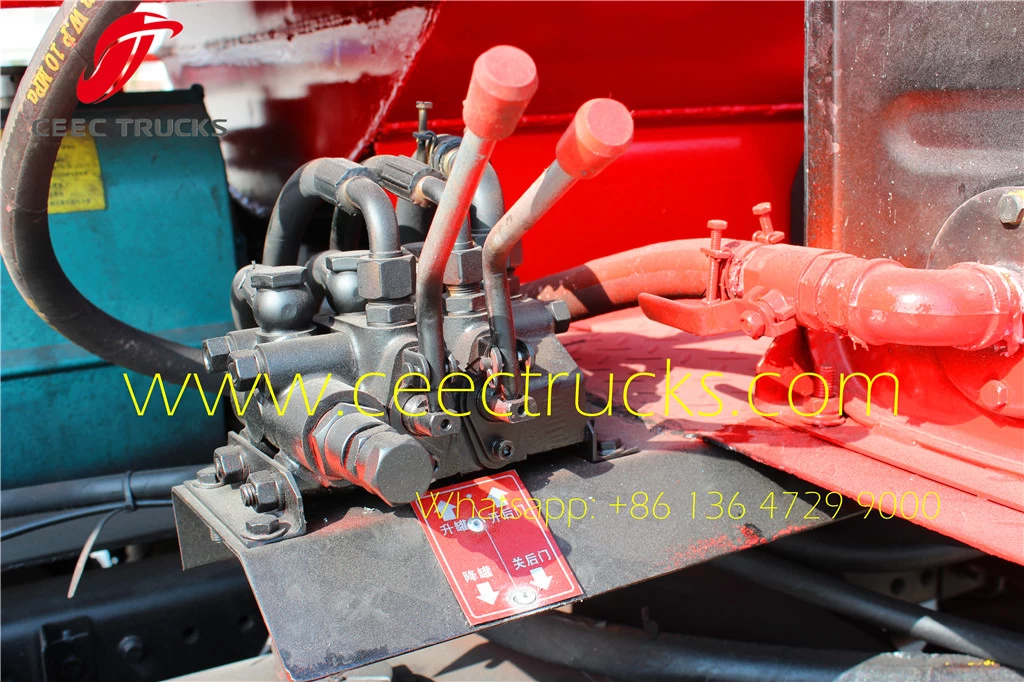

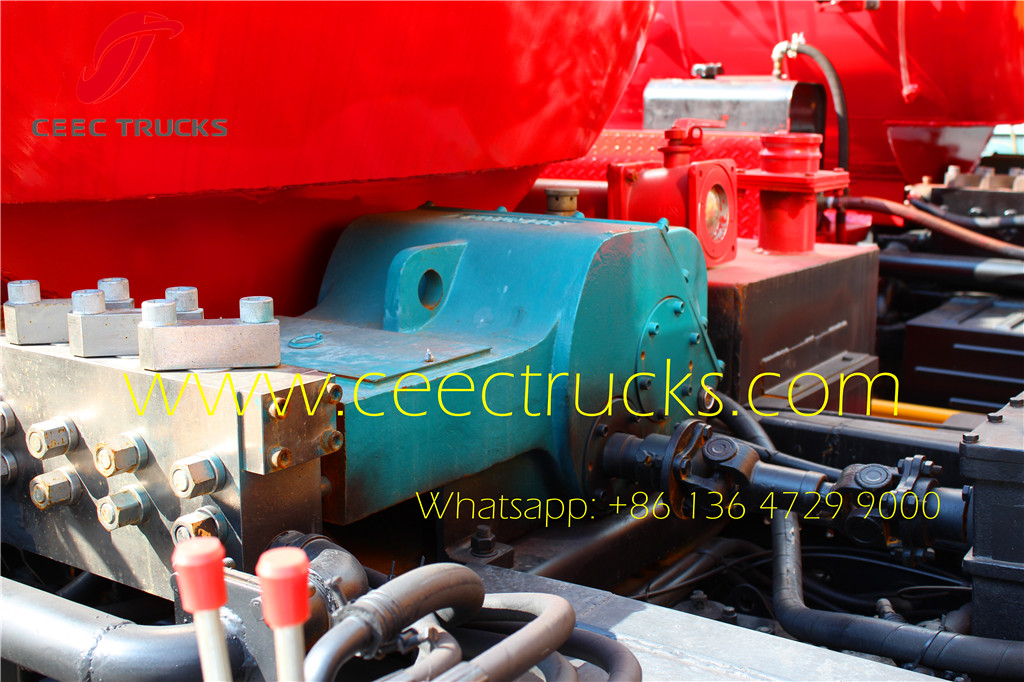

2.    The engineer yellow dongfeng 10CBM Vacuum Sewage Suction truck mainly consists of: PTO (Power Take Off), Transmission shaft, vacuum pump, water and gas separator, oil and gas separator, multiple directional control valve, hanger rod, sewage tanker, flow valve, sucking gun, water tank, vacuum pressure gauge and piping system, etc.

3.    Standard steel (Carbon steel Q235 & Q345, also the Stainless steel can be choose) for the tank, against corrosion resistant, rust protection and well-resisting.

4.    Available also with hydraulic drive. Max. Vacuum rate 95%. Suitable i.e. recommended for continuous duty even at high vacuum levels. Low noise level on all models. This pump is designed for stationary industrial plants or for sewer cleaning, truck mounted, and equipment.

5.    Kenya vacuum suction trucks have following advanced characters: high efficiency; self-draining; direct irrigating, etc.

6.    Mainly used for pumping the sewage, fecal, slurry and mixed with small suspension debris. And this kind vacuum truck is widely applicable to sanitation, city cleaning, residential areas, agriculture, and industry in large, medium and small cities.

7.    The beiben 8000L-10000L Cesspiter Emptier is consist of: PTO, Transmission Shaft, Vacuum Pump, Water and Gas Separator, Oil and Gas Separator, Multiple Directional Control Valve, Hanger Rod, Sewage Tanker, Flow Valve, Sucking Gun, Water Tanker, Vacuum Pressure Gauge and Pipeline System.

dongfeng 10 CBM cesspit emptier drawing

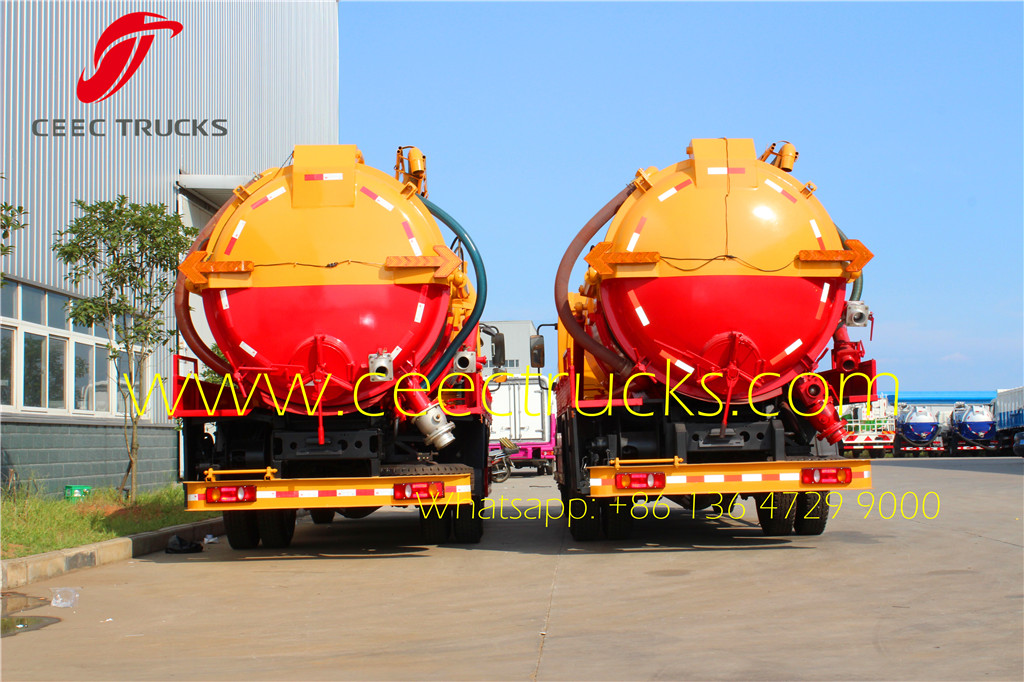

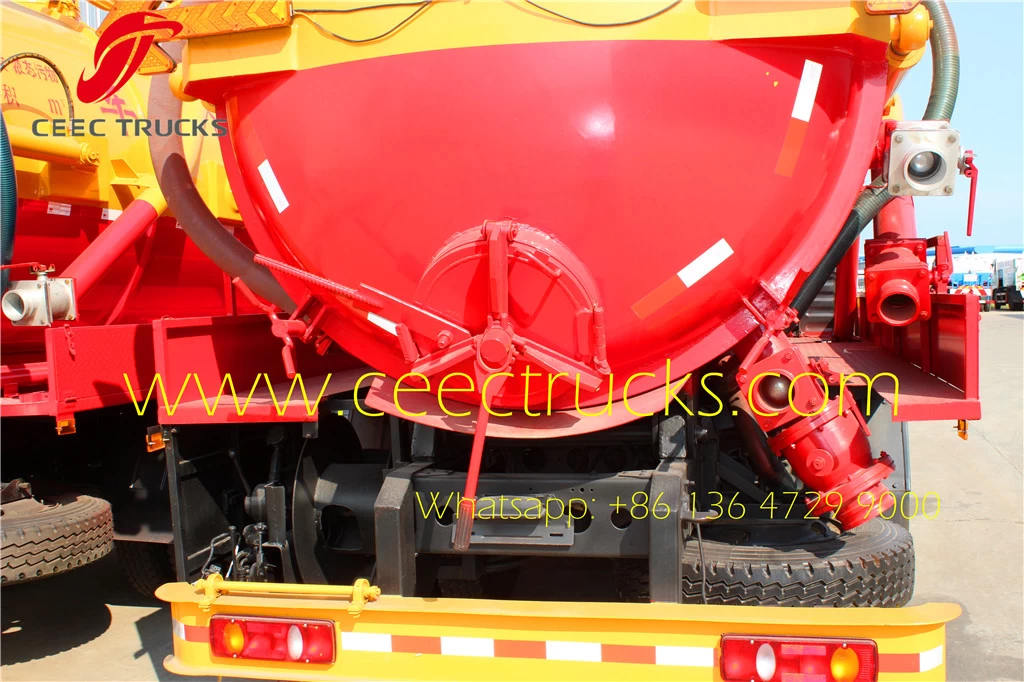

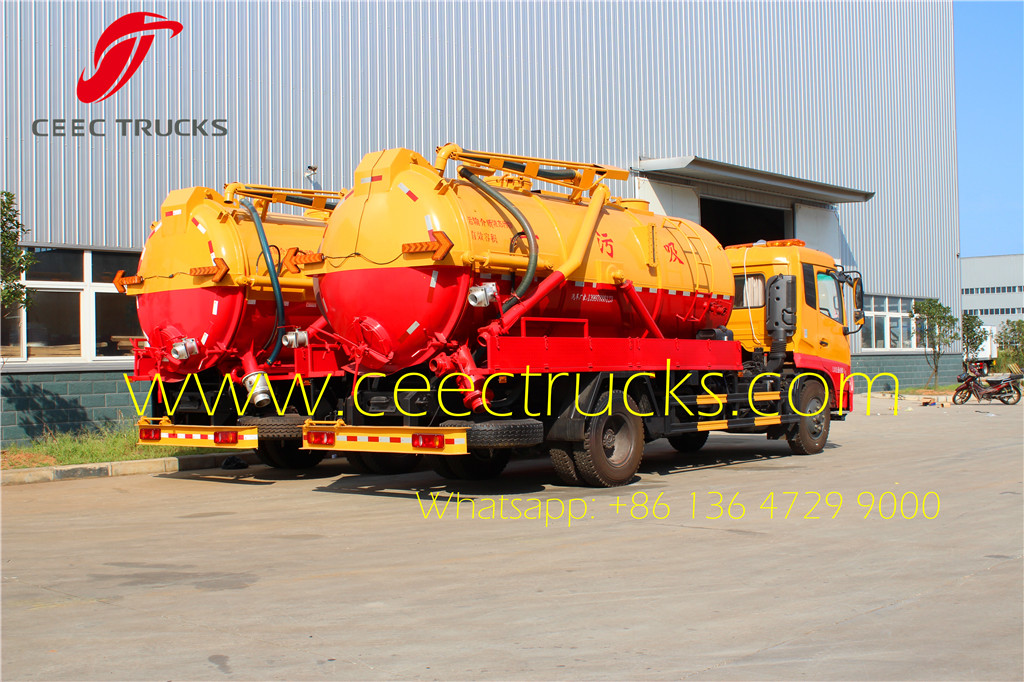

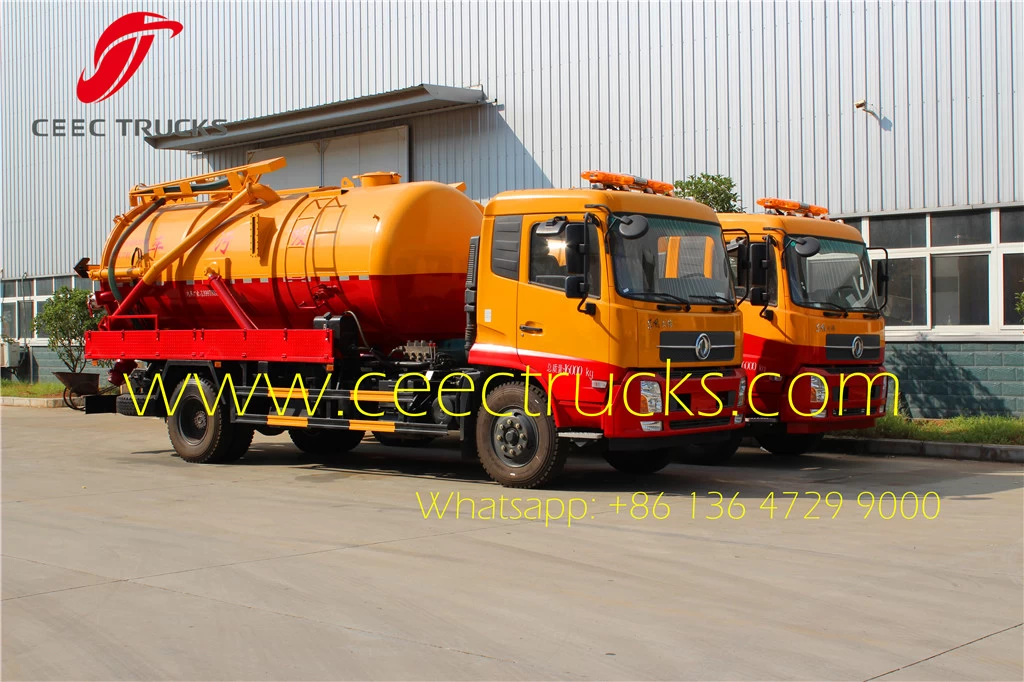

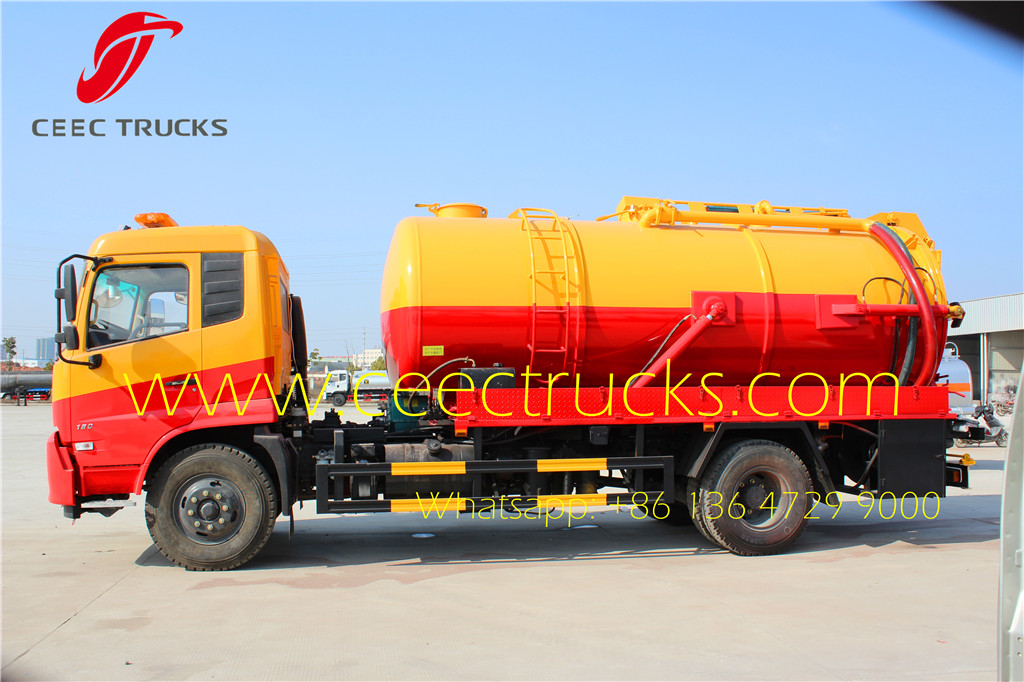

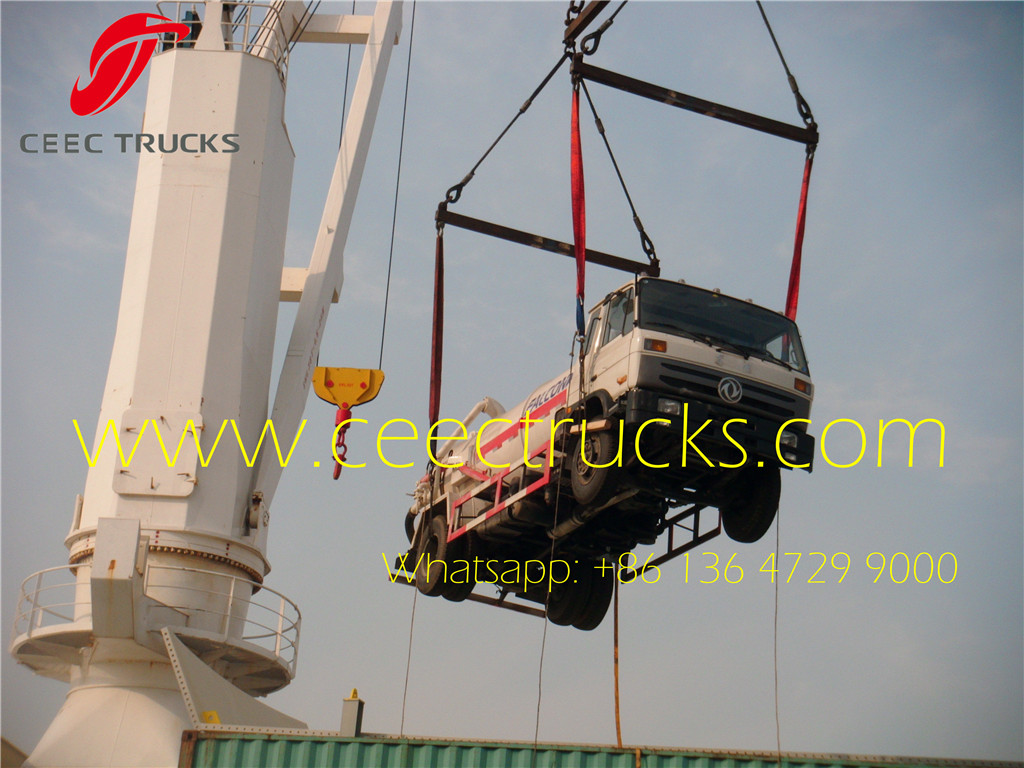

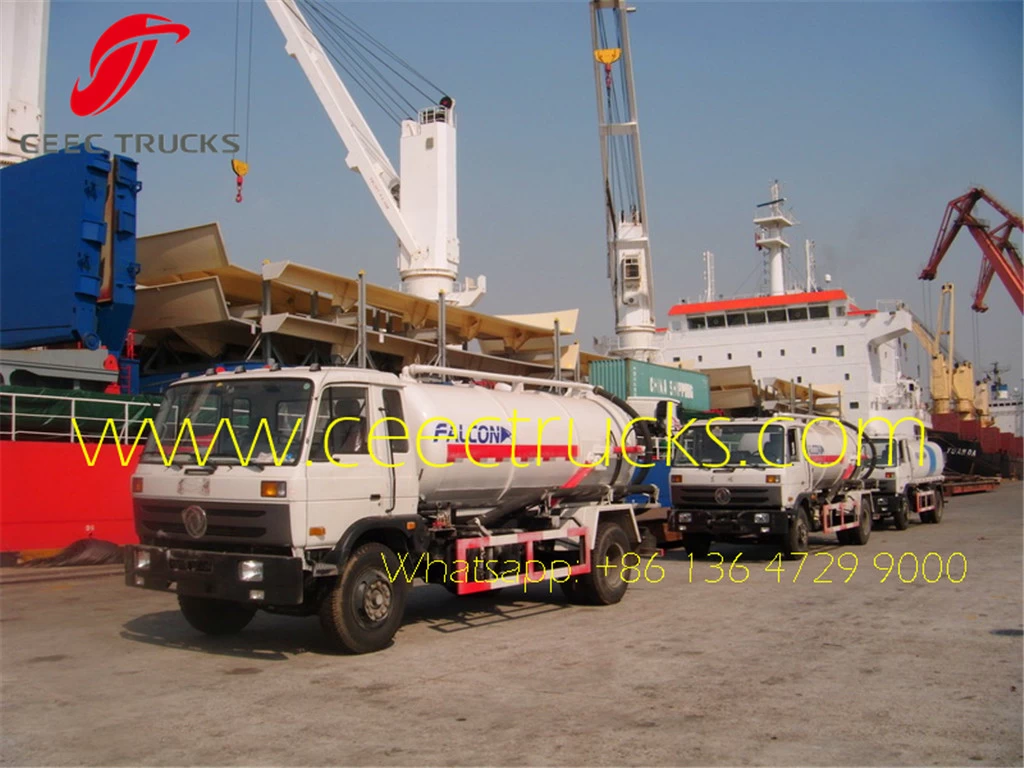

Previous export Dongfeng 10 CBM cesspit emptier for reference:

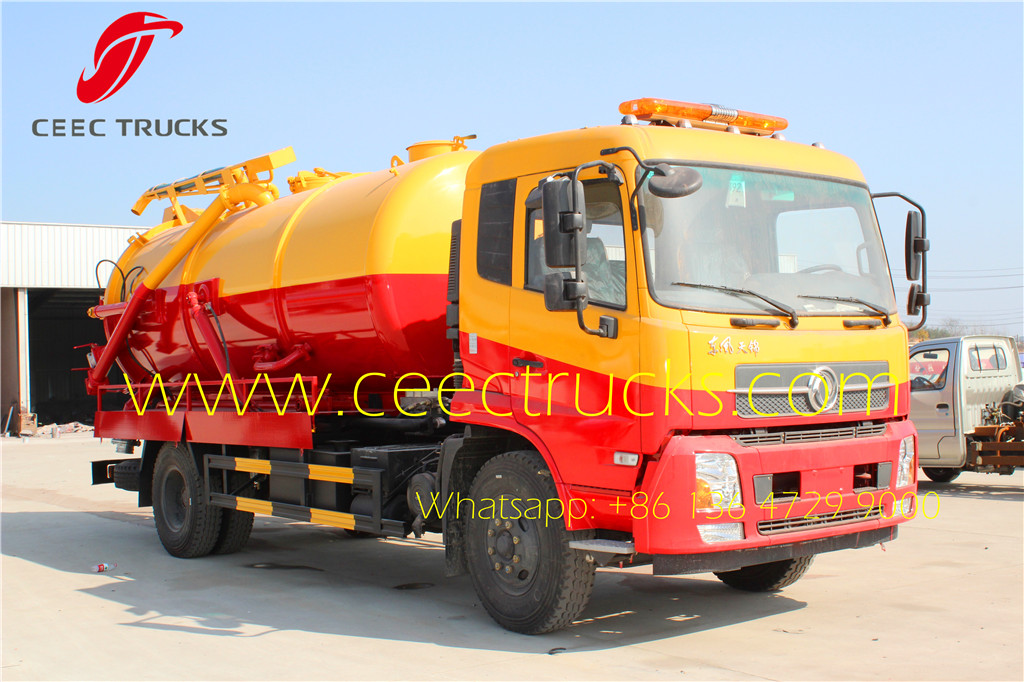

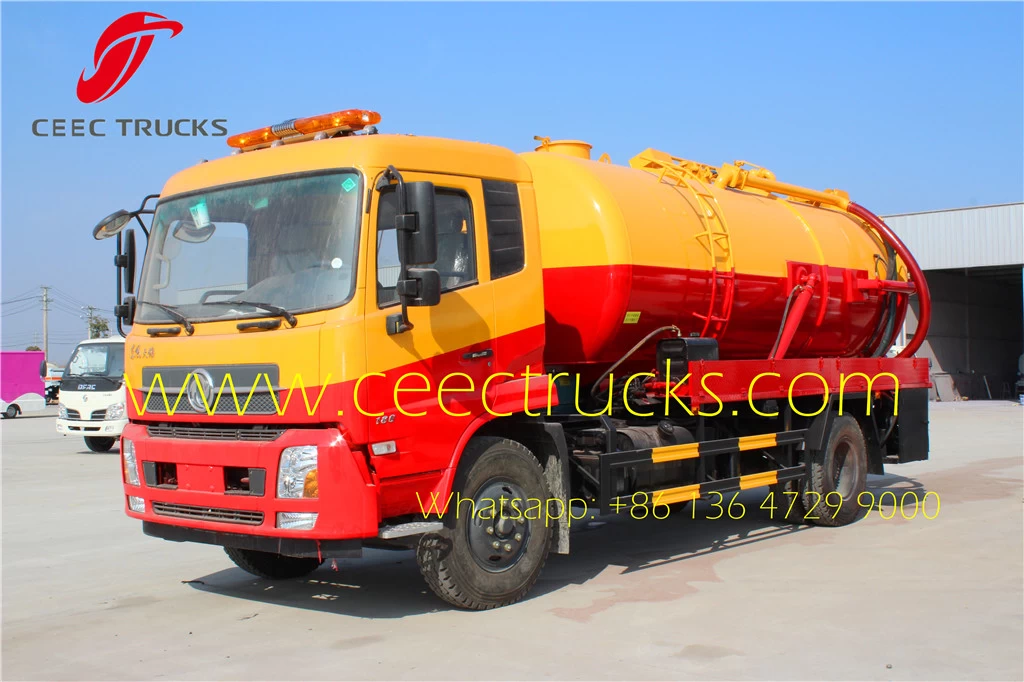

Congo customer choose Dongfeng 10000L vacuum suction trucks advantages



Congo customer choose Dongfeng 10000L vacuum suction trucks advantages



Congo customer choose Dongfeng 10000L vacuum suction trucks advantages    Congo customer choose Dongfeng 10000L vacuum suction trucks advantages



Congo customer choose Dongfeng 10000L vacuum suction trucks advantages    Congo customer choose Dongfeng 10000L vacuum suction trucks advantages



Similar key words: 10 CBM cesspit emptier, beiben 10000 L vacuum suction truck, faw 10 CBM vacuum sewage trucks, best isuzu 10000L cesspit emptier, manufacturer supply 10CBM suction trucks



Dongfeng 10 CBM vacuum sewage sucking truck

Chassis type

DFL1160

Cubage(m3)

10

Parameters

Overall dimension(mm)

8150*2500*3300

Total Mass(kg)

16000

Payload(kg)

 8000

Kerb Mass(kg)

 8300

Approach / Departure angle(mm)

20/18

Front / rear suspension(mm)

 1430/1870

Fuel Type

 diesel

Fuel Consumption/100 km



Max Speed

90

Engine

Type

B190 33  Cummins six-cylinder inner-cooling supercharged diesel engine

Displacement/Power(kw)

 5900cc/140(190hp)

Manufacturer

CUMMINS

Type



Chassis

Drive type

 4×2

Wheelbase(mm)

4200

Tread(front/rear)

 1880/1800

Front axle

5 Ton

Rear axle

10 Ton

Steering gear

Duel-armed steering wheel, power steering

Transmission

8 gear mechanical drive transmission

Clutch

Diaphragm clutch, hydraulic remote control, pneumatic servo

Braking system

Split air braking system, spring braking, exhaust braking

Cab

Non-longheaded, one and a half row cab,whole metal-enclosed

Number of spring axle(front/rear)

 7/9+6

Tire Type

9.00-20

Air-condition

Choose to fix

Sucking system

Sucking pump

Sliding-vane rotary vacuum pump

Special performance parameters

Vertical suction range

≥8

Absolute pressure

8500Pa

Rotation speed

500

Theory pumping speed

98L/S

Axis power

5.5kw

Vent dia

50mm

Suction Time

5s

Drain time

4s



dongfeng 10 CBM cesspit emptier
