10000Liters LPG Skid Mounted Station 10CBM LPG Skid Station 5Tons LPG Gas Station

LPG skid station it have 2 types : integrated type and split type for optional.


  • BrandCLVEHICLES.COM
  • Model No.CL2019LP10
  • Minimum Order Quantity1 Unit
  • PriceUSD15000
  • Payment TermsT/T, L/C, Western Union
  • Delivery Time25~35 days after we get the deposit
  • ShippingRo-Ro/Bulk cargo/Container shipment / SKD / CKD / etc

 10000L LPG Skid Station 10CBM LPG Skid Station 5Tons LPG Skid Filling Station

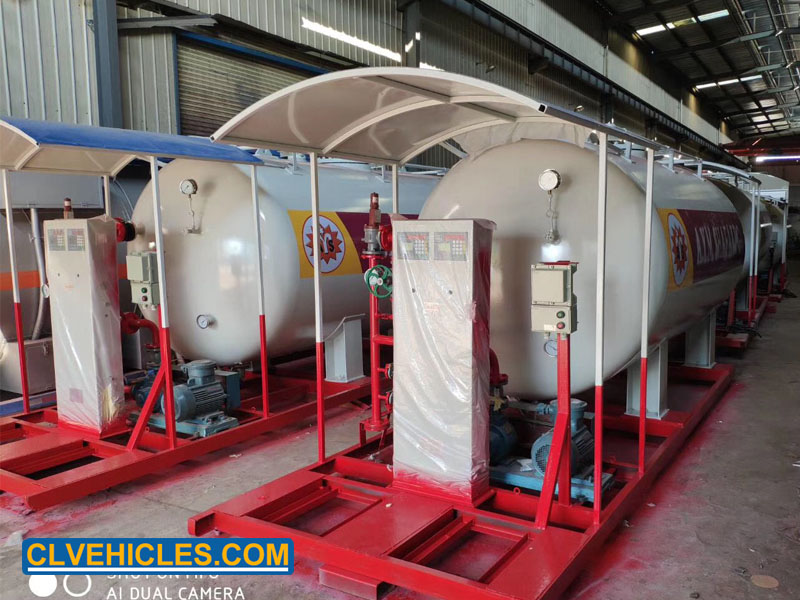

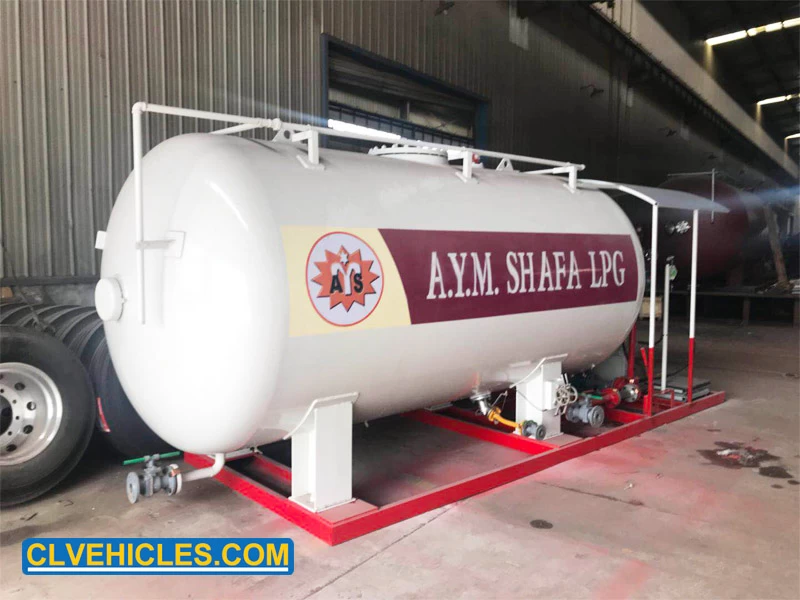

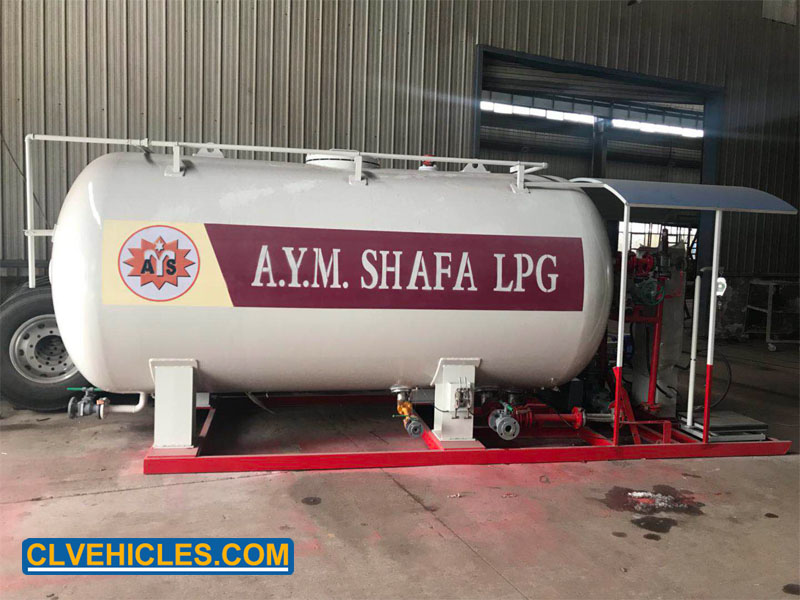

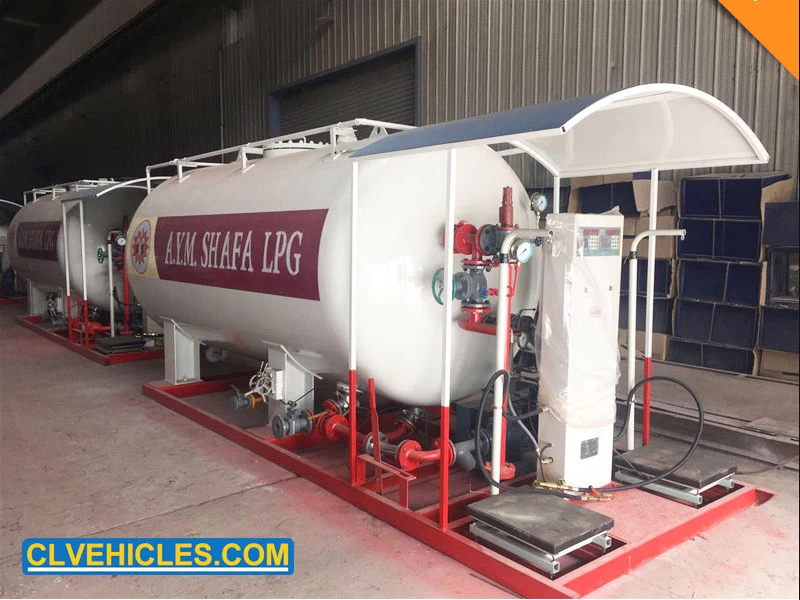

Skid- mounted station consists of a storage tank and two pumps, Pipe section : one pump forms unloading system, another forms filling system, these two systems under fault conditions can be used temporarily. The structure of Skid-mounted stations is divided into four parts, the tank, skid body, LPG dispenser, electronic control box.


Quick Details



Material of tank Carbon steel Q345R

Propane tank capacity

10000 liter

Design temperature

50℃

Design pressure

1.77Mpa

Leak test pressure

1.77Mpa

Hydraulic test pressure

2.3Mpa


Applications


LPG skid station equipped with two hydrocarbon pumps, one unloading pump, one twin screw pump, can be used interchangeably to meet the dump truck, car filling, cylinder filling, flip, sewage, emptying, emergency cut off , Level alarm, leak alarm and other functions.




Competitive Advantages



Our LPG tanker trailer is made of Q345R steel which is specialized for pressure vessel  100% X-ray inspection

Emergency shut off valve fore safety

Double side for discharge and loading ,double tool box and valve box

LPG dispenser optional with automatic fault detection and overload protection


Product Details





Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.
