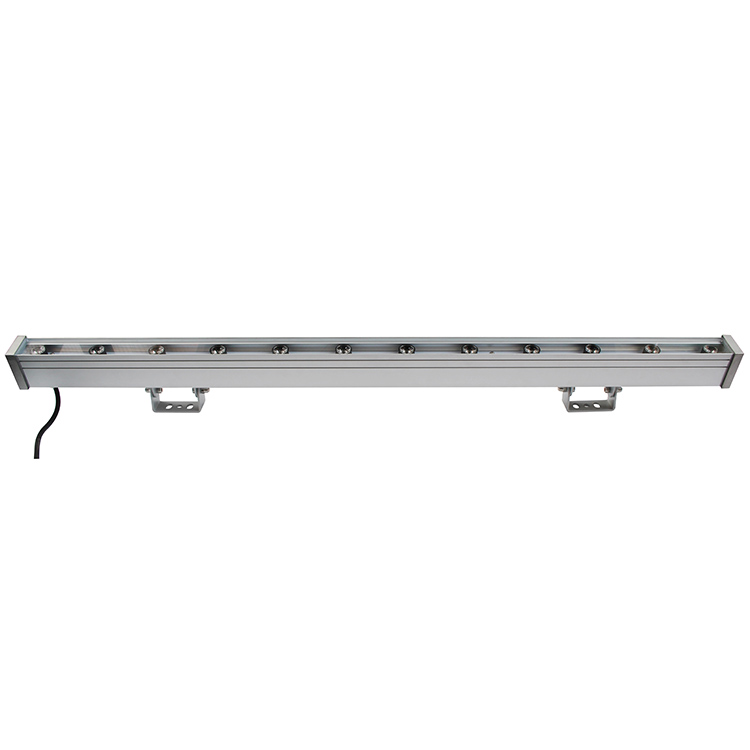

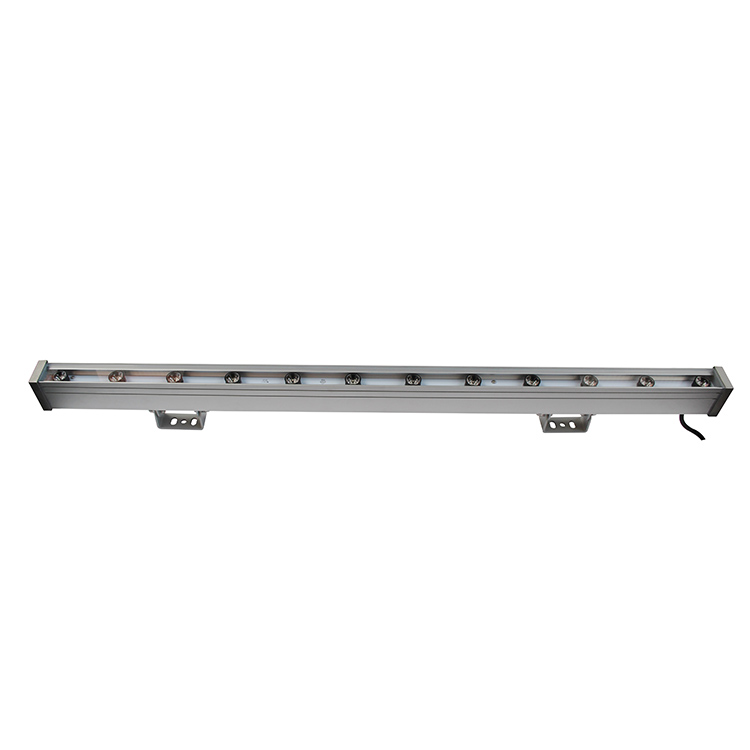

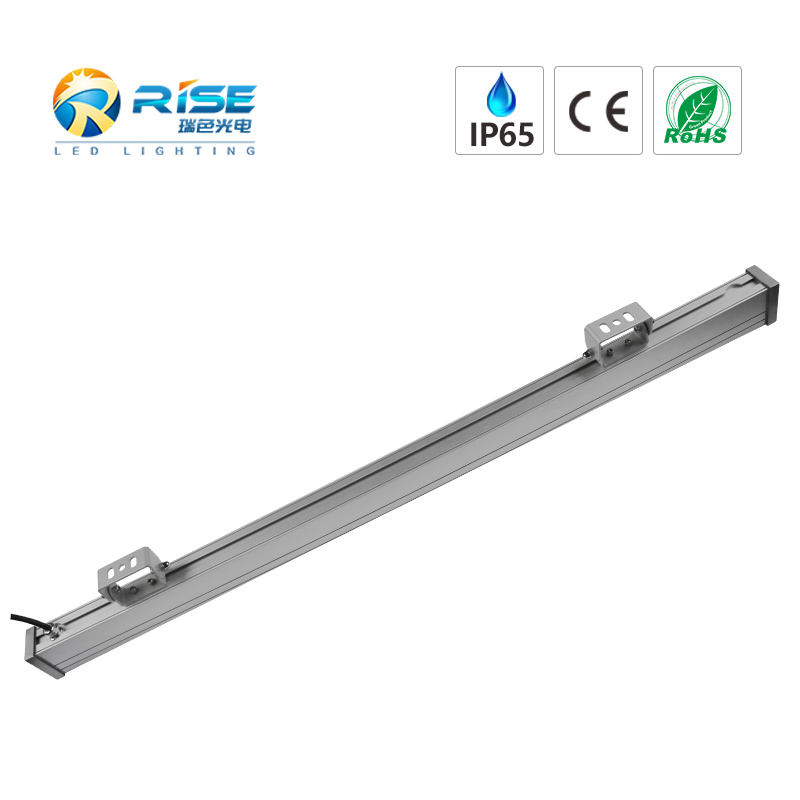

LED wall washer is also called Outdoor LED Wall Washer Lights, LED Wall washer light, LED City Color, LED Wall Washer Light ,etc.
All of them with with Cree & Edison high power led. The led wall wash light Working Voltage: DC24V, AC110V or 220V, Constant current driver, No flash, fast response to achieve over-current,use of safty. RGB DMX512(1990 standard) and RDM system. No waterproof glue to seal the light, IP65 waterproof structure. Easy maintain and replace freely.
DMX decoder built inside, can be made with plug to plug connection.To make sure of high quality for the internal control LED Wall Washer Light, we use rubble cable.
High Power LED Wall Washers are used for decorative lighting and highlight or wash walls of buildings, clubs, hotels, stages.
Specifications of LED City Color Wall Washer Light.
|
Item Number
|
RS-WW48W-B
|
RS-WW48W-B
|
|
Input Voltage
|
DC24V
|
DC24V
|
|
Input Current
|
320--350mA
|
320--350mA
|
|
Driver place
|
AC110-240V:External Driver
|
AC110-240V:External Driver
|
|
Output Power
|
48W
|
48W
|
|
Luminous Flux Output
|
80LM/W
|
80LM/W
|
|
Rendering Index
|
>70Ra(white color)
|
>70Ra(white color)
|
|
Body size
|
45*62*1000MM
|
45*62*1000MM
|
|
Beam angle
|
10--90degree
|
10--90degree
|
|
Light source
|
High power 1W LED
|
High power 1W LED
|
|
Operating temperature
|
-35~ +45 Degrees Celsius
|
-35~ +45 Degrees Celsius
|
|
Storage temperature
|
-30~ +65 Degrees Celsius
|
-30~ +65 Degrees Celsius
|
|
Color optional
|
RGBW, White(2700-6500K),R.Y.G.B
|
RGBW, White(2700-6500K),R.Y.G.B
|
|
Housing material
|
6063 Aluminum
|
6063 Aluminum
|
|
LED’s Operating Life
|
≥45,000Hours
|
≥45,000Hours
|
|
IP rate
|
IP23 indoor use
|
IP23 indoor use
|
|
Cable wire
|
1 meter female-male cable
|
1 meter female-male cable
|
|
RGB Control way
|
Auto color change /DMX512 controllable
|
Auto color change /DMX512 controllable
|
Features of LED City Color Wall Wash Light DC24V

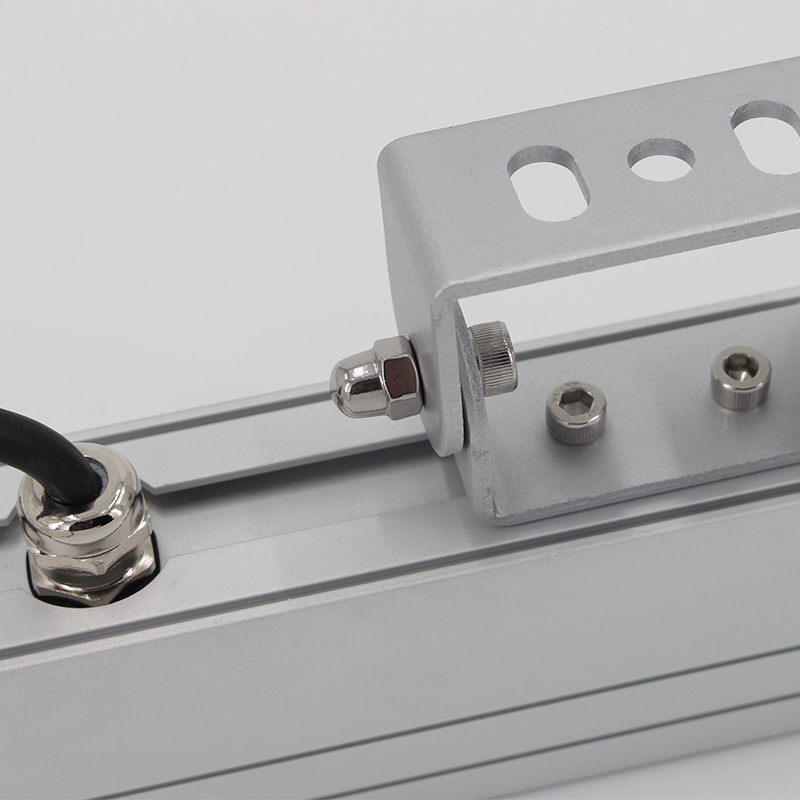

1. High quality die-casting Aluminum light body, be oxidized beauty and good heat dispersing performance. Private mold for all lamp housing.
2. Sealing up the tempered glass with silicone gaskets to reach IP65 waterproof rate. No waterproof glue inside of lamp. You can replace PCB with led freely once problem happened.
3. Using super-brightness and high power led chips. Built-in constant voltage power supply driver .

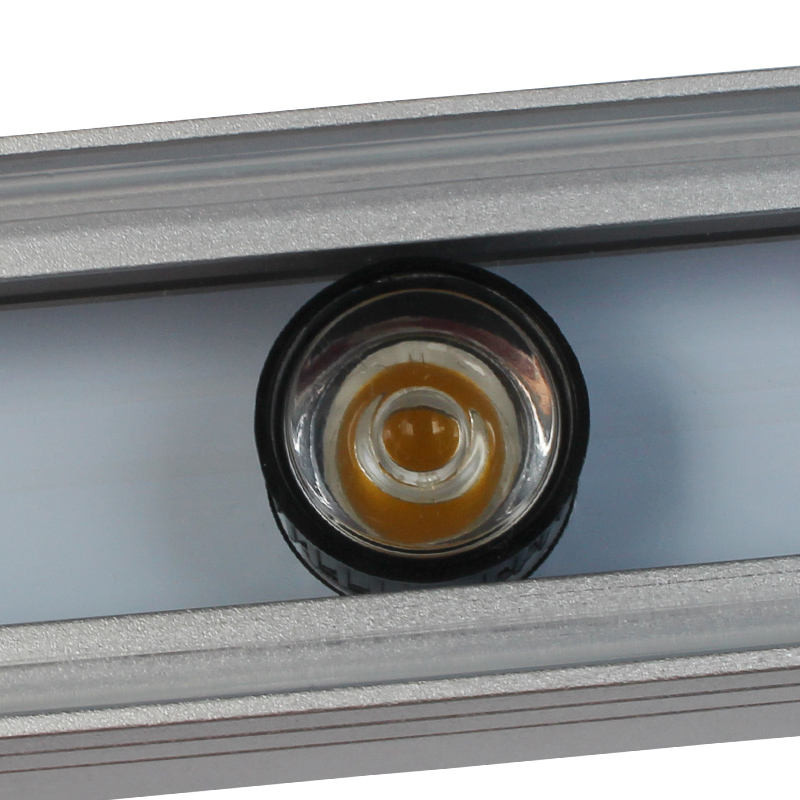

4. PMMA optical lens. with beam angle 8 -90 degrees. Achieve different floor requests.
5. Working voltage is: DC 24V,or AC110V-240V.
6. Single color with steady-on; Auto-control color change synchronously .DMX512 controllable system.
7. Long life, up to 45,000 hours.
Applications for LED City Color Wall Wash Light
Apply to Building, indoor or outdoor lights, Flooding for the landscape structure to outstanding building character. Hotels, airport, Metro. etc
