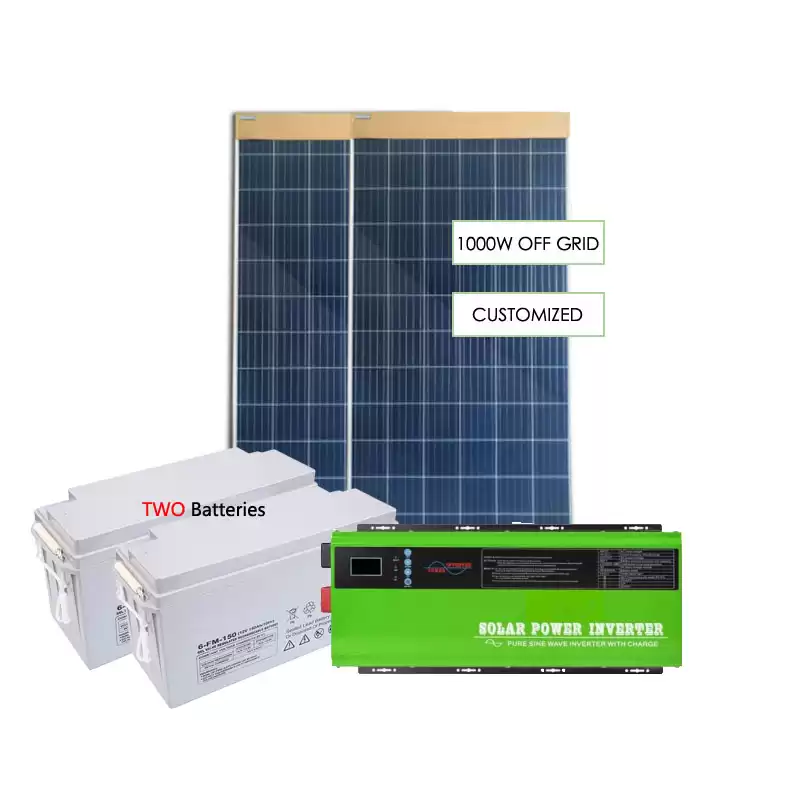

1000W outdoor and home solar power generation system

Our AC DC 1000W solar power system products kit, is a best solar powered generators system for home use, outdoor use, such as household power supply, outdoor lighting, appliances charging,etc.. Easy installation.



  • TypePortable solar system
  • CertificateRoHS, CE, Patent
  • Warranty25Years
  • OEM/ODMYes
  • Voltage24V
  • Battery Capacity150AH
  • Product NameOff grid solar power system

1000W outdoor and home solar power generation system


We have 24V 3000W 2000W 1000W off grid Solar power system for home use and outdoor use. Different solution for your choice.
This 1000W solar system supports AC TO DC and can supply power to the following loads. The electrical appliances that can be powered and the duration of independent support are as follows:


  • Refrigerator (200W): Use alone for about 18 hours
  • Rice cooker (500W): Use alone for about 7 hours
  • Microwave oven (700W): Use alone for about 5 hours
  • TV (100W): Use alone for about 36 hours
  • Water pump (400W): Use alone for about 9 hours


1000W MPPT Solar Charge Controller:


  • Pure sine wave output, full power
  • Sine wave output
  • Built-in MPPT solar controller 30A-100A (optional)
  • With UPS automatic switching function, mains charging function, AVR voltage stabilization function (three-stage voltage stabilization)
  • Specific overload, high voltage, low voltage, short circuit and other perfect protection functions
  • DSP intelligent chip control, excellent performance
  • Strong inverter capacity, one-time soft start, triple output peak power, can carry all inductive loads
  • Fully personalized LCD display, at the same time display solar controller, inverter related information
  • Mains power priority, energy saving mode, solar power priority can be set freely to meet different occasions
  • Battery type, charging voltage, mains charging current (0-35A) can be set freely to meet different types
  • Battery charge management


Default battery system voltage (VDC) 12VDC/24VDC/48VDC
Inverter Output Rated power 1000W
Surge rating (20ms) 3000W
Capable of starting electric Motor 0.5HP
Wave form Pure sine wave/ Same as input (AC mode)
Nominal output voltage RMS 110/120VAC 220/230/240VAC(±10RMS)
Output frequency 50Hz60Hz±0.3Hz
Inverter efficiency(Peak) >85%
Line mode efficiency >95%
Typical transfer time 8ms(Max)
Solar Charge Controller Max solar charging current 30A,40A,50A,60A,80A
Voltage 12V,24V,48V,96V
Max PV input power 12V-30A:360W,12V-50A:600W,12V-60A:720W,12V-80A:960W,12V-100A:1200W,12V-120A:1440W
24V-30A:720W,24V-50A:1200W,24V-60A:1440W,24V-80A:1920W,24V-100A:2400W,24V-120A:2880W
48V-30A:1440W,48V-50A:2400W,48V-60A:2880W,48V-80A3840W,48V-100A:4800W,48V-120A:5760W
96V-80A:7680W,96V-100A:9600W,96V-120A:11520W
PV array MPPT voltage range 12V:18V-100V,24V:36V-130V,48V:72V-160V,96V:144V-280V
Peak conversion efficiency >99%
Other Mounting Wall mount
Display LCD+LED
Cooling fan Intelligent fan cooling system
Audible noise <60dB
Coommunications RS-232,SNMP,WI-FI,Dry Contact(Optional)
Operation temperature range -10℃~50℃
Storage temperature -10℃~60℃
Protection Over load protection Rated power over 110%,shut down automatically
Temperature protection Built-in temperature sensor real-time induction, ,≥85 alarm, ,≥85 shut down the whole machine
Short circuit protection Automatic Shutdown
Battery Low battery protection 10VDC±0.3V (12VDC),20VDC±0.3V (24VDC),40 VDC±0.3V (48VDC),80 VDC±0.3V (96VDC)
Low battery cutoff 10.5VDC±0.3V (12VDC),21VDC±0.3V (24VDC),42 VDC±0.3V (48VDC),84VDC±0.3V (96VDC)
High Battery alarm 15VDC±0.3V (12VDC),30VDC±0.3V (24VDC),60 VDC±0.3V (48VDC),120 VDC±0.3V (96VDC)
High Battery protection 16.5VDC±0.3V (12VDC),33VDC±0.3V (24VDC),66VDC±0.3V (48VDC),132VDC±0.3V (96VDC)


Solar panels:


Polycrystalline Solar panels *2

Maximum output power (Pm)

330W

Best working voltage (Vmp)

37.8V

Best working current (Imp)

8.74A

Open circuit voltage (Voc)

46.9V

Short circuit current (Isc)

9.14A

Maximum rated fuse current

20A

Maximum system voltage

1000VDC

Size

1956*992*40mm

Weight

About 22.5KG

Conversion efficiency

18%

Power deviation

3%

Cell

Polysilicon

Service life

More than 25 years


Batteries:


Maintenance-free battery *2

Battery Type

Valve-controlled maintenance-free gel battery

Voltage

12V

Capacity

150AH

Size

483*170*240mm

Weight

About 42KG


Accessories:


Solar Panel Parallel Head

1 pair

Anti-reverse diode

2 pcs

Bracket

Custom

Battery series line

Custom

Solar panel connection line

Custom

Host connection line

Custom

Remarks: Accessories can be configured according to personal requirements.

Exquisite appearance design, fine craftsmanship, pure sine wave output, sufficient power, sufficient capacity, and easy to carry.


This MPPT Solar Charge Controller, solar system can solve the problem of power shortage and unstable power in places such as homes, pastoral areas, communication base stations, outdoor advertising projects, island fishing boats, border posts, emergency power supplies for special vehicles, and public places.
